ATE 24.0126-0122.1 (24012601221) Brake Disc

ATE part 24.0126-0122.1 (24012601221) Brake Disc

ATE 24.0126-0122.1 (24012601221) Brake Disc

by ATE

Manufacturer Part Number: 24.0126-0122.1 (24012601221)
Alternative ATE part number(s): 426122

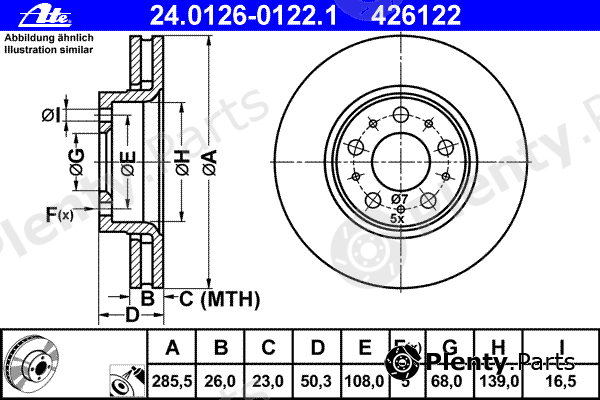

Сharacteristics:
  • Diameter [mm]: 285,5
  • Brake Disc Thickness [mm]: 26
  • Minimum thickness [mm]: 23
  • Brake Disc Type: Vented
  • Number of Holes: 5
  • Surface: Coated
  • Height [mm]: 50,3
  • Centering Diameter [mm]: 68
  • Inner diameter [mm]: 139
  • Bolt Hole Circle Ø [mm]: 108
  • Bore Ø [mm]: 16,5
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0126-0122.1 (24012601221) Alternative ATE part number(s): 426122
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VOLVO vehicles

OE manufacturerOEM reference numbers
VOLVO272403, 946133

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0126-0122.1 (24012601221) Brake Disc offered by A.B.S., ALANKO, AP, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, EUROBRAKE, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, G.U.D, HELLA, HELLA PAGID, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, KRAFT, MAGNETI MARELLI, MALÒ, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17404
ALANKO303225, 304858
AP24795X, 24795V, 24795, X24795
BARUMBAR26122
BENDIX562244BC, 562244B
BORG & BECKBBD4179
BOSCH0986479210
Brake ENGINEERINGDI956025
BRECOBV8421, BS8421
BREMBO09.8633.11, 0986331X, 09.8633.75, 09.8633.10
BREMSIDBB163V
CIFAM800-560, 800560C
DELPHIBG3513, BG3513C
DENCKERMANNB130395
Dr!ve+DP1010110334
EUROBRAKE5815204841
FARCOM230416, 231212
FEBI BILSTEIN18044
FENOXTB217264
FERODODDF1163C, DDF1163-1, DDF1163, DRF1163
FOMARFO2424
fri.tech.BD0804
FTEBS5226, BS5226B
GIRLING6042381
GRAFDF29560
G.U.DGDB126122
HELLA8DD355107-051, 8DD355107-041
HELLA PAGID8DD355107-051, 8DD355107-041
JP GROUP4963100709
JURID562244J, 562244JC
KAGER371411, 371140
KAMOKA1032326
KAWE661910
KEY PARTSKBD4179
KRAFT6046391
MAGNETI MARELLI360406052100, 353616032240
MALÒ1110065
MAPCO15999
METELLI23-0560, 230560C
METZGER6110561, 24795V
MEYLE5155215023, 5155215023/PD
MGAD1454
MINTEXMDC1432
NECTOWN1179
NK314841, 204841
OPEN PARTSBDR191020
OPTIMALBS-6330, BS-7430, BS6330C
PAGID50282PRO, 50282
PATRONPBD4238
PILENGAV817
PROTECHNICPRD2634
QUINTON HAZELL6619.10, BSF5226, BDC5226
REMSA6619.10
ROADHOUSE6619.10
ROTINGERRT20045T5, RT20045
ROULUNDS BRAKINGD2424
sbs1815314841, 1815204841
STARLINEPB20045
STELLOX60204841VSX
SWAG55918044
TEMPLIN0311029685, 0311029680
TEXTAR92100503, 98200100501, 92100500, 98200100501PRO
TRUSTINGDF804
TRWDF4238
VAICOV9580004, V9580010
VALEO186789
VEMA98604
VILLAR6281763
WAGNER LOCKHEEDWGR11631
WOKINGD661910
ZIMMERMANN610.3701.70, 610.3701.20, 610.3701.00, 610370152, 610.3701.50

Vehicle fitment / ATE 24.0126-0122.1 (24012601221) Brake Disc compatibility

This product fits the following models: VOLVO S60 I, VOLVO S80 I, VOLVO V70 II, VOLVO V70II, VOLVO V70 XC, VOLVO XC70 CROSS COUNTRY, etc. See all vehicles this product (ATE 24.0126-0122.1 (24012601221)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
VOLVOS60 I
2.0 T
2.3 T5
2.4
2.4 AWD
2.4 Bifuel
2.4 D
2.4 D5
2.4 T
2.4 T5
2.4 T AWD
2.5 T
2.5 T AWD
T5

CNG
LPG
2000/07 - 2010/04B5204T5 180 hp 132 kW 2 L Petrol
B5234T3 250 hp 184 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5244T3 200 hp 147 kW 2.4 L Petrol
B5244T5 260 hp 191 kW 2.4 L Petrol
B5254T2 210 hp 154 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T2 130 hp 96 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T7 126 hp 93 kW 2.4 L Diesel
AWD / 4WD
Front wheel
Sedan / Saloon
VOLVOS80 I
TS
XY
2.0
2.0 T
2.4
2.4 Bifuel
2.4 D
2.4 D5
2.4 T
2.4 T5 AWD
2.5 T
2.5 T AWD
2.5 TDI
2.8 T6
2.9
3.0
3.0 T6

CNG
LPG
1998/05 - 2006/07B5204T3 226 hp 166 kW 2 L Petrol
B5204T5 180 hp 132 kW 2 L Petrol
B5204T4 163 hp 120 kW 2 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5244T3 200 hp 147 kW 2.4 L Petrol
B5254T2 210 hp 154 kW 2.5 L Petrol
B6284T 272 hp 200 kW 2.8 L Petrol
B6294S 200 hp 147 kW 2.9 L Petrol
B6304S3 204 hp 150 kW 2.9 L Petrol
B6294S2 196 hp 144 kW 3 L Petrol
B6294T 272 hp 200 kW 3 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T2 131 hp 96 kW 2.4 L Diesel
D5252T 140 hp 103 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Sedan / Saloon
VOLVOV70 II
SW
2.0 T
2.3
2.3 T5
2.4
2.4 AWD
2.4 Bifuel
2.4 D
2.4 D5
2.4 D5 AWD
2.4 T
2.4 T5
2.4 T AWD
2.5 AWD
2.5 T
2.5 T AWD
2.5 TDI

CNG
LPG
2000/03 - 2007/08B5204T5 180 hp 132 kW 2 L Petrol
B5234T3 250 hp 184 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5244T3 200 hp 147 kW 2.4 L Petrol
B5244T5 260 hp 191 kW 2.4 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
B5254T2 209 hp 154 kW 2.5 L Petrol
B5254T2 211 hp 155 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T2 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T2 131 hp 96 kW 2.4 L Diesel
D5244T7 126 hp 93 kW 2.4 L Diesel
D5252T 140 hp 103 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
VOLVOV70II
SW
2.0 T
2.3
2.3 T5
2.4
2.4 AWD
2.4 Bifuel
2.4 D
2.4 D5
2.4 D5 AWD
2.4 T
2.4 T5
2.4 T AWD
2.5 AWD
2.5 T
2.5 T AWD
2.5 TDI

CNG
LPG
2000/03 - 2007/08B5204T5 180 hp 132 kW 2 L Petrol
B5234T3 250 hp 184 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5244T3 200 hp 147 kW 2.4 L Petrol
B5244T5 260 hp 191 kW 2.4 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
B5254T2 209 hp 154 kW 2.5 L Petrol
B5254T2 211 hp 155 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T2 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T2 131 hp 96 kW 2.4 L Diesel
D5244T7 126 hp 93 kW 2.4 L Diesel
D5252T 140 hp 103 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
VOLVOV70 XC
2.4 D5 AWD
2.4 D5 XC AWD
2.4 T XC AWD
2.5 T XC AWD
1997/11 - 2007/08B5244T3 200 hp 147 kW 2.4 L Petrol
B5254T 193 hp 142 kW 2.4 L Petrol
B5254T2 209 hp 154 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
AWD / 4WD
Estate / Turnier / Vario / Wagon
VOLVOXC70 CROSS COUNTRY
2.4 D5 AWD
2.4 D5 XC AWD
2.4 T XC AWD
2.5 T XC AWD
1997/11 - 2007/08B5244T3 200 hp 147 kW 2.4 L Petrol
B5254T 193 hp 142 kW 2.4 L Petrol
B5254T2 209 hp 154 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
AWD / 4WD
Estate / Turnier / Vario / Wagon
