ATE 24.0126-0123.1 (24012601231) Brake Disc

ATE part 24.0126-0123.1 (24012601231) Brake Disc

ATE 24.0126-0123.1 (24012601231) Brake Disc

by ATE

Manufacturer Part Number: 24.0126-0123.1 (24012601231)
Alternative ATE part number(s): 426123

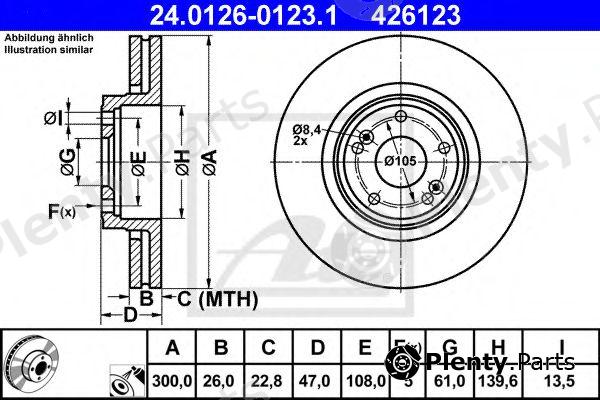

Сharacteristics:
  • Diameter [mm]: 300
  • Brake Disc Thickness [mm]: 26
  • Minimum thickness [mm]: 22,8
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Number of Holes: 5
  • Surface: Coated
  • Height [mm]: 47
  • Centering Diameter [mm]: 61
  • Inner diameter [mm]: 139,6
  • Bolt Hole Circle Ø [mm]: 108
  • Bore Ø [mm]: 13,5
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0126-0123.1 (24012601231) Alternative ATE part number(s): 426123
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for RENAULT vehicles

OE manufacturerOEM reference numbers
RENAULT7701206614, 8200007122, 8671016878

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0126-0123.1 (24012601231) Brake Disc offered by A.B.S., ALANKO, AP, AUTOMEGA, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, EUROBRAKE, FARCOM, FEBI BILSTEIN, FENOX, FERODO, fri.tech., FTE, GIRLING, GRAF, G.U.D, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, KRAFT, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROULUNDS BRAKING, sbs, STARLINE, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17154
ALANKO304224, 305438
AP24827, 24827V
AUTOMEGA30820000070122
BENDIX562381B, 562183B, 562381BC
BORG & BECKBBD4271
BOSCH0986478743, 0986479B47
Brake ENGINEERINGDI956172
BRECOBS8452, BV8452
BREMBODP68025, 09.9074.11, 09.9074.10
BREMSIDBB205V
BSF11433V
CAR142.364
CIFAM800-675
DELPHIBG3688
DENCKERMANNB130156
Dr!ve+DP1010110343
EUROBRAKE5815203932
FARCOM230451, 231226
FEBI BILSTEIN23333
FENOXTB219192
FERODODDF1205-1, DDF1205
fri.tech.BD0815
FTEBS5169, BS5169B
GIRLING6042295
GRAFDF29675
G.U.DGDB126123
HANS PRIES700645
HELLA8DD355109-291, 8DD355109-301
HELLA PAGID8DD355109-291, 8DD355109-301
ICER78BD22352
JP GROUP4363100609
JURID562183J, 562381JC, 562381J
KAGER371168, 371395
KAMOKA1032410
KAWE661210
KEY PARTSKBD4271
KRAFT6045420
LPRR1002V
MAGNETI MARELLI351404720500, 360406008700
MAPCO25101, 251012
MAXGEAR190819MAX, 190819
METELLI23-0675
METZGER24827V, 6110478
MEYLE16155210015
MGAD1426
MINTEXMDK0189, MDC1535
NECTOWN1226
NK313932, 203932
OPEN PARTSBDRS195925, BDR195920
OPTIMALBS6270
PAGID54190PRO, 54190
PATRONPBD4229
PEX14.0717
PILENGAV749
PROTECHNICPRD2628
QUINTON HAZELL6612.10, BDC5169, BSF5169
R BRAKE78RBD22235
REMSA6612.10
ROADHOUSE6612.10
ROULUNDS BRAKINGD2607
sbs1815313932, 1815203932
STARLINEPB20057
SWAG60923333
TEMPLIN0311025325, 0311025320
TEXTAR89014200, 92119003, 98200119001, 92119000
TRISCAN812025139
TRUSTINGDF815
TRWDF4229S
VAICOV4680012
VALEO186716, 197221
VILLAR6280562
WAGNER LOCKHEEDWGR12051
WOKINGD661210
ZIMMERMANN470.2414.00, 470241452, 470241420

Vehicle fitment / ATE 24.0126-0123.1 (24012601231) Brake Disc compatibility

This product fits the following models: RENAULT LAGUNA II, etc. See all vehicles this product (ATE 24.0126-0123.1 (24012601231)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
RENAULTLAGUNA II
BG0/1
KG0/1
1.6 16V
1.6 FlexFuel
1.8 16V
1.9 dCi
1.9 dCI
2.0 16V
2.0 16V IDE
2.0 dCi
2.2 dCi

BG00
BG0K
BG0P
BG0W
BG04
BG0B
BG0C
BG0V
BG05
BG06
BG0J
BG0M
BG08
BG0G
BG09
BG0A
BG0L
BG0B
BG0C
BG0J
BG0M
BG0V
BG0B
BG0M
BG0E
BG0F
BG0N
BG0R
BG1A
BG1V
BG1A
BG1W
BG1G
BG1H
KG00
KG0K
KG0W
KG05
KG09
KG0A
KG0L
KG0B
KG0M
KG0E
KG0E
KG0R
KG0F
KG0G
KG0J
KG0N
KG12
KG1A
KG1W
KG1T
KG1V
2001/03 - F4P770 116 hp 85 kW 1.8 L Petrol
F4P771 116 hp 85 kW 1.8 L Petrol
F4P773 116 hp 85 kW 1.8 L Petrol
F4P774 116 hp 85 kW 1.8 L Petrol
F4P775 116 hp 85 kW 1.8 L Petrol
F4P770 116 hp 85 kW 1.8 L Petrol
F4P771 116 hp 85 kW 1.8 L Petrol
F4P774 116 hp 85 kW 1.8 L Petrol
F4P775 116 hp 85 kW 1.8 L Petrol
F4P770 117 hp 86 kW 1.8 L Petrol
F4P770 121 hp 89 kW 1.8 L Petrol
F4P774 121 hp 89 kW 1.8 L Petrol
F4P770 117 hp 86 kW 1.8 L Petrol
F4P774 117 hp 86 kW 1.8 L Petrol
F4P770 120 hp 88 kW 1.8 L Petrol
F4P773 120 hp 88 kW 1.8 L Petrol
F4P770 121 hp 89 kW 1.8 L Petrol
F4P772 121 hp 89 kW 1.8 L Petrol
F4R712 135 hp 99 kW 2 L Petrol
F4R713 135 hp 99 kW 2 L Petrol
F4R714 135 hp 99 kW 2 L Petrol
F4R715 135 hp 99 kW 2 L Petrol
F4R714 133 hp 98 kW 2 L Petrol
F4R714 133 hp 98 kW 2 L Petrol
F4R715 133 hp 98 kW 2 L Petrol
F5R700 140 hp 103 kW 2 L Petrol
F5R701 140 hp 103 kW 2 L Petrol
F9Q650 120 hp 88 kW 1.9 L Diesel
F9Q670 120 hp 88 kW 1.9 L Diesel
F9Q674 120 hp 88 kW 1.9 L Diesel
F9Q750 120 hp 88 kW 1.9 L Diesel
F9Q664 90 hp 66 kW 1.9 L Diesel
F9Q718 107 hp 79 kW 1.9 L Diesel
F9Q750 125 hp 92 kW 1.9 L Diesel
F9Q754 107 hp 79 kW 1.9 L Diesel
F9Q664 92 hp 68 kW 1.9 L Diesel
F9Q670 120 hp 88 kW 1.9 L Diesel
F9Q674 120 hp 88 kW 1.9 L Diesel
F9Q750 120 hp 88 kW 1.9 L Diesel
F9Q674 110 hp 81 kW 1.9 L Diesel
F9Q758 110 hp 81 kW 1.9 L Diesel
F9Q718 107 hp 79 kW 1.9 L Diesel
F9Q750 116 hp 85 kW 1.9 L Diesel
F9Q750 125 hp 92 kW 1.9 L Diesel
F9Q754 107 hp 79 kW 1.9 L Diesel
F9Q752 100 hp 74 kW 1.9 L Diesel
F9Q752 105 hp 77 kW 1.9 L Diesel
F9Q754 100 hp 74 kW 1.9 L Diesel
F9Q758 116 hp 85 kW 1.9 L Diesel
F9Q759 116 hp 85 kW 1.9 L Diesel
F9Q758 130 hp 96 kW 1.9 L Diesel
F9Q759 130 hp 96 kW 1.9 L Diesel
G9T600 116 hp 85 kW 2.2 L Diesel
G9T600 140 hp 102 kW 2.2 L Diesel
G9T605 140 hp 102 kW 2.2 L Diesel
G9T706 140 hp 102 kW 2.2 L Diesel
G9T707 140 hp 102 kW 2.2 L Diesel
G9T600 140 hp 102 kW 2.2 L Diesel
G9T706 140 hp 102 kW 2.2 L Diesel
G9T707 140 hp 102 kW 2.2 L Diesel
G9T700 150 hp 110 kW 2.2 L Diesel
G9T702 150 hp 110 kW 2.2 L Diesel
G9T702 150 hp 110 kW 2.2 L Diesel
K4M710 107 hp 79 kW 1.6 L Petrol
K4M714 107 hp 79 kW 1.6 L Petrol
K4M716 112 hp 82 kW 1.6 L Petrol
K4M718 103 hp 76 kW 1.6 L Petrol
M9R740 150 hp 110 kW 2 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
