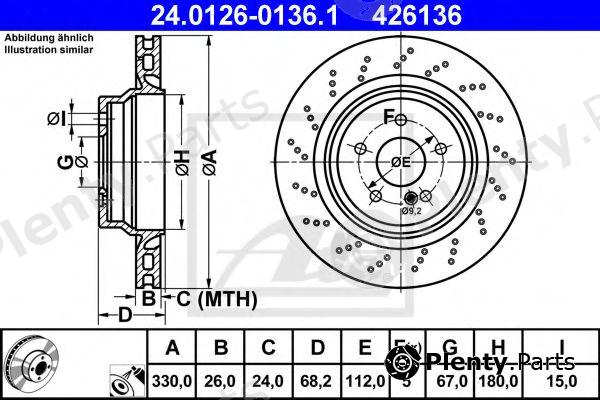

ATE 24.0126-0136.1 (24012601361) Brake Disc

ATE 24.0126-0136.1 (24012601361) Brake Disc

Manufacturer Part Number: 24.0126-0136.1 (24012601361)
Alternative ATE part number(s): 426136

• Diameter [mm]: 330
• Brake Disc Thickness [mm]: 26
• Minimum thickness [mm]: 24
• Brake Disc Type: Perforated / Vented
• Machining: Alloyed / High-carbon
• Surface: Coated
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 112
• Height [mm]: 68,2
• Centering Diameter [mm]: 67
• Inner diameter [mm]: 180
• Bore Ø [mm]: 15
• MAPP code available:
• Warning notice ---------------------- Work on the SBC brake system may only be carried out by trained specialists! ¿ Risk of injury! ¿ System is pressurized! ¿ Observe manufacturer¿s guidelines! ¿ Before starting maintenance and repair work the system must be deactivated. ¿ After finishing maintenance and repair work the system must be reactivated. ¿ Only use appropriate service and diagnosis equipment! ¿ Recommendation: ContiSys Check Item no. 03.9301-6000.4 ContiSys Scan Item no. 03.9301-5000.4 Bleeding unit ATE FB 30s Item no. 03.9302-3010.4 Continental is not liable for damages which occur due to incorrect installation of the product.
