ATE 24.0126-0138.1 (24012601381) Brake Disc
ATE 24.0126-0138.1 (24012601381) Brake Disc
by ATEManufacturer Part Number: 24.0126-0138.1 (24012601381)
Alternative ATE part number(s): 426138

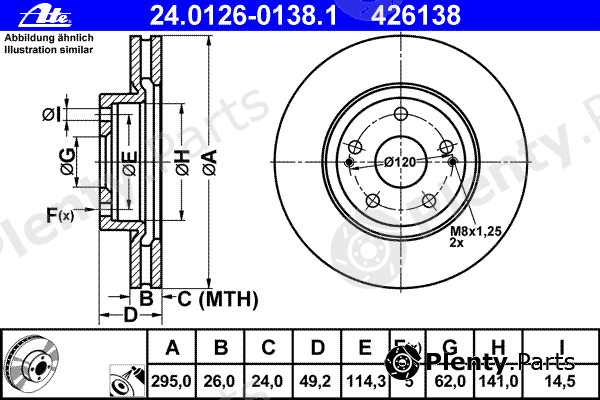

- Diameter [mm]: 295
- Brake Disc Thickness [mm]: 26
- Minimum thickness [mm]: 24
- Brake Disc Type: Vented
- Surface: Coated
- Number of Holes: 5
- Bolt Hole Circle Ø [mm]: 114,3
- Height [mm]: 49,2
- Centering Diameter [mm]: 62
- Inner diameter [mm]: 141
- Bore Ø [mm]: 14,5
- MAPP code available:
Product Details
| Brand | ATE |
| ATE article (MPN) | 24.0126-0138.1 (24012601381) Alternative ATE part number(s): 426138 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for TOYOTA vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| TOYOTA | 43512-05080, 43512-0F010 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 24.0126-0138.1 (24012601381) Brake Disc offered by A.B.S., ALANKO, AP, ASHUKI, BARUM, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, E.T.F., FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, JP GROUP, JURID, KAGER, KAMOKA, KAVO PARTS, KAWE, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NIBK, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, REMSA, ROADHOUSE, ROTINGER, SAKURA, SASIC, sbs, STARLINE, STELLOX, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 17608 |
| ALANKO | 303690 |
| AP | 25162V, 25138, 25138V, 25162 |
| ASHUKI | 09904512, 09904512ABS |
| BARUM | BAR26138 |
| BENDIX | 562430B, 562430BC |
| BLUE PRINT | ADT343199 |
| BORG & BECK | BBD4605 |
| BOSCH | 0986479454, 0986479561, 0204173008 |
| Brake ENGINEERING | DI956341 |
| BRECO | BS8772, BS8747, BV8747, BV8772 |
| BREMBO | 09.9817.20, 09981731, 09.9817.30, 09981721 |
| BREMSI | DBB401V |
| BSF | 11669V |
| CAR | 142.1140 |
| CIFAM | 800-772 |
| DELPHI | BG4113 |
| DENCKERMANN | B130385 |
| E.T.F. | 191611 |
| FENOX | TB219210 |
| FERODO | DDF1401, DDF1401C1, DDF1401-1 |
| FOMAR | FO4131, FO4013 |
| fri.tech. | BD1248 |
| FTE | BS7077B, BS7077 |
| GIRLING | 6044455, 6044155 |
| GRAF | DF29772 |
| HELLA | 8DD355114-661, 8DD355113771, 8DD355114-671 |
| HELLA PAGID | 8DD355114-661, 8DD355114-671, 8DD355113771 |
| HERTH+BUSS JAKOPARTS | J3302168, J3302158 |
| JP GROUP | 4863101909 |
| JURID | 562430JC, 562430J |
| KAGER | 371403, 371408, 370783, 371071 |
| KAMOKA | 1031129 |
| KAVO PARTS | BR9440C, BR9440 |
| KAWE | 6109210, 6105010 |
| LPR | T2014V |
| MAGNETI MARELLI | 360406090800, 600000087640, 360406068200 |
| MAPCO | 25227 |
| METELLI | 23-0772 |
| METZGER | 6110276, 6105010 |
| MEYLE | 30155210071PD, 30155210071, 30155210081 |
| MGA | D1684 |
| MINTEX | MDC1802 |
| NECTO | WN1362 |
| NIBK | RN1318 |
| NIPPARTS | J3302156, J3302154 |
| NK | 2045116 |
| OPEN PARTS | BDA231820, BDR231820 |
| OPTIMAL | BS8264 |
| PAGID | 54584, 54680, 54680PRO |
| PATRON | PBD4445 |
| PILENGA | V645 |
| PROTECHNIC | PRD2557, PRD2491 |
| REMSA | 6105010, 6109210 |
| ROADHOUSE | 6105010, 6109210 |
| ROTINGER | RT20773T5, RT20200T5, RT20773, RT20200 |
| SAKURA | 604203861 |
| SASIC | 6106128, 6106172 |
| sbs | 18152045116 |
| STARLINE | PB20773 |
| STELLOX | 60201131VSX |
| TEMPLIN | 0311028720, 0311028725 |
| TEXTAR | 98200168001, 92158400, 92168003, 92168000 |
| TRISCAN | 8120131009 |
| TRUSTING | DF1248 |
| TRW | DF4445S, DF4445, DF4415S |
| VAICO | V7080024, V7080019 |
| VALEO | 197320 |
| WAGNER LOCKHEED | WGR14011 |
| WOKING | D6105010, D6109210 |
| ZIMMERMANN | 590259220, 590.2592.00, 590259252 |
Vehicle fitment / ATE 24.0126-0138.1 (24012601381) Brake Disc compatibility
This product fits the following models: TOYOTA AVENSIS, TOYOTA COROLLA VERSO, etc. See all vehicles this product (ATE 24.0126-0138.1 (24012601381)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| TOYOTA | AVENSIS T25 T25 | 2.2 D-4D 2.2 D-CAT 2.2 TD | 2005/04 - 2008/11 | 2AD-FHV 177 hp 130 kW 2.2 L Diesel 2AD-FTV 150 hp 110 kW 2.2 L Diesel 3C-TE 101 hp 74 kW 2.2 L Diesel | Front wheel | Estate / Turnier / Vario / Wagon Hatchback / Sportback / Sport hatch Sedan / Saloon |
| TOYOTA | COROLLA VERSO ZER ZZE12 R1 | 1.6 1.8 2.0 D-4D 2.2 D-4D | 2004/03 - 2009/03 | 1CD-FTV 116 hp 85 kW 2 L Diesel 1ZZ-FE 129 hp 95 kW 1.8 L Petrol 4S-FE 125 hp 92 kW 1.8 L Petrol 2AD-FHV 177 hp 130 kW 2.2 L Diesel 2AD-FTV 136 hp 100 kW 2.2 L Diesel 3ZZ-FE 110 hp 81 kW 1.6 L Petrol | Front wheel | MPV / Van / Minivan |
