ATE 24.0126-0145.1 (24012601451) Brake Disc

ATE part 24.0126-0145.1 (24012601451) Brake Disc

ATE 24.0126-0145.1 (24012601451) Brake Disc

by ATE

Manufacturer Part Number: 24.0126-0145.1 (24012601451)
Alternative ATE part number(s): 426145

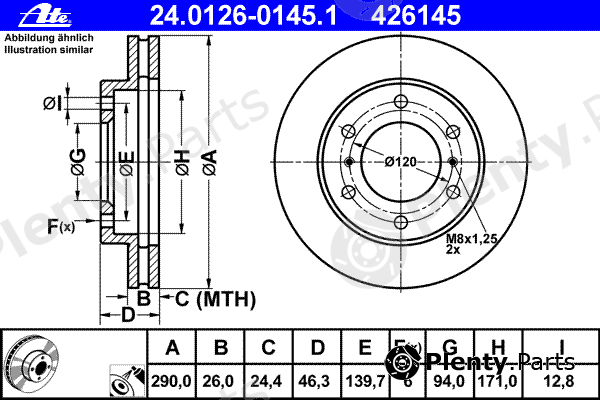

Сharacteristics:
  • Diameter [mm]: 290
  • Brake Disc Thickness [mm]: 26
  • Minimum thickness [mm]: 24,4
  • Brake Disc Type: Vented
  • Surface: Coated
  • Number of Holes: 6
  • Bolt Hole Circle Ø [mm]: 139,7
  • Height [mm]: 46,3
  • Centering Diameter [mm]: 94
  • Inner diameter [mm]: 171
  • Bore Ø [mm]: 12,8
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0126-0145.1 (24012601451) Alternative ATE part number(s): 426145
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for MITSUBISHI vehicles

OE manufacturerOEM reference numbers
MITSUBISHI4615A061, MR407116, MR407289

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0126-0145.1 (24012601451) Brake Disc offered by A.B.S., ALANKO, AP, ASHUKI, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, G.U.D, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, JP GROUP, JURID, KAGER, KAMOKA, KAWE, LPR, MAGNETI MARELLI, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NATIONAL, NIBK, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, sbs, SWAG, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17118
ALANKO303880
AP25172V, 25172
ASHUKI09902505
BENDIX562572BC
BLUE PRINTADC44378, ADC443110
BORG & BECKBBD5250, BBD4357
BOSCH0986478990
Brake ENGINEERINGDI956330
BRECOBV8782, BS8782
BREMBO09A91111, 09.A911.10, 09.9996.10
BSF11830V
CAR142.028
CIFAM800-777
DELPHIBG3812, BG4229
DENCKERMANNB130578
FEBI BILSTEIN26048
FENOXTB217622
FERODODDF1384, DDF1937, DDF1937-1, DDF1384-1
FOMARFO2891
fri.tech.BD0730
FTEBS5266, BS7235
GIRLING6048701, 6049421
GRAFDF29777
G.U.DGDB126145
HELLA8DD355118-631, 8DD355114-571, 8DD355119-071, 8DD355110-671
HELLA PAGID8DD355119-071, 8DD355114-571, 8DD355118-631, 8DD355110-671
HERTH+BUSS JAKOPARTSJ3305052, J3305072
JP GROUP3963100509
JURID562572JC
KAGER370729
KAMOKA1031008
KAWE663910
LPRM1016V
MAGNETI MARELLI360406093100, 600000088830, 600000088980
MAXGEAR190948
METELLI23-0777
METZGER6110359, 663910
MEYLE32-855210001, 32-855210001/PD
MGAD1616, D1847
MINTEXMDC1576, MDC2040
NATIONALNBD1195
NIBKRN1188
NIPPARTSJ3305052
NK203054
OPEN PARTSBDR187320
OPTIMALBS6500
PAGID54671, 54288
PATRONPBD4369
PILENGAV622, V705
QUINTON HAZELLBDC5266, 6639.10, BSF5266
REMSA6639.10
ROADHOUSE6639.10
ROTINGERRT2795, RT2795T5
sbs1815203054
SWAG80926048
TEMPLIN0311019860, 0311019865
TEXTAR98200167101, 92128800, 98200128801, 92167100, 92167103, 92128803
TRUSTINGDF730
TRWDF4870, DF4942, DF4159, DF4369, DF7060
VAICOV3780007
WOKINGD663910
ZIMMERMANN380.2169.50, 380.2169.52, 380216920, 380.2169.00

Vehicle fitment / ATE 24.0126-0145.1 (24012601451) Brake Disc compatibility

This product fits the following models: MITSUBISHI MONTERO, MITSUBISHI MONTERO CLASSIC, MITSUBISHI MONTERO III, MITSUBISHI MONTERO IV, MITSUBISHI PAJERO CLASSIC, MITSUBISHI PAJERO FULL IV, MITSUBISHI PAJERO III, MITSUBISHI PAJERO IV, MITSUBISHI PAJEROSHOGUN, MITSUBISHI PAJEROSHOGUN CLASSIC, MITSUBISHI PAJEROSHOGUNIII, MITSUBISHI PAJEROSHOGUN III, MITSUBISHI PAJEROSHOGUN IV, MITSUBISHI SHOGUN III, MITSUBISHI SHOGUN IV, etc. See all vehicles this product (ATE 24.0126-0145.1 (24012601451)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
MITSUBISHIMONTERO
V90
V80
V8V
3.2 DI-D
3.2 DI-D 4WD
3.2 TD 4WD
2006/11 - 190 hp 140 kW 3.2 L Diesel
4M41 160 hp 118 kW 3.2 L Diesel
4M41 200 hp 147 kW 3.2 L Diesel
AWD / 4WD
LCV / Van / Cargo
MITSUBISHIMONTERO CLASSIC
V2W
2.5 TD
3.2 DiD
2002/07 - 4D56T 115 hp 85 kW 2.5 L Diesel
4M41 170 hp 125 kW 3.2 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHIMONTERO III
V6W
V7W
V7W
V6W
2.5 TDi
3.2 Di-D
3.2 DI-D
3.5
3.5 i
3.5 V6 GDI

V64W
V74W
V65W
V75W
V68W
V78W
2000/04 - 2007/014D56T 115 hp 85 kW 2.5 L Diesel
4D56T 99 hp 73 kW 2.5 L Diesel
4M41 160 hp 118 kW 3.2 L Diesel
4M41 165 hp 121 kW 3.2 L Diesel
6G74(DOHC24V) 203 hp 149 kW 3.5 L Petrol
6G74(DOHC24V) 218 hp 160 kW 3.5 L Petrol
6G74(SOHC24V) 218 hp 160 kW 3.5 L Petrol
6G74(GDI) 203 hp 149 kW 3.5 L Petrol
AWD / 4WD
Rear wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
SUV hardtop / SUV softtop / SUV Sport / SUV cabrio
MITSUBISHIMONTERO IV
V8W
V9W
3.2 DI-D
3.2 DI-D 4WD
3.8 V6

V87W
V97W
V88W
V98W
V98W
V98W
V88W
2007/02 - 4M41 160 hp 118 kW 3.2 L Diesel
4M41 170 hp 125 kW 3.2 L Diesel
4M41 165 hp 121 kW 3.2 L Diesel
4M41 190 hp 140 kW 3.2 L Diesel
4M41 200 hp 147 kW 3.2 L Diesel
6G75 248 hp 182 kW 3.8 L Petrol
6G75 250 hp 184 kW 3.8 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHIPAJERO CLASSIC
V2W
2.5 TD
3.2 DiD
2002/07 - 4D56T 115 hp 85 kW 2.5 L Diesel
4M41 170 hp 125 kW 3.2 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHIPAJERO FULL IV
V8W
V9W
3.2 DI-D
3.2 DI-D 4WD
3.8 V6

V87W
V97W
V88W
V98W
V98W
V98W
V88W
2007/02 - 4M41 160 hp 118 kW 3.2 L Diesel
4M41 170 hp 125 kW 3.2 L Diesel
4M41 165 hp 121 kW 3.2 L Diesel
4M41 190 hp 140 kW 3.2 L Diesel
4M41 200 hp 147 kW 3.2 L Diesel
6G75 248 hp 182 kW 3.8 L Petrol
6G75 250 hp 184 kW 3.8 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHIPAJERO III
V6W
V7W
V6W
V7W
NM
NP
V7W
V6W
2.5 TDi
3.2 Di-D
3.2 DI-D
3.5
3.5 i
3.5 V6 GDI

V64W
V74W
V65W
V75W
V68W
V78W
2000/04 - 2007/014D56T 115 hp 85 kW 2.5 L Diesel
4D56T 99 hp 73 kW 2.5 L Diesel
4M41 160 hp 118 kW 3.2 L Diesel
4M41 165 hp 121 kW 3.2 L Diesel
6G74(DOHC24V) 203 hp 149 kW 3.5 L Petrol
6G74(DOHC24V) 218 hp 160 kW 3.5 L Petrol
6G74(SOHC24V) 218 hp 160 kW 3.5 L Petrol
6G74(GDI) 203 hp 149 kW 3.5 L Petrol
AWD / 4WD
Rear wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
SUV hardtop / SUV softtop / SUV Sport / SUV cabrio
MITSUBISHIPAJERO IV
V8W
V9W
V8W
V9W
NS
NT
NW
NX
V90
V80
V8V
3.2 DI-D
3.2 DI-D 4WD
3.2 TD 4WD
3.8 V6

V87W
V97W
V88W
V98W
V98W
V98W
V88W
2006/11 - 190 hp 140 kW 3.2 L Diesel
4M41 160 hp 118 kW 3.2 L Diesel
4M41 160 hp 118 kW 3.2 L Diesel
4M41 170 hp 125 kW 3.2 L Diesel
4M41 165 hp 121 kW 3.2 L Diesel
4M41 190 hp 140 kW 3.2 L Diesel
4M41 200 hp 147 kW 3.2 L Diesel
6G75 248 hp 182 kW 3.8 L Petrol
6G75 250 hp 184 kW 3.8 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
LCV / Van / Cargo
MITSUBISHIPAJEROSHOGUN
V90
V80
V8V
3.2 DI-D
3.2 DI-D 4WD
3.2 TD 4WD
2006/11 - 190 hp 140 kW 3.2 L Diesel
4M41 160 hp 118 kW 3.2 L Diesel
4M41 200 hp 147 kW 3.2 L Diesel
AWD / 4WD
LCV / Van / Cargo
MITSUBISHIPAJEROSHOGUN CLASSIC
V2W
2.5 TD
3.2 DiD
2002/07 - 4D56T 115 hp 85 kW 2.5 L Diesel
4M41 170 hp 125 kW 3.2 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHIPAJEROSHOGUNIII
V6W
V7W
2.5 TDi
3.2 DI-D
3.5 i
3.5 V6 GDI

V64W
V74W
V65W
V75W
V68W
V78W
2000/04 - 2006/124D56T 115 hp 85 kW 2.5 L Diesel
4D56T 99 hp 73 kW 2.5 L Diesel
4M41 160 hp 118 kW 3.2 L Diesel
4M41 165 hp 121 kW 3.2 L Diesel
6G74(DOHC24V) 218 hp 160 kW 3.5 L Petrol
6G74(SOHC24V) 218 hp 160 kW 3.5 L Petrol
6G74(GDI) 203 hp 149 kW 3.5 L Petrol
AWD / 4WD
Rear wheel
SUV hardtop / SUV softtop / SUV Sport / SUV cabrio
MITSUBISHIPAJEROSHOGUN III
V6W
V7W
V7W
V6W
2.5 TDi
3.2 Di-D
3.2 DI-D
3.5
3.5 i
3.5 V6 GDI

V64W
V74W
V65W
V75W
V68W
V78W
2000/04 - 2007/014D56T 115 hp 85 kW 2.5 L Diesel
4D56T 99 hp 73 kW 2.5 L Diesel
4M41 160 hp 118 kW 3.2 L Diesel
4M41 165 hp 121 kW 3.2 L Diesel
6G74(DOHC24V) 203 hp 149 kW 3.5 L Petrol
6G74(DOHC24V) 218 hp 160 kW 3.5 L Petrol
6G74(SOHC24V) 218 hp 160 kW 3.5 L Petrol
6G74(GDI) 203 hp 149 kW 3.5 L Petrol
AWD / 4WD
Rear wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
SUV hardtop / SUV softtop / SUV Sport / SUV cabrio
MITSUBISHIPAJEROSHOGUN IV
V8W
V9W
3.2 DI-D
3.2 DI-D 4WD
3.8 V6

V87W
V97W
V88W
V98W
V98W
V98W
V88W
2007/02 - 4M41 160 hp 118 kW 3.2 L Diesel
4M41 170 hp 125 kW 3.2 L Diesel
4M41 165 hp 121 kW 3.2 L Diesel
4M41 190 hp 140 kW 3.2 L Diesel
4M41 200 hp 147 kW 3.2 L Diesel
6G75 248 hp 182 kW 3.8 L Petrol
6G75 250 hp 184 kW 3.8 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHISHOGUN III
V6W
V7W
V7W
V6W
2.5 TDi
3.2 Di-D
3.2 DI-D
3.5
3.5 i
3.5 V6 GDI

V64W
V74W
V65W
V75W
V68W
V78W
2000/04 - 2007/014D56T 115 hp 85 kW 2.5 L Diesel
4D56T 99 hp 73 kW 2.5 L Diesel
4M41 160 hp 118 kW 3.2 L Diesel
4M41 165 hp 121 kW 3.2 L Diesel
6G74(DOHC24V) 203 hp 149 kW 3.5 L Petrol
6G74(DOHC24V) 218 hp 160 kW 3.5 L Petrol
6G74(SOHC24V) 218 hp 160 kW 3.5 L Petrol
6G74(GDI) 203 hp 149 kW 3.5 L Petrol
AWD / 4WD
Rear wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
SUV hardtop / SUV softtop / SUV Sport / SUV cabrio
MITSUBISHISHOGUN IV
V8W
V9W
3.2 DI-D
3.2 DI-D 4WD
3.8 V6

V87W
V97W
V88W
V98W
V98W
V98W
V88W
2007/02 - 4M41 160 hp 118 kW 3.2 L Diesel
4M41 170 hp 125 kW 3.2 L Diesel
4M41 165 hp 121 kW 3.2 L Diesel
4M41 190 hp 140 kW 3.2 L Diesel
4M41 200 hp 147 kW 3.2 L Diesel
6G75 248 hp 182 kW 3.8 L Petrol
6G75 250 hp 184 kW 3.8 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
