ATE 24.0126-0148.1 (24012601481) Brake Disc

ATE part 24.0126-0148.1 (24012601481) Brake Disc

ATE 24.0126-0148.1 (24012601481) Brake Disc

by ATE

Manufacturer Part Number: 24.0126-0148.1 (24012601481)
Alternative ATE part number(s): 426148

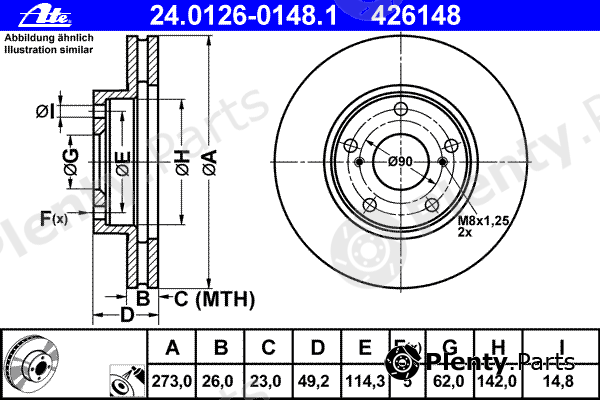

Сharacteristics:
  • Diameter [mm]: 273
  • Brake Disc Thickness [mm]: 26
  • Minimum thickness [mm]: 23
  • Brake Disc Type: Vented
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 114,3
  • Height [mm]: 49,2
  • Centering Diameter [mm]: 62
  • Inner diameter [mm]: 142
  • Bore Ø [mm]: 14,8
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0126-0148.1 (24012601481) Alternative ATE part number(s): 426148
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for TOYOTA vehicles

OE manufacturerOEM reference numbers
TOYOTA43512-02180, 43512-12690

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0126-0148.1 (24012601481) Brake Disc offered by A.B.S., ALANKO, AP, ASHUKI, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, E.T.F., FENOX, FERODO, FOMAR, FREMAX, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, JP GROUP, KAGER, KAMOKA, KAVO PARTS, KAWE, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NIBK, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, VALEO, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17828
ALANKO303689
AP25196V
ASHUKI09900612
BLUE PRINTADT343279
BORG & BECKBBD4682
BOSCH0986479R45, 0986479425, 0986479S16
Brake ENGINEERINGDI956782
BRECOBS8806, BV8806
BREMBO09.A865.11, 09.A865.14
BSF11859V
CAR142.683
CIFAM800979C
DELPHIBG4234
DENCKERMANNB130383
Dr!ve+DP1010110541
E.T.F.191599
FENOXTB217652
FERODODDF1668, DDF1668-1
FOMARFO4108
FREMAXBD2887
fri.tech.BD1220
FTEBS7619B, BS7619
GIRLING6048081
HELLA8DD355114-261, 8DD355118-951
HELLA PAGID8DD355118-951, 8DD355114-261
HERTH+BUSS JAKOPARTSJ3302171
JP GROUP4863102609
KAGER371206, 371400
KAMOKA1031035
KAVO PARTSBR9503C, BR9503
KAWE6104310
LPRT2048V
MAGNETI MARELLI360406102000, 600000087690, 360704006100
MAPCO25224
MAXGEAR191867
METELLI230979C
METZGER6110537
MEYLE30155210063
MGAD1778
MINTEXMDC2017
NIBKRN1351
NIPPARTSJ3302159
NK2045120
OPEN PARTSBDR237720, BDA237720
OPTIMALBS8512
PAGID54637
PATRONPBD4808
PILENGAV733
PROTECHNICPRD2734
QUINTON HAZELLBDC5669
REMSA6104310
ROADHOUSE6104310
ROTINGERRT20649T5, RT20649
SASIC6106130
sbs18152045120
TEMPLIN0311029050, 0311029055
TEXTAR92163700, 92163703, 98200163701
TRUSTINGDF1220
TRWDF4808
VAICOV7080021
VALEO197185
WOKINGD6104310
ZIMMERMANN590280252, 590280220

Vehicle fitment / ATE 24.0126-0148.1 (24012601481) Brake Disc compatibility

This product fits the following models: TOYOTA ALTIS, TOYOTA AURIS, TOYOTA BLADE, TOYOTA COROLLA, etc. See all vehicles this product (ATE 24.0126-0148.1 (24012601481)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
TOYOTAALTIS
E15
1.4 D-4D
2007/01 - 1ND-TV 90 hp 66 kW 1.4 L Diesel
Front wheel
Sedan / Saloon
TOYOTAAURIS
NRE15
ZZE15
ADE15
ZRE15
NDE15
1.33 Dual-VVTi
1.4 D-4D
1.4 VVTi
1.5
1.5 4WD
1.6
1.6 VVTi
1.8
1.8 4WD
1.8 VVTi
2006/10 - 2012/091ND-TV 90 hp 66 kW 1.4 L Diesel
1NR-FE 101 hp 74 kW 1.33 L Petrol
1NR-FE 99 hp 73 kW 1.33 L Petrol
1NZ-FE 105 hp 77 kW 1.5 L Petrol
1NZ-FE 110 hp 81 kW 1.5 L Petrol
1ZR-FAE 132 hp 97 kW 1.6 L Petrol
1ZR-FE 124 hp 91 kW 1.6 L Petrol
2ZR-FAE 136 hp 100 kW 1.8 L Petrol
2ZR-FAE 144 hp 106 kW 1.8 L Petrol
2ZR-FAE 147 hp 108 kW 1.8 L Petrol
2ZR-FE 136 hp 100 kW 1.8 L Petrol
4ZZ-FE 97 hp 71 kW 1.4 L Petrol
AWD / 4WD
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTABLADE
NRE15
ZZE15
ADE15
ZRE15
NDE15
1.33 Dual-VVTi
1.4 D-4D
1.4 VVTi
1.5
1.5 4WD
1.6
1.6 VVTi
1.8
1.8 4WD
1.8 VVTi
2006/10 - 2012/091ND-TV 90 hp 66 kW 1.4 L Diesel
1NR-FE 101 hp 74 kW 1.33 L Petrol
1NR-FE 99 hp 73 kW 1.33 L Petrol
1NZ-FE 105 hp 77 kW 1.5 L Petrol
1NZ-FE 110 hp 81 kW 1.5 L Petrol
1ZR-FAE 132 hp 97 kW 1.6 L Petrol
1ZR-FE 124 hp 91 kW 1.6 L Petrol
2ZR-FAE 136 hp 100 kW 1.8 L Petrol
2ZR-FAE 144 hp 106 kW 1.8 L Petrol
2ZR-FAE 147 hp 108 kW 1.8 L Petrol
2ZR-FE 136 hp 100 kW 1.8 L Petrol
4ZZ-FE 97 hp 71 kW 1.4 L Petrol
AWD / 4WD
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTACOROLLA
E15
NRE15
ZZE15
ADE15
ZRE15
NDE15
1.33 Dual-VVTi
1.4 D-4D
1.4 VVTi
1.5
1.5 4WD
1.6
1.6 VVTi
1.8
1.8 4WD
1.8 VVTi
2006/10 - 1ND-TV 90 hp 66 kW 1.4 L Diesel
1NR-FE 101 hp 74 kW 1.33 L Petrol
1NR-FE 99 hp 73 kW 1.33 L Petrol
1NZ-FE 105 hp 77 kW 1.5 L Petrol
1NZ-FE 110 hp 81 kW 1.5 L Petrol
1ZR-FAE 132 hp 97 kW 1.6 L Petrol
1ZR-FE 124 hp 91 kW 1.6 L Petrol
2ZR-FAE 136 hp 100 kW 1.8 L Petrol
2ZR-FAE 144 hp 106 kW 1.8 L Petrol
2ZR-FAE 147 hp 108 kW 1.8 L Petrol
2ZR-FE 136 hp 100 kW 1.8 L Petrol
4ZZ-FE 97 hp 71 kW 1.4 L Petrol
AWD / 4WD
Front wheel
Hatchback / Sportback / Sport hatch
Sedan / Saloon
