ATE 24.0126-0150.1 (24012601501) Brake Disc

ATE part 24.0126-0150.1 (24012601501) Brake Disc

ATE 24.0126-0150.1 (24012601501) Brake Disc

by ATE

Manufacturer Part Number: 24.0126-0150.1 (24012601501)
Alternative ATE part number(s): 426150

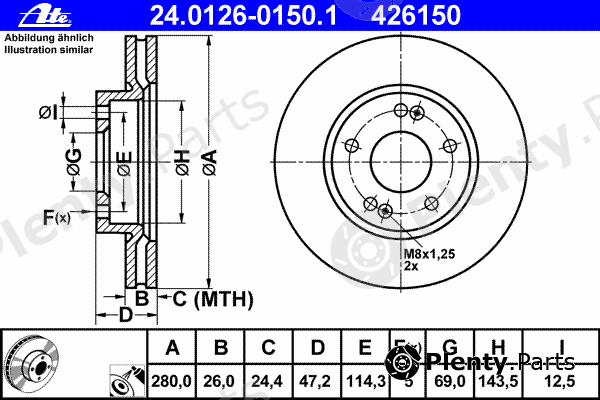

Сharacteristics:
  • Diameter [mm]: 280
  • Brake Disc Thickness [mm]: 26
  • Minimum thickness [mm]: 24,4
  • Brake Disc Type: Vented
  • Machining: Alloyed / High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 114,3
  • Height [mm]: 47,2
  • Centering Diameter [mm]: 69
  • Inner diameter [mm]: 143,5
  • Bore Ø [mm]: 12,5
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0126-0150.1 (24012601501) Alternative ATE part number(s): 426150
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for HYUNDAI / KIA (MOBIS) vehicles

OE manufacturerOEM reference numbers
HYUNDAI / KIA (MOBIS)51712-1H000, 51712-1H100, 51712-2K100

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0126-0150.1 (24012601501) Brake Disc offered by A.B.S., ALANKO, AP, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECK, BRECO, BREMBO, BREMSI, BSF, CIFAM, DELPHI, DENCKERMANN, EUROBRAKE, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GALFER, GIRLING, G.U.D, HANS PRIES, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, JP GROUP, JURID, KAGER, KAMOKA, KAVO PARTS, KAWE, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NIBK, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, STELLOX, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.18151
ALANKO303982
AP25103
BLUE PRINTADG043130
BORG & BECKBBD5270
BOSCH0986479460, 0986479C13, 0986479991
Brake ENGINEERINGDI956778
BRECKBR356VA100
BRECOBS8712
BREMBO09.9574.40
BREMSIDBB619V
BSF11545V
CIFAM800927C
DELPHIBG4281, BG3861
DENCKERMANNB130289
EUROBRAKE5815203526
FEBI BILSTEIN31470
FENOXTB219312
FERODODDF16191, DDF1619
FOMARFO2680
fri.tech.BD0156
FTEBS7132, BS7132B
GALFERB1G22601501
GIRLING6048655
G.U.DGDB126150
HANS PRIES820603
HELLA8DD355114-021, 8DD355118151
HELLA PAGID8DD355114-021, 8DD355118151
HERTH+BUSS JAKOPARTSJ3300510
JP GROUP3563100809
JURID562433J, 562625JC, 562433JC
KAGER371224
KAMOKA1031040
KAVO PARTSBR3228, BR3228C
KAWE6120810
LPRK2016V
MAGNETI MARELLI360406067900, 600000085860
MAPCO25215
METELLI230927C
METZGER6120810, 6110175
MEYLE28-155210008, 28155210008PD
MGAD1743
MINTEXMDC2056
NIBKRN1412
NIPPARTSJ3300530
NK203526
OPEN PARTSBDA244320, BDR244320
OPTIMALBS8434
PAGID54616
PATRONPBD4865
PILENGAV958
PROTECHNICPRD2559
REMSA6120810
ROADHOUSE6120810
ROTINGERRT20659T5, RT20659
SASIC6106164
sbs1815203526
STELLOX60201091VSX
SWAG90931470
TEMPLIN0311017265, 0311017260
TEXTAR92161603, 92161600, 98200161601
TRISCAN812043123, 812043123C
TRUSTINGDF156
TRWDF4865S
VAICOV5280007
VALEO297205, 197205
VEMA98754
WAGNER LOCKHEEDWGR16191
WOKINGD6120810
ZIMMERMANN320380620, 320380652

Vehicle fitment / ATE 24.0126-0150.1 (24012601501) Brake Disc compatibility

This product fits the following models: HYUNDAI ELANTRA, HYUNDAI I30, HYUNDAI I30 CW, HYUNDAI IX20, KIA CEE'D, KIA CEE'D SW, KIA PRO CEE'D, KIA SOUL, KIA SOUL II, KIA VENGA, etc. See all vehicles this product (ATE 24.0126-0150.1 (24012601501)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
HYUNDAIELANTRA
FD
1.4
1.6
1.6 CRDi
2.0
2.0 CRDi
2007/10 - 2011/11D4EA 136 hp 100 kW 2 L Diesel
D4EA 140 hp 103 kW 2 L Diesel
D4FB 116 hp 85 kW 1.6 L Diesel
D4FB 128 hp 94 kW 1.6 L Diesel
D4FB 90 hp 66 kW 1.6 L Diesel
G4FA 105 hp 77 kW 1.4 L Petrol
G4FA 109 hp 80 kW 1.4 L Petrol
G4FC 116 hp 85 kW 1.6 L Petrol
G4FC 122 hp 90 kW 1.6 L Petrol
G4FC 126 hp 93 kW 1.6 L Petrol
G4GC 143 hp 105 kW 2 L Petrol
G4GC-G 143 hp 105 kW 2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
HYUNDAII30
FD
1.4
1.6
1.6 CRDi
2.0
2.0 CRDi
2007/10 - 2011/11D4EA 136 hp 100 kW 2 L Diesel
D4EA 140 hp 103 kW 2 L Diesel
D4FB 116 hp 85 kW 1.6 L Diesel
D4FB 128 hp 94 kW 1.6 L Diesel
D4FB 90 hp 66 kW 1.6 L Diesel
G4FA 105 hp 77 kW 1.4 L Petrol
G4FA 109 hp 80 kW 1.4 L Petrol
G4FC 116 hp 85 kW 1.6 L Petrol
G4FC 122 hp 90 kW 1.6 L Petrol
G4FC 126 hp 93 kW 1.6 L Petrol
G4GC 143 hp 105 kW 2 L Petrol
G4GC-G 143 hp 105 kW 2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
HYUNDAII30 CW
FD
GD
1.4
1.6
1.6 CRDi
2.0
2.0 CRDi
2007/10 - D4EA 136 hp 100 kW 2 L Diesel
D4EA 140 hp 103 kW 2 L Diesel
D4FB 116 hp 85 kW 1.6 L Diesel
D4FB 128 hp 94 kW 1.6 L Diesel
D4FB 90 hp 66 kW 1.6 L Diesel
G4FA 105 hp 77 kW 1.4 L Petrol
G4FA 109 hp 80 kW 1.4 L Petrol
G4FC 116 hp 85 kW 1.6 L Petrol
G4FC 122 hp 90 kW 1.6 L Petrol
G4FC 126 hp 93 kW 1.6 L Petrol
G4FG 120 hp 88 kW 1.6 L Petrol
G4GC 143 hp 105 kW 2 L Petrol
G4GC-G 143 hp 105 kW 2 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
HYUNDAIIX20
JC
1.4
1.4 CRDi
1.6
1.6 CRDI
2010/11 - D4FB 116 hp 85 kW 1.6 L Diesel
D4FB 128 hp 94 kW 1.6 L Diesel
D4FC 90 hp 66 kW 1.4 L Diesel
D4FC-M 78 hp 57 kW 1.4 L Diesel
G4FA 90 hp 66 kW 1.4 L Petrol
G4FC 125 hp 92 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
KIACEE'D
ED
1.4
1.4 CVVT
1.6
1.6 CRDi 115
1.6 CRDi 128
1.6 CRDi 90
1.6 CVVT
2.0
2.0 CRDi
2.0 CRDi 140
2006/12 - 2012/12D4EA 136 hp 100 kW 2 L Diesel
D4EA-F 140 hp 103 kW 2 L Diesel
D4FB 115 hp 85 kW 1.6 L Diesel
D4FB 128 hp 94 kW 1.6 L Diesel
D4FB-L 90 hp 66 kW 1.6 L Diesel
G4FA 105 hp 77 kW 1.4 L Petrol
G4FA 109 hp 80 kW 1.4 L Petrol
G4FA-L 90 hp 66 kW 1.4 L Petrol
G4FC 115 hp 85 kW 1.6 L Petrol
G4FC 122 hp 90 kW 1.6 L Petrol
G4FC 126 hp 93 kW 1.6 L Petrol
G4FC 125 hp 92 kW 1.6 L Petrol
G4GC 143 hp 105 kW 2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
KIACEE'D SW
ED
1.4
1.4 CVVT
1.6
1.6 CRDi 115
1.6 CRDi 128
1.6 CRDi 90
1.6 CVVT
2.0
2.0 CRDi 140
2007/09 - 2012/12D4EA-F 140 hp 103 kW 2 L Diesel
D4FB 115 hp 85 kW 1.6 L Diesel
D4FB 128 hp 94 kW 1.6 L Diesel
D4FB-L 90 hp 66 kW 1.6 L Diesel
G4FA 105 hp 77 kW 1.4 L Petrol
G4FA 109 hp 80 kW 1.4 L Petrol
G4FA-L 90 hp 66 kW 1.4 L Petrol
G4FC 115 hp 85 kW 1.6 L Petrol
G4FC 122 hp 90 kW 1.6 L Petrol
G4FC 126 hp 93 kW 1.6 L Petrol
G4FC 125 hp 92 kW 1.6 L Petrol
G4GC 143 hp 105 kW 2 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
KIAPRO CEE'D
ED
1.4
1.4 CVVT
1.6
1.6 CRDi 115
1.6 CRDi 128
1.6 CRDi 90
1.6 CVVT
2.0
2.0 CRDi 140
2.0 LPG
2008/02 - 2013/02D4EA-F 140 hp 103 kW 2 L Diesel
D4FB 115 hp 85 kW 1.6 L Diesel
D4FB 128 hp 94 kW 1.6 L Diesel
D4FB-L 90 hp 66 kW 1.6 L Diesel
G4FA 105 hp 77 kW 1.4 L Petrol
G4FA 109 hp 80 kW 1.4 L Petrol
G4FA-L 90 hp 66 kW 1.4 L Petrol
G4FC 122 hp 90 kW 1.6 L Petrol
G4FC 126 hp 93 kW 1.6 L Petrol
G4FC 125 hp 92 kW 1.6 L Petrol
G4GC 143 hp 105 kW 2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
KIASOUL
AM
1.6
1.6 CRDi 115
1.6 CRDi 128
1.6 CVVT
1.6 GDI
2009/02 - D4FB 115 hp 85 kW 1.6 L Diesel
D4FB 126 hp 94 kW 1.6 L Diesel
G4FC 105 hp 77 kW 1.6 L Petrol
G4FC 126 hp 93 kW 1.6 L Petrol
G4FC 129 hp 95 kW 1.6 L Petrol
G4FD 140 hp 103 kW 1.6 L Petrol
G4FG 124 hp 91 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
KIASOUL II
PS
1.6 CRDi 128
1.6 GDI
Electric
2014/02 - 110 hp 81 kW L Electric
D4FB 126 hp 94 kW 1.6 L Diesel
G4FD 132 hp 97 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
KIAVENGA
YN
1.4 CRDi 75
1.4 CRDi 90
1.4 CVVT
1.6 CRDi 115
1.6 CRDi 128
1.6 CVVT
2010/02 - D4FB 116 hp 85 kW 1.6 L Diesel
D4FB 128 hp 94 kW 1.6 L Diesel
D4FC 75 hp 55 kW 1.4 L Diesel
D4FC 78 hp 57 kW 1.4 L Diesel
D4FC 90 hp 66 kW 1.4 L Diesel
G4FA-L 90 hp 66 kW 1.4 L Petrol
G4FC 125 hp 92 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
