ATE 24.0126-0159.1 (24012601591) Brake Disc

ATE part 24.0126-0159.1 (24012601591) Brake Disc

ATE 24.0126-0159.1 (24012601591) Brake Disc

by ATE

Manufacturer Part Number: 24.0126-0159.1 (24012601591)
Alternative ATE part number(s): 426159

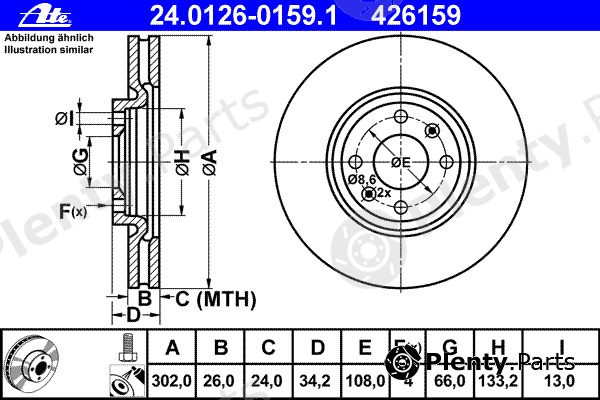

Сharacteristics:
  • Diameter [mm]: 302
  • Brake Disc Thickness [mm]: 26
  • Minimum thickness [mm]: 24
  • Brake Disc Type: Vented
  • Surface: Coated
  • Number of Holes: 4
  • Bolt Hole Circle Ø [mm]: 108
  • Height [mm]: 34,2
  • Centering Diameter [mm]: 66
  • Inner diameter [mm]: 133,2
  • Bore Ø [mm]: 13
  • Supplementary Article/Info 2: with screws
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0126-0159.1 (24012601591) Alternative ATE part number(s): 426159
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT424986, 424964, 424980, 424981, 4249J8

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0126-0159.1 (24012601591) Brake Disc offered by A.B.S., ALANKO, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, CAR, CIFAM, DELPHI, DENCKERMANN, E.T.F., EUROBRAKE, FERODO, FOMAR, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, ICER, KAGER, KAMOKA, LPR, METELLI, METZGER, MEYLE, MGA, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, R BRAKE, REMSA, ROADHOUSE, ROTINGER, sbs, TEXTAR, TRUSTING, TRW, VAICO, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17818
ALANKO303621
BLUE PRINTADP154308
BORG & BECKBBD4717
BOSCH0986479548, 0986479376, 0986479C72
Brake ENGINEERINGDI956673
BRECOBS8709
BREMBO09.A185.14, 09.A185.11
CAR142.1345
CIFAM800985C
DELPHIBG4166
DENCKERMANNB130282
E.T.F.192613, 197410
EUROBRAKE5815203737
FERODODDF1676, DDF1676-1
FOMARFO4137
fri.tech.BD1256
FTEBS7558B, BS7558
GIRLING6049625
HELLA8DD355114-721, 8DD355119-161
HELLA PAGID8DD355114-721, 8DD355119-161
ICER78BD50172
KAGER370794
KAMOKA103263
LPRP1010VR
METELLI230985C
METZGER6110513
MEYLE11155210019PD
MGAD1755
MINTEXMDC2032
NK313737, 203737
OPEN PARTSBDR245320, BDA245320
OPTIMALBS-8438
PAGID54685
PATRONPBD4962, PBD7031
PILENGAV759
R BRAKE78RBD25017
REMSA61059.10
ROADHOUSE61059.10
ROTINGERRT20781, RT20781T5
sbs1815203737, 1815313737
TEXTAR92168500, 92168503, 98200168501
TRUSTINGDF1256
TRWDF4962S
VAICOV4280021
ZIMMERMANN440312052, 440312020

Vehicle fitment / ATE 24.0126-0159.1 (24012601591) Brake Disc compatibility

This product fits the following models: CITROËN C4, CITROËN C4 I, CITROËN C4 II, CITROËN DS4, CITROËN DS5, DS DS 4 DS 4 CROSSBACK, DS DS5, PEUGEOT 208, PEUGEOT 3008, PEUGEOT 308, PEUGEOT 308 CC, PEUGEOT 308 SW, PEUGEOT 5008, etc. See all vehicles this product (ATE 24.0126-0159.1 (24012601591)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNC4
LA
2.0 16V
2.0 HDi
2004/11 - 2011/07RFK(EW10J4S) 177 hp 130 kW 2 L Petrol
RHF(DW10BTED4) 140 hp 103 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
Front wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
CITROËNC4 I
LC
2.0 16V
2.0 HDi
2004/11 - 2011/07RFK(EW10J4S) 177 hp 130 kW 2 L Petrol
RHF(DW10BTED4) 140 hp 103 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
Front wheel
Hatchback / Sportback / Sport hatch
CITROËNC4 II
B7
1.6 THP 155
2.0 BlueHDi 150
2009/11 - 5FV(EP6CDT) 156 hp 115 kW 1.6 L Petrol
RHE(DW10CTED4) 150 hp 110 kW 2 L Diesel
Front wheel
Hatchback / Sportback / Sport hatch
CITROËNDS4
1.6 THP 160
1.6 THP 165
2.0 BlueHDi 150
2.0 BlueHDi 150 Hybrid
2.0 BlueHDi 180
2.0 HDi 135
2011/09 - 2015/075FM(EP6DT) 163 hp 120 kW 1.6 L Petrol
5FM(EP6DT) 165 hp 121 kW 1.6 L Petrol
5GZ(EP6FDT) 165 hp 121 kW 1.6 L Petrol
AHR(DW10FD) 150 hp 110 kW 2 L Diesel
AHW(DW10FC) 180 hp 133 kW 2 L Diesel
AHX(DW10FD) 150 hp 110 kW 2 L Diesel
RHE(DW10CTED4) 136 hp 100 kW 2 L Diesel
Front wheel
Hatchback / Sportback / Sport hatch
CITROËNDS5
1.6 HDi 110
1.6 HDi 115
1.6 THP 155
1.6 THP 165
1.6 THP 165 Hybrid
1.6 THP 200
2.0 BlueHDi 135 Hybrid
2.0 BlueHDi 150
2.0 BlueHDi 180
2.0 HDi 135
2.0 HDi 150 Hybrid
2.0 HDi 165
2.0 HDi 165 Hybrid4 4x4
2.0 HDi 200 Hybrid4
2011/11 - 2015/07200 hp 147 kW 2 L Hybrid
5FM(EP6DT) 165 hp 121 kW 1.6 L Petrol
5GZ(EP6FDT) 165 hp 121 kW 1.6 L Petrol
5FU(EP6DTX) 200 hp 147 kW 1.6 L Petrol
5FV(EP6CDT) 156 hp 115 kW 1.6 L Petrol
5GZ(EP6FDT) 165 hp 121 kW 1.6 L Hybrid
9HD(DV6C) 114 hp 84 kW 1.6 L Diesel
9HR(DV6C) 112 hp 82 kW 1.6 L Diesel
AHS(DW10FD) 136 hp 100 kW 2 L Diesel
AHW(DW10FC) 180 hp 133 kW 2 L Diesel
AHX(DW10FD) 150 hp 110 kW 2 L Diesel
AHX(DW10FD) 150 hp 110 kW 2 L Hybrid
RHC(DW10CTED4) 163 hp 120 kW 2 L Hybrid
RHD(DW10CB) 136 hp 100 kW 2 L Diesel
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
AWD / 4WD
Front wheel
Hatchback / Sportback / Sport hatch
DSDS 4 DS 4 CROSSBACK
1.6 THP 165
2.0 BlueHDi 150
2.0 BlueHDi 180
2015/07 - 150 hp 110 kW 2 L Diesel
165 hp 121 kW 1.6 L Petrol
180 hp 133 kW 2 L Diesel
Front wheel
Hatchback / Sportback / Sport hatch
DSDS5
1.6 THP 165
2.0 BlueHDi 150
2.0 BlueHDi 180
2.0 HDi 165 Hybrid4 4x4
2015/04 - 150 hp 110 kW 2 L Diesel
163 hp 120 kW 2 L Hybrid
165 hp 121 kW 1.6 L Petrol
180 hp 133 kW 2 L Diesel
AWD / 4WD
Front wheel
Hatchback / Sportback / Sport hatch
PEUGEOT208
1.0
1.2
1.2 THP
1.4 GPL
1.4 HDi
1.4 VTi
1.6
1.6 BlueHDi 100
1.6 BlueHDi 120
1.6 GTi
1.6 HDi
1.6 HDi / BlueHDi 75
1.6 THP 165
2012/03 - 165 hp 121 kW 1.6 L Petrol
5FS(EP6C) 120 hp 88 kW 1.6 L Petrol
5FV(EP6DT) 156 hp 115 kW 1.6 L Petrol
EP6CDT 156 hp 115 kW 1.6 L Petrol
5FU(EP6CDTX) 200 hp 147 kW 1.6 L Petrol
8FS(EP3) 95 hp 70 kW 1.4 L Petrol
EP3C 95 hp 70 kW 1.4 L Petrol
8HP(DV4C) 68 hp 50 kW 1.4 L Diesel
8HR(DV4C) 68 hp 50 kW 1.4 L Diesel
9HD(DV6CTED) 114 hp 84 kW 1.6 L Diesel
9HP(DV6DTED) 92 hp 68 kW 1.6 L Diesel
BHX(DV6FC) 116 hp 85 kW 1.6 L Diesel
9HK(DV6ETEDM) 75 hp 55 kW 1.6 L Diesel
BHW(DV6FE) 75 hp 55 kW 1.6 L Diesel
BHY(DV6FD) 100 hp 73 kW 1.6 L Diesel
BHZ(DV6FC) 120 hp 88 kW 1.6 L Diesel
EP3C 95 hp 70 kW 1.4 L Petrol
HMZ(EB2F) 82 hp 60 kW 1.2 L Petrol
HNZ(EB2DT) 110 hp 81 kW 1.2 L Petrol
ZMZ(EB0) 68 hp 50 kW 1 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
PEUGEOT3008
1.6 THP
2.0 HDi
2.0 HDi 150 / BlueHDi 150
2.0 HDi Hybrid4
2009/06 - 136 hp 100 kW 2 L Diesel
RHH(DW10CTED4) 165 hp 120 kW 2 L Diesel
200 hp 147 kW 2 L Hybrid
RHC(DW10CTED4) 165 hp 120 kW 2 L Hybrid
5FV(EP6DT) 156 hp 115 kW 1.6 L Petrol
5FX(EP6DT) 150 hp 110 kW 1.6 L Petrol
AHX(DW10FD) 150 hp 110 kW 2 L Diesel
RHE(DW10CTED4) 150 hp 110 kW 2 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
PEUGEOT308
4A
4C
1.6 16V
2.0 HDi
2007/09 - 5FY(EP6DTS) 174 hp 128 kW 1.6 L Petrol
EP6CDT 156 hp 115 kW 1.6 L Petrol
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
Front wheel
Hatchback / Sportback / Sport hatch
PEUGEOT308 CC
1.6 16V
2.0 HDi
2009/04 - 5FT(EP6DT) 140 hp 103 kW 1.6 L Petrol
5FX(EP6DT) 150 hp 110 kW 1.6 L Petrol
EP6CDT 156 hp 115 kW 1.6 L Petrol
RHF(DW10BTED4) 140 hp 103 kW 2 L Diesel
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
Front wheel
Convertible / cabrio
PEUGEOT308 SW
1.6 16V
2.0 Bioflex
2.0 HDi
2007/09 - 5FT(EP6DT) 140 hp 103 kW 1.6 L Petrol
5FX(EP6DT) 150 hp 110 kW 1.6 L Petrol
5FY(EP6DTS) 174 hp 128 kW 1.6 L Petrol
EP6CDT 156 hp 115 kW 1.6 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RHE(DW10CTED4) 150 hp 110 kW 2 L Diesel
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
RHR(DW10BTED4) 140 hp 103 kW 2 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
PEUGEOT5008
1.2
1.6
1.6 16V
1.6 BlueHDi 120
1.6 THP 150
2.0 HDi
2.0 HDi 136 / BlueHDi 136
2.0 HDi 150 / BlueHDi 150
2009/06 - 150 hp 110 kW 1.6 L Petrol
5GZ(EP6FDT) 163 hp 120 kW 1.6 L Petrol
AHV(DW10FD) 136 hp 100 kW 2 L Diesel
RHD(DW10CTED4) 136 hp 100 kW 2 L Diesel
AHX(DW10FD) 150 hp 110 kW 2 L Diesel
RHE(DW10CTED4) 150 hp 110 kW 2 L Diesel
BHZ(DV6FC) 120 hp 88 kW 1.6 L Diesel
EP6CDT 156 hp 115 kW 1.6 L Petrol
HNY(EB2DTS) 131 hp 96 kW 1.2 L Petrol
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
