ATE 24.0128-0115.1 (24012801151) Brake Disc

ATE part 24.0128-0115.1 (24012801151) Brake Disc

ATE 24.0128-0115.1 (24012801151) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0115.1 (24012801151)
Alternative ATE part number(s): 428115

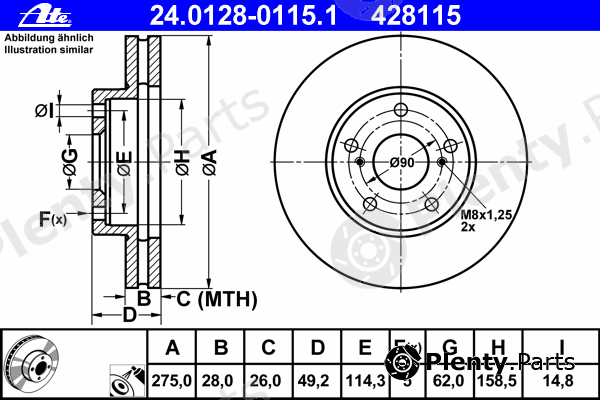

Сharacteristics:
  • Diameter [mm]: 275
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 26
  • Brake Disc Type: Vented
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 114,3
  • Height [mm]: 49,2
  • Centering Diameter [mm]: 62
  • Inner diameter [mm]: 158,5
  • Bore Ø [mm]: 14,8
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0115.1 (24012801151) Alternative ATE part number(s): 428115
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for TOYOTA vehicles

OE manufacturerOEM reference numbers
TOYOTA43512-07020, 43512-33040, 4351233090, 43512-33041, 43512-33042, 43512-33060, 43512-44020, 43512-44021

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0115.1 (24012801151) Brake Disc offered by A.B.S., ADVICS / SUMITOMO, ALANKO, AP, ASHIKA, ASHUKI, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, FARCOM, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, G.U.D, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, JAPANPARTS, JAPKO, JP GROUP, JURID, KAGER, KAVO PARTS, KAWE, KORTEX, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NIBK, NIPPARTS, NK, OPEN PARTS, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SAKURA, SASIC, sbs, STARLINE, STELLOX, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.16220
ADVICS / SUMITOMOA6F188
ALANKO303760, 305145
AP25079V, 25079
ASHIKA6002275, 6002213
ASHUKIT60125G, T60125
BENDIX561676B, 561676BC
BLUE PRINTADT34378, ADT343191
BORG & BECKBBD4309, BBD5034
BOSCH0986479893, 0986478632
Brake ENGINEERINGDI955331
BRECOBS8687, BV8687
BREMBO09.A386.10, 09.A386.11, 09.5624.10
BREMSIDBA501V
CAR142.777
CIFAM8001028
DELPHIBG2782
DENCKERMANNB130388
Dr!ve+DP1010110661
FARCOM231202, 230942, 230391
FENOXTB217660
FERODODRF501, DDF501-1, DDF501
FOMARFO2509
fri.tech.BD1063
FTEBS4422
GIRLING6014311
G.U.DGDB128115
HELLA8DD355104-931, 8DD355111-601, 8DD355111-611, 8DD355104-921
HELLA PAGID8DD355104-921, 8DD355104-931, 8DD355111-611, 8DD355111-601
HERTH+BUSS JAKOPARTSJ3302075
JAPANPARTSDI-275, DI-213
JAPKO60275, 60213
JP GROUP4863102309
JURID561676JC, 561676J
KAGER370067
KAVO PARTSBR9357, BR9442C, BR9357C, BR9501C, BR9501, BR9442
KAWE684210
KORTEXKD0161
LPRT2981V
MAGNETI MARELLI360406047100, 600000087080, 353615275240
MAPCO45570
METELLI231028
METZGER6110624, 6842.10
MEYLE30155210090, 30-155210031/PD, 30155210031
MGAD1353
MINTEXMDC2257, MDC898
NECTOWN642
NIBKRN1009
NIPPARTSJ3302075
NK204596, 314596, 314549, 204549
OPEN PARTSBDA187620, BDRS187625, BDR187620
PAGID54354, 53625PRO, 54354PRO, 53625
PATRONPBD1434, PBD1431
PEX14.0579
PILENGAV660
PROTECHNICPRD2208
QUINTON HAZELLBSF4422, BDC4422
REMSA684210
ROADHOUSE684210
ROTINGERRT2209T5, RT2209
ROULUNDS BRAKINGD2509
SAKURA604203785
SASIC6106063
sbs1815204596, 1815314549, 1815314596, 1815204549
STARLINEPB2209C
STELLOX6020-4549V-SX
TEMPLIN0311027575, 0311027570
TEXTAR98200135401, 92077700, 92135403, 98200077701PRO, 92135400, 92077703, 98200135401PRO, 98200077701
TRISCAN812013135
TRUSTINGDF1063
TRWDF4412, DF1431
VALEO197166
VEMA98354
VILLAR6282093
WOKINGD684210
ZIMMERMANN590.2556.00, 590255620

Vehicle fitment / ATE 24.0128-0115.1 (24012801151) Brake Disc compatibility

This product fits the following models: LEXUS ES, TOYOTA AVENSIS VERSO, TOYOTA CAMRY, TOYOTA ESTIMA, TOYOTA IPSUM, TOYOTA PICNIC, TOYOTA PREVIA, TOYOTA SCEPTER, TOYOTA TARAGO, TOYOTA VERSO, etc. See all vehicles this product (ATE 24.0128-0115.1 (24012801151)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
LEXUSES
MCV
VZV
3.0
MCV30
MCV20
1996/10 - 2001/071MZ-FE 190 hp 140 kW 3 L Petrol
Rear wheel
Sedan / Saloon
TOYOTAAVENSIS VERSO
CLM2
ACM2
2.0 D-4D
2.0 VVT-i
2.4 VVTi GLS
2001/08 - 2009/111AZ-FE 150 hp 110 kW 2 L Petrol
1CD-FTV 116 hp 85 kW 2 L Diesel
2AZ-FE 156 hp 115 kW 2.4 L Petrol
Front wheel
MPV / Van / Minivan
TOYOTACAMRY
CV1
XV1
V1
CV2
XV2
XV1
CV1
V10
2.2
2.5
3.0
3.0 24V
3.0 V6
3.0 VIENTA

MCV20
SXV10
SXV20
VCV10
VDV10
1991/06 - 2001/111MZ-FE 183 hp 135 kW 3 L Petrol
3VZ-FE 185 hp 136 kW 3 L Petrol
1MZ-FE 184 hp 135 kW 3 L Petrol
1MZ-FE 190 hp 140 kW 3 L Petrol
2MZ-FE 200 hp 147 kW 2.5 L Petrol
3VZ-FE 185 hp 136 kW 3 L Petrol
3VZ-FE 188 hp 138 kW 3 L Petrol
3VZ-FE 190 hp 140 kW 3 L Petrol
5S-FE 126 hp 93 kW 2.2 L Petrol
5S-FE 126 hp 93 kW 2.2 L Petrol
5S-FE 136 hp 100 kW 2.2 L Petrol
5S-FE 131 hp 96 kW 2.2 L Petrol
5S-FE 136 hp 100 kW 2.2 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
TOYOTAESTIMA
MCR3
ACR3
CLR3
2.0 D-4D
2.4
2.4 16V

ACR30
2000/08 - 2006/011CD-FTV 116 hp 85 kW 2 L Diesel
2AZ-FE 156 hp 115 kW 2.4 L Petrol
Front wheel
MPV / Van / Minivan
TOYOTAIPSUM
CLM2
ACM2
2.0 D-4D
2.0 VVT-i
2.4 VVTi GLS
2001/08 - 2009/111AZ-FE 150 hp 110 kW 2 L Petrol
1CD-FTV 116 hp 85 kW 2 L Diesel
2AZ-FE 156 hp 115 kW 2.4 L Petrol
Front wheel
MPV / Van / Minivan
TOYOTAPICNIC
CLM2
ACM2
2.0 D-4D
2.0 VVT-i
2.4 VVTi GLS
2001/08 - 2009/111AZ-FE 150 hp 110 kW 2 L Petrol
1CD-FTV 116 hp 85 kW 2 L Diesel
2AZ-FE 156 hp 115 kW 2.4 L Petrol
Front wheel
MPV / Van / Minivan
TOYOTAPREVIA
MCR3
ACR3
CLR3
2.0 D-4D
2.4
2.4 16V

ACR30
2000/08 - 2006/011CD-FTV 116 hp 85 kW 2 L Diesel
2AZ-FE 156 hp 115 kW 2.4 L Petrol
Front wheel
MPV / Van / Minivan
TOYOTASCEPTER
CV1
XV1
V1
XV1
CV1
V10
2.2
3.0

SXV10
VCV10
1991/06 - 1996/081MZ-FE 183 hp 135 kW 3 L Petrol
3VZ-FE 185 hp 136 kW 3 L Petrol
3VZ-FE 185 hp 136 kW 3 L Petrol
3VZ-FE 188 hp 138 kW 3 L Petrol
5S-FE 126 hp 93 kW 2.2 L Petrol
5S-FE 126 hp 93 kW 2.2 L Petrol
5S-FE 136 hp 100 kW 2.2 L Petrol
5S-FE 136 hp 100 kW 2.2 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
TOYOTATARAGO
MCR3
ACR3
CLR3
2.0 D-4D
2.4
2.4 16V

ACR30
2000/08 - 2006/011CD-FTV 116 hp 85 kW 2 L Diesel
2AZ-FE 156 hp 115 kW 2.4 L Petrol
Front wheel
MPV / Van / Minivan
TOYOTAVERSO
CLM2
ACM2
2.0 D-4D
2.0 VVT-i
2.4 VVTi GLS
2001/08 - 2009/111AZ-FE 150 hp 110 kW 2 L Petrol
1CD-FTV 116 hp 85 kW 2 L Diesel
2AZ-FE 156 hp 115 kW 2.4 L Petrol
Front wheel
MPV / Van / Minivan
