ATE 24.0128-0123.1 (24012801231) Brake Disc

ATE part 24.0128-0123.1 (24012801231) Brake Disc

ATE 24.0128-0123.1 (24012801231) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0123.1 (24012801231)
Alternative ATE part number(s): 428123

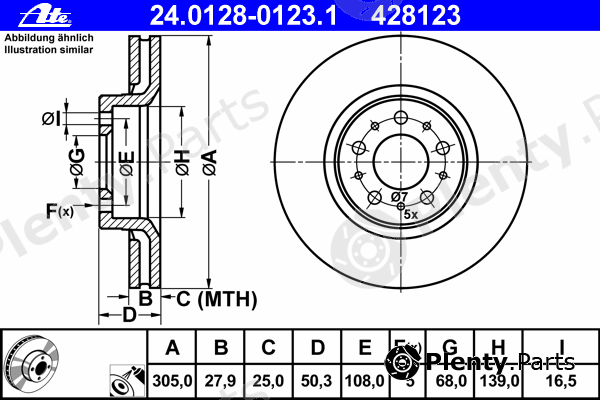

Сharacteristics:
  • Diameter [mm]: 305
  • Brake Disc Thickness [mm]: 27,9
  • Minimum thickness [mm]: 25
  • Brake Disc Type: Vented
  • Number of Holes: 5
  • Surface: Coated
  • Height [mm]: 50,3
  • Centering Diameter [mm]: 68
  • Inner diameter [mm]: 139
  • Bolt Hole Circle Ø [mm]: 108
  • Bore Ø [mm]: 16,5
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0123.1 (24012801231) Alternative ATE part number(s): 428123
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VOLVO vehicles

OE manufacturerOEM reference numbers
VOLVO272404, 274170, 9492715, 274559

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0123.1 (24012801231) Brake Disc offered by A.B.S., AP, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, G.U.D, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, KRAFT, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17012
AP24845V, 24845, X24845, 24845X
BARUMBAR28123
BENDIX562173B, 562173BC
BORG & BECKBBD5899S
BOSCH0986478494, 0986479C59
Brake ENGINEERINGDI955887
BRECOBV8469, BS8469
BREMBO0991301X, 09.7764.10, 09.9130.11, 09.9130.75, 09.9130.10
BREMSIDBB078V
BSF11877V
CAR142.649
CIFAM800561C, 800-561
DELPHIBG9514C, BG3514, BG9514
DENCKERMANNB130135
Dr!ve+DP1010110787
E.T.F.194045
EUROBRAKE5815204842
FARCOM231196, 230370
FEBI BILSTEIN18050
FENOXTB217263
FERODODDF1078C, DRF1078, DDF1078, DDF1078C-1, DDF10781
FOMARFO1423
fri.tech.BD0554
FTEBS4728, BS4728B
GIRLING6040535
GRAFDF29561
G.U.DGDB128123
HELLA8DD355107-061, 8DD355107072, 8DD355107-071
HELLA PAGID8DD355107-061, 8DD355107-071, 8DD355107072
ICER78BD40452
JP GROUP4963101009
JURID562173J, 562173JC
KAGER371412, 370545
KAMOKA1032156
KAWE659110
KEY PARTSKBD5899S
KRAFT6046392
LPRV1483V
MAGNETI MARELLI431602042710, 353616029240, 360406051800
MAPCO15966
MAXGEAR191006MAX, 191006
METELLI230561C, 23-0561
METZGER6110222, 24845V
MEYLE5145210001, 5155210001/PD
MGAD1376
MINTEXMDC1433
NECTOWN1090
NK314842, 204842
OPEN PARTSBDR184620
OPTIMALBS-5910, BS5910C
PAGID50283, 50283PRO
PATRONPBD4053
PEX14.0669
PILENGAV263
PROTECHNICPRD2423
QUINTON HAZELLBSF4728, BDC4728
R BRAKE78RBD24045
REMSA659110
ROADHOUSE659110
ROTINGERRT2799, RT2799T5
ROULUNDS BRAKINGD1423
sbs1815314842, 1815204842
STARLINEPB2799C, PB2799
STELLOX60204842VSX
SWAG55918050
TEMPLIN0311029695, 0311029690
TEXTAR98200100601PRO, 98200100601, 92100603, 92100600, 92100605
TRISCAN812027130C, 812027130
TRUSTINGDF554
TRWDF4772, DF4053, DF4053S
VAICOV9580005
VALEO186741
VEMA98606
VILLAR6281764
WOKINGD659110
ZIMMERMANN610370270, 610370252, 610.3702.20, 610.3702.00, 610.3702.50

Vehicle fitment / ATE 24.0128-0123.1 (24012801231) Brake Disc compatibility

This product fits the following models: VOLVO S60 I, VOLVO S80 I, VOLVO V70 II, VOLVO V70II, VOLVO V70 XC, VOLVO XC70 CROSS COUNTRY, etc. See all vehicles this product (ATE 24.0128-0123.1 (24012801231)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
VOLVOS60 I
2.0 T
2.3 T5
2.4
2.4 AWD
2.4 Bifuel
2.4 D
2.4 D5
2.4 T
2.4 T5
2.4 T AWD
2.5 T
2.5 T AWD
T5

CNG
LPG
2000/07 - 2010/04B5204T5 180 hp 132 kW 2 L Petrol
B5234T3 250 hp 184 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5244T3 200 hp 147 kW 2.4 L Petrol
B5244T5 260 hp 191 kW 2.4 L Petrol
B5254T2 210 hp 154 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T2 130 hp 96 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T7 126 hp 93 kW 2.4 L Diesel
AWD / 4WD
Front wheel
Sedan / Saloon
VOLVOS80 I
TS
XY
2.0
2.0 T
2.4
2.4 Bifuel
2.4 D
2.4 D5
2.4 T
2.4 T5 AWD
2.5 T
2.5 T AWD
2.5 TDI
2.8 T6
2.9
3.0
3.0 T6

CNG
LPG
1998/05 - 2006/07B5204T3 226 hp 166 kW 2 L Petrol
B5204T5 180 hp 132 kW 2 L Petrol
B5204T4 163 hp 120 kW 2 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5244T3 200 hp 147 kW 2.4 L Petrol
B5254T2 210 hp 154 kW 2.5 L Petrol
B6284T 272 hp 200 kW 2.8 L Petrol
B6294S 200 hp 147 kW 2.9 L Petrol
B6304S3 204 hp 150 kW 2.9 L Petrol
B6294S2 196 hp 144 kW 3 L Petrol
B6294T 272 hp 200 kW 3 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T2 131 hp 96 kW 2.4 L Diesel
D5252T 140 hp 103 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Sedan / Saloon
VOLVOV70 II
SW
2.0 T
2.3
2.3 T5
2.4
2.4 AWD
2.4 Bifuel
2.4 D
2.4 D5
2.4 D5 AWD
2.4 T
2.4 T5
2.4 T AWD
2.5 AWD
2.5 T
2.5 T AWD
2.5 TDI

CNG
LPG
2000/03 - 2007/08B5204T5 180 hp 132 kW 2 L Petrol
B5234T3 250 hp 184 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5244T3 200 hp 147 kW 2.4 L Petrol
B5244T5 260 hp 191 kW 2.4 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
B5254T2 209 hp 154 kW 2.5 L Petrol
B5254T2 211 hp 155 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T2 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T2 131 hp 96 kW 2.4 L Diesel
D5244T7 126 hp 93 kW 2.4 L Diesel
D5252T 140 hp 103 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
VOLVOV70II
SW
2.0 T
2.3
2.3 T5
2.4
2.4 AWD
2.4 Bifuel
2.4 D
2.4 D5
2.4 D5 AWD
2.4 T
2.4 T5
2.4 T AWD
2.5 AWD
2.5 T
2.5 T AWD
2.5 TDI

CNG
LPG
2000/03 - 2007/08B5204T5 180 hp 132 kW 2 L Petrol
B5234T3 250 hp 184 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5244T3 200 hp 147 kW 2.4 L Petrol
B5244T5 260 hp 191 kW 2.4 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
B5254T2 209 hp 154 kW 2.5 L Petrol
B5254T2 211 hp 155 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T2 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T2 131 hp 96 kW 2.4 L Diesel
D5244T7 126 hp 93 kW 2.4 L Diesel
D5252T 140 hp 103 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
VOLVOV70 XC
2.4 D5 AWD
2.4 D5 XC AWD
2.4 T XC AWD
2.5 T XC AWD
1997/11 - 2007/08B5244T3 200 hp 147 kW 2.4 L Petrol
B5254T 193 hp 142 kW 2.4 L Petrol
B5254T2 209 hp 154 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
AWD / 4WD
Estate / Turnier / Vario / Wagon
VOLVOXC70 CROSS COUNTRY
2.4 D5 AWD
2.4 D5 XC AWD
2.4 T XC AWD
2.5 T XC AWD
1997/11 - 2007/08B5244T3 200 hp 147 kW 2.4 L Petrol
B5254T 193 hp 142 kW 2.4 L Petrol
B5254T2 209 hp 154 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
AWD / 4WD
Estate / Turnier / Vario / Wagon
