ATE 24.0128-0128.1 (24012801281) Brake Disc

ATE part 24.0128-0128.1 (24012801281) Brake Disc

ATE 24.0128-0128.1 (24012801281) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0128.1 (24012801281)
Alternative ATE part number(s): 428128

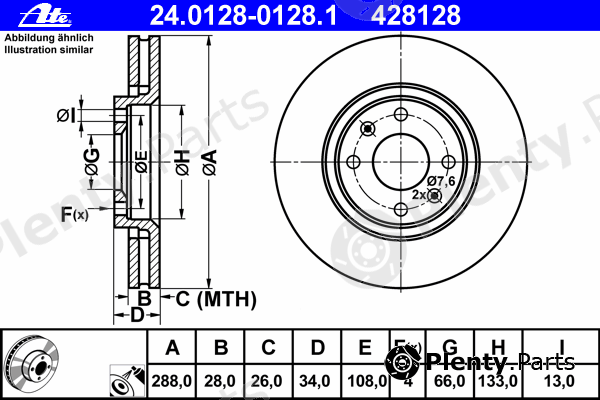

Сharacteristics:
  • Supplementary Article/Info 2: with screws
  • Diameter [mm]: 288
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 26
  • Brake Disc Type: Vented
  • Number of Holes: 4
  • Surface: Coated
  • Height [mm]: 34
  • Centering Diameter [mm]: 66
  • Inner diameter [mm]: 133
  • Bolt Hole Circle Ø [mm]: 108
  • Bore Ø [mm]: 13
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0128.1 (24012801281) Alternative ATE part number(s): 428128
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT4246T8, 4246W3

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0128.1 (24012801281) Brake Disc offered by A.B.S., ALANKO, AP, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, DELPHI, Dr!ve+, E.T.F., FARCOM, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAWE, KRAFT, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NK, OPEN PARTS, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SASIC, sbs, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.16901
ALANKO303590
AP24761, 24761V
BENDIX562131BC, 562131B
BORG & BECKBBD4133
BOSCH0986478980
Brake ENGINEERINGDI955656
BRECOBV8358, BS8358
BREMBODP61042, 09.7877.11, DP61045, 09.7877.10
BREMSIDBB106V
CAR142.153
CIFAM800-557
DELPHIBG3675, BG3545
Dr!ve+DP1010110328
E.T.F.194753
FARCOM230938, 231198, 230382
FEBI BILSTEIN22923
FENOXTB219062, TB217088
FERODODDF11061, DDF1106
FOMARFO2398
fri.tech.BD0794
FTEBS4997, BS4997B
GIRLING6041411
GRAFDF29557
HANS PRIES721176
HELLA8DD355107-841
HELLA PAGID8DD355107-841
ICER78BD47532
JP GROUP3163100109
JURID562131J, 562131JC
KAGER370552
KAWE658710
KRAFT6046020
LPRC1361VR
MAGNETI MARELLI360406018600, 431602040920, 353610927240, 361302040202
MAPCO15309, 153092
MAXGEAR191067
METELLI23-0557
METZGER6110562
MEYLE40-155211000
MGAD1416, D1383
MINTEXMDC1333
NECTOWN1112
NK311928, 201928
OPEN PARTSBDA186520, BDR186520
PAGID50327
PATRONPBD4141
PEX14.0762
PILENGAV088
PROTECHNICPRD2266
QUINTON HAZELLBSF4997, BDC4997
R BRAKE78RBD24753
REMSA658710
ROADHOUSE658710
ROTINGERRT20032T5, RT20032
ROULUNDS BRAKINGD2398
SASIC2464T84J
sbs1815311928, 1815201928
STARLINEPB20032C
STELLOX60201928VSX
SWAG64922923
TEMPLIN0311024660
TEXTAR89013600, 89014400, 92107800, 98200107801
TRUSTINGDF794
TRWDF4141, DF4141BP
VAICOV2280001
VALEO197220, 186683
VEMA98223
VILLAR6280282
WOKINGD658710
ZIMMERMANN180301552, 180301520, 180.3015.50, 180.3015.00

Vehicle fitment / ATE 24.0128-0128.1 (24012801281) Brake Disc compatibility

This product fits the following models: CITROËN C5 I, CITROËN C5 II, CITROËN XANTIA, etc. See all vehicles this product (ATE 24.0128-0128.1 (24012801281)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNC5 I
DC
DE
2.2 HDi
3.0 Carlsson
3.0 V6

DC4HXB
DC4HXE
DCXFXC
DCXFXF
DE4HXB
DE4HXE
DEXFXC
DEXFXF
2001/03 - 2004/084HX(DW12TED4/FAP) 133 hp 98 kW 2.2 L Diesel
XFX(ES9J4S) 207 hp 152 kW 3 L Petrol
XFX(ES9J4S) 235 hp 173 kW 3 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
CITROËNC5 II
RC
RE
2.0 HDi
2.2 HDi
3.0
3.0 V6

RC4HXE
RCRHRH
RCXFUF
RE4HXE
RERHRH
REXFUF
2004/09 - 4HP(DW12BTED4) 163 hp 120 kW 2.2 L Diesel
4HR(DW12BTED4) 163 hp 120 kW 2.2 L Diesel
4HT(DW12BTED4) 170 hp 125 kW 2.2 L Diesel
4HX(DW12TED4/FAP) 133 hp 98 kW 2.2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
XFU(ES9A) 207 hp 152 kW 3 L Petrol
XFU(ES9A) 207 hp 152 kW 3 L Petrol
XFX(ES9J4S) 207 hp 152 kW 3 L Petrol
XFU(ES9A) 211 hp 155 kW 3 L Petrol
XFV(ES9A) 211 hp 155 kW 3 L Petrol
XFX(ES9J4S) 235 hp 173 kW 3 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
CITROËNXANTIA
X1
X2
1.9 Turbo D
2.0 HDI 109
2.0 i 16V
2.0 Turbo
2.1 Turbo D 12V
3.0 i 24V
3.0 V6
1997/01 - 2003/04D8B(XUD9TF) 90 hp 66 kW 1.9 L Diesel
DHX(XUD9TF/BTF) 90 hp 66 kW 1.9 L Diesel
DHX(XUD9TF/BTF) 90 hp 66 kW 1.9 L Diesel
DHY(XUD9TE/Y) 90 hp 66 kW 1.9 L Diesel
P8C(XUD11BTE) 109 hp 80 kW 2.1 L Diesel
RFV(XU10J4R) 132 hp 97 kW 2 L Petrol
RGX(XU10J2TE) 147 hp 108 kW 2 L Petrol
RHZ(DW10ATED) 109 hp 80 kW 2 L Diesel
XFZ(ES9J4) 190 hp 140 kW 3 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
