ATE 24.0128-0129.1 (24012801291) Brake Disc

ATE part 24.0128-0129.1 (24012801291) Brake Disc

ATE 24.0128-0129.1 (24012801291) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0129.1 (24012801291)
Alternative ATE part number(s): 428129

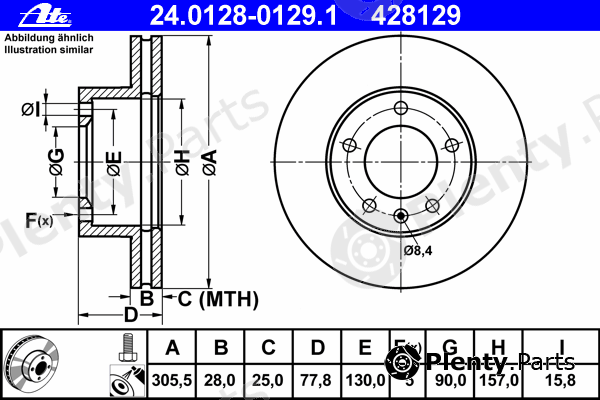

Сharacteristics:
  • Diameter [mm]: 305,5
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 25
  • Brake Disc Type: Vented
  • Surface: Coated
  • Number of Holes: 5
  • Height [mm]: 77,8
  • Centering Diameter [mm]: 90
  • Inner diameter [mm]: 157
  • Bolt Hole Circle Ø [mm]: 130
  • Bore Ø [mm]: 15,8
  • Supplementary Article/Info 2: with screws
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0129.1 (24012801291) Alternative ATE part number(s): 428129
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for NISSAN, OPEL, RENAULT vehicles

OE manufacturerOEM reference numbers
NISSAN40206-00QAD
OPEL4403038, 9111038
RENAULT7700314064

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0129.1 (24012801291) Brake Disc offered by A.B.S., ALANKO, AP, ASHUKI, AUTOMEGA, BARUM, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CASALS, CIFAM, DELPHI, DENCKERMANN, DITAS, Dr!ve+, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, KRAFT, LPR, MAGNETI MARELLI, MALÒ, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NATIONAL, NECTO, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, STARLINE, STELLOX, STOP, SWAG, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, VALEO, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17159
ALANKO304973, 303429
AP24849
ASHUKI09906801
AUTOMEGA1344030038, 30770003140064, 1044030038
BARUMBAR28129
BENDIX562190B, 562190BC
BLUE PRINTADN143105
BORG & BECKBBD5722S
BOSCH0986479B59, 0986479001
Brake ENGINEERINGDI956166S
BRECOBS8473
BREMBODP56007, 09.9080.10
BREMSIDBB217V
BSF11393V
CAR142.366
CASALS55376, 55379, 6641
CIFAM800532C, 800-532
DELPHIBG9692
DENCKERMANNB130159
DITASDFD1021
Dr!ve+DP1010110824
E.T.F.196848
EUROBRAKE5815203644
FARCOM230978, 230468
FEBI BILSTEIN22240
FERODODDF12171, DDF1217, DDF1217C-1, DDF1217C
FOMARFO1648
fri.tech.BD0736
FTEBS5164, BS5164B
GIRLING6042495
GRAFDF29532
HANS PRIES207070
HELLA8DD355108-931, 8DD355108-921
HELLA PAGID8DD355108-921, 8DD355108-931
HERTH+BUSS JAKOPARTSJ3301093
ICER78BD68481
JP GROUP1263103209
JURID562190JC, 562190J
KAGER371013
KAMOKA1031023, 1032434
KAWE664310
KEY PARTSKBD5722S
KRAFT6045415
LPRO1003V
MAGNETI MARELLI351405220500, 600000086730, 360704010900, 360406008903, 360406008900, 360406101000, 361302040160
MALÒ1110200
MAPCO15126
MAXGEAR190810
METELLI230532C, 23-0532
METZGER6110287, 24849
MEYLE6155216031, 6155216031PD
MGAD1391
MINTEXMDC1505, MDK0243
NATIONALNBD1132
NECTOWN1235
NIPPARTSJ3301086
NK203644, 313644
OPEN PARTSBDA197920
OPTIMALBS6540
PAGID54159, 54159PRO
PEX14.0825
PILENGAV378
PROTECHNICPRD2649
QUINTON HAZELLBDC5164, 6643.10, BSF5164
R BRAKE78RBD16848
REMSA6643.10
ROADHOUSE6643.10
ROTINGERRT2881T5, RT2881
ROULUNDS BRAKINGD1648
sbs1815203644, 1815313644
STARLINEPB2881, PB2881C
STELLOX8500767SX
STOP562190S
SWAG60922240
TEMPLIN0311083425, 0311083420
TEXTAR89007800, 92115900, 92115903, 98200115901
TRUSTINGDF736
TRWDF4249S, DF4249BPS
VAICOV4080041, V4080044
VALEO186868
VILLAR6281037
WAGNER LOCKHEEDWGR12171
WOKINGD664310
ZIMMERMANN430.2601.00, 430260120

Vehicle fitment / ATE 24.0128-0129.1 (24012801291) Brake Disc compatibility

This product fits the following models: NISSAN INTERSTAR, OPEL MOO, RENAULT MASTER II, VAUXHALL MOOI, etc. See all vehicles this product (ATE 24.0128-0129.1 (24012801291)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
NISSANINTERSTAR

X70
dCi 100
dCi 120
dCi 140
dCi 150
dCi 80
dCI 90
2002/07 - F9Q772 82 hp 60 kW 1.9 L Diesel
G9T722 90 hp 66 kW 2.2 L Diesel
G9U632 145 hp 107 kW 2.5 L Diesel
G9U650 101 hp 74 kW 2.5 L Diesel
G9U720 99 hp 73 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U720 101 hp 74 kW 2.5 L Diesel
G9U720 99 hp 73 kW 2.5 L Diesel
G9U720 99 hp 73 kW 2.5 L Diesel
ZD30 136 hp 100 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
OPELMOO
F9
H9
J9
U9
E9
1.9 DTI
2.2 DTI
2.5 CDTI
2.5 D
2.5 DTi
2.5 DTI
2.8 DTI
3.0 DTi
3.0 DTI
1998/07 - F9Q770 80 hp 59 kW 1.9 L Diesel
F9Q772 82 hp 60 kW 1.9 L Diesel
F9Q774 82 hp 60 kW 1.9 L Diesel
G9T720 90 hp 66 kW 2.2 L Diesel
G9T722 90 hp 66 kW 2.2 L Diesel
G9T750 90 hp 66 kW 2.2 L Diesel
G9U632 120 hp 88 kW 2.5 L Diesel
G9U632 146 hp 107 kW 2.5 L Diesel
G9U650 101 hp 74 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U650 146 hp 107 kW 2.5 L Diesel
G9U632 120 hp 88 kW 2.5 L Diesel
G9U632 146 hp 107 kW 2.5 L Diesel
G9U650 101 hp 74 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U650 146 hp 107 kW 2.5 L Diesel
G9U754 99 hp 73 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U724 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U724 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U754 99 hp 73 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U724 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U754 99 hp 73 kW 2.5 L Diesel
S8U770 80 hp 59 kW 2.5 L Diesel
S8U772 80 hp 59 kW 2.5 L Diesel
S9W700 114 hp 84 kW 2.8 L Diesel
S9W702 114 hp 84 kW 2.8 L Diesel
ZD3200 136 hp 100 kW 3 L Diesel
ZD3202 136 hp 100 kW 3 L Diesel
Front wheel
Dump truck
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
RENAULTMASTER II
ED/HD/UD
FD
JD
1.9 dCi 80
1.9 dTI
2.2 dCI 90
2.5 D
2.5 dCi
2.5 dCi 100
2.5 dCi 120
2.8 dTI
3.0 dCi 120
3.0 dCi 140
3.0 dCi 160

ED0S
UD0S
ED4V
ED8V
FD0U
FD0V
HD0S
FD0S
HD1S
JD0T
JDCV
1998/07 - F9Q770 80 hp 59 kW 1.9 L Diesel
F9Q772 82 hp 60 kW 1.9 L Diesel
F9Q774 82 hp 60 kW 1.9 L Diesel
G9T720 90 hp 66 kW 2.2 L Diesel
G9T722 90 hp 66 kW 2.2 L Diesel
G9T750 90 hp 66 kW 2.2 L Diesel
G9U632 146 hp 107 kW 2.5 L Diesel
G9U650 101 hp 74 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U750 114 hp 84 kW 2.5 L Diesel
G9U754 101 hp 74 kW 2.5 L Diesel
G9U632 146 hp 107 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U750 114 hp 84 kW 2.5 L Diesel
G9U754 101 hp 74 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U724 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U754 99 hp 73 kW 2.5 L Diesel
S8U770 80 hp 59 kW 2.5 L Diesel
S9W702 114 hp 84 kW 2.8 L Diesel
ZD3200 136 hp 100 kW 3 L Diesel
ZD3202 136 hp 100 kW 3 L Diesel
ZD3202 136 hp 100 kW 3 L Diesel
ZD3600 116 hp 85 kW 3 L Diesel
ZD3A604 156 hp 115 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
VAUXHALLMOOI
A Chassis/Cab ED
UD
HD
A Combi JD
A Van FD
1.9 DTI
2.2 DTI
2.5 CDTI
2.5 D
2.5 DTI
2.8 DTI
2.8 TDI
3.0 DTi
1998/10 - 2010/05F9Q770 80 hp 59 kW 1.9 L Diesel
F9Q774 82 hp 60 kW 1.9 L Diesel
G9T720 90 hp 66 kW 2.2 L Diesel
G9T722 90 hp 66 kW 2.2 L Diesel
G9T750 90 hp 66 kW 2.2 L Diesel
G9T720 90 hp 66 kW 2.2 L Diesel
G9T750 90 hp 66 kW 2.2 L Diesel
G9U632 120 hp 88 kW 2.5 L Diesel
G9U632 146 hp 107 kW 2.5 L Diesel
G9U650 101 hp 74 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U650 146 hp 107 kW 2.5 L Diesel
G9U754 101 hp 74 kW 2.5 L Diesel
G9U632 120 hp 88 kW 2.5 L Diesel
G9U632 146 hp 107 kW 2.5 L Diesel
G9U650 101 hp 74 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U754 101 hp 74 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U724 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
S8U770 80 hp 59 kW 2.5 L Diesel
S9W702 114 hp 84 kW 2.8 L Diesel
ZD3200 136 hp 100 kW 3 L Diesel
ZD3200 136 hp 100 kW 3 L Diesel
ZD3202 136 hp 100 kW 3 L Diesel
ZD3202 136 hp 100 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
