ATE 24.0128-0132.1 (24012801321) Brake Disc

ATE part 24.0128-0132.1 (24012801321) Brake Disc

ATE 24.0128-0132.1 (24012801321) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0132.1 (24012801321)
Alternative ATE part number(s): 428132

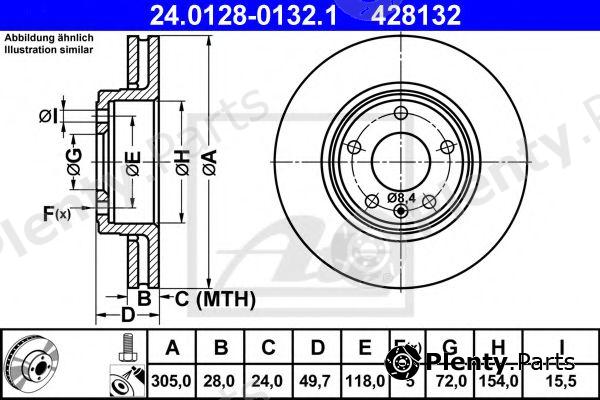

Сharacteristics:
  • Diameter [mm]: 305
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 24
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Height [mm]: 49,7
  • Centering Diameter [mm]: 72
  • Inner diameter [mm]: 154
  • Bolt Hole Circle Ø [mm]: 118
  • Bore Ø [mm]: 15,5
  • Supplementary Article/Info 2: with screws
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0132.1 (24012801321) Alternative ATE part number(s): 428132
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for NISSAN, OPEL, RENAULT vehicles

OE manufacturerOEM reference numbers
NISSAN40206-00QAE, 40206-00QAF, 40206-00QAG, 40206-00QAH
OPEL91159915, 91165426, 4408275, 4414632
RENAULT7701206845, 7711130077, 8200010519

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0132.1 (24012801321) Brake Disc offered by A.B.S., ALANKO, AP, ASHIKA, ASHUKI, AUTOMEGA, BARUM, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECK, BRECO, BREMBO, BREMSI, BSF, CAR, CASALS, CIFAM, DELPHI, DENCKERMANN, DITAS, Dr!ve+, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FERODO, FI.BA, FOMAR, fri.tech., FTE, GALFER, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, ICER, JAPANPARTS, JAPKO, JURID, KAGER, KAMOKA, KAVO PARTS, KAWE, KEY PARTS, KRAFT, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, sbs, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17329
ALANKO304974, 303430
AP24828
ASHIKA6001134
ASHUKI09907801
AUTOMEGA30771101300077
BARUMBAR28132
BENDIX562241B, 562241BC
BLUE PRINTADZ94317
BORG & BECKBBD4297
BOSCH0986479078, 0986479R93, 0986479B69
Brake ENGINEERINGDI956241S
BRECKBR339VA100
BRECOBS8453
BREMBODP68016, 09.8937.10
BREMSIDBB204V
BSF11392V
CAR142.362
CASALS55424
CIFAM800-798
DELPHIBG3768
DENCKERMANNB130453
DITASDFD1031
Dr!ve+DP1010110347
E.T.F.196845
EUROBRAKE5815203639
FARCOM230977, 230467
FEBI BILSTEIN22698
FERODODDF1204C-1, DDF1204, DDF12041, DDF1204C
FI.BAFBD160
FOMARFO2677
fri.tech.BD0976, BD0819
FTEBS5469, BS5469B
GALFERB1G22801321
GIRLING6042755
GRAFDF29798
HANS PRIES207073
HELLA8DD355113-401, 8DD355108-951, 8DD355108-941
HELLA PAGID8DD355113-401, 8DD355108-941, 8DD355108-951
HERTH+BUSS JAKOPARTSJ3301092
ICER78BD68452
JAPANPARTSDI134
JAPKO60134
JURID562241J, 562241JC
KAGER371052
KAMOKA1032408
KAVO PARTSBR6782, BR6782C
KAWE668210
KEY PARTSKBD4297
KRAFT6045430
LPRR1007V
MAGNETI MARELLI360704007800, 600000086720, 360406008800, 361302040164, 351404820500, 360406008803
MAPCO15759
MAXGEAR191009
METELLI23-0798
METZGER6110112, 24828
MEYLE6155216038, 6155216038PD
MGAD1427
MINTEXMDC1608, MDK0215
NECTOWN1225
NIPPARTSJ3301092, J3301087
NK313639, 203639
OPEN PARTSBDA197820
OPTIMALBS7892
PAGID54537, 54160, 54160PRO
PEX14.0765
PILENGAV377
PROTECHNICPRD2603
QUINTON HAZELLBSF5469, 6682.10, BDC5469
R BRAKE78RBD26845
REMSA6682.10
ROADHOUSE6682.10
ROTINGERRT20062T5, RT20062
sbs1815203639, 1815313639
STARLINEPB20062C, PB20062
STELLOX60203639VSX
SWAG60922698
TEMPLIN0311083190, 0311083195
TEXTAR98200116001, 92116003, 92116000
TRISCAN812010175
TRUSTINGDF819, DF976
TRWDF4275S
VAICOV4080043
VALEO186712
VILLAR6281159
WAGNER LOCKHEEDWGR12041
WOKINGD668210
ZIMMERMANN430.2602.00, 430260220

Vehicle fitment / ATE 24.0128-0132.1 (24012801321) Brake Disc compatibility

This product fits the following models: NISSAN PRIMASTAR, OPEL VIVARO, RENAULT TRAFIC, RENAULT TRAFIC II, VAUXHALL VIVARO, etc. See all vehicles this product (ATE 24.0128-0132.1 (24012801321)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
NISSANPRIMASTAR

X83
1.9 dCi
2.0
dCi 100
dCi 115
dCi 120
dCi 140
dCi 150
dCi 80
dCi 90
2001/03 - F4R720 120 hp 88 kW 2 L Petrol
F4R720 120 hp 88 kW 2 L Petrol
F4R722 120 hp 88 kW 2 L Petrol
F9Q760 100 hp 74 kW 1.9 L Diesel
F9Q760 101 hp 74 kW 1.9 L Diesel
F9Q762 80 hp 60 kW 1.9 L Diesel
F9Q762 82 hp 60 kW 1.9 L Diesel
G9U632 145 hp 107 kW 2.5 L Diesel
G9U720 114 hp 84 kW 2.5 L Diesel
G9U730 135 hp 99 kW 2.5 L Diesel
M9R780 114 hp 84 kW 2 L Diesel
M9R782 90 hp 66 kW 2 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
OPELVIVARO
E7
F7
J7
1.9 Di
1.9 DI
1.9 DTI
2.0 16V
2.0 CDTI
2.0 ECOTEC
2.5 CDTI
2.5 DTi
2.5 DTI
2001/08 - F4R720 120 hp 88 kW 2 L Petrol
F4R820 117 hp 86 kW 2 L Petrol
F9Q760 101 hp 74 kW 1.9 L Diesel
F9Q762 80 hp 60 kW 1.9 L Diesel
F9Q762 80 hp 60 kW 1.9 L Diesel
F9Q774 80 hp 60 kW 1.9 L Diesel
F9Q762 82 hp 60 kW 1.9 L Diesel
G9MB6 146 hp 107 kW 2.5 L Diesel
G9U630 114 hp 84 kW 2.5 L Diesel
G9U630 146 hp 107 kW 2.5 L Diesel
G9U630 114 hp 84 kW 2.5 L Diesel
G9U630 146 hp 107 kW 2.5 L Diesel
G9U730 135 hp 99 kW 2.5 L Diesel
M9R630 114 hp 84 kW 2 L Diesel
M9R630 90 hp 66 kW 2 L Diesel
M9R780 114 hp 84 kW 2 L Diesel
M9R780 90 hp 66 kW 2 L Diesel
M9R782 90 hp 66 kW 2 L Diesel
M9R786 90 hp 66 kW 2 L Diesel
M9R630 114 hp 84 kW 2 L Diesel
M9R692 114 hp 84 kW 2 L Diesel
M9R780 114 hp 84 kW 2 L Diesel
M9R780 90 hp 66 kW 2 L Diesel
M9R782 90 hp 66 kW 2 L Diesel
M9R784 114 hp 84 kW 2 L Diesel
M9R786 114 hp 84 kW 2 L Diesel
M9R786 90 hp 66 kW 2 L Diesel
M9R788 114 hp 84 kW 2 L Diesel
M9R630 90 hp 66 kW 2 L Diesel
M9R692 114 hp 84 kW 2 L Diesel
M9R780 114 hp 84 kW 2 L Diesel
M9R780 90 hp 66 kW 2 L Diesel
M9R782 90 hp 66 kW 2 L Diesel
M9R784 114 hp 84 kW 2 L Diesel
M9R786 114 hp 84 kW 2 L Diesel
M9R786 90 hp 66 kW 2 L Diesel
M9R788 114 hp 84 kW 2 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
RENAULTTRAFIC
FL
1.9 dCi
1.9 dCi 100
1.9 dCi 80
2.0
2.0 16V
2.0 dCi 115
2.0 dCi 90
2.5 dCi 135
2.5 dCi 145
2.5 DTi

FL01
FL0U
FL0A
FL0B
FL0C
FL0D
FL0H
FL0J
2001/03 - F4R720 120 hp 88 kW 2 L Petrol
F4R722 120 hp 88 kW 2 L Petrol
F4R820 117 hp 86 kW 2 L Petrol
F9Q760 101 hp 74 kW 1.9 L Diesel
F9Q760 82 hp 60 kW 1.9 L Diesel
F9Q762 82 hp 60 kW 1.9 L Diesel
F9Q762 80 hp 59 kW 1.9 L Diesel
G9U630 146 hp 107 kW 2.5 L Diesel
G9U730 135 hp 99 kW 2.5 L Diesel
M9R630 90 hp 66 kW 2 L Diesel
M9R780 90 hp 66 kW 2 L Diesel
M9R782 90 hp 66 kW 2 L Diesel
M9R692 114 hp 84 kW 2 L Diesel
M9R780 114 hp 84 kW 2 L Diesel
M9R782 114 hp 84 kW 2 L Diesel
M9R786 114 hp 84 kW 2 L Diesel
Front wheel
LCV / Van / Cargo
RENAULTTRAFIC II
EL
FL
JL
1.9 dCi
1.9 dCi 100
1.9 dCI 100
1.9 dCi 80
1.9 dCI 80
2.0
2.0 16V
2.0 dCi 115
2.0 dCi 90
2.5 dCi
2.5 dCi 115
2.5 dCi 135
2.5 dCi 145
2.5 DTi

EL0A
EL0B
EL0C
EL0D
EL0H
EL0J
FL01
FL0U
FL0A
FL0B
FL0C
FL0D
FL0H
FL0J
JL0A
JL0B
JL0C
JL0D
JL0H
JL0J
2001/03 - F4R720 120 hp 88 kW 2 L Petrol
F4R720 120 hp 88 kW 2 L Petrol
F4R722 120 hp 88 kW 2 L Petrol
F4R820 117 hp 86 kW 2 L Petrol
F9Q760 101 hp 74 kW 1.9 L Diesel
F9Q760 82 hp 60 kW 1.9 L Diesel
F9Q762 82 hp 60 kW 1.9 L Diesel
F9Q762 80 hp 59 kW 1.9 L Diesel
F9Q762 82 hp 60 kW 1.9 L Diesel
G9U630 114 hp 84 kW 2.5 L Diesel
G9U630 146 hp 107 kW 2.5 L Diesel
G9U730 135 hp 99 kW 2.5 L Diesel
M9R630 114 hp 84 kW 2 L Diesel
M9R692 114 hp 84 kW 2 L Diesel
M9R780 114 hp 84 kW 2 L Diesel
M9R782 114 hp 84 kW 2 L Diesel
M9R786 114 hp 84 kW 2 L Diesel
M9R630 90 hp 66 kW 2 L Diesel
M9R780 90 hp 66 kW 2 L Diesel
M9R782 90 hp 66 kW 2 L Diesel
M9R692 114 hp 84 kW 2 L Diesel
M9R780 114 hp 84 kW 2 L Diesel
M9R782 114 hp 84 kW 2 L Diesel
M9R786 114 hp 84 kW 2 L Diesel
M9R780 114 hp 84 kW 2 L Diesel
M9R782 114 hp 84 kW 2 L Diesel
M9R786 114 hp 84 kW 2 L Diesel
M9R780 90 hp 66 kW 2 L Diesel
M9R782 90 hp 66 kW 2 L Diesel
M9R782 90 hp 66 kW 2 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
VAUXHALLVIVARO
E7
F7
J7
1.9 DI
1.9 DTI
2.0 16V
2.0 CDTI
2.0 ECOTEC
2.5 CDTI
2.5 DTI
2001/08 - 2014/07F4R720 120 hp 88 kW 2 L Petrol
F4R820 117 hp 86 kW 2 L Petrol
F9Q760 101 hp 74 kW 1.9 L Diesel
F9Q762 80 hp 59 kW 1.9 L Diesel
G9U630 135 hp 99 kW 2.5 L Diesel
G9U630 146 hp 107 kW 2.5 L Diesel
G9U730 135 hp 99 kW 2.5 L Diesel
G9U730 146 hp 107 kW 2.5 L Diesel
G9U630 135 hp 99 kW 2.5 L Diesel
G9U730 135 hp 99 kW 2.5 L Diesel
G9U630 146 hp 107 kW 2.5 L Diesel
M9R630 114 hp 84 kW 2 L Diesel
M9R630 90 hp 66 kW 2 L Diesel
M9R692 114 hp 84 kW 2 L Diesel
M9R780 114 hp 84 kW 2 L Diesel
M9R780 90 hp 66 kW 2 L Diesel
M9R782 90 hp 66 kW 2 L Diesel
M9R786 90 hp 66 kW 2 L Diesel
M9R788 114 hp 84 kW 2 L Diesel
M9R630 114 hp 84 kW 2 L Diesel
M9R630 90 hp 66 kW 2 L Diesel
M9R780 114 hp 84 kW 2 L Diesel
M9R780 90 hp 66 kW 2 L Diesel
M9R782 90 hp 66 kW 2 L Diesel
M9R784 114 hp 84 kW 2 L Diesel
M9R786 114 hp 84 kW 2 L Diesel
M9R786 90 hp 66 kW 2 L Diesel
M9R788 114 hp 84 kW 2 L Diesel
M9R630 114 hp 84 kW 2 L Diesel
M9R630 90 hp 66 kW 2 L Diesel
M9R780 114 hp 84 kW 2 L Diesel
M9R780 90 hp 66 kW 2 L Diesel
M9R782 90 hp 66 kW 2 L Diesel
M9R786 90 hp 66 kW 2 L Diesel
M9R788 114 hp 84 kW 2 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
