ATE 24.0128-0135.1 (24012801351) Brake Disc

ATE part 24.0128-0135.1 (24012801351) Brake Disc

ATE 24.0128-0135.1 (24012801351) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0135.1 (24012801351)
Alternative ATE part number(s): 428135

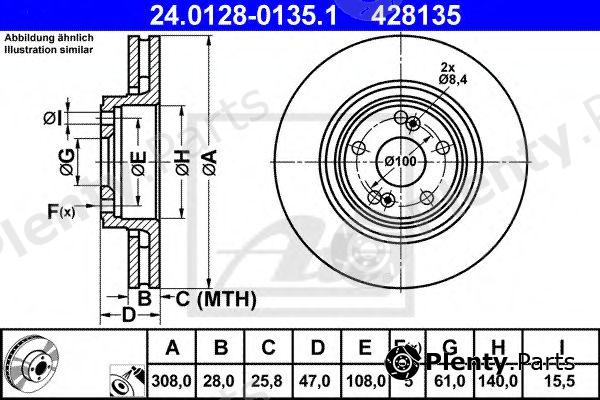

Сharacteristics:
  • Diameter [mm]: 308
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 25,8
  • Brake Disc Type: Vented
  • Surface: Coated
  • Number of Holes: 5
  • Machining: High-carbon
  • Height [mm]: 47
  • Centering Diameter [mm]: 61
  • Inner diameter [mm]: 140
  • Bolt Hole Circle Ø [mm]: 108
  • Bore Ø [mm]: 15,5
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0135.1 (24012801351) Alternative ATE part number(s): 428135
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for RENAULT vehicles

OE manufacturerOEM reference numbers
RENAULT7701207378, 8200242317, 8200570677

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0135.1 (24012801351) Brake Disc offered by A.B.S., ALANKO, AP, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CASALS, CIFAM, DELPHI, DENCKERMANN, E.T.F., FARCOM, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, HELLA, HELLA PAGID, ICER, KAMOKA, KAWE, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, MEYLE, MGA, MINTEX, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, STELLOX, SWAG, TEXTAR, TRUSTING, TRW, VALEO, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17158
ALANKO304226
AP24974, 24974V
BORG & BECKBBD5929S
BOSCH0986479199
Brake ENGINEERINGDI956621S
BRECOBV8593, BS8593
BREMBO09982121, 09.9821.20
BREMSIDBB368V
BSF11529V
CAR142.044, 142.363
CASALS55424
CIFAM800673C, 800-673
DELPHIBG9016
DENCKERMANNB130379
E.T.F.192317
FARCOM230483, 230985
FEBI BILSTEIN24310
FENOXTB219196
FERODODDF1368-1, DDF1368
FOMARFO4008
fri.tech.BD0976
FTEBS5279
GIRLING6042605
GRAFDF29673
HELLA8DD355115161
HELLA PAGID8DD355115161
ICER78BD23172
KAMOKA1031018
KAWE669410
LPRR1013V
MAGNETI MARELLI360406088900
MAPCO15135
MAXGEAR191305
METELLI23-0673, 230673C
MEYLE16155210025PD, 16155210025
MGAD1608
MINTEXMDC1887
NECTOWN1338
NK313948, 203948
OPEN PARTSBDA199920, BDR199920
OPTIMALBS7960
PAGID54740
PILENGAV782
PROTECHNICPRD2684
QUINTON HAZELLBDC5919, BDC5918, 6682.10, BDC5279
R BRAKE78RBD22317
REMSA669410, 6682.10
ROADHOUSE6682.10, 669410
ROTINGERRT20165T5, RT20165
SASIC6104007
sbs1815313948, 1815203948
STELLOX60201834SX
SWAG60924310
TEXTAR92174003
TRUSTINGDF976
TRWDF4260S
VALEO197079, 186722
WOKINGD669410
ZIMMERMANN470.2426.00, 470242620

Vehicle fitment / ATE 24.0128-0135.1 (24012801351) Brake Disc compatibility

This product fits the following models: RENAULT ESPACE IV, RENAULT ESPACEIV, RENAULT LAGUNA II, etc. See all vehicles this product (ATE 24.0128-0135.1 (24012801351)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
RENAULTESPACE IV
JK0/1
1.9 dCi
2.0
2.0 dCi
2.0 Turbo
JK02
JK03
JK09
JK0A
JK0B
JK0N
JK0A
JK1D
JK0N
JK0K
JK0U
JK0U
JK0G
2002/11 - F4R790 133 hp 98 kW 2 L Petrol
F4R792 136 hp 100 kW 2 L Petrol
F4R794 163 hp 120 kW 2 L Petrol
F4R795 163 hp 120 kW 2 L Petrol
F4R796 163 hp 120 kW 2 L Petrol
F4R797 163 hp 120 kW 2 L Petrol
F4R796 170 hp 125 kW 2 L Petrol
F4R797 170 hp 125 kW 2 L Petrol
F4R896 170 hp 125 kW 2 L Petrol
F4R897 170 hp 125 kW 2 L Petrol
F9Q680 120 hp 88 kW 1.9 L Diesel
F9Q820 120 hp 88 kW 1.9 L Diesel
F9Q826 120 hp 88 kW 1.9 L Diesel
F9Q820 116 hp 85 kW 1.9 L Diesel
M9R740 131 hp 96 kW 2 L Diesel
M9R750 131 hp 96 kW 2 L Diesel
M9R760 131 hp 96 kW 2 L Diesel
M9R761 131 hp 96 kW 2 L Diesel
M9R762 131 hp 96 kW 2 L Diesel
M9R763 131 hp 96 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
RENAULTESPACEIV
JK0/1
1.9 dCi
2.0
2.0 dCi
2.0 Turbo
JK02
JK03
JK09
JK0A
JK0B
JK0N
JK0A
JK1D
JK0N
JK0K
JK0U
JK0U
JK0G
2002/11 - F4R790 133 hp 98 kW 2 L Petrol
F4R792 136 hp 100 kW 2 L Petrol
F4R794 163 hp 120 kW 2 L Petrol
F4R795 163 hp 120 kW 2 L Petrol
F4R796 163 hp 120 kW 2 L Petrol
F4R797 163 hp 120 kW 2 L Petrol
F4R796 170 hp 125 kW 2 L Petrol
F4R797 170 hp 125 kW 2 L Petrol
F4R896 170 hp 125 kW 2 L Petrol
F4R897 170 hp 125 kW 2 L Petrol
F9Q680 120 hp 88 kW 1.9 L Diesel
F9Q820 120 hp 88 kW 1.9 L Diesel
F9Q826 120 hp 88 kW 1.9 L Diesel
F9Q820 116 hp 85 kW 1.9 L Diesel
M9R740 131 hp 96 kW 2 L Diesel
M9R750 131 hp 96 kW 2 L Diesel
M9R760 131 hp 96 kW 2 L Diesel
M9R761 131 hp 96 kW 2 L Diesel
M9R762 131 hp 96 kW 2 L Diesel
M9R763 131 hp 96 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
RENAULTLAGUNA II
BG0/1
KG0/1
2.2 dCi
3.0 V6 24V
BG01
BG02
BG0D
BG0Y
BG0F
KG0D
KG0F
2001/03 - G9T700 150 hp 110 kW 2.2 L Diesel
G9T702 150 hp 110 kW 2.2 L Diesel
G9T702 150 hp 110 kW 2.2 L Diesel
L7X731 207 hp 152 kW 3 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
