ATE 24.0128-0137.1 (24012801371) Brake Disc

ATE part 24.0128-0137.1 (24012801371) Brake Disc

ATE 24.0128-0137.1 (24012801371) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0137.1 (24012801371)
Alternative ATE part number(s): 428137

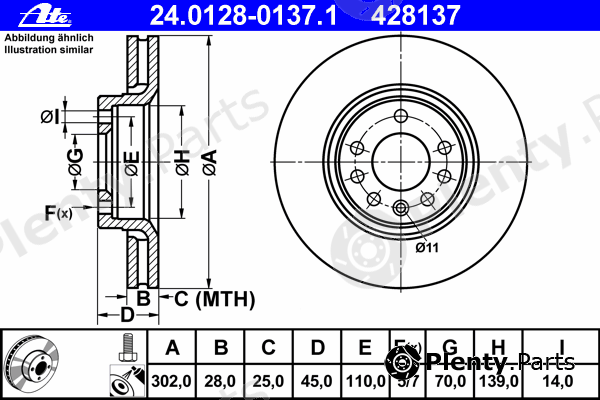

Сharacteristics:
  • Diameter [mm]: 302
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 25
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • No. of holes 2: 7
  • Height [mm]: 45
  • Centering Diameter [mm]: 70
  • Inner diameter [mm]: 139
  • Bolt Hole Circle Ø [mm]: 110
  • Bore Ø [mm]: 14
  • Supplementary Article/Info 2: with screws
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0137.1 (24012801371) Alternative ATE part number(s): 428137
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for OPEL, SAAB vehicles

OE manufacturerOEM reference numbers
OPEL569004, 93171500
SAAB93171500, 9191247

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0137.1 (24012801371) Brake Disc offered by A.B.S., ALANKO, AP, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, E.T.F., FARCOM, FEBI BILSTEIN, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, HELLA, HELLA PAGID, ICER, JP GROUP, JURATEK, JURID, KAGER, KAWE, KRAFT, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, STARLINE, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17370
ALANKO304070, 305338
APX24844, 24844X, 24844V
BENDIX562385BC, 562222B, 562385B
BORG & BECKBBD4365
BOSCH0986479076
Brake ENGINEERINGDI956250
BRECOBV8468, BS8468
BREMBO09.9162.10, 09.9162.75, 0991621X, 09.9162.14, 09.9162.11
BREMSIDBB215V
BSF11459V
CAR142.032
CIFAM800-681, 800681C
DELPHIBG3772
DENCKERMANNB130371
E.T.F.199004
FARCOM230476, 231237
FEBI BILSTEIN23550
FERODODDF1215, DDF1215-1
FOMARFO4006
fri.tech.BD0973
FTEBS5421, BS5421H, BS5421B
GIRLING6042655
GRAFDF29681
HELLA8DD355109-161, 8DD355109-171, 8DD355109172
HELLA PAGID8DD355109-161, 8DD355109172, 8DD355109-171
ICER78BD90042
JP GROUP1263100409
JURATEKVAU137
JURID562385J, 562222J, 562385JC
KAGER371392, 371100
KAWE668710
KRAFT6041730
LPRO1002V
MAGNETI MARELLI351344520500, 360406008200, 360704016500
MAPCO25707, 257072
MAXGEAR191832
METELLI230681C, 23-0681
METZGER6110404, 24844V
MEYLE6155216022
MGAD1507
MINTEXMDC1557
NECTOWN1233
NK203648, 313648
OPEN PARTSBDRS199025, BDR199020
OPTIMALBS-7918, BS7918C
PAGID54183PRO, 54183
PATRONPBD4265
PEX14.0745
PILENGAV763
PROTECHNICPRD2633
QUINTON HAZELL6687.10, BSF5421, BDC5421
R BRAKE78RBD29004
REMSA6687.10
ROADHOUSE6687.10
ROTINGERRT20162, RT20162T5
SASIC6106094
sbs1815203648, 1815313648
STARLINEPB20162C
SWAG40923550
TEMPLIN0311024230, 0311024235
TEXTAR92118303, 92118305, 92118300, 98200118301PRO, 98200118301
TRISCAN812024136
TRUSTINGDF973
TRWDF4265S, DF4265
VAICOV4080001, V4080047
VALEO186880
VILLAR6281061
WOKINGD668710
ZIMMERMANN430149552, 430149520, 430.1495.00, 430.1495.50

Vehicle fitment / ATE 24.0128-0137.1 (24012801371) Brake Disc compatibility

This product fits the following models: OPEL SIGNUM, OPEL VECTRA C, OPEL VECTRA C GTS, SAAB 9-3, SAAB 9-3X, VAUXHALL SIGNUM, VAUXHALL VECTRAII, etc. See all vehicles this product (ATE 24.0128-0137.1 (24012801371)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
OPELSIGNUM
1.8
1.9 CDTI
2.0 DTI
2.0 Turbo
2.2 direct
2.2 DTI
2.2 DTI 16V
3.0 V6 CDTI
3.2 V6
2003/05 - Y20DTH 100 hp 74 kW 2 L Diesel
Y22DTR 117 hp 86 kW 2.2 L Diesel
Y22DTR 125 hp 92 kW 2.2 L Diesel
Y30DT 177 hp 130 kW 3 L Diesel
Z18XE 122 hp 90 kW 1.8 L Petrol
Z18XER 140 hp 103 kW 1.8 L Petrol
Z19DT 100 hp 74 kW 1.9 L Diesel
Z19DT 120 hp 88 kW 1.9 L Diesel
Z19DTH 150 hp 110 kW 1.9 L Diesel
Z20NET 175 hp 129 kW 2 L Petrol
Z22YH 155 hp 114 kW 2.2 L Petrol
Z32SE 211 hp 155 kW 3.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
OPELVECTRA C
1.8
1.8 16V
1.9 CDTI
2.0 16V Turbo
2.0 Turbo
2.2 16V
2.2 direct
2.2 DTI
2.2 DTI 16V
3.0 CDTI
3.0 V6 CDTI
3.2 V6
2002/04 - Y22DTR 117 hp 86 kW 2.2 L Diesel
Y22DTR 125 hp 92 kW 2.2 L Diesel
Y30DT 177 hp 130 kW 3 L Diesel
Z18XE 122 hp 90 kW 1.8 L Petrol
Z18XE 122 hp 90 kW 1.8 L Petrol
Z18XER 140 hp 103 kW 1.8 L Petrol
Z18XEL 110 hp 81 kW 1.8 L Petrol
Z18XER 140 hp 103 kW 1.8 L Petrol
Z19DT 100 hp 74 kW 1.9 L Diesel
Z19DT 120 hp 88 kW 1.9 L Diesel
Z19DTH 150 hp 110 kW 1.9 L Diesel
Z19DTL 100 hp 74 kW 1.9 L Diesel
Z20NET 175 hp 129 kW 2 L Petrol
Z22SE 147 hp 108 kW 2.2 L Petrol
Z22YH 155 hp 114 kW 2.2 L Petrol
Z32SE 211 hp 155 kW 3.2 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
OPELVECTRA C GTS
1.8
1.8 16V
1.9 CDTI
2.0 16V Turbo
2.2 16V
2.2 direct
2.2 DTI 16V
3.0 CDTI
3.2 V6
2002/08 - Y22DTR 117 hp 86 kW 2.2 L Diesel
Y22DTR 125 hp 92 kW 2.2 L Diesel
Y30DT 177 hp 130 kW 3 L Diesel
Z18XE 122 hp 90 kW 1.8 L Petrol
Z18XEL 110 hp 81 kW 1.8 L Petrol
Z18XER 140 hp 103 kW 1.8 L Petrol
Z19DTL 100 hp 74 kW 1.9 L Diesel
Z20NET 175 hp 129 kW 2 L Petrol
Z22SE 147 hp 108 kW 2.2 L Petrol
Z22YH 155 hp 114 kW 2.2 L Petrol
Z32SE 211 hp 155 kW 3.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
SAAB9-3
YS3F
2.0 t
2.0 t XWD
2.8 Turbo V6
2.8 Turbo V6 XWD
2002/09 - A20NFT 220 hp 162 kW 2 L Petrol
B207M 200 hp 147 kW 2 L Petrol
B207R 209 hp 154 kW 2 L Petrol
B207R 241 hp 177 kW 2 L Petrol
B207L 175 hp 129 kW 2 L Petrol
B207R 210 hp 154 kW 2 L Petrol
B207R 209 hp 154 kW 2 L Petrol
B207R 241 hp 177 kW 2 L Petrol
B207R 210 hp 154 kW 2 L Petrol
B284L 256 hp 188 kW 2.8 L Petrol
B284R 276 hp 203 kW 2.8 L Petrol
B284R 280 hp 206 kW 2.8 L Petrol
LP9 230 hp 169 kW 2.8 L Petrol
LP9 250 hp 184 kW 2.8 L Petrol
B284L 256 hp 188 kW 2.8 L Petrol
B284R 276 hp 203 kW 2.8 L Petrol
LP9 230 hp 169 kW 2.8 L Petrol
LP9 250 hp 184 kW 2.8 L Petrol
B284R 280 hp 206 kW 2.8 L Petrol
LP9 250 hp 184 kW 2.8 L Petrol
AWD / 4WD
Front wheel
Convertible / cabrio
Estate / Turnier / Vario / Wagon
Sedan / Saloon
SAAB9-3X
1.9 TTiD
2.0 t BioPower XWD
2.0 t XWD
2009/02 - A19DTR 180 hp 132 kW 1.9 L Diesel
Z19DTR 180 hp 132 kW 1.9 L Diesel
A20NFT 220 hp 162 kW 2 L Petrol
B207R 209 hp 154 kW 2 L Petrol
B207R 209 hp 154 kW 2 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
VAUXHALLSIGNUM
1.8
1.9 CDTI
1.9 CDTI 16V
1.9 Turbo
2.0 DTI
2.0 i Turbo
2.2 DTI
2.2 i
3.0 CDTi
3.2 V6
2003/03 - 2008/10Y20DTH 100 hp 74 kW 2 L Diesel
Y22DTR 125 hp 92 kW 2.2 L Diesel
Y30DT 177 hp 130 kW 3 L Diesel
Z18XE 122 hp 90 kW 1.8 L Petrol
Z18XER 140 hp 103 kW 1.8 L Petrol
Z19DT 120 hp 88 kW 1.9 L Diesel
Z19DTH 150 hp 110 kW 1.9 L Diesel
Z19DTL 101 hp 74 kW 1.9 L Diesel
Z20NET 175 hp 129 kW 2 L Petrol
Z22YH 155 hp 114 kW 2.2 L Petrol
Z32SE 211 hp 155 kW 3.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
VAUXHALLVECTRAII
C
C GTS
C
1.8
1.8 16V
1.8 16V Dualfuel
1.9 CDTI
1.9 CDTI 16V
2.0 16V Turbo
2.2 16V
2.2 direct
2.2 DTI 16V
3.0 V6 CDTI
3.2 V6
2000/01 - 2008/10Y22DTR 125 hp 92 kW 2.2 L Diesel
Y30DT 177 hp 130 kW 3 L Diesel
Z18XE 122 hp 90 kW 1.8 L Petrol
Z18XER 140 hp 103 kW 1.8 L Petrol
Z19DT 120 hp 88 kW 1.9 L Diesel
Z19DTH 150 hp 110 kW 1.9 L Diesel
Z20NET 175 hp 129 kW 2 L Petrol
Z22SE 147 hp 108 kW 2.2 L Petrol
Z22YH 155 hp 114 kW 2.2 L Petrol
Z32SE 211 hp 155 kW 3.2 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
Sedan / Saloon
