ATE 24.0128-0140.1 (24012801401) Brake Disc

ATE part 24.0128-0140.1 (24012801401) Brake Disc

ATE 24.0128-0140.1 (24012801401) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0140.1 (24012801401)
Alternative ATE part number(s): 428140

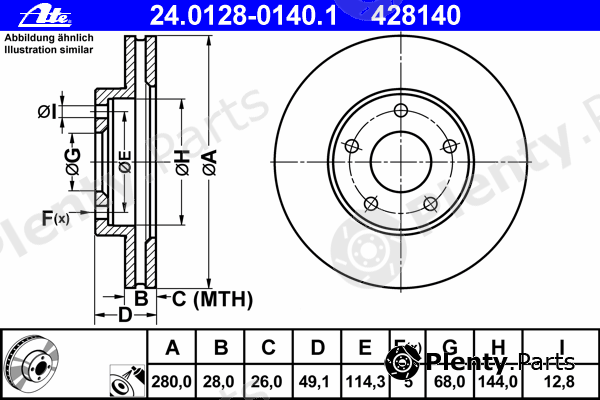

Сharacteristics:
  • Diameter [mm]: 280
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 26
  • Brake Disc Type: Vented
  • Surface: Coated
  • Number of Holes: 5
  • Height [mm]: 49,1
  • Centering Diameter [mm]: 68
  • Inner diameter [mm]: 144
  • Bolt Hole Circle Ø [mm]: 114,3
  • Bore Ø [mm]: 12,8
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0140.1 (24012801401) Alternative ATE part number(s): 428140
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for NISSAN vehicles

OE manufacturerOEM reference numbers
NISSAN40206-3Y502, 40206-3Y503, 40206-4U101, 40206-4U103, 40206-4U107

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0140.1 (24012801401) Brake Disc offered by A.B.S., ALANKO, AP, ASHIKA, ASHUKI, BARUM, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, DELPHI, DENCKERMANN, DIRECT PARTS, E.T.F., EUROBRAKE, FARCOM, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, G.U.D, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, ICER, JAPANPARTS, JAPKO, JP GROUP, JURID, KAGER, KAMOKA, KAVO PARTS, KAWE, KEY PARTS, KORTEX, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NATIONAL, NECTO, NIBK, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SAKURA, sbs, STARLINE, STOP, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17438
ALANKO303462
AP24898V, 24898
ASHIKA6001158
ASHUKI09901801
BARUMBAR28140
BENDIX562441B, 562457B, 562441BC
BLUE PRINTADN143101
BORG & BECKBBD4327
BOSCH0986479R90, 0986479B61, 0986479030, 0986479929
Brake ENGINEERINGDI956185
BRECOBV8503, BS8503
BREMBO09.9368.10, 09.9368.20, 09.9368.11
BREMSIDBB249V
CAR142.601
CIFAM800764C, 800-764
DELPHIBG3766, BG3730, BG3816
DENCKERMANNB130188
DIRECT PARTSDP104A050, 40206-3Y502
E.T.F.194103, 194107
EUROBRAKE5815202256
FARCOM231236, 230473, 230984
FENOXTB219157
FERODODDF1249C-1, DDF1249C, DDF12491, DDF1250, DDF1249
FOMARFO2908
fri.tech.BD0789
FTEBS5237B, BS5237
GIRLING6047441, 6043161
GRAFDF29764
G.U.DGDB128140
HELLA8DD355108011, 8DD355108001
HELLA PAGID8DD355108-001, 8DD355108-011
HERTH+BUSS JAKOPARTSJ3301085, J3301083, J3301081
ICER78BD41032
JAPANPARTSDI158
JAPKO60158
JP GROUP4063100709
JURID562441JC, 562457J, 562441J
KAGER370736
KAMOKA1032498
KAVO PARTSBR6776, BR6776C, BR6774
KAWE668110
KEY PARTSKBD4327
KORTEXKD0018
LPRN2002VR
LUCAS ELECTRICALDF4316S
MAGNETI MARELLI353613288240, 360406036800, 600000086670
MAPCO45517
MAXGEAR190951
METELLI230764C, 23-0764
METZGER668110, 6110132
MEYLE36-155210027
MGAD1544
MINTEXMDK0198, MDC1578
NATIONALNBD1197
NECTOWN1267
NIBKRN1180
NIPPARTSJ3301081, J3301083, J3301085
NK312256, 202256
OPEN PARTSBDR198620, BDA198620
OPTIMALBS7896
PAGID50343, 50343PRO
PATRONPBD4744
PEX14.0819
PILENGAV886
PROTECHNICPRD2671
QUINTON HAZELLBDC5346, BDC5237, BSF5237, 6681.10
R BRAKE78RBD24103
REMSA6681.10
ROADHOUSE6681.10
ROTINGERRT2865, RT2865T5
SAKURA604104146
sbs1815202256, 1815312256
STARLINEPB2865C, PB2865
STOP562441S
TEMPLIN0311023040, 0311023045
TEXTAR92109400, 92109403, 98200109401
TRUSTINGDF789
TRWDF4316, DF4744, DF4542
VAICOV3880007
VALEO186728
VEMA98690
VILLAR6281926, 6281290
WOKINGD668110
ZIMMERMANN200251520, 200251552, 200.2515.00, 200.2515.50

Vehicle fitment / ATE 24.0128-0140.1 (24012801401) Brake Disc compatibility

This product fits the following models: NISSAN ALMERA TINO, NISSAN MAXIMA QX, NISSAN PRIMERA, NISSAN X-TRAIL, etc. See all vehicles this product (ATE 24.0128-0140.1 (24012801401)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
NISSANALMERA TINO
V10
1.8
2.0
2.2 dCi
2.2 Di
2000/08 - QG18DE 114 hp 84 kW 1.8 L Petrol
QG18DE 116 hp 85 kW 1.8 L Petrol
SR20DE 136 hp 100 kW 2 L Petrol
YD22DDT 112 hp 82 kW 2.2 L Diesel
YD22DDTi 136 hp 100 kW 2.2 L Diesel
YD22DDTi 115 hp 84 kW 2.2 L Diesel
Front wheel
MPV / Van / Minivan
NISSANMAXIMA QX
A33
2.0 V6 24V
2.5 V6 24V
3.0 V6 24V
2000/03 - 2003/11VQ20DE 140 hp 103 kW 2 L Petrol
VQ25DE 209 hp 154 kW 2.5 L Petrol
VQ30DE 200 hp 147 kW 3 L Petrol
Front wheel
Sedan / Saloon
NISSANPRIMERA
P12
WP12
1.6
1.6 Visia
1.8
1.9 dCi
2.0
2.2 dCi
2.2 Di
2.5
2002/01 - F9Q 116 hp 85 kW 1.9 L Diesel
F9Q 120 hp 88 kW 1.9 L Diesel
QG16DE 106 hp 78 kW 1.6 L Petrol
QG16DE 109 hp 80 kW 1.6 L Petrol
QG16DE 109 hp 80 kW 1.6 L Petrol
QG18DE 115 hp 85 kW 1.8 L Petrol
QG25DD 170 hp 125 kW 2.5 L Petrol
QR20DE 140 hp 103 kW 2 L Petrol
QR25DE 170 hp 125 kW 2.5 L Petrol
YD22DDT 126 hp 93 kW 2.2 L Diesel
YD22DDT 139 hp 102 kW 2.2 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
Sedan / Saloon
NISSANX-TRAIL
T30
2.0
2.0 4x4
2.2 dCi
2.2 DCi
2.2 dCi 4x4
2.2 DCi FWD
2.2 Di 4x4
2.5 4x4
2001/06 - 2013/01QR20DE 140 hp 103 kW 2 L Petrol
QR20DE 150 hp 110 kW 2 L Petrol
QR20DE 140 hp 103 kW 2 L Petrol
QR20DE 150 hp 110 kW 2 L Petrol
SR20VET 280 hp 206 kW 2 L Petrol
QR25DE 165 hp 121 kW 2.5 L Petrol
QR25DE 179 hp 132 kW 2.5 L Petrol
YD22DDTi 114 hp 84 kW 2.2 L Diesel
YD22DDTi 136 hp 100 kW 2.2 L Diesel
YD22ETI 114 hp 84 kW 2.2 L Diesel
AWD / 4WD
Front wheel
Rear wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
