ATE 24.0128-0142.1 (24012801421) Brake Disc
ATE 24.0128-0142.1 (24012801421) Brake Disc
by ATEManufacturer Part Number: 24.0128-0142.1 (24012801421)
Alternative ATE part number(s): 428142

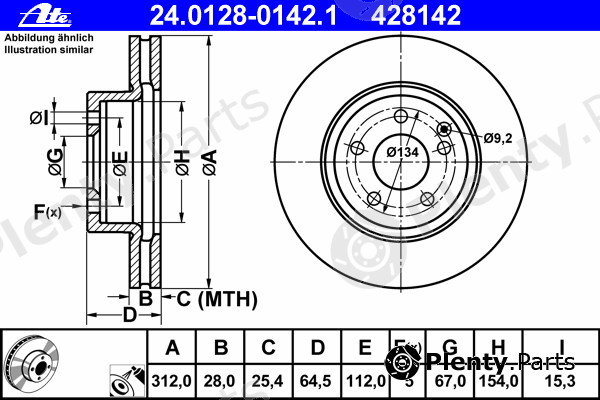

- Diameter [mm]: 312
- Brake Disc Thickness [mm]: 28
- Minimum thickness [mm]: 25,4
- Brake Disc Type: Vented
- Machining: Alloyed / High-carbon
- Surface: Coated
- Number of Holes: 5
- Height [mm]: 64,5
- Centering Diameter [mm]: 67
- Inner diameter [mm]: 154
- Bolt Hole Circle Ø [mm]: 112
- Bore Ø [mm]: 15,3
- MAPP code available:
- Warning notice ---------------------- Work on the SBC brake system may only be carried out by trained specialists! ¿ Risk of injury! ¿ System is pressurized! ¿ Observe manufacturer¿s guidelines! ¿ Before starting maintenance and repair work the system must be deactivated. ¿ After finishing maintenance and repair work the system must be reactivated. ¿ Only use appropriate service and diagnosis equipment! ¿ Recommendation: ContiSys Check Item no. 03.9301-6000.4 ContiSys Scan Item no. 03.9301-5000.4 Bleeding unit ATE FB 30s Item no. 03.9302-3010.4 Continental is not liable for damages which occur due to incorrect installation of the product.
Product Details
| Brand | ATE |
| ATE article (MPN) | 24.0128-0142.1 (24012801421) Alternative ATE part number(s): 428142 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for MERCEDES-BENZ vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| MERCEDES-BENZ | 2114210912 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 24.0128-0142.1 (24012801421) Brake Disc offered by A.B.S., ALANKO, AP, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, DELPHI, DENCKERMANN, E.T.F., FARCOM, FEBI BILSTEIN, FERODO, FOMAR, fri.tech., FTE, GALFER, GIRLING, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAWE, KRAFT, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, sbs, SWAG, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, VILLAR, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 17403 |
| ALANKO | 304821, 303148 |
| AP | 24920, 24920V |
| BARUM | BAR28142 |
| BENDIX | 562386BC, 562243B, 562386B |
| BORG & BECK | BBD4344 |
| BOSCH | 0986479040 |
| Brake ENGINEERING | DI956277 |
| BRECO | BV8509, BS8509 |
| BREMBO | 09.9481.11, 09.9481.10 |
| BREMSI | DBB263V |
| CAR | 142.387 |
| CIFAM | 800602C |
| DELPHI | BG3756 |
| DENCKERMANN | B130357 |
| E.T.F. | 190414 |
| FARCOM | 231241, 230481 |
| FEBI BILSTEIN | 30598 |
| FERODO | DDF1263, DDF1263C, DDF1263C-1 |
| FOMAR | FO2923 |
| fri.tech. | BD0928 |
| FTE | BS5465, BS5465HB, BS5465B |
| GALFER | B1G22801421 |
| GIRLING | 6042641 |
| HANS PRIES | 401053 |
| HELLA | 8DD355122512, 8DD355108-821, 8DD355108-811, 8DD355121241 |
| HELLA PAGID | 8DD355121241, 8DD355108-811, 8DD355108-821, 8DD355122512 |
| ICER | 78BD04142 |
| JP GROUP | 1363103509, 1363103500 |
| JURID | 562243J, 562386JC, 562386J |
| KAGER | 371188, 371378, 371130 |
| KAWE | 667710 |
| KRAFT | 6041260 |
| LPR | M2018VR |
| MAGNETI MARELLI | 360406008000, 351287120500 |
| MAPCO | 15812, 47812HPS |
| METELLI | 230602C |
| METZGER | 6110304 |
| MEYLE | 0155212053/PD, 0155212053 |
| MGA | D1542 |
| MINTEX | MDC1617 |
| NECTO | WN1279 |
| NK | 203360, 313360 |
| OPEN PARTS | BDR199720 |
| OPTIMAL | BS-7800, BS7800C |
| PAGID | 54153, 54153PRO |
| PATRON | PBD4264 |
| PEX | 14.0815 |
| PILENGA | V297 |
| PROTECHNIC | PRD2676 |
| QUINTON HAZELL | BDC5465, 6677.10 |
| R BRAKE | 78RBD20414 |
| REMSA | 6677.10 |
| ROADHOUSE | 6677.10 |
| ROTINGER | RT2934T5, RT2934 |
| sbs | 1815313360, 1815203360 |
| SWAG | 10930598 |
| TEMPLIN | 0311021120, 0311021125 |
| TEXTAR | 98200115301, 92115303, 92115300, 98200115301PRO, 92115305 |
| TRUSTING | DF928 |
| TRW | DF4264 |
| VAICO | V3080049 |
| VILLAR | 6281857 |
| WOKING | D667710 |
| ZIMMERMANN | 400.3620.00, 400.3620.50, 400.3620.20, 400362052 |
Vehicle fitment / ATE 24.0128-0142.1 (24012801421) Brake Disc compatibility
This product fits the following models: MERCEDES-BENZ CLS, MERCEDES-BENZ E-CLASS, etc. See all vehicles this product (ATE 24.0128-0142.1 (24012801421)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| MERCEDES-BENZ | CLS C219 | CLS 320 CDI CLS 350 CDI 219.322 | 2005/01 - 2010/12 | OM642.920 211 hp 155 kW 3 L Diesel OM642.920 224 hp 165 kW 3 L Diesel OM642.920 272 hp 200 kW 3 L Diesel | Rear wheel | Coupe / Sports car / Grand tourer / Speedster / Roadster |
| MERCEDES-BENZ | E-CLASS S211 W211 | E 230 T E 280 T E 280 T CDI E 320 E 320 CDI E 320 T E 320 T CDI 211.026 211.065 211.222 211.223 211.226 211.252 211.254 211.265 | 2002/03 - 2009/07 | M112.949 224 hp 165 kW 3.2 L Petrol M272.922 204 hp 150 kW 2.5 L Petrol M272.943 231 hp 170 kW 3 L Petrol OM642.920 224 hp 165 kW 3 L Diesel OM648.961 177 hp 130 kW 3.2 L Diesel OM648.961 204 hp 150 kW 3.2 L Diesel | Rear wheel | Estate / Turnier / Vario / Wagon Sedan / Saloon |
