ATE 24.0128-0148.1 (24012801481) Brake Disc

ATE part 24.0128-0148.1 (24012801481) Brake Disc

ATE 24.0128-0148.1 (24012801481) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0148.1 (24012801481)
Alternative ATE part number(s): 428148

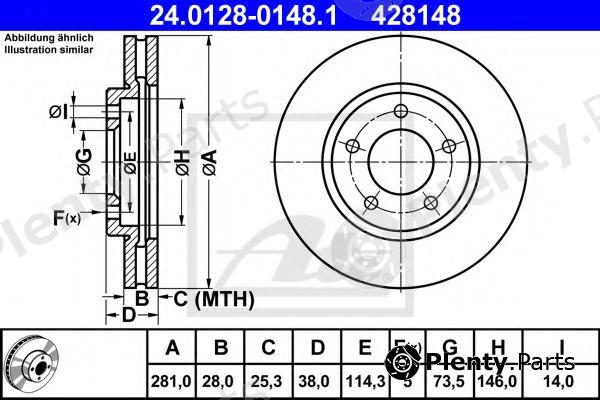

Сharacteristics:
  • Diameter [mm]: 281
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 25,3
  • Brake Disc Type: Vented
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 114,3
  • Height [mm]: 38
  • Centering Diameter [mm]: 73,5
  • Inner diameter [mm]: 146
  • Bore Ø [mm]: 14
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0148.1 (24012801481) Alternative ATE part number(s): 428148
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CHRYSLER vehicles

OE manufacturerOEM reference numbers
CHRYSLER04721820AC, 04721820AG, 05073069AA, 4721820AC, 4721820AG, 5073069AA

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0148.1 (24012801481) Brake Disc offered by A.B.S., ALANKO, AP, ASHUKI, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, FARCOM, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, ICER, JP GROUP, KAGER, KAMOKA, KAWE, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MGA, MINTEX, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, sbs, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17353
ALANKO305690, 305239
AP24842, 24842V
ASHUKIUS104303
BORG & BECKBBD4418
BOSCH0986479063, 0986478109
Brake ENGINEERINGDI956147
BRECOBV8466, BS8466
BREMBO09.8977.11, 09.8977.10
BREMSIDBB214V
BSF11446V
CAR142.346
CIFAM800689C
DELPHIBG3715
FARCOM231024, 230543
FENOXTB219058
FERODODDF1214-1, DDF1214
FOMARFO2897
fri.tech.BD0089
FTEBS5338, BS5338B
GIRLING6045501
HELLA8DD355107-891
HELLA PAGID8DD355107-891
ICER78BD30022
JP GROUP5063100509
KAGER371116
KAMOKA103270
KAWE6104710
LPRC3003V
MAGNETI MARELLI360406005200, 351120820500
MAPCO25992
MAXGEAR191800
METELLI230689C
METZGER24842, 6110382
MGAD1509
MINTEXMDC1555
NECTOWN1232
NK319313, 209313
OPEN PARTSBDA213020, BDR213020
OPTIMALBS8194
PAGID50332
PATRONPBD53004, PBD53002
PILENGAV643
PROTECHNICPRD2522
QUINTON HAZELLBSF5338, BDC5338
R BRAKE78RBD23002
REMSA6104710
ROADHOUSE6104710
ROTINGERRT2836T5, RT2836
sbs1815209313, 1815319313
TEMPLIN0311013720
TEXTAR92108300, 92108303, 98200108301
TRISCAN8120101010
TRUSTINGDF089
TRWDF4550
VAICOV3380008, V3380007
VALEO186733, 197069
VILLAR6281861
WAGNER LOCKHEEDWGR12141
WOKINGD6104710
ZIMMERMANN155390320, 155.3903.00, 155.3903.50

Vehicle fitment / ATE 24.0128-0148.1 (24012801481) Brake Disc compatibility

This product fits the following models: CHRYSLER GRAND VOYAGER IV, CHRYSLER TOWN & COUNTRY IV, CHRYSLER VOYAGERIII, CHRYSLER VOYAGER IV, etc. See all vehicles this product (ATE 24.0128-0148.1 (24012801481)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CHRYSLERGRAND VOYAGER IV
RG
RS
2.4
2.5 CRD
2.8 CRD
3.3
3.3 AWD
3.3 Flex-Fuel
3.8
3.8 AWD
2000/02 - 2008/12EDK 120 hp 88 kW 2.5 L Diesel
ENJ 141 hp 105 kW 2.5 L Diesel
EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
ENR 150 hp 110 kW 2.8 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERTOWN & COUNTRY IV
RG
RS
2.4
2.5 CRD
2.8 CRD
3.3
3.3 AWD
3.3 Flex-Fuel
3.8
3.8 AWD
2000/02 - 2008/12EDK 120 hp 88 kW 2.5 L Diesel
ENJ 141 hp 105 kW 2.5 L Diesel
EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
ENR 150 hp 110 kW 2.8 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERVOYAGERIII
RG
RS
2.4
2.5 CRD
2.8 CRD
3.3
3.3 AWD
3.3 Flex-Fuel
3.8
3.8 AWD
2000/02 - 2008/12EDK 120 hp 88 kW 2.5 L Diesel
ENJ 141 hp 105 kW 2.5 L Diesel
EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
ENR 150 hp 110 kW 2.8 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERVOYAGER IV
RG
RS
2.4
2.5 CRD
2.8 CRD
3.3
3.3 AWD
3.3 Flex-Fuel
3.8
3.8 AWD
2000/02 - 2008/12EDK 120 hp 88 kW 2.5 L Diesel
ENJ 141 hp 105 kW 2.5 L Diesel
EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
ENR 150 hp 110 kW 2.8 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
