ATE 24.0128-0156.1 (24012801561) Brake Disc

ATE part 24.0128-0156.1 (24012801561) Brake Disc

ATE 24.0128-0156.1 (24012801561) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0156.1 (24012801561)
Alternative ATE part number(s): 428156

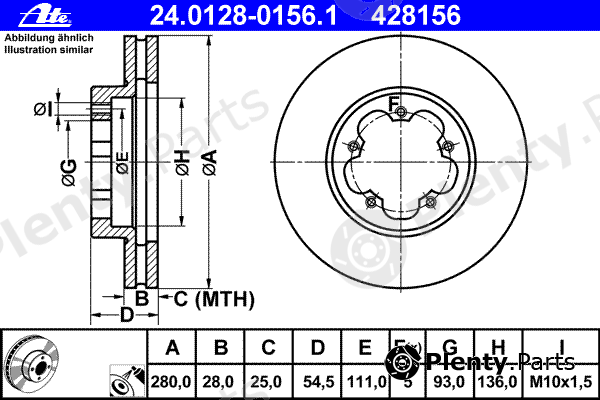

Сharacteristics:
  • Diameter [mm]: 280
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 25
  • Brake Disc Type: Vented
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 111
  • Height [mm]: 54,5
  • Centering Diameter [mm]: 93
  • Inner diameter [mm]: 136
  • Thread Size: M10x1,5
  • Supplementary Article/Info 2: with screws
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0156.1 (24012801561) Alternative ATE part number(s): 428156
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for FORD vehicles

OE manufacturerOEM reference numbers
FORD1371394, 1503290, 1547061, 6C11-1125-B1B, 6C111125BB

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0156.1 (24012801561) Brake Disc offered by A.B.S., ALANKO, AP, AUTOMEGA, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BSG, CAR, CASALS, CIFAM, DELPHI, E.T.F., EUROBRAKE, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, HANS PRIES, HELLA, HELLA PAGID, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, KRAFT, LPR, MAGNETI MARELLI, MALÒ, MAPCO, MAXGEAR, MENSAN, METELLI, METZGER, MEYLE, MGA, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TRICLO, TRUSTING, TRW, VAICO, VALEO, WINNARD, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17743
ALANKO303030
AP25266
AUTOMEGA30105030290
BARUMBAR28156
BENDIX562541BC
BORG & BECKBBD4563
BOSCH0986479C09, 0986479392
Brake ENGINEERINGDI956400
BRECOBS8876
BREMBO09.A529.10
BSGBSG30210008
CAR142.1419
CASALS50252, 55415
CIFAM800898
DELPHIBG4007
E.T.F.196057
EUROBRAKE5815202575
FEBI BILSTEIN28388
FENOXTB219304
FERODODDF1554
FOMARFO4102
fri.tech.BD1007
FTEBS7112, BS7112B
GIRLING6048205, 6023895
HANS PRIES303972
HELLA8DD355113-261, 8DD355113-251
HELLA PAGID8DD355113-261, 8DD355113-251
JP GROUP1563100909, 1563100900
JURID562541JC
KAGER370822
KAMOKA103272
KAWE6102110
KEY PARTSKBD4563
KRAFT6042005
LPRF1017V
MAGNETI MARELLI360704016300, 360406105300
MALÒ1110121
MAPCO25819
MAXGEAR191333
MENSAN020223
METELLI230898
METZGER6102110, 6110117
MEYLE7155217043
MGAD1641
MINTEXMDC1759, MDK0237
NK202575, 312575
OPEN PARTSBDA236820
OPTIMALBS8100
PAGID54518PRO, 54518
REMSA6102110
ROADHOUSE6102110
ROTINGERRT20550T5, RT20550
SASIC6106149
sbs1815312575, 1815202575
STARLINEPB20550C
STELLOX60201096VSX
SWAG50928388
TEMPLIN0311080995, 031102600130
TEXTAR98200151801, 92151803, 92151800
TRICLO848144
TRUSTINGDF1007
TRWDF2389S, DF4820S
VAICOV2580010
VALEO187150, 197249
WINNARDFD1048
WOKINGD6102110
ZIMMERMANN250135620, 250.1356.00

Vehicle fitment / ATE 24.0128-0156.1 (24012801561) Brake Disc compatibility

This product fits the following models: FORD TRANSIT, FORD TRANSIT NEO, etc. See all vehicles this product (ATE 24.0128-0156.1 (24012801561)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
FORDTRANSIT
2.2 TDCi
2006/04 - 2014/08CYFA 125 hp 92 kW 2.2 L Diesel
CYFB 125 hp 92 kW 2.2 L Diesel
CYFC 125 hp 92 kW 2.2 L Diesel
CYFD 125 hp 92 kW 2.2 L Diesel
DRFA 100 hp 74 kW 2.2 L Diesel
DRFB 100 hp 74 kW 2.2 L Diesel
DRFC 100 hp 74 kW 2.2 L Diesel
DRFD 100 hp 74 kW 2.2 L Diesel
DRFE 100 hp 74 kW 2.2 L Diesel
P8FA 85 hp 63 kW 2.2 L Diesel
P8FB 85 hp 63 kW 2.2 L Diesel
PGFA 140 hp 103 kW 2.2 L Diesel
PGFB 140 hp 103 kW 2.2 L Diesel
QVFA 110 hp 81 kW 2.2 L Diesel
QWFA 130 hp 96 kW 2.2 L Diesel
SRFA 115 hp 85 kW 2.2 L Diesel
SRFB 115 hp 85 kW 2.2 L Diesel
SRFC 115 hp 85 kW 2.2 L Diesel
SRFD 115 hp 85 kW 2.2 L Diesel
SRFE 115 hp 85 kW 2.2 L Diesel
UHFA 140 hp 103 kW 2.2 L Diesel
UHFB 140 hp 103 kW 2.2 L Diesel
UHFC 140 hp 103 kW 2.2 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
FORDTRANSIT NEO
2.2 TDCi
2006/07 - 2014/08PGFA 140 hp 103 kW 2.2 L Diesel
PGFB 140 hp 103 kW 2.2 L Diesel
QVFA 110 hp 81 kW 2.2 L Diesel
QWFA 131 hp 96 kW 2.2 L Diesel
SRFA 115 hp 85 kW 2.2 L Diesel
SRFB 115 hp 85 kW 2.2 L Diesel
SRFC 115 hp 85 kW 2.2 L Diesel
SRFD 115 hp 85 kW 2.2 L Diesel
SRFE 115 hp 85 kW 2.2 L Diesel
UHFA 140 hp 103 kW 2.2 L Diesel
UHFB 140 hp 103 kW 2.2 L Diesel
Front wheel
Passenger Van / Wagon / Minibus
