ATE 24.0128-0159.1 (24012801591) Brake Disc

ATE part 24.0128-0159.1 (24012801591) Brake Disc

ATE 24.0128-0159.1 (24012801591) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0159.1 (24012801591)
Alternative ATE part number(s): 428159

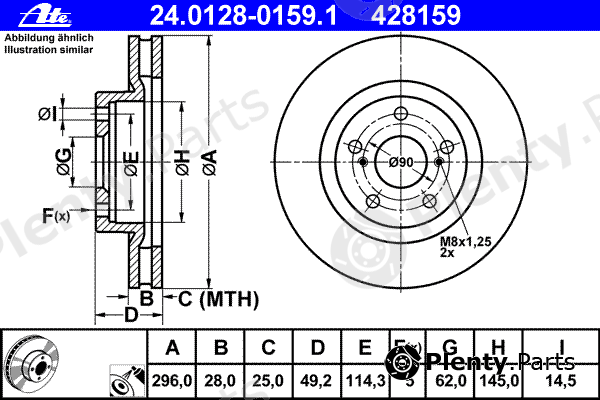

Сharacteristics:
  • Diameter [mm]: 296
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 25
  • Brake Disc Type: Vented
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 114,3
  • Height [mm]: 49,2
  • Centering Diameter [mm]: 62
  • Inner diameter [mm]: 145
  • Bore Ø [mm]: 14,5
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0159.1 (24012801591) Alternative ATE part number(s): 428159
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for LEXUS, TOYOTA vehicles

OE manufacturerOEM reference numbers
LEXUS43512-33140
TOYOTA43512-42050, 43512-33130, 4351242090

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0159.1 (24012801591) Brake Disc offered by A.B.S., ADVICS / SUMITOMO, ALANKO, AP, ASHUKI, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, G.U.D, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, ICER, JP GROUP, KAGER, KAMOKA, KAVO PARTS, KAWE, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NIBK, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROFIT, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, sbs, STARLINE, STELLOX, TEXTAR, TRUSTING, TRW, VAICO, VALEO, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17807
ADVICS / SUMITOMOA6F164
ALANKO303762
AP25190, 25190V
ASHUKI09904612
BLUE PRINTADT343206
BORG & BECKBBD4606
BOSCH0986479428, 0986479768, 0986479S22
Brake ENGINEERINGDI956407
BRECOBS 8800, BV8800
BREMBO09.A417.10, 09.A417.11
BSF11661V
CAR142.1302
CIFAM800-946, 800946C
DELPHIBG4114, BG4192
DENCKERMANNB130604
FENOXTB219005
FERODODDF1646-1, DDF1646
FOMARFO4097
fri.tech.BD1210
FTEBS7142, BS7142B
GIRLING6048285
GRAFDF29946
G.U.DGDB128159
HELLA8DD355117431, 8DD355118-561
HELLA PAGID8DD355118-561, 8DD355117431
HERTH+BUSS JAKOPARTSJ3302011
ICER78BD31072
JP GROUP4863101809
KAGER371262, 371409
KAMOKA1031046
KAVO PARTSBR9472C, BR-9472
KAWE6125910, 6118910
LPRT2032V
MAGNETI MARELLI600000086890, 360406078800
MAPCO25229
MAXGEAR191866
METELLI23-0946, 230946C
METZGER6110355, 6118910
MEYLE30155210065PD
MGAD1825
MINTEXMDC2314, MDC1850
NIBKRN1241
NIPPARTSN3302164
NK2045117
OPEN PARTSBDR242420
OPTIMALBS-8498
PAGID55350, 54688
PATRONPBD4828
PILENGAV391
PROFIT50101646
PROTECHNICPRD2556
QUINTON HAZELLBDC5574
R BRAKE78RBD23107
REMSA6125910, 61189.10
ROADHOUSE6125910, 61189.10
ROTINGERRT20490T5, RT20490
sbs18152045117
STARLINEPB20490, PB20490C
STELLOX60201069VSX
TEXTAR92235000, 92168803
TRUSTINGDF1210
TRWDF4828S
VAICOV7080030
VALEO197152, 197281, 197273
WOKINGD6118910, D6125910
ZIMMERMANN590281052, 590281020

Vehicle fitment / ATE 24.0128-0159.1 (24012801591) Brake Disc compatibility

This product fits the following models: LEXUS ES, TOYOTA AURIS, TOYOTA AURIS S, TOYOTA BLADE, TOYOTA CAMRY, TOYOTA COROLLA, TOYOTA PRIUS ALPHA, TOYOTA PRIUS PLUS, TOYOTA PRIUS V, TOYOTA RAV 4 III, TOYOTA RAV 4 IV, etc. See all vehicles this product (ATE 24.0128-0159.1 (24012801591)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
LEXUSES
AVV6
GSV6
ASV6
GSV4
ACV4
250
300h
3.5
350

ASV60
AVV60
ASV60
GSV40
GSV60
2006/05 - 2AR-FE 184 hp 135 kW 2.5 L Petrol
2AR-FXE 160 hp 118 kW 2.5 L Petrol
2GR-FE 249 hp 183 kW 3.5 L Petrol
2GR-FE 277 hp 204 kW 3.5 L Petrol
Front wheel
Sedan / Saloon
TOYOTAAURIS
NRE15
ZZE15
ADE15
ZRE15
NDE15
ZWE18
NZE18
ZRE18
1.8
1.8 Hybrid

ZRE186
ZWE186
ZZE182
2010/09 - 2ZR-FAE 140 hp 103 kW 1.8 L Petrol
2ZR-FE 140 hp 103 kW 1.8 L Petrol
2ZR-FAE 144 hp 106 kW 1.8 L Petrol
2ZR-FXE 99 hp 73 kW 1.8 L Hybrid
2ZR-FXE 99 hp 73 kW 1.8 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTAAURIS S
ADE18
ZWE18
ZRE18
1.8 Hybrid
ZWE186
2013/07 - 2ZR-FXE 99 hp 73 kW 1.8 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
TOYOTABLADE
NRE15
ZZE15
ADE15
ZRE15
NDE15
1.8 Hybrid
2010/09 - 2012/092ZR-FXE 99 hp 73 kW 1.8 L Hybrid
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTACAMRY
AVV5
XV5
MCV3
ACV3
XV3
XV4
2.0
2.0 VVT-i
2.4 VVTi
2.4 VVT-i Hybrid
2.4 VVTi Hybrid
2.5
2.5 Altise
2.5 Hybrid
2.5 VVTi
3.5
3.5 VVTI
3.5 VVTi XLE

ASV50
2006/01 - 1AZ-FE 147 hp 108 kW 2 L Petrol
1AZ-FE 148 hp 109 kW 2 L Petrol
2AR-FE 175 hp 129 kW 2.5 L Petrol
2AR-FE 181 hp 133 kW 2.5 L Petrol
2AR-FXE 160 hp 118 kW 2.5 L Hybrid
2JM 160 hp 118 kW 2.5 L Hybrid
2AZ-FE 158 hp 116 kW 2.4 L Petrol
2AZ-FE 167 hp 123 kW 2.4 L Petrol
2AZ-FE 173 hp 127 kW 2.4 L Petrol
2AZ-FXE 143 hp 105 kW 2.4 L Petrol
2AZ-FXE 150 hp 110 kW 2.4 L Hybrid
2GR-FE 249 hp 183 kW 3.5 L Petrol
2GR-FE 268 hp 197 kW 3.5 L Petrol
2GR-FE 277 hp 204 kW 3.5 L Petrol
Front wheel
Sedan / Saloon
TOYOTACOROLLA
NRE15
ZZE15
ADE15
ZRE15
NDE15
ZWE18
NZE18
ZRE18
1.8
1.8 Hybrid

ZRE186
ZWE186
ZZE182
2010/09 - 2ZR-FAE 140 hp 103 kW 1.8 L Petrol
2ZR-FE 140 hp 103 kW 1.8 L Petrol
2ZR-FAE 144 hp 106 kW 1.8 L Petrol
2ZR-FXE 99 hp 73 kW 1.8 L Hybrid
2ZR-FXE 99 hp 73 kW 1.8 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTAPRIUS ALPHA
ZVW4
1.8 Hybrid
2011/05 - 2ZR-FXE 99 hp 73 kW 1.8 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTAPRIUS PLUS
ZVW4
1.8 Hybrid
2011/05 - 2ZR-FXE 99 hp 73 kW 1.8 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTAPRIUS V
ZVW4
1.8 Hybrid
2011/05 - 2ZR-FXE 99 hp 73 kW 1.8 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTARAV 4 III
ACA3
ACE
ALA3
GSA3
ZSA3
2.0
2.0 4WD
2.0 VVT-i
2.0 VVT-i 4WD
2.2 D-4D
2.2 D-4D 4WD
2.2 D-CAT 4WD
2.4 VVTi
2.4 VVTi 4WD
2005/11 - 1AZ-FE 152 hp 112 kW 2 L Petrol
3ZR-FAE 148 hp 109 kW 2 L Petrol
2AD-FHV 150 hp 110 kW 2.2 L Diesel
2AD-FTV 136 hp 100 kW 2.2 L Diesel
2AD-FTV 150 hp 110 kW 2.2 L Diesel
2AD-FHV 150 hp 110 kW 2.2 L Diesel
2AD-FTV 150 hp 110 kW 2.2 L Diesel
2AD-FHV 177 hp 130 kW 2.2 L Diesel
2AZ-FE 170 hp 125 kW 2.4 L Petrol
3ZR-FAE 148 hp 109 kW 2 L Petrol
3ZR-FAE 158 hp 116 kW 2 L Petrol
AWD / 4WD
Front wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
TOYOTARAV 4 IV
WWA4
AVA4
ZSA4
ALA4
2.0 VVT-i
2.0 VVT-i 4WD
2.2 D4-D 4WD
2.5 VVT-i 4WD
2012/12 - 2AD-FHV 150 hp 110 kW 2.2 L Diesel
2AD-FTV 150 hp 110 kW 2.2 L Diesel
2AR-FE 180 hp 132 kW 2.5 L Petrol
3ZR-FAE 151 hp 111 kW 2 L Petrol
3ZR-FE 146 hp 107 kW 2 L Petrol
AWD / 4WD
Front wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
