ATE 24-0128-0162-1 (24012801621) Brake Disc
ATE 24-0128-0162-1 (24012801621) Brake Disc
by ATEManufacturer Part Number: 24-0128-0162-1 (24012801621)
Alternative ATE part number(s): 428162

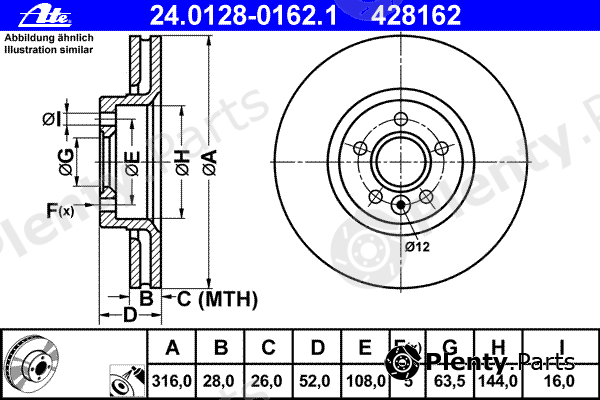

- Supplementary Article/Info 2: with screws
- Diameter [mm]: 316
- Brake Disc Thickness [mm]: 28
- Minimum thickness [mm]: 26
- Brake Disc Type: Vented
- Machining: High-carbon
- Surface: Coated
- Number of Holes: 5
- Bolt Hole Circle Ø [mm]: 108
- Height [mm]: 52
- Centering Diameter [mm]: 63,5
- Inner diameter [mm]: 144
- Bore Ø [mm]: 16
- MAPP code available:
- Warning notice ---------------------- Work on the SBC brake system may only be carried out by trained specialists! ¿ Risk of injury! ¿ System is pressurized! ¿ Observe manufacturer¿s guidelines! ¿ Before starting maintenance and repair work the system must be deactivated. ¿ After finishing maintenance and repair work the system must be reactivated. ¿ Only use appropriate service and diagnosis equipment! ¿ Recommendation: ContiSys Check Item no. 03.9301-6000.4 ContiSys Scan Item no. 03.9301-5000.4 Bleeding unit ATE FB 30s Item no. 03.9302-3010.4 Continental is not liable for damages which occur due to incorrect installation of the product.
Product Details
| Brand | ATE |
| ATE article (MPN) | 24-0128-0162-1 (24012801621) Alternative ATE part number(s): 428162 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for FORD, LAND ROVER, VOLVO vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| FORD | 1404955, 1405509, 1434812, 1434815 |
| LAND ROVER | LR000470 |
| VOLVO | 30769061 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 24-0128-0162-1 (24012801621) Brake Disc offered by A.B.S., ALANKO, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, BSF, CAR, DELPHI, DENCKERMANN, E.T.F., FERODO, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, ICER, JP GROUP, JURATEK, KAGER, KAMOKA, LPR, MAGNETI MARELLI, MAPCO, METZGER, MEYLE, MINTEX, NATIONAL, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PROTECHNIC, R BRAKE, ROULUNDS BRAKING, sbs, TEMPLIN, TEXTAR, TRUSTING, TRW, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 17753 |
| ALANKO | 303034 |
| BLUE PRINT | ADF124307, ADF124308 |
| BORG & BECK | BBD5800S |
| BOSCH | 0986479620, 0986479C19 |
| Brake ENGINEERING | DI956691S |
| BREMBO | 09A42611, 09A42610 |
| BSF | 11619V |
| CAR | 142.1399 |
| DELPHI | BG4123 |
| DENCKERMANN | B130535 |
| E.T.F. | 192400 |
| FERODO | DDF1607-1, DDF1607 |
| fri.tech. | BD1393 |
| FTE | BS7127B, BS7127 |
| GIRLING | 6061855 |
| HELLA | 8DD355114091, 8DD355118892, 8DD355118-891 |
| HELLA PAGID | 8DD355118892, 8DD355118-891, 8DD355114-091 |
| ICER | 78BD11812 |
| JP GROUP | 1563102809, 1563102800 |
| JURATEK | FOR165 |
| KAGER | 371356, 370818 |
| KAMOKA | 103275 |
| LPR | V1012V |
| MAGNETI MARELLI | 360406077301 |
| MAPCO | 25828 |
| METZGER | 6110504, 6128010 |
| MEYLE | 5155210004/PD |
| MINTEX | MDC1828 |
| NATIONAL | NBD1463 |
| NK | 202570 |
| OPEN PARTS | BDA246920, BDR246920 |
| OPTIMAL | BS8480, BS8480C |
| PAGID | 54623 |
| PATRON | PBD1812 |
| PROTECHNIC | PRD2762 |
| R BRAKE | 78RBD21181 |
| ROULUNDS BRAKING | WD01326 |
| sbs | 1815202570 |
| TEMPLIN | 0311029800, 0311029805 |
| TEXTAR | 92162300, 92162305, 92162303, 98200162301 |
| TRUSTING | DF1393 |
| TRW | DF6185S |
| ZIMMERMANN | 610.3711.20, 610371152 |
Vehicle fitment / ATE 24-0128-0162-1 (24012801621) Brake Disc compatibility
This product fits the following models: FORD GALAXY, FORD S-MAX, LAND ROVER FREELANDER 2, LAND ROVER LR2, VOLVO S60 II, VOLVO S80 II, VOLVO V60, VOLVO V70 III, VOLVO XC70 II, etc. See all vehicles this product (ATE 24-0128-0162-1 (24012801621)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| FORD | GALAXY WA6 | 2.0 EcoBoost 2.2 TDCi | 2008/03 - 2015/06 | Q4BA 175 hp 129 kW 2.2 L Diesel Q4WA 175 hp 129 kW 2.2 L Diesel TNWA 203 hp 149 kW 2 L Petrol TNWB 199 hp 146 kW 2 L Petrol | Front wheel | MPV / Van / Minivan |
| FORD | S-MAX WA6 | 2.0 EcoBoost 2.2 TDCi 2.5 ST | 2006/05 - | HUWA 220 hp 162 kW 2.5 L Petrol Q4WA 175 hp 129 kW 2.2 L Diesel TNWA 203 hp 149 kW 2 L Petrol TNWB 199 hp 146 kW 2 L Petrol TPWA 240 hp 176 kW 2 L Petrol | Front wheel | MPV / Van / Minivan |
| LAND ROVER | FREELANDER 2 LF FA | 3.2 4x4 | 2006/10 - 2014/10 | B6324S 233 hp 171 kW 3.2 L Petrol | AWD / 4WD | Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV |
| LAND ROVER | LR2 LF FA | 3.2 4x4 | 2006/10 - 2014/10 | B6324S 233 hp 171 kW 3.2 L Petrol | AWD / 4WD | Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV |
| VOLVO | S60 II | 1.5 T3 2.0 D2 2.0 D3 2.0 D4 2.0 D5 2.0 T 2.0 T3 2.0 T4 2.4 D4 AWD D3 D4 D5 D5 AWD DRIVe / D2 T3 T4 T4F T5 T6 T6 AWD T6R | 2010/04 - | B4154T4 152 hp 112 kW 1.5 L Petrol B4164T 180 hp 132 kW 1.6 L Petrol B4164T2 180 hp 132 kW 1.6 L Petrol B4164T3 150 hp 110 kW 1.6 L Petrol B4204T11 245 hp 180 kW 2 L Petrol B4204T7 240 hp 177 kW 2 L Petrol B4204T19 190 hp 140 kW 2 L Petrol B4204T37 152 hp 112 kW 2 L Petrol B4204T6 203 hp 149 kW 2 L Petrol B4204T9 306 hp 225 kW 2 L Petrol B6304T3 329 hp 242 kW 3 L Petrol B6304T4 304 hp 224 kW 3 L Petrol B6304T4 329 hp 242 kW 3 L Petrol B6304T3 329 hp 242 kW 3 L Petrol B6304T4 329 hp 242 kW 3 L Petrol D4162T 114 hp 84 kW 1.6 L Diesel D4204T11 224 hp 165 kW 2 L Diesel D4204T14 190 hp 140 kW 2 L Diesel D4204T20 120 hp 88 kW 2 L Diesel D4204T8 120 hp 88 kW 2 L Diesel D4204T5 181 hp 133 kW 2 L Diesel D5204T3 163 hp 120 kW 2 L Diesel D4204T9 150 hp 110 kW 2 L Diesel D5204T2 163 hp 120 kW 2 L Diesel D5204T3 163 hp 120 kW 2 L Diesel D5204T7 136 hp 100 kW 2 L Diesel D5244T10 205 hp 151 kW 2.4 L Diesel D5244T11 215 hp 158 kW 2.4 L Diesel D5244T15 215 hp 158 kW 2.4 L Diesel D5244T15 230 hp 169 kW 2.4 L Diesel D5244T23 230 hp 169 kW 2.4 L Diesel D5244T10 205 hp 151 kW 2.4 L Diesel D5244T15 215 hp 158 kW 2.4 L Diesel D5244T15 230 hp 169 kW 2.4 L Diesel D5244T23 230 hp 169 kW 2.4 L Diesel D5244T21 190 hp 140 kW 2.4 L Diesel | AWD / 4WD Front wheel | Sedan / Saloon |
| VOLVO | S80 II AS | 1.6 D DRIVe 1.6 DRIVe 2.0 2.0 FlexFuel 2.0 T 2.0 TDi 2.4 D 2.5 T 2.5 T AWD 2.5 T FlexFuel 3.2 3.2 AWD 4.4 V8 AWD D3 D3 / D4 D4 D5 D5 AWD T4 T4F T5 T6 AWD | 2006/03 - | B4164T 180 hp 132 kW 1.6 L Petrol B4164T2 180 hp 132 kW 1.6 L Petrol B4204S3 146 hp 107 kW 2 L Petrol B4204S4 146 hp 107 kW 2 L Petrol B4204T11 245 hp 180 kW 2 L Petrol B4204T7 241 hp 177 kW 2 L Petrol B4204T6 203 hp 149 kW 2 L Petrol B5254T10 231 hp 170 kW 2.5 L Petrol B5254T12 254 hp 187 kW 2.5 L Petrol B5254T14 249 hp 183 kW 2.5 L Petrol B5254T6 200 hp 147 kW 2.5 L Petrol B5254T11 231 hp 170 kW 2.5 L Petrol B5254T8 200 hp 147 kW 2.5 L Petrol B5254T6 200 hp 147 kW 2.5 L Petrol B6304T2 286 hp 210 kW 3 L Petrol B6304T4 305 hp 224 kW 3 L Petrol B6324S 238 hp 175 kW 3.2 L Petrol B6324S5 243 hp 179 kW 3.2 L Petrol B8444S 316 hp 232 kW 4.4 L Petrol D4162T 114 hp 84 kW 1.6 L Diesel D4164T 109 hp 80 kW 1.6 L Diesel D4204T 136 hp 100 kW 2 L Diesel D4204T5 181 hp 133 kW 2 L Diesel D5204T2 163 hp 120 kW 2 L Diesel D5204T3 163 hp 120 kW 2 L Diesel D5204T7 136 hp 100 kW 2 L Diesel D5244T10 205 hp 151 kW 2.4 L Diesel D5244T11 215 hp 158 kW 2.4 L Diesel D5244T15 215 hp 158 kW 2.4 L Diesel D5244T4 185 hp 136 kW 2.4 L Diesel D5244T10 205 hp 151 kW 2.4 L Diesel D5244T15 215 hp 158 kW 2.4 L Diesel D5244T4 185 hp 136 kW 2.4 L Diesel D5244T14 175 hp 129 kW 2.4 L Diesel D5244T 163 hp 120 kW 2.4 L Diesel D5244T5 163 hp 120 kW 2.4 L Diesel | AWD / 4WD Front wheel | Sedan / Saloon |
| VOLVO | V60 | 1.6 DRIVe 2.0 D2 2.0 D3 2.0 D4 2.0 T 2.0 T4 2.4 D5 2.4 D5 AWD 2.4 D5 Hybrid AWD 2.4 Hybrid D6 AWD D3 D3 / D4 D4 D4 AWD D5 D5 AWD T3 T4 T4F T5 T6 T6 AWD T6R | 2010/09 - | B4154T4 152 hp 112 kW 1.5 L Petrol B4164T3 150 hp 110 kW 1.6 L Petrol B4204T37 152 hp 112 kW 2 L Petrol B4164T 180 hp 132 kW 1.6 L Petrol B4164T2 180 hp 132 kW 1.6 L Petrol B4204T11 245 hp 180 kW 2 L Petrol B4204T7 240 hp 176 kW 2 L Petrol B4204T7 241 hp 177 kW 2 L Petrol B5204T9 214 hp 157 kW 2 L Petrol B4204T19 190 hp 140 kW 2 L Petrol B4204T6 203 hp 149 kW 2 L Petrol B4204T9 306 hp 225 kW 2 L Petrol B4204T9 306 hp 225 kW 2 L Petrol B6304T3 329 hp 242 kW 3 L Petrol B6304T4 305 hp 224 kW 3 L Petrol B6304T4 329 hp 242 kW 3 L Petrol B6304T3 329 hp 242 kW 3 L Petrol B6304T4 329 hp 242 kW 3 L Petrol D4162T 114 hp 84 kW 1.6 L Diesel D4204T11 224 hp 165 kW 2 L Diesel D5244T10 205 hp 151 kW 2.4 L Diesel D5244T23 230 hp 169 kW 2.4 L Diesel D4204T14 190 hp 140 kW 2 L Diesel D4204T20 120 hp 88 kW 2 L Diesel D4204T8 120 hp 88 kW 2 L Diesel D4204T4 150 hp 110 kW 2 L Diesel D4204T9 150 hp 110 kW 2 L Diesel D4204T5 181 hp 133 kW 2 L Diesel D5204T2 163 hp 120 kW 2 L Diesel D5204T3 163 hp 120 kW 2 L Diesel D5204T7 136 hp 100 kW 2 L Diesel D5244T10 205 hp 151 kW 2.4 L Diesel D5244T15 230 hp 169 kW 2.4 L Diesel D5244T23 230 hp 169 kW 2.4 L Diesel D5244T11 215 hp 158 kW 2.4 L Diesel D5244T15 215 hp 158 kW 2.4 L Diesel D5244T12 181 hp 133 kW 2.4 L Diesel D5244T17 163 hp 120 kW 2.4 L Diesel D5244T21 190 hp 140 kW 2.4 L Diesel D5244T15 215 hp 158 kW 2.4 L Diesel D82PHEV 215 hp 158 kW 2.4 L Hybrid D87PHEV 163 hp 120 kW 2.4 L Diesel | AWD / 4WD Front wheel | Estate / Turnier / Vario / Wagon |
| VOLVO | V70 III BW | 1.6 D 1.6 DRIVe / D2 1.6 T4F 2.0 2.0 BiFuel 2.0 D 2.0 FlexiFuel 2.0 GDI 2.0 T 2.4 D 2.5 T 2.5 T FlexiFuel 3.2 3.2 AWD D2 D3 D3 / D4 D4 D4 AWD D5 D5 AWD T4 T5 T6 AWD | 2007/08 - | B4164T 180 hp 132 kW 1.6 L Petrol B4204T19 190 hp 140 kW 2 L Petrol B4164T2 180 hp 132 kW 1.6 L Petrol B4204S3 145 hp 107 kW 2 L Petrol B4204S4 146 hp 107 kW 2 L Petrol B4204T11 245 hp 180 kW 2 L Petrol B4204T7 241 hp 177 kW 2 L Petrol B4204T6 203 hp 149 kW 2 L Petrol B5204T9 214 hp 157 kW 2 L Petrol B5254T10 231 hp 170 kW 2.5 L Petrol B5254T6 200 hp 147 kW 2.5 L Petrol B5254T11 231 hp 170 kW 2.5 L Petrol B5254T8 200 hp 147 kW 2.5 L Petrol B6304T2 286 hp 210 kW 3 L Petrol B6304T4 305 hp 224 kW 3 L Petrol B6324S 238 hp 175 kW 3.2 L Petrol B6324S5 243 hp 179 kW 3.2 L Petrol D4162T 114 hp 84 kW 1.6 L Diesel D4164T 109 hp 80 kW 1.6 L Diesel D4204T 136 hp 100 kW 2 L Diesel D4204T20 120 hp 88 kW 2 L Diesel D4204T5 181 hp 133 kW 2 L Diesel D4204T9 150 hp 110 kW 2 L Diesel D5204T7 136 hp 100 kW 2 L Diesel D5204T2 163 hp 120 kW 2 L Diesel D5204T3 163 hp 120 kW 2 L Diesel D5244T10 205 hp 151 kW 2.4 L Diesel D5244T11 215 hp 158 kW 2.4 L Diesel D5244T15 215 hp 158 kW 2.4 L Diesel D5244T4 185 hp 136 kW 2.4 L Diesel D5244T12 181 hp 133 kW 2.4 L Diesel D5244T17 163 hp 120 kW 2.4 L Diesel D5244T14 175 hp 129 kW 2.4 L Diesel D5244T5 163 hp 120 kW 2.4 L Diesel | AWD / 4WD Front wheel | Estate / Turnier / Vario / Wagon |
| VOLVO | XC70 II | 2.4 D 2.4 D / D4 AWD 3.2 AWD D3 D3 AWD D4 D4 AWD D5 AWD T5 T5 AWD T6 AWD | 2007/08 - | B4204T11 245 hp 180 kW 2 L Petrol B5254T12 254 hp 187 kW 2.5 L Petrol B6304T2 286 hp 210 kW 3 L Petrol B6304T4 304 hp 224 kW 3 L Petrol B6324S 238 hp 175 kW 3.2 L Petrol B6324S5 243 hp 179 kW 3.2 L Petrol D4204T5 181 hp 133 kW 2 L Diesel D5204T2 163 hp 120 kW 2 L Diesel D5204T2 163 hp 120 kW 2 L Diesel D5204T3 163 hp 120 kW 2 L Diesel D5244T10 205 hp 151 kW 2.4 L Diesel D5244T11 215 hp 158 kW 2.4 L Diesel D5244T15 215 hp 158 kW 2.4 L Diesel D5244T20 220 hp 162 kW 2.4 L Diesel D5244T4 185 hp 136 kW 2.4 L Diesel D5244T12 181 hp 133 kW 2.4 L Diesel D5244T14 175 hp 129 kW 2.4 L Diesel D5244T16 163 hp 120 kW 2.4 L Diesel D5244T17 163 hp 120 kW 2.4 L Diesel D5244T5 163 hp 120 kW 2.4 L Diesel | AWD / 4WD Front wheel | Estate / Turnier / Vario / Wagon |
