ATE 24.0128-0164.1 (24012801641) Brake Disc

ATE part 24.0128-0164.1 (24012801641) Brake Disc

ATE 24.0128-0164.1 (24012801641) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0164.1 (24012801641)
Alternative ATE part number(s): 428164

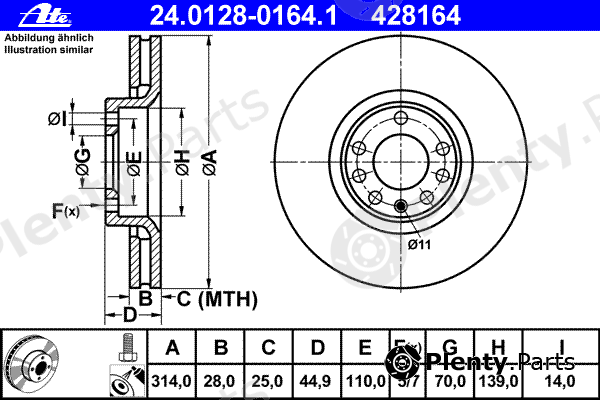

Сharacteristics:
  • Diameter [mm]: 314
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 25
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • No. of holes 2: 7
  • Bolt Hole Circle Ø [mm]: 110
  • Height [mm]: 44,9
  • Centering Diameter [mm]: 70
  • Inner diameter [mm]: 139
  • Bore Ø [mm]: 14
  • Supplementary Article/Info 2: with screws
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0164.1 (24012801641) Alternative ATE part number(s): 428164
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for OPEL, SAAB vehicles

OE manufacturerOEM reference numbers
OPEL569005, 93175606
SAAB93175606, 24435132

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0164.1 (24012801641) Brake Disc offered by A.B.S., ALANKO, AP, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CIFAM, DELPHI, DENCKERMANN, E.T.F., FARCOM, FERODO, FOMAR, fri.tech., FTE, GALFER, GIRLING, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, sbs, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VALEO, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17539
ALANKO304071, 305339
AP24893V, 24893
BENDIX562294B, 562390BC, 562390B
BORG & BECKBBD4395
BOSCH0986479143
Brake ENGINEERINGDI956367
BRECOBS8495, BV8495
BREMBO09.9177.11, 09.9177.10
BREMSIDBB237V
CIFAM8001353C
DELPHIBG3973
DENCKERMANNB130451
E.T.F.199005
FARCOM231252, 230533
FERODODDF1237, DDF528, DDF1237-1
FOMARFO4042
fri.tech.BD0398
FTEBS5496B, BS5496
GALFERB1G22801641
GIRLING6045491
HELLA8DD355109-251, 8DD355109-261, 8DD355122562
HELLA PAGID8DD355109-261, 8DD355109-251, 8DD355122562
ICER78BD90052
JP GROUP1263100509
JURID562390J, 562390JC, 562294J
KAGER371103
KAMOKA1031125
KAWE6944.10
LPRO1008V
MAGNETI MARELLI351344820500, 360704015200, 360406008500
MAPCO25703, 257032
MAXGEAR191318
METELLI231353C
METZGER24893V, 6110251
MEYLE6155210028/PD
MGAD1564
MINTEXMDC1674
NECTOWN1254
NK313653, 203653
OPEN PARTSBDR208620, BDRS208625
OPTIMALBS7912, BS7912C
PAGID54188PRO, 54188
PILENGAV208
PROTECHNICPRD2301
QUINTON HAZELLBSF5496
R BRAKE78RBD29005
REMSA694410
ROADHOUSE694410
ROTINGERRT20273HPT5, RT20273T5, RT20273, RT20273HP
sbs1815203653, 1815313653
TEMPLIN0311024265, 0311024260
TEXTAR92118805, 98200118801, 98200118801PRO, 92118800, 92118803
TRISCAN812024144
TRUSTINGDF398
TRWDF4549
VALEO197361
VILLAR6281889
WOKINGD694410
ZIMMERMANN430.1499.00, 430.1499.50, 430149952, 430149920

Vehicle fitment / ATE 24.0128-0164.1 (24012801641) Brake Disc compatibility

This product fits the following models: OPEL SIGNUM, OPEL VECTRA C, OPEL VECTRA C GTS, SAAB 9-3, SAAB 9-3X, VAUXHALL SIGNUM, VAUXHALL VECTRAII, etc. See all vehicles this product (ATE 24.0128-0164.1 (24012801641)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
OPELSIGNUM
2.8 V6 Turbo
3.0 V6 CDTI
3.2 V6
2003/05 - Y30DT 177 hp 130 kW 3 L Diesel
Z30DT 184 hp 135 kW 3 L Diesel
Z28NEL 230 hp 169 kW 2.8 L Petrol
Z28NET 250 hp 184 kW 2.8 L Petrol
Z32SE 211 hp 155 kW 3.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
OPELVECTRA C
2.8 V6 Turbo
3.0 CDTi
3.0 CDTI
3.0 V6 CDTI
3.2 V6
2002/08 - Y30DT 177 hp 130 kW 3 L Diesel
Y30DT 177 hp 130 kW 3 L Diesel
Z30DT 184 hp 135 kW 3 L Diesel
Z28NEL 230 hp 169 kW 2.8 L Petrol
Z28NET 250 hp 184 kW 2.8 L Petrol
Z30DT 184 hp 135 kW 3 L Diesel
Z32SE 211 hp 155 kW 3.2 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
OPELVECTRA C GTS
2.8 V6 Turbo
3.0 CDTi
3.0 CDTI
3.2 V6
2002/08 - Y30DT 177 hp 130 kW 3 L Diesel
Z28NEL 230 hp 169 kW 2.8 L Petrol
Z28NET 250 hp 184 kW 2.8 L Petrol
Z30DT 184 hp 135 kW 3 L Diesel
Z32SE 211 hp 155 kW 3.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
SAAB9-3
YS3F
2.0 t
2.0 t BioPower XWD
2.0 Turbo XWD
2.0 t XWD
2.8 Turbo V6
2.8 Turbo V6 XWD
2002/09 - A20NFT 220 hp 162 kW 2 L Petrol
B207G 163 hp 120 kW 2 L Petrol
B207R 241 hp 177 kW 2 L Petrol
A20NFT 220 hp 162 kW 2 L Petrol
B207H 163 hp 120 kW 2 L Petrol
B207R 210 hp 154 kW 2 L Petrol
A20NFT 220 hp 162 kW 2 L Petrol
B207M 200 hp 147 kW 2 L Petrol
B207R 209 hp 154 kW 2 L Petrol
B207R 241 hp 177 kW 2 L Petrol
B207L 175 hp 129 kW 2 L Petrol
B207R 210 hp 154 kW 2 L Petrol
B207L 175 hp 129 kW 2 L Petrol
B207R 210 hp 154 kW 2 L Petrol
B207R 241 hp 177 kW 2 L Petrol
B207R 209 hp 154 kW 2 L Petrol
B207R 241 hp 177 kW 2 L Petrol
B207R 210 hp 154 kW 2 L Petrol
B284L 256 hp 188 kW 2.8 L Petrol
B284L 276 hp 203 kW 2.8 L Petrol
LP9 230 hp 169 kW 2.8 L Petrol
LP9 250 hp 184 kW 2.8 L Petrol
B284L 256 hp 188 kW 2.8 L Petrol
B284R 276 hp 203 kW 2.8 L Petrol
B284R 280 hp 206 kW 2.8 L Petrol
LP9 230 hp 169 kW 2.8 L Petrol
LP9 250 hp 184 kW 2.8 L Petrol
B284L 256 hp 188 kW 2.8 L Petrol
B284R 276 hp 203 kW 2.8 L Petrol
LP9 230 hp 169 kW 2.8 L Petrol
LP9 250 hp 184 kW 2.8 L Petrol
B284R 280 hp 206 kW 2.8 L Petrol
AWD / 4WD
Front wheel
Convertible / cabrio
Estate / Turnier / Vario / Wagon
Sedan / Saloon
SAAB9-3X
1.9 TTiD
2.0 t BioPower XWD
2.0 t XWD
2009/02 - A19DTR 180 hp 132 kW 1.9 L Diesel
Z19DTR 180 hp 132 kW 1.9 L Diesel
A20NFT 220 hp 162 kW 2 L Petrol
B207R 209 hp 154 kW 2 L Petrol
B207R 209 hp 154 kW 2 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
VAUXHALLSIGNUM
2.8 V6 Turbo
3.0 CDTi
3.0 V6 CDTI
3.2 V6
2003/05 - 2008/10Y30DT 177 hp 130 kW 3 L Diesel
Z28NEL 230 hp 169 kW 2.8 L Petrol
Z28NET 250 hp 184 kW 2.8 L Petrol
Z30DT 184 hp 135 kW 3 L Diesel
Z32SE 211 hp 155 kW 3.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
VAUXHALLVECTRAII
C
C GTS
C
2.8 V6 Turbo
3.0 CDTi
3.0 V6 CDTI
3.2 V6
2002/08 - 2008/07Y30DT 177 hp 130 kW 3 L Diesel
Z28NEL 230 hp 169 kW 2.8 L Petrol
Z28NEL 230 hp 169 kW 2.8 L Petrol
Z28NET 250 hp 184 kW 2.8 L Petrol
Z30DT 184 hp 135 kW 3 L Diesel
Z32SE 211 hp 155 kW 3.2 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
Sedan / Saloon
