ATE 24.0128-0169.1 (24012801691) Brake Disc

ATE part 24.0128-0169.1 (24012801691) Brake Disc

ATE 24.0128-0169.1 (24012801691) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0169.1 (24012801691)
Alternative ATE part number(s): 428169

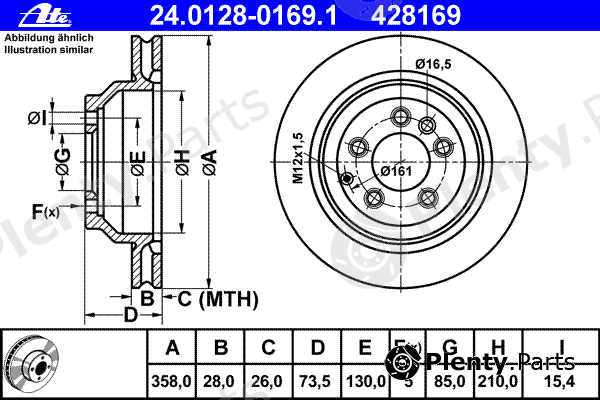

Сharacteristics:
  • Diameter [mm]: 358
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 26
  • Brake Disc Type: Vented
  • Machining: Alloyed / High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 130
  • Height [mm]: 73,5
  • Centering Diameter [mm]: 85
  • Inner diameter [mm]: 210
  • Bore Ø [mm]: 15,4
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0169.1 (24012801691) Alternative ATE part number(s): 428169
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for PORSCHE, VAG vehicles

OE manufacturerOEM reference numbers
PORSCHE95535240300, 95535240151, 95835240150, 95535240150
VAG7L8615601D, 7L8615601A, 7L8615601E

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0169.1 (24012801691) Brake Disc offered by A.B.S., ALANKO, AP, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, CAR, CIFAM, DELPHI, E.T.F., FEBI BILSTEIN, FERODO, FOMAR, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, JURID, KAMOKA, KAWE, LEMFÖRDER, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, sbs, SWAG, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17824
ALANKO304252
AP25135V
BENDIX562513BC
BORG & BECKBBD5926S
BOSCH0986479259
Brake ENGINEERINGDI956707S
BRECOBV8744
BREMBO09.9871.11
CAR142.1185
CIFAM8001090C
DELPHIBG4070
E.T.F.190140
FEBI BILSTEIN28161
FERODODDF1855C-1, DDF1855C
FOMARFO4075
fri.tech.BD1204
FTEBS7228HB, BS7228, BS7228B
GIRLING6047595
HELLA8DD355120-161
HELLA PAGID8DD355120-161
JURID562513JC
KAMOKA103277
KAWE6130210
LEMFÖRDER3121901
LPRP2014V
MAGNETI MARELLI360406068300
MAPCO25956HPS
METELLI231090C
METZGER25135V, 6110554
MEYLE1155231125PD
MGAD1759
MINTEXMDC2229
NK2047138, 3147138
OPEN PARTSBDR248920
OPTIMALBS8900, BS8900C
PAGID54514
PATRONPBD4759
PROTECHNICPRD6128
QUINTON HAZELLBDC5702
REMSA6130210
ROADHOUSE6130210
ROTINGERRT20389T5, RT20389
sbs18153147138, 18152047138
SWAG30928161
TEXTAR92151410, 92151405, 92151403
TRISCAN8120291021C
TRUSTINGDF1204
TRWDF4759S
VAICOV1080010
VALEO197051
WOKINGD6130210
ZIMMERMANN600.3239.20

Vehicle fitment / ATE 24.0128-0169.1 (24012801691) Brake Disc compatibility

This product fits the following models: AUDI Q7, PORSCHE CAYENNE, VW TOUAREG, etc. See all vehicles this product (ATE 24.0128-0169.1 (24012801691)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
AUDIQ7
4L
3.0 TDI
3.0 TFSI
3.6 FSI
4.2 FSI
4.2 TDI
6.0 TDI
2006/03 - 2015/08BAR 350 hp 257 kW 4.2 L Petrol
BHK 280 hp 206 kW 3.6 L Petrol
BTR 326 hp 240 kW 4.2 L Diesel
CCFA 340 hp 250 kW 4.2 L Diesel
CCFC 340 hp 250 kW 4.2 L Diesel
BUG 233 hp 171 kW 3 L Diesel
BUN 211 hp 155 kW 3 L Diesel
CASA 240 hp 176 kW 3 L Diesel
CASB 211 hp 155 kW 3 L Diesel
CATA 224 hp 165 kW 3 L Diesel
CCMA 240 hp 176 kW 3 L Diesel
CJGA 240 hp 176 kW 3 L Diesel
CJGC 204 hp 150 kW 3 L Diesel
CJGD 245 hp 180 kW 3 L Diesel
CJMA 204 hp 150 kW 3 L Diesel
CLZB 245 hp 180 kW 3 L Diesel
CNRB 240 hp 176 kW 3 L Diesel
CRCA 245 hp 180 kW 3 L Diesel
CCGA 500 hp 368 kW 6 L Diesel
CJTB 333 hp 245 kW 3 L Petrol
CJTC 272 hp 200 kW 3 L Petrol
CJWB 333 hp 245 kW 3 L Petrol
CJWC 272 hp 200 kW 3 L Petrol
CJWE 280 hp 206 kW 3 L Petrol
CNAA 333 hp 245 kW 3 L Petrol
CTWA 333 hp 245 kW 3 L Petrol
CTWB 280 hp 206 kW 3 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
PORSCHECAYENNE
92A
9PA
955
3.0 Diesel
3.0 S E-Hybrid
3.0 TDI
3.2
3.6
3.6 GTS
3.6 S
4.2 S Diesel
4.8 GTS
4.8 S
4.8 Turbo
4.8 Turbo S
GTS 4.8
S
S 4.5
S 4.8
Turbo 4.5
Turbo S
Turbo S 4.5
Turbo S 4.8
2002/09 - 521 hp 383 kW 4.5 L Petrol
M48.50S 500 hp 368 kW 4.5 L Petrol
M02.2Y 250 hp 184 kW 3.2 L Petrol
M05.9D 240 hp 176 kW 3 L Diesel
M05.9E 239 hp 176 kW 3 L Diesel
MCN.RB 239 hp 176 kW 3 L Diesel
MCR.C 245 hp 180 kW 3 L Diesel
MCR.CA 245 hp 180 kW 3 L Diesel
MCR.CB 211 hp 155 kW 3 L Diesel
MCV.VA 262 hp 193 kW 3 L Diesel
MCV.VB 250 hp 184 kW 3 L Diesel
MCV.VC 211 hp 155 kW 3 L Diesel
M06.EC 333 hp 245 kW 3 L Hybrid
M06.EC 416 hp 306 kW 3 L Hybrid
MCG.E 333 hp 245 kW 3 L Hybrid
MCG.E 416 hp 306 kW 3 L Hybrid
MCG.EA 333 hp 245 kW 3 L Hybrid
MCG.EA 416 hp 306 kW 3 L Hybrid
MCG.FA 333 hp 245 kW 3 L Hybrid
MCG.FA 416 hp 306 kW 3 L Hybrid
M48.00 340 hp 250 kW 4.5 L Petrol
M48.01 385 hp 283 kW 4.8 L Petrol
M48.01 405 hp 298 kW 4.8 L Petrol
M48.02 400 hp 294 kW 4.8 L Petrol
M48.02 420 hp 309 kW 4.8 L Petrol
M48.50 450 hp 331 kW 4.5 L Petrol
M48.51 500 hp 368 kW 4.8 L Petrol
M48.51 500 hp 368 kW 4.8 L Petrol
M48.51 540 hp 397 kW 4.8 L Petrol
M48.51 550 hp 404 kW 4.8 L Petrol
M48.52 500 hp 368 kW 4.8 L Petrol
M48.52 540 hp 397 kW 4.8 L Petrol
MCF.TB 520 hp 382 kW 4.8 L Petrol
M48.52 550 hp 405 kW 4.8 L Petrol
MCY.XA 570 hp 419 kW 4.8 L Petrol
M55.01 290 hp 213 kW 3.6 L Petrol
M55.02 300 hp 220 kW 3.6 L Petrol
MCE.YA 300 hp 220 kW 3.6 L Petrol
MCU.DB 382 hp 281 kW 4.2 L Diesel
MCU.DC 385 hp 283 kW 4.2 L Diesel
MCU.RA 420 hp 309 kW 3.6 L Petrol
MCX.ZA 440 hp 324 kW 3.6 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
VWTOUAREG
7LA
7L6
7L7
2.5 R5 TDI
3.0 TDI
3.0 V6 TDI
3.6 V6 FSI
4.2 V8 FSI
5.0 R50 TDI
5.0 V10 TDI
2002/10 - 2010/05AYH 313 hp 230 kW 5 L Diesel
BLE 313 hp 230 kW 5 L Diesel
BWF 313 hp 230 kW 5 L Diesel
BAC 174 hp 128 kW 2.5 L Diesel
BLK 163 hp 120 kW 2.5 L Diesel
BPD 163 hp 120 kW 2.5 L Diesel
BPE 174 hp 128 kW 2.5 L Diesel
BAR 350 hp 257 kW 4.2 L Petrol
BHK 280 hp 206 kW 3.6 L Petrol
BHL 280 hp 206 kW 3.6 L Petrol
BKS 225 hp 165 kW 3 L Diesel
CASA 240 hp 176 kW 3 L Diesel
CASC 240 hp 176 kW 3 L Diesel
CATA 225 hp 165 kW 3 L Diesel
BUN 211 hp 155 kW 3 L Diesel
CASB 211 hp 155 kW 3 L Diesel
CBWA 350 hp 257 kW 5 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
