ATE 24.0128-0176.1 (24012801761) Brake Disc

ATE part 24.0128-0176.1 (24012801761) Brake Disc

ATE 24.0128-0176.1 (24012801761) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0176.1 (24012801761)
Alternative ATE part number(s): 428176

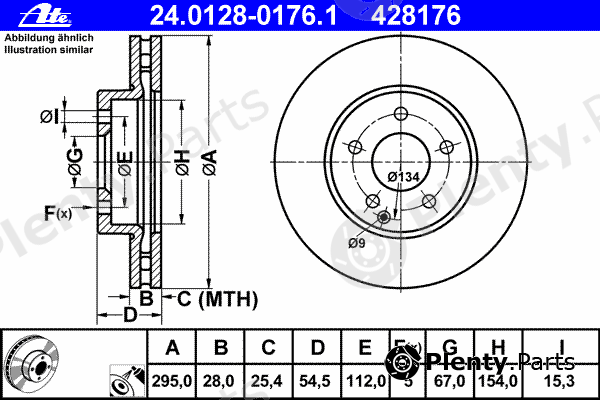

Сharacteristics:
  • Diameter [mm]: 295
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 25,4
  • Brake Disc Type: Vented
  • Machining: Alloyed / High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 112
  • Height [mm]: 54,5
  • Centering Diameter [mm]: 67
  • Inner diameter [mm]: 154
  • Bore Ø [mm]: 15,3
  • MAPP code available:
  • Warning notice ---------------------- Work on the SBC brake system may only be carried out by trained specialists! ¿ Risk of injury! ¿ System is pressurized! ¿ Observe manufacturer¿s guidelines! ¿ Before starting maintenance and repair work the system must be deactivated. ¿ After finishing maintenance and repair work the system must be reactivated. ¿ Only use appropriate service and diagnosis equipment! ¿ Recommendation: ContiSys Check Item no. 03.9301-6000.4 ContiSys Scan Item no. 03.9301-5000.4 Bleeding unit ATE FB 30s Item no. 03.9302-3010.4 Continental is not liable for damages which occur due to incorrect installation of the product.

Product Details

BrandATE
ATE article (MPN)24.0128-0176.1 (24012801761) Alternative ATE part number(s): 428176
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for MERCEDES-BENZ vehicles

OE manufacturerOEM reference numbers
MERCEDES-BENZ2114210812, 2114210712

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0176.1 (24012801761) Brake Disc offered by A.B.S., AP, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, FARCOM, FEBI BILSTEIN, FERODO, FI.BA, FOMAR, fri.tech., FTE, GALFER, GIRLING, GRAF, G.U.D, HANS PRIES, HELLA, HELLA PAGID, ICER, JURID, KAGER, KAMOKA, KAWE, LPR, MAGNETI MARELLI, METELLI, METZGER, MEYLE, MINTEX, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, sbs, SWAG, TEXTAR, TRUSTING, TRW, VAICO, VALEO, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17400
AP24897V
BARUMBAR28176
BENDIX562212BC, 562212B
BORG & BECKBBD4355, BBD4352
BOSCH0986479038, 0986479039, 0986479S07
Brake ENGINEERINGDI956275
BRECOBS8502, BV8502
BREMBO09.9362.11, 09.9362.14
BREMSIDBB252V
CAR142.386
CIFAM800601C, 800-600
DELPHIBG3755C, BG3755
DENCKERMANNB130268, B130563
Dr!ve+DP1010110840
FARCOM231242, 230482
FEBI BILSTEIN22156, 22158
FERODODDF1252, DDF1252C1, DDF1252C, DDF12521
FI.BAFBD161
FOMARFO2922
fri.tech.BD0927
FTEBS5464HB, BS5464, BS5414, BS5464B
GALFERB1G22801761
GIRLING6042611
GRAFDF29600
G.U.DGDB128176
HANS PRIES401051
HELLA8DD355108-791, 8DD355108-771, 8DD355108-781, 8DD355122502, 8DD355108-801
HELLA PAGID8DD355108-781, 8DD355108-791, 8DD355122502, 8DD355108-771, 8DD355108-801
ICER78BD08122
JURID562212J, 562212JC
KAGER371377, 371175, 371131, 371376
KAMOKA103278
KAWE667610
LPRM2017V
MAGNETI MARELLI351286820500, 360406007700, 361302040148
METELLI230601C, 230600
METZGER24897V, 6110672
MEYLE0155212051, 0155212051/PD
MINTEXMDC1977, MDC1616
NECTOWN1269
NIBKRN1270
NK313359, 203359, 203358
OPEN PARTSBDR199820
OPTIMALBS7784, BS7784C
PAGID54152, 54151PRO, 54152PRO, 54151
PATRONPBD4261
PEX14.0714, 14.0814
PILENGAV295
PROTECHNICPRD2680
QUINTON HAZELLBDC5464, 6676.10, BDC5414, BSF5414, BSF5464
R BRAKE78RBD20812
REMSA6676.10
ROADHOUSE6676.10
ROTINGERRT2933, RT2933T5
sbs1815313359, 1815203359
SWAG10922156, 10922158
TEXTAR92115100, 98200115201, 98200115101PRO, 92115105, 98200115101, 92115200, 98200115201PRO, 92115203, 92115205
TRUSTINGDF927
TRWDF4261BP, DF4261
VAICOV3080048
VALEO197326, 186751, 297326
VILLAR6281804
WAGNER LOCKHEEDWGR12521
WOKINGD667610
ZIMMERMANN400.3619.50, 400.3618.00, 400361952, 400.3618.20, 400.3619.00, 400.3619.20, 400.3618.50

Vehicle fitment / ATE 24.0128-0176.1 (24012801761) Brake Disc compatibility

This product fits the following models: MERCEDES-BENZ E-CLASS, etc. See all vehicles this product (ATE 24.0128-0176.1 (24012801761)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
MERCEDES-BENZE-CLASS
S211
W211
E 200 CDI
E 200 Kompressor
E 200 NGT
E 200 T Kompressor
E 220 CDI
E 220 T CDI
E 230
E 240
E 240 T
E 270 CDI
E 270 T CDI
E 280
E 280 CDI
E 280 T CDI
E 300
E 300 BlueTEC
E 320
E 320 CDI

211.004
211.006
211.007
211.008
211.016
211.020
211.022
211.023
211.026
211.041
211.042
211.052
211.054
211.061
211.065
211.206
211.207
211.208
211.216
211.220
211.241
211.242
211.261
2002/03 - 2009/07M112.913 177 hp 130 kW 2.6 L Petrol
M112.913 177 hp 130 kW 2.6 L Petrol
M112.917 177 hp 130 kW 2.6 L Petrol
M112.949 224 hp 165 kW 3.2 L Petrol
M271.941 163 hp 120 kW 1.8 L Petrol
M271.956 184 hp 135 kW 1.8 L Petrol
M272.922 204 hp 150 kW 2.5 L Petrol
M272.943 231 hp 170 kW 3 L Petrol
OM642.920 190 hp 140 kW 3 L Diesel
OM642.920 211 hp 155 kW 3 L Diesel
OM642.920 224 hp 165 kW 3 L Diesel
OM646.820 136 hp 100 kW 2.1 L Diesel
OM646.821 136 hp 100 kW 2.1 L Diesel
OM646.821 163 hp 120 kW 2.1 L Diesel
OM646.821 170 hp 125 kW 2.1 L Diesel
OM646.951 102 hp 75 kW 2.2 L Diesel
OM646.951 122 hp 90 kW 2.2 L Diesel
OM646.961 136 hp 100 kW 2.1 L Diesel
OM646.961 136 hp 100 kW 2.1 L Diesel
OM646.961 150 hp 110 kW 2.1 L Diesel
OM646.961 150 hp 110 kW 2.1 L Diesel
OM647.961 163 hp 120 kW 2.7 L Diesel
OM647.961 177 hp 130 kW 2.7 L Diesel
OM648.961 177 hp 130 kW 3.2 L Diesel
OM648.961 204 hp 150 kW 3.2 L Diesel
Rear wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
