ATE 24.0128-0189.1 (24012801891) Brake Disc

ATE part 24.0128-0189.1 (24012801891) Brake Disc

ATE 24.0128-0189.1 (24012801891) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0189.1 (24012801891)
Alternative ATE part number(s): 428189

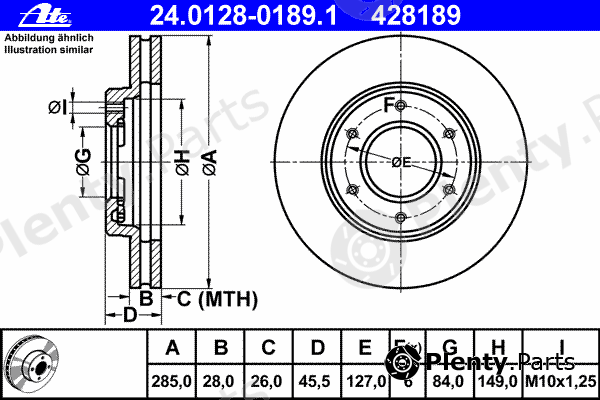

Сharacteristics:
  • Diameter [mm]: 285
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 26
  • Brake Disc Type: Vented
  • Number of Holes: 6
  • Bolt Hole Circle Ø [mm]: 127
  • Height [mm]: 45,5
  • Centering Diameter [mm]: 84
  • Inner diameter [mm]: 149
  • Thread Size: M10x1,25
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0189.1 (24012801891) Alternative ATE part number(s): 428189
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for TOYOTA vehicles

OE manufacturerOEM reference numbers
TOYOTA43512-26140, 43512-26160

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0189.1 (24012801891) Brake Disc offered by A.B.S., ALANKO, AP, ASHUKI, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, DELPHI, E.T.F., FEBI BILSTEIN, FENOX, FERODO, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, KAGER, KAMOKA, KAVO PARTS, KAWE, LPR, MAGNETI MARELLI, MDR, METELLI, MEYLE, MINTEX, NIBK, NIPPARTS, NK, OPTIMAL, PAGID, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROULUNDS BRAKING, sbs, SWAG, TEMPLIN, TEXTAR, TRUSTING, TRW, VILLAR, WAGNER LOCKHEED, WOKING manufacturers

ManufacturerReference numbers
A.B.S.16615
ALANKO303750, 305138
AP25039
ASHUKI09901212, T60277
BLUE PRINTADT343101
BORG & BECKBBD4176
BOSCH0986478693
Brake ENGINEERINGDI955766
BRECOBS8636
BREMBO09.A203.10
BREMSIDBA991V
CAR142.682
CIFAM8001058C
DELPHIBG3193
E.T.F.193314
FEBI BILSTEIN29981
FENOXTB217656
FERODODDF991, DDF991-1
fri.tech.BD0718
FTEBS7686B, BS7686
GIRLING6041161
HELLA8DD355106251, 8DD355108-531
HELLA PAGID8DD355106251, 8DD355108-531
HERTH+BUSS JAKOPARTSJ3302121, J3302104
KAGER370674
KAMOKA1031982
KAVO PARTSBR9390C, BR9462, BR9390
KAWE663410
LPRT2876V
MAGNETI MARELLI360406070200, 600000087210
MDRMFD22023
METELLI231058C
MEYLE30155210086
MINTEXMDC1785, MDC884
NIBKRN1266
NIPPARTSJ3302121, J3302104
NK204567, 314567
OPTIMALBS7990
PAGID50241, 54130
PEX14.0602
PILENGAV656
PROTECHNICPRD2539
QUINTON HAZELLBSF4945, BDC4945, 6634.10
REMSA6634.10
ROADHOUSE6634.10
ROULUNDS BRAKINGD2506
sbs1815314567, 1815204567
SWAG81929981
TEMPLIN0311027920
TEXTAR92113000, 92093400, 98200113001
TRUSTINGDF718
TRWDF4116
VILLAR6282112
WAGNER LOCKHEEDWGR09911
WOKINGD663410

Vehicle fitment / ATE 24.0128-0189.1 (24012801891) Brake Disc compatibility

This product fits the following models: TOYOTA HIACE COMMUTER V, TOYOTA HIACE III, TOYOTA HIACE IV, TOYOTA HIACE SBV IV, TOYOTA HIACE V, TOYOTA QUANTUM III, TOYOTA QUANTUM V, etc. See all vehicles this product (ATE 24.0128-0189.1 (24012801891)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
TOYOTAHIACE COMMUTER V
TRH2
KDH2
2.5 D-4D
2006/09 - 2KD-FTV 102 hp 75 kW 2.5 L Diesel
Rear wheel
Passenger Van / Wagon / Minibus
TOYOTAHIACE III
LH1
RZH1
YH7
LH6
LH7
LH5
YH5
YH6
2.0
3.0 D

RZH102
1989/08 - 2004/081RZ 101 hp 74 kW 2 L Petrol
5L 88 hp 65 kW 3 L Diesel
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
TOYOTAHIACE IV
LH1
LXH1
RCH1

LXH1
RZH1
LH1
YH7
LH6
LH7
LH5
YH5
YH6
2.4
2.4 D
2.4 i
2.4 SBV
2.4 TD
2.5 D-4D
2.5 D-4D 4WD
2.7
3.0 D

LXH12
LXH22
RCH12
RCH22
RCH13
RCH23
RZH10
1995/08 - 2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 117 hp 86 kW 2.5 L Diesel
2KD-FTV 88 hp 65 kW 2.5 L Diesel
2KD-FTV 95 hp 70 kW 2.5 L Diesel
2L 75 hp 55 kW 2.4 L Diesel
2L 79 hp 58 kW 2.4 L Diesel
2L 83 hp 61 kW 2.4 L Diesel
2L 75 hp 55 kW 2.4 L Diesel
2L 83 hp 61 kW 2.4 L Diesel
2L 79 hp 58 kW 2.4 L Diesel
2L-T 90 hp 66 kW 2.4 L Diesel
2RZ-E 115 hp 85 kW 2.4 L Petrol
2RZ-E 116 hp 85 kW 2.4 L Petrol
2RZ-E 120 hp 88 kW 2.4 L Petrol
3RZ-FE 143 hp 105 kW 2.7 L Petrol
3RZ-FE 144 hp 106 kW 2.7 L Petrol
5L 88 hp 65 kW 3 L Diesel
AWD / 4WD
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
TOYOTAHIACE SBV IV
LXH1
RZH1
LH1
2.4
2.4 D
2.4 i
2.4 SBV
2.4 TD
2.5 D-4D
2.7

LXH12
LXH22
RCH12
RCH22
RCH13
RCH23
RZH10
1995/08 - 2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 117 hp 86 kW 2.5 L Diesel
2KD-FTV 88 hp 65 kW 2.5 L Diesel
2KD-FTV 95 hp 70 kW 2.5 L Diesel
2L 75 hp 55 kW 2.4 L Diesel
2L 83 hp 61 kW 2.4 L Diesel
2L 79 hp 58 kW 2.4 L Diesel
2L-T 90 hp 66 kW 2.4 L Diesel
2RZ-E 116 hp 85 kW 2.4 L Petrol
2RZ-E 120 hp 88 kW 2.4 L Petrol
3RZ-FE 143 hp 105 kW 2.7 L Petrol
Rear wheel
LCV / Van / Cargo
TOYOTAHIACE V
TRH2
KDH2
2.5 D-4D
2006/09 - 2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 117 hp 86 kW 2.5 L Diesel
2KD-FTV 95 hp 70 kW 2.5 L Diesel
Rear wheel
LCV / Van / Cargo
TOYOTAQUANTUM III
LH1
RZH1
2.0
RZH102
1989/08 - 1998/041RZ 101 hp 74 kW 2 L Petrol
Rear wheel
Passenger Van / Wagon / Minibus
TOYOTAQUANTUM V
TRH2
KDH2
2.5 D-4D
2006/09 - 2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 117 hp 86 kW 2.5 L Diesel
2KD-FTV 95 hp 70 kW 2.5 L Diesel
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
