ATE 24.0128-0190.1 (24012801901) Brake Disc

ATE part 24.0128-0190.1 (24012801901) Brake Disc

ATE 24.0128-0190.1 (24012801901) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0190.1 (24012801901)
Alternative ATE part number(s): 428190

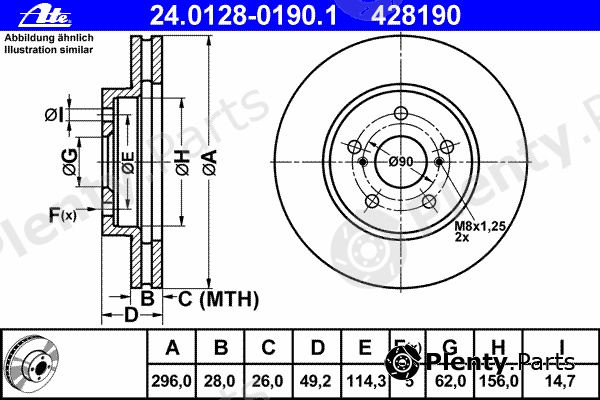

Сharacteristics:
  • Diameter [mm]: 296
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 26
  • Brake Disc Type: Vented
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 114,3
  • Height [mm]: 49,2
  • Centering Diameter [mm]: 62
  • Inner diameter [mm]: 156
  • Bore Ø [mm]: 14,7
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0190.1 (24012801901) Alternative ATE part number(s): 428190
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for TOYOTA vehicles

OE manufacturerOEM reference numbers
TOYOTA43512-28180, 43512-28181, 43512-33100

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0190.1 (24012801901) Brake Disc offered by A.B.S., AP, ASHUKI, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CIFAM, DELPHI, E.T.F., FARCOM, FENOX, FERODO, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, JP GROUP, KAGER, KAVO PARTS, KAWE, KORTEX, LPR, MAGNETI MARELLI, MAPCO, MDR, METELLI, MEYLE, MINTEX, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, sbs, STELLOX, TEXTAR, TRUSTING, TRW, VALEO, VILLAR, WOKING manufacturers

ManufacturerReference numbers
A.B.S.17460
AP25019, 25019V
ASHUKI09901312
BLUE PRINTADT343172
BORG & BECKBBD4326
BOSCH0986478968
Brake ENGINEERINGDI956522
BRECOBS8672, BV8672
BREMBO09.A110.10, 09A11011
BREMSIDBB446V
CIFAM8001577C
DELPHIBG3735
E.T.F.193312
FARCOM230980
FENOXTB219231
FERODODDF1446-1, DDF1446
fri.tech.BD0821
FTEBS7123, BS7123B
GIRLING6042041
HELLA8DD355111681
HELLA PAGID8DD355111-681
HERTH+BUSS JAKOPARTSJ3302172, J3302156
JP GROUP4863102009
KAGER370778
KAVO PARTSBR9405C, BR9405
KAWE686210
KORTEXKD0163
LPRT2042V
MAGNETI MARELLI360406069800, 600000087620
MAPCO45558
MDRMFD22000
METELLI231577C
MEYLE30155210089
MINTEXMDC1564
NIPPARTSJ3302156, J3302131, J3302172
NK314592, 204592
OPEN PARTSBDR198220, BDA198220
OPTIMALBS8840
PAGID54358
PATRONPBD4204
PILENGAV668
PROTECHNICPRD2514
QUINTON HAZELLBDC5673
REMSA686210
ROADHOUSE686210
sbs1815314592, 1815204592
STELLOX60204592VSX
TEXTAR92135803, 92135800, 98200135801
TRUSTINGDF821
TRWDF4204
VALEO197168
VILLAR6282110
WOKINGD686210

Vehicle fitment / ATE 24.0128-0190.1 (24012801901) Brake Disc compatibility

This product fits the following models: TOYOTA CAMRY, TOYOTA ESTIMA, TOYOTA PREVIA, TOYOTA TARAGO, etc. See all vehicles this product (ATE 24.0128-0190.1 (24012801901)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
TOYOTACAMRY
MCV3
ACV3
XV3
2.0 VVTI
2.4 VVT-i
3.0
3.0 V6
2001/08 - 2006/111AZ-FE 150 hp 110 kW 2 L Petrol
1MZ-FE 186 hp 137 kW 3 L Petrol
1MZ-FE 192 hp 141 kW 3 L Petrol
2AZ-FE 152 hp 112 kW 2.4 L Petrol
Front wheel
Sedan / Saloon
TOYOTAESTIMA
MCR3
ACR3
CLR3
2.0 D-4D
2.4
2.4 16V

ACR30
2000/08 - 2006/011CD-FTV 116 hp 85 kW 2 L Diesel
2AZ-FE 156 hp 115 kW 2.4 L Petrol
Front wheel
MPV / Van / Minivan
TOYOTAPREVIA
MCR3
ACR3
CLR3
2.0 D-4D
2.4
2.4 16V

ACR30
2000/08 - 2006/011CD-FTV 116 hp 85 kW 2 L Diesel
2AZ-FE 156 hp 115 kW 2.4 L Petrol
Front wheel
MPV / Van / Minivan
TOYOTATARAGO
MCR3
ACR3
CLR3
2.0 D-4D
2.4
2.4 16V

ACR30
2000/08 - 2006/011CD-FTV 116 hp 85 kW 2 L Diesel
2AZ-FE 156 hp 115 kW 2.4 L Petrol
Front wheel
MPV / Van / Minivan
