ATE 24.0128-0194.1 (24012801941) Brake Disc

ATE part 24.0128-0194.1 (24012801941) Brake Disc

ATE 24.0128-0194.1 (24012801941) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0194.1 (24012801941)
Alternative ATE part number(s): 428194

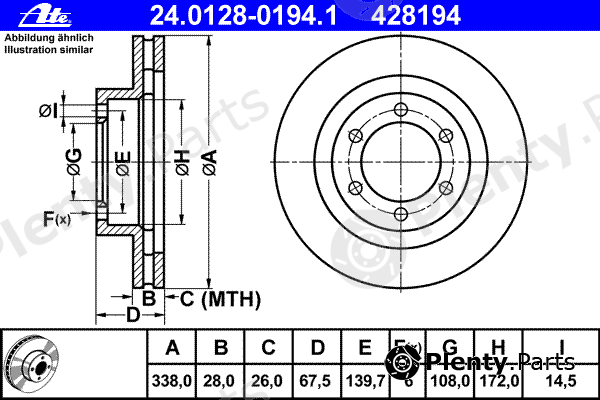

Сharacteristics:
  • Diameter [mm]: 338
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 26
  • Brake Disc Type: Vented
  • Surface: Coated
  • Number of Holes: 6
  • Bolt Hole Circle Ø [mm]: 139,7
  • Height [mm]: 67,5
  • Centering Diameter [mm]: 108
  • Inner diameter [mm]: 172
  • Bore Ø [mm]: 14,5
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0194.1 (24012801941) Alternative ATE part number(s): 428194
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for TOYOTA vehicles

OE manufacturerOEM reference numbers
TOYOTA43512-60150, 43512-60151

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0194.1 (24012801941) Brake Disc offered by A.B.S., ADVICS / SUMITOMO, ALANKO, AP, ASHUKI, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CIFAM, DELPHI, E.T.F., FARCOM, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, G.U.D, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, ICER, JP GROUP, JURID, KAGER, KAVO PARTS, KAWE, LPR, MAGNETI MARELLI, METELLI, MEYLE, MGA, MINTEX, NIBK, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, sbs, TEMPLIN, TEXTAR, TRUSTING, TRW, VALEO, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17459
ADVICS / SUMITOMOA6F182
ALANKO303787
AP25088V, 25088
ASHUKI09906412
BORG & BECKBBD4502
BOSCH0986479304
Brake ENGINEERINGDI956388
BRECOBV8694, BS8694
BREMBO09.A204.11, 09.A204.10
BREMSIDBB594V
BSF11657V
CIFAM800968C
DELPHIBG4052
E.T.F.190043
FARCOM230557
FENOXTB217660
FERODODDF1594, DDF1594-1
FOMARFO2921
fri.tech.BD0924
FTEBS7696, BS7696B
GIRLING6044941
G.U.DGDB128194
HELLA8DD355111861
HELLA PAGID8DD355111-861
HERTH+BUSS JAKOPARTSJ3302146
ICER78BD29182
JP GROUP4863102509
JURID562743JC
KAGER370777
KAVO PARTSBR9425, BR9425C
KAWE670610
LPRT2027V
MAGNETI MARELLI360406062800, 600000087540
METELLI230968C
MEYLE30-855210008/PD, 30855210008
MGAD1704
MINTEXMDC1776
NIBKRN1220
NIPPARTSJ3302146
NK204598, 314598
OPEN PARTSBDR214920
OPTIMALBS7998
PAGID54373
PROTECHNICPRD2435
QUINTON HAZELL6706.10
R BRAKE78RBD22918
REMSA6706.10
ROADHOUSE6706.10
ROTINGERRT2916, RT2916T5
sbs1815314598, 1815204598
TEMPLIN0311028180
TEXTAR92137300, 98200137301, 92137303
TRUSTINGDF924
TRWDF4494, RCDI07880
VALEO197071
VILLAR6282078
WOKINGD670610
ZIMMERMANN590.2586.00, 590.2586.50, 590258652, 590.2586.20

Vehicle fitment / ATE 24.0128-0194.1 (24012801941) Brake Disc compatibility

This product fits the following models: LEXUS GX, TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 150, TOYOTA LAND CRUISER PRADO, etc. See all vehicles this product (ATE 24.0128-0194.1 (24012801941)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
LEXUSGX
J12
470
2001/11 - 2009/112UZ-FE 238 hp 175 kW 4.7 L Petrol
2UZ-FE 271 hp 199 kW 4.7 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
TOYOTALAND CRUISER
J7
LJ12
KZJ12
TRJ12
KDJ12
GRJ12
2.7
3.0 D
3.0 D-4D
4.0
4.0 4x4

GRJ120
GRJ12
GRJ125
KDJ120
KDJ125
KDJ120
KDJ150
KDJ125
KZJ12
RZJ12
TRJ12
2002/09 - 1GR-FE 231 hp 170 kW 4 L Petrol
1GR-FE 249 hp 183 kW 4 L Petrol
1GR-FE 276 hp 203 kW 4 L Petrol
1KD-FTV 163 hp 120 kW 3 L Diesel
1KD-FTV 166 hp 122 kW 3 L Diesel
1KD-FTV 173 hp 127 kW 3 L Diesel
1KZ-TE 125 hp 92 kW 3 L Diesel
2TR-FE 163 hp 120 kW 2.7 L Petrol
3RZ-FE 152 hp 112 kW 2.7 L Petrol
5L-E 95 hp 70 kW 3 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
Pickup truck / Pickup
TOYOTALAND CRUISER 150
KDJ15
GRJ15
4.0 V6 VVTi
2010/01 - 1GR-FE 249 hp 183 kW 4 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
TOYOTALAND CRUISER PRADO
KDJ15
GRJ15
LJ12
KZJ12
TRJ12
KDJ12
GRJ12
2.7
3.0 D
3.0 D-4D
4.0
4.0 V6 VVTi

GRJ120
GRJ12
GRJ125
KDJ120
KDJ125
KDJ120
KDJ150
KDJ125
KZJ12
RZJ12
TRJ12
2002/09 - 1GR-FE 249 hp 183 kW 4 L Petrol
1GR-FE 276 hp 203 kW 4 L Petrol
1KD-FTV 163 hp 120 kW 3 L Diesel
1KD-FTV 166 hp 122 kW 3 L Diesel
1KD-FTV 173 hp 127 kW 3 L Diesel
1KZ-TE 125 hp 92 kW 3 L Diesel
2TR-FE 163 hp 120 kW 2.7 L Petrol
3RZ-FE 152 hp 112 kW 2.7 L Petrol
5L-E 95 hp 70 kW 3 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
