ATE 24.0128-0202.1 (24012802021) Brake Disc

ATE part 24.0128-0202.1 (24012802021) Brake Disc

ATE 24.0128-0202.1 (24012802021) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0202.1 (24012802021)
Alternative ATE part number(s): 428202

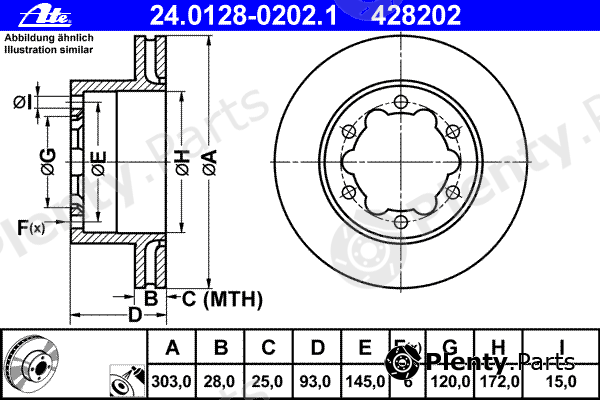

Сharacteristics:
  • Diameter [mm]: 303
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 25
  • Brake Disc Type: Vented
  • Machining: Alloyed / High-carbon
  • Surface: Coated
  • Number of Holes: 6
  • Bolt Hole Circle Ø [mm]: 145
  • Height [mm]: 93
  • Centering Diameter [mm]: 120
  • Inner diameter [mm]: 172
  • Bore Ø [mm]: 15
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0202.1 (24012802021) Alternative ATE part number(s): 428202
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for MERCEDES-BENZ, VAG vehicles

OE manufacturerOEM reference numbers
MERCEDES-BENZ9064230112
VAG2E0615601

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0202.1 (24012802021) Brake Disc offered by A.B.S., ALANKO, BENDIX, BERAL, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CASALS, CIFAM, DELPHI, DENCKERMANN, DON, E.T.F., FARCOM, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KRAFT, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, MENSAN, METELLI, METZGER, MEYLE, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PROTECHNIC, R BRAKE, REMSA, ROADHOUSE, ROTINGER, sbs, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VAICO, VALEO, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17731
ALANKO304166
BENDIX569138B, 562487B
BERALBCR312A
BORG & BECKBBD5904S
BOSCH0986479296
Brake ENGINEERINGDI956434S
BRECOBS8650
BREMBO09.9510.14
BREMSIDB0312V
BSF11526V
CASALS55422, 55419
CIFAM800880
DELPHIBG9015
DENCKERMANNB130360
DONCVD657
E.T.F.197225
FARCOM231114
FEBI BILSTEIN27700
FENOXTB219353
FERODOFCR312A
FOMARFO4093
fri.tech.BD1131
FTEBS7129, BS7129B
GIRLING6049195
HANS PRIES111653
HELLA8DD355118-061, 8DD355123182
HELLA PAGID8DD355118-061, 8DD355123182
ICER78BD01921
JP GROUP1163204209, 1163204200
JURID569138J
KAGER371281
KAMOKA103123
KAWE6103610
KRAFT6051432
LPRM2044V
MAGNETI MARELLI360406057200
MAPCO25812
MAXGEAR191051
MENSAN030211
METELLI230880
METZGER6110591
MEYLE0155232099
MINTEXMDC1773
NK2047124, 3147124
OPEN PARTSBDA232620
OPTIMALBS8816
PAGID59434
PATRONPBD9510
PROTECHNICPRD6179
R BRAKE78RBD10192
REMSA6103610
ROADHOUSE6103610
ROTINGERRT20454, RT20454T5
sbs18152047124, 18153147124
STARLINEPB20454
STELLOX602047124VSX
SWAG10927700
TEMPLIN0311082805, 031101926440, 0311082800
TEXTAR98200143401, 92143400, 93143400, 93143405, 93143403
TRUCKTEC AUTOMOTIVE02.35.202
TRUSTINGDF1131
TRWDF4919S
VAICOV1080092
VALEO187146
VILLAR6282014
WAGNER LOCKHEEDWGR63121
WOKINGD6103610
ZIMMERMANN400.6478.00, 400.6478.20

Vehicle fitment / ATE 24.0128-0202.1 (24012802021) Brake Disc compatibility

This product fits the following models: MERCEDES-BENZ SPRINTER 4,6-T, MERCEDES-BENZ SPRINTER 5-T, MERCEDES-BENZ SPRINTER CLASSIC 4,6-T, VW CRAFTER 30-35, VW CRAFTER 30-50, etc. See all vehicles this product (ATE 24.0128-0202.1 (24012802021)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
MERCEDES-BENZSPRINTER 4,6-T
906
411 CDI
413 CDI
415 CDI
416 CDI
418 CDI
419 CDI
424
906.153
906.155
906.253
906.255
906.653
906.655
906.657
906.655
906.657
906.653
2006/06 - M272.979 258 hp 190 kW 3.5 L Petrol
OM642.896 184 hp 135 kW 3 L Diesel
OM642.992 184 hp 135 kW 3 L Diesel
OM642.896 184 hp 135 kW 3 L Diesel
OM642.992 184 hp 135 kW 3 L Diesel
OM642.993 184 hp 135 kW 3 L Diesel
OM642.896 190 hp 140 kW 3 L Diesel
OM642.898 190 hp 140 kW 3 L Diesel
OM642.992 190 hp 140 kW 3 L Diesel
OM642.992 190 hp 140 kW 3 L Diesel
OM646.985 109 hp 80 kW 2.1 L Diesel
OM646.986 129 hp 95 kW 2.1 L Diesel
OM646.986 129 hp 95 kW 2.1 L Diesel
OM651.955 129 hp 95 kW 2.1 L Diesel
OM651.956 129 hp 95 kW 2.1 L Diesel
OM646.989 150 hp 110 kW 2.1 L Diesel
OM646.990 150 hp 110 kW 2.1 L Diesel
OM651.957 163 hp 120 kW 2.1 L Diesel
Rear wheel
LCV / Van / Cargo
With flatbed/undercarriage
MERCEDES-BENZSPRINTER 5-T

906
3500
509 CDI
510 CDI
511 CDI
511 CDI 4x4
513 CDI
513 CDI 4x4
515 CDI
515 CDI 4x4
516
516 CDI
516 CDI 4x4
516 NGT
518 CDI
518 CDI 4x4
519 CDI / BlueTEC
519 CDI / BlueTEC 4x4
524
906.135
906.155
906.253
906.255
906.153
906.155
906.253
906.255
906.153
906.155
906.255
906.653
906.6355
906.657
906.653
906.655
906.657
2006/06 - M271.951 156 hp 115 kW 1.8 L Petrol
M272.979 258 hp 190 kW 3.5 L Petrol
OM642.896 184 hp 135 kW 3 L Diesel
OM642.992 184 hp 135 kW 3 L Diesel
OM642.993 184 hp 135 kW 3 L Diesel
OM642.896 190 hp 140 kW 3 L Diesel
OM642.898 190 hp 140 kW 3 L Diesel
OM642.992 190 hp 140 kW 3 L Diesel
OM646.984 88 hp 65 kW 2.1 L Diesel
OM646.985 109 hp 80 kW 2.1 L Diesel
OM646.986 129 hp 95 kW 2.1 L Diesel
OM651.955 129 hp 95 kW 2.1 L Diesel
OM651.956 129 hp 95 kW 2.1 L Diesel
OM646.986 129 hp 95 kW 2.1 L Diesel
OM651.956 129 hp 95 kW 2.1 L Diesel
OM646.986 150 hp 110 kW 2.1 L Diesel
OM646.989 150 hp 110 kW 2.1 L Diesel
OM646.990 150 hp 110 kW 2.1 L Diesel
OM646.989 150 hp 110 kW 2.1 L Diesel
OM646.990 150 hp 110 kW 2.1 L Diesel
OM651.955 129 hp 95 kW 2.1 L Diesel
OM651.956 129 hp 95 kW 2.1 L Diesel
OM651.955 163 hp 120 kW 2.1 L Diesel
OM651.957 163 hp 120 kW 2.1 L Diesel
OM651.955 95 hp 70 kW 2.1 L Diesel
OM651.956 129 hp 95 kW 2.1 L Diesel
OM651.957 163 hp 120 kW 2.1 L Diesel
AWD / 4WD
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
MERCEDES-BENZSPRINTER CLASSIC 4,6-T
909
411 CDI
909.843
2013/09 - OM646.701 109 hp 80 kW 2.1 L Diesel
Rear wheel
Passenger Van / Wagon / Minibus
VWCRAFTER 30-35
2E
2.0 TDI
2.0 TDI 4motion
2.5 TDI
2006/04 - BJJ 88 hp 65 kW 2.5 L Diesel
BJK 109 hp 80 kW 2.5 L Diesel
BJL 136 hp 100 kW 2.5 L Diesel
BJM 163 hp 120 kW 2.5 L Diesel
CEBA 88 hp 65 kW 2.5 L Diesel
CEBB 109 hp 80 kW 2.5 L Diesel
CECA 136 hp 100 kW 2.5 L Diesel
CECB 163 hp 120 kW 2.5 L Diesel
CKTB 109 hp 80 kW 2 L Diesel
CKTC 136 hp 100 kW 2 L Diesel
CKUB 163 hp 120 kW 2 L Diesel
CKUC 142 hp 105 kW 2 L Diesel
CSLB 114 hp 84 kW 2 L Diesel
CSNA 163 hp 120 kW 2 L Diesel
CKUB 163 hp 120 kW 2 L Diesel
CSNA 163 hp 120 kW 2 L Diesel
AWD / 4WD
Rear wheel
Passenger Van / Wagon / Minibus
VWCRAFTER 30-50
2E
2F
2.0 TDI
2.0 TDI 4motion
2.5 TDI
2006/04 - BJJ 88 hp 65 kW 2.5 L Diesel
BJK 109 hp 80 kW 2.5 L Diesel
BJL 136 hp 100 kW 2.5 L Diesel
BJM 163 hp 120 kW 2.5 L Diesel
CEBA 88 hp 65 kW 2.5 L Diesel
CEBB 109 hp 80 kW 2.5 L Diesel
CECA 136 hp 100 kW 2.5 L Diesel
CECB 163 hp 120 kW 2.5 L Diesel
CKTB 109 hp 80 kW 2 L Diesel
CKTC 136 hp 100 kW 2 L Diesel
CKUB 163 hp 120 kW 2 L Diesel
CKUC 142 hp 105 kW 2 L Diesel
CSLB 114 hp 84 kW 2 L Diesel
CSLC 140 hp 103 kW 2 L Diesel
CSNA 163 hp 120 kW 2 L Diesel
CKUB 163 hp 120 kW 2 L Diesel
CSNA 163 hp 120 kW 2 L Diesel
AWD / 4WD
Rear wheel
LCV / Van / Cargo
With flatbed/undercarriage
