ATE 24.0128-0213.1 (24012802131) Brake Disc

ATE part 24.0128-0213.1 (24012802131) Brake Disc

ATE 24.0128-0213.1 (24012802131) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0213.1 (24012802131)
Alternative ATE part number(s): 428213

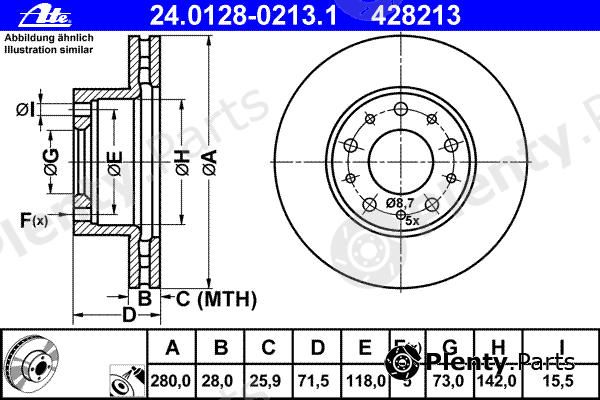

Сharacteristics:
  • Diameter [mm]: 280
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 25,9
  • Brake Disc Type: Vented
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 118
  • Height [mm]: 71,5
  • Centering Diameter [mm]: 73
  • Inner diameter [mm]: 142
  • Bore Ø [mm]: 15,5
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0213.1 (24012802131) Alternative ATE part number(s): 428213
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT424929, 424998, 4249K2, 1607872180, 424928
FIAT / LANCIA / ALFA51740246, 51705749, 51848621

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0213.1 (24012802131) Brake Disc offered by A.B.S., ALANKO, AP, BENDIX, BORG & BECK, BOSCH, BRECO, BREMBO, BSF, CAR, CASALS, CIFAM, DELPHI, DENCKERMANN, E.T.F., EUROBRAKE, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KRAFT, LPR, MAGNETI MARELLI, MALÒ, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, ROTINGER, SASIC, sbs, STARLINE, STELLOX, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17740
ALANKO303612
AP25080
BENDIX562508BC, 562468B
BORG & BECKBBD4608
BOSCH0986479313, 0986479B99
BRECOBS8667
BREMBO09.A235.20, 09.A235.10
BSF11497V
CAR142.1409
CASALS55123
CIFAM800884C
DELPHIBG4059
DENCKERMANNB130292
E.T.F.197412
EUROBRAKE5815201942
FENOXTB219350
FERODODDF1800, DDF1800-1
FOMARFO2698
fri.tech.BD1224
FTEBS7169
GIRLING6047715
HANS PRIES722458
HELLA8DD355113-691
HELLA PAGID8DD355113-691
ICER78BD56222
JP GROUP4163101909
JURID562468J
KAGER371200
KAMOKA103139
KRAFT6045909
LPRP1009V
MAGNETI MARELLI360407100100, 360704006600
MALÒ1110126
MAPCO15332
MAXGEAR191334
METELLI230884C
METZGER6110354, 6101510
MEYLE2155210029
MGAD1690
MINTEXMDC1849, MDC2685
NK201958, 201942, 311958, 311942
OPEN PARTSBDA243820
OPTIMALBS-8382
PAGID54572, 55750
PATRONPBD7000
PILENGAV021, V485
PROTECHNICPRD2342
QUINTON HAZELLBDC5661
R BRAKE78RBD25622
ROTINGERRT20657T5, RT20657
SASIC6100017
sbs1815201942, 1815311942, 1815201958, 1815311958
STARLINEPB20657
STELLOX60209956SX
TEMPLIN0311080365, 031102600080
TEXTAR92157200, 92157203, 92275003, 98200157201
TRUSTINGDF1224
TRWDF4771S
VAICOV2480008
VALEO197248
VEMA98622
VILLAR6282079
ZIMMERMANN230237320, 230.2373.00

Vehicle fitment / ATE 24.0128-0213.1 (24012802131) Brake Disc compatibility

This product fits the following models: CITROËN JUMPER, CITROËN RELAY, FIAT DUCATO, PEUGEOT BOXER, PEUGEOT MANAGER, etc. See all vehicles this product (ATE 24.0128-0213.1 (24012802131)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNJUMPER
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi 145
3.0 HDi 155
3.0 HDi 160
3.0 HDi 180
2006/04 - 4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 130 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
F1CE3481N 146 hp 107 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
CITROËNRELAY
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi 145
3.0 HDi 155
3.0 HDi 160
3.0 HDi 180
2006/04 - 4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 130 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
F1CE3481N 146 hp 107 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
FIATDUCATO
250
290
100 Multijet 2
2 D
110 Multijet 2
3 D
115 Multijet 2
0 D
120 Multijet 2
3 D
120 Multijet 2
3 D 4x4
130 Multijet 2
3 D
140 Natural Power
150 Multijet 2
3 D
150 Multijet 3
0 D
160 Multijet 3
0 D
180 Multijet 3
0 D
2006/07 - 250A1.000 116 hp 85 kW 2 L Diesel
250A2.000 116 hp 85 kW 2 L Diesel
4HV 100 hp 74 kW 2.2 L Diesel
F1AE0481D 120 hp 88 kW 2.3 L Diesel
F1AE0481D 120 hp 88 kW 2.3 L Diesel
FPT 120 hp 88 kW 2.3 L Diesel
F1AE0481N 131 hp 96 kW 2.3 L Diesel
F1AE0481T 126 hp 93 kW 2.3 L Diesel
F1AE3481D 131 hp 96 kW 2.3 L Diesel
F1AGL411D 131 hp 96 kW 2.3 L Diesel
F1AE0481T 126 hp 93 kW 2.3 L Diesel
F1AE3481D 131 hp 96 kW 2.3 L Diesel
F1AGL411D 131 hp 96 kW 2.3 L Diesel
F1AE3481E 148 hp 109 kW 2.3 L Diesel
F1AE3481E 148 hp 109 kW 2.3 L Diesel
F1AGL411A 150 hp 110 kW 2.3 L Diesel
F1AGL411C 150 hp 110 kW 2.3 L Diesel
F1AE3481G 113 hp 83 kW 2.3 L Diesel
F1CE0441A 136 hp 100 kW 3 L Petrol
F1CE0441A 136 hp 100 kW 3 L Petrol
F1CFA401A 136 hp 100 kW 3 L Petrol
F1CE0481D 156 hp 115 kW 3 L Diesel
F1CE0481D 158 hp 116 kW 3 L Diesel
F1CE3481M 158 hp 116 kW 3 L Diesel
F1CE0481D 158 hp 116 kW 3 L Diesel
F1CE3481M 156 hp 115 kW 3 L Diesel
F1CE3481E 177 hp 130 kW 3 L Diesel
F1CE3481N 146 hp 107 kW 3 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
PEUGEOTBOXER
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi
3.0 HDi 145
3.0 HDi 160
3.0 HDi 175
2006/04 - 120 hp 88 kW 2.2 L Diesel
146 hp 107 kW 3 L Diesel
4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 131 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 156 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
PEUGEOTMANAGER
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi
3.0 HDi 145
3.0 HDi 160
3.0 HDi 175
2006/04 - 120 hp 88 kW 2.2 L Diesel
146 hp 107 kW 3 L Diesel
4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 131 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 156 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
