ATE 24.0128-0215.1 (24012802151) Brake Disc

ATE part 24.0128-0215.1 (24012802151) Brake Disc

ATE 24.0128-0215.1 (24012802151) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0215.1 (24012802151)
Alternative ATE part number(s): 428215

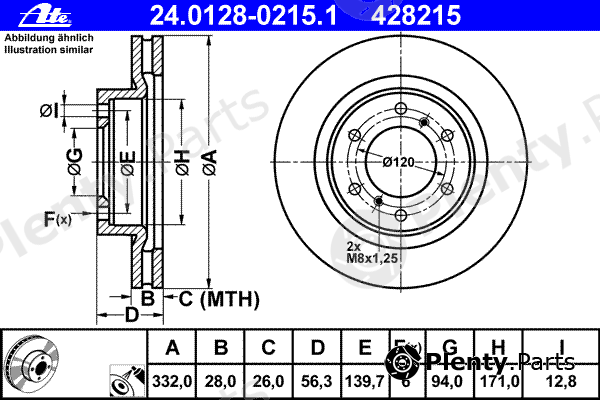

Сharacteristics:
  • Diameter [mm]: 332
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 26
  • Brake Disc Type: Vented
  • Surface: Coated
  • Number of Holes: 6
  • Bolt Hole Circle Ø [mm]: 139,7
  • Height [mm]: 56,3
  • Centering Diameter [mm]: 94
  • Inner diameter [mm]: 171
  • Bore Ø [mm]: 12,8
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0215.1 (24012802151) Alternative ATE part number(s): 428215
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for MITSUBISHI vehicles

OE manufacturerOEM reference numbers
MITSUBISHI4615A038

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0215.1 (24012802151) Brake Disc offered by A.B.S., ALANKO, AP, ASHUKI, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CIFAM, DELPHI, E.T.F., EUROBRAKE, FERODO, FOMAR, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, ICER, KAVO PARTS, KAWE, LPR, MAGNETI MARELLI, MDR, METELLI, MEYLE, MGA, MINTEX, NIBK, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, sbs, STELLOX, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, WOKING manufacturers

ManufacturerReference numbers
A.B.S.17963
ALANKO303879
AP25375, 25375V
ASHUKIC65235
BLUE PRINTADC443114
BORG & BECKBBD4754
BOSCH0986479782
Brake ENGINEERINGDI956846
BRECOBV8985, BS8985
BREMBO09B63610, 09B63611
BREMSIDBB757V
BSF11828V
CIFAM8001662C
DELPHIBG4228
E.T.F.192596
EUROBRAKE5815203055
FERODODDF17571, DDF1757
FOMARFO4127
fri.tech.BD1246
FTEBS7237
GIRLING6049435
HELLA8DD355119-081, 8DD355114-581
HELLA PAGID8DD355119-081, 8DD355114-581
HERTH+BUSS JAKOPARTSJ3305064
ICER78BD71132
KAVO PARTSBR-5772, BR5772C
KAWE6110010
LPRM1017V
MAGNETI MARELLI600000088920
MDRMFD2536
METELLI231662C
MEYLE32155210018PD
MGAD1904
MINTEXMDC2039
NIBKRN1400
NIPPARTSN3305067
NK203055
OPEN PARTSBDR240620
OPTIMALBS8606
PAGID54672
PATRONPBD1441
PILENGAV637
PROTECHNICPRD2822
QUINTON HAZELLBDC5901
R BRAKE78RBD27113
REMSA61100.10
ROADHOUSE61100.10
ROTINGERRT20769, RT20769T5
sbs1815203055
STELLOX60209308SX
TEMPLIN0311019975, 0311019970
TEXTAR98200167201, 92167200, 92167203
TRISCAN812042148
TRUSTINGDF1246
TRWDF4943S
VAICOV3780003
VALEO197301
WOKINGD6110010

Vehicle fitment / ATE 24.0128-0215.1 (24012802151) Brake Disc compatibility

This product fits the following models: MITSUBISHI MONTERO, MITSUBISHI MONTERO CLASSIC, MITSUBISHI MONTERO IV, MITSUBISHI PAJERO CLASSIC, MITSUBISHI PAJERO FULL IV, MITSUBISHI PAJERO IV, MITSUBISHI PAJEROSHOGUN, MITSUBISHI PAJEROSHOGUN CLASSIC, MITSUBISHI PAJEROSHOGUN IV, MITSUBISHI SHOGUN IV, etc. See all vehicles this product (ATE 24.0128-0215.1 (24012802151)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
MITSUBISHIMONTERO
V90
V80
V8V
3.2 DI-D
3.2 TD 4WD
2006/11 - 4M41 160 hp 118 kW 3.2 L Diesel
4M41 200 hp 147 kW 3.2 L Diesel
AWD / 4WD
LCV / Van / Cargo
MITSUBISHIMONTERO CLASSIC
V2W
3.0
3.2 DiD
3.8
2006/09 - 4M41 170 hp 125 kW 3.2 L Diesel
6G72(SOHC24V) 178 hp 131 kW 3 L Petrol
6G75 250 hp 184 kW 3.8 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHIMONTERO IV
V8W
V9W
3.0 4WD
3.2 DI-D
3.2 DI-D 4WD
3.8 V6

V87W
V97W
V88W
V98W
V98W
V98W
V88W
2007/02 - 4M41 160 hp 118 kW 3.2 L Diesel
4M41 170 hp 125 kW 3.2 L Diesel
4M41 190 hp 140 kW 3.2 L Diesel
4M41 200 hp 147 kW 3.2 L Diesel
6G72(SOHC24V) 178 hp 131 kW 3 L Petrol
6G75 248 hp 182 kW 3.8 L Petrol
6G75 250 hp 184 kW 3.8 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHIPAJERO CLASSIC
V2W
3.0
3.2 DiD
3.8
2006/09 - 4M41 170 hp 125 kW 3.2 L Diesel
6G72(SOHC24V) 178 hp 131 kW 3 L Petrol
6G75 250 hp 184 kW 3.8 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHIPAJERO FULL IV
V8W
V9W
3.0 4WD
3.2 DI-D
3.2 DI-D 4WD
3.8 V6

V87W
V97W
V88W
V98W
V98W
V98W
V88W
2007/02 - 4M41 160 hp 118 kW 3.2 L Diesel
4M41 170 hp 125 kW 3.2 L Diesel
4M41 190 hp 140 kW 3.2 L Diesel
4M41 200 hp 147 kW 3.2 L Diesel
6G72(SOHC24V) 178 hp 131 kW 3 L Petrol
6G75 248 hp 182 kW 3.8 L Petrol
6G75 250 hp 184 kW 3.8 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHIPAJERO IV
V8W
V9W
V8W
V9W
NS
NT
NW
NX
V90
V80
V8V
3.0 4WD
3.2 DI-D
3.2 DI-D 4WD
3.2 TD 4WD
3.8 V6

V87W
V97W
V88W
V98W
V98W
V98W
V88W
2006/11 - 4M41 160 hp 118 kW 3.2 L Diesel
4M41 160 hp 118 kW 3.2 L Diesel
4M41 170 hp 125 kW 3.2 L Diesel
4M41 190 hp 140 kW 3.2 L Diesel
4M41 200 hp 147 kW 3.2 L Diesel
6G72(SOHC24V) 178 hp 131 kW 3 L Petrol
6G75 248 hp 182 kW 3.8 L Petrol
6G75 250 hp 184 kW 3.8 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
LCV / Van / Cargo
MITSUBISHIPAJEROSHOGUN
V90
V80
V8V
3.2 DI-D
3.2 TD 4WD
2006/11 - 4M41 160 hp 118 kW 3.2 L Diesel
4M41 200 hp 147 kW 3.2 L Diesel
AWD / 4WD
LCV / Van / Cargo
MITSUBISHIPAJEROSHOGUN CLASSIC
V2W
3.0
3.2 DiD
3.8
2006/09 - 4M41 170 hp 125 kW 3.2 L Diesel
6G72(SOHC24V) 178 hp 131 kW 3 L Petrol
6G75 250 hp 184 kW 3.8 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHIPAJEROSHOGUN IV
V8W
V9W
3.0 4WD
3.2 DI-D
3.2 DI-D 4WD
3.8 V6

V87W
V97W
V88W
V98W
V98W
V98W
V88W
2007/02 - 4M41 160 hp 118 kW 3.2 L Diesel
4M41 170 hp 125 kW 3.2 L Diesel
4M41 190 hp 140 kW 3.2 L Diesel
4M41 200 hp 147 kW 3.2 L Diesel
6G72(SOHC24V) 178 hp 131 kW 3 L Petrol
6G75 248 hp 182 kW 3.8 L Petrol
6G75 250 hp 184 kW 3.8 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHISHOGUN IV
V8W
V9W
3.0 4WD
3.2 DI-D
3.2 DI-D 4WD
3.8 V6

V87W
V97W
V88W
V98W
V98W
V98W
V88W
2007/02 - 4M41 160 hp 118 kW 3.2 L Diesel
4M41 170 hp 125 kW 3.2 L Diesel
4M41 190 hp 140 kW 3.2 L Diesel
4M41 200 hp 147 kW 3.2 L Diesel
6G72(SOHC24V) 178 hp 131 kW 3 L Petrol
6G75 248 hp 182 kW 3.8 L Petrol
6G75 250 hp 184 kW 3.8 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
