ATE 24.0128-0217.1 (24012802171) Brake Disc

ATE part 24.0128-0217.1 (24012802171) Brake Disc

ATE 24.0128-0217.1 (24012802171) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0217.1 (24012802171)
Alternative ATE part number(s): 428217

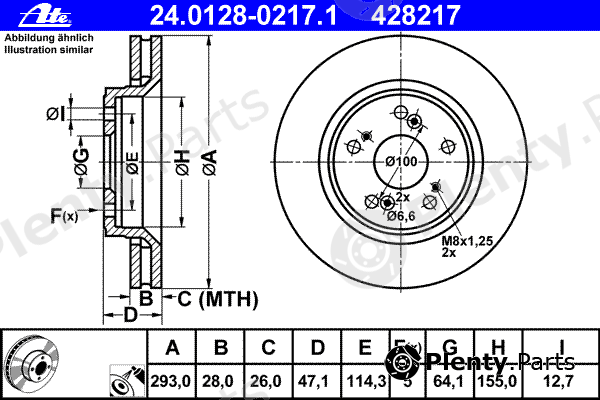

Сharacteristics:
  • Supplementary Article/Info 2: with screws
  • Diameter [mm]: 293
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 26
  • Brake Disc Type: Vented
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 114,3
  • Height [mm]: 47,1
  • Centering Diameter [mm]: 64,1
  • Inner diameter [mm]: 155
  • Bore Ø [mm]: 12,7
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0217.1 (24012802171) Alternative ATE part number(s): 428217
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for HONDA vehicles

OE manufacturerOEM reference numbers
HONDA45251-SWW-G01, 45251-T1E-G00, 45251-T1E-G01

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0217.1 (24012802171) Brake Disc offered by A.B.S., ADVICS / SUMITOMO, ALANKO, AP, ASHUKI, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, Dr!ve+, E.T.F., EUROBRAKE, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, G.U.D, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, JURID, KAGER, KAMOKA, KAVO PARTS, KAWE, KORTEX, LPR, MAGNETI MARELLI, MAPCO, MDR, METELLI, METZGER, MEYLE, MGA, MINTEX, NIBK, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROFIT, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, sbs, STARLINE, STELLOX, TEXTAR, TRUSTING, TRW, VAICO, VALEO, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17962
ADVICS / SUMITOMOC6F129
ALANKO303869
AP25191
ASHUKIH03778
BLUE PRINTADH243104
BORG & BECKBBD4639
BOSCH0986479456
Brake ENGINEERINGDI956788
BRECOBS8801
BREMBO09.A866.10
BREMSIDBB820V
BSF11692V
CAR1421535
CIFAM8001338C
DELPHIBG4250, 25191
Dr!ve+DP1010110627
E.T.F.195253
EUROBRAKE5815202653
FENOXTB219308
FERODODDF1820-1, DDF1820, DDF1820C
FOMARFO2695
fri.tech.BD1349
FTEBS7432B, BS7432
GIRLING6048575
G.U.DGDB128217
HELLA8DD355115941
HELLA PAGID8DD355115-941
HERTH+BUSS JAKOPARTSJ3304053
JURID562746JC
KAGER371212
KAMOKA1031054
KAVO PARTSBR2261, BR2261C
KAWE6135810
KORTEXKD0144
LPRH1029V
MAGNETI MARELLI600000088520, 360406079100
MAPCO25210
MDRMFD2405
METELLI231338C
METZGER6110584, 6135810
MEYLE31155210034PD
MGAD1750
MINTEXMDC2104
NIBKRN1243
NIPPARTSN3304050
NK312653, 202653
OPEN PARTSBDR251620
OPTIMALBS-8286
PAGID54848, 54848PRO
PATRONPBD4857
PILENGAV735
PROFIT50101820
PROTECHNICPRD2712
QUINTON HAZELLBDC5802
REMSA61358.10
ROADHOUSE61358.10
ROTINGERRT4501, RT4501T5
sbs1815312653, 1815202653
STARLINEPB4501C
STELLOX60201079VSX
TEXTAR92184803
TRUSTINGDF1349
TRWDF4857S
VAICOV2680020
VALEO197186, 297186
WOKINGD6135810
ZIMMERMANN280317520, 280317552

Vehicle fitment / ATE 24.0128-0217.1 (24012802171) Brake Disc compatibility

This product fits the following models: HONDA CR-V III, HONDA CR-VIII, HONDA CR-V IV, etc. See all vehicles this product (ATE 24.0128-0217.1 (24012802171)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
HONDACR-V III
RE
2.0 i 4WD
2.2 i-CTDi 4WD
2.2 i-DTEC 4WD
2.4
2.4 4WD
2.4 i-Vtec 4WD
2.4 i-VTEC 4WD
2006/09 - K24A1 170 hp 125 kW 2.4 L Petrol
K24A 168 hp 124 kW 2.4 L Petrol
K24Z1 168 hp 124 kW 2.4 L Petrol
K24Z1 160 hp 118 kW 2.4 L Petrol
K24Z1 166 hp 122 kW 2.4 L Petrol
K24Z4 166 hp 122 kW 2.4 L Petrol
K24Z1 170 hp 125 kW 2.4 L Petrol
N22A2 140 hp 103 kW 2.2 L Diesel
N22B3 150 hp 110 kW 2.2 L Diesel
R20A2 150 hp 110 kW 2 L Petrol
AWD / 4WD
Front wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
HONDACR-VIII
RE
2.0 i 4WD
2.2 i-CTDi 4WD
2.2 i-DTEC 4WD
2.4
2.4 4WD
2.4 i-Vtec 4WD
2.4 i-VTEC 4WD
2006/09 - K24A1 170 hp 125 kW 2.4 L Petrol
K24A 168 hp 124 kW 2.4 L Petrol
K24Z1 168 hp 124 kW 2.4 L Petrol
K24Z1 160 hp 118 kW 2.4 L Petrol
K24Z1 166 hp 122 kW 2.4 L Petrol
K24Z4 166 hp 122 kW 2.4 L Petrol
K24Z1 170 hp 125 kW 2.4 L Petrol
N22A2 140 hp 103 kW 2.2 L Diesel
N22B3 150 hp 110 kW 2.2 L Diesel
R20A2 150 hp 110 kW 2 L Petrol
AWD / 4WD
Front wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
HONDACR-V IV
RE
RM
RE
1.6 i-DTEC
2.0
2.0 AWD
2012/01 - N16A1 120 hp 88 kW 1.6 L Diesel
R20A 150 hp 110 kW 2 L Petrol
R20A9 155 hp 114 kW 2 L Petrol
R20A9 155 hp 114 kW 2 L Petrol
AWD / 4WD
Front wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
