ATE 24.0128-0256.1 (24012802561) Brake Disc

ATE part 24.0128-0256.1 (24012802561) Brake Disc

ATE 24.0128-0256.1 (24012802561) Brake Disc

by ATE

Manufacturer Part Number: 24.0128-0256.1 (24012802561)
Alternative ATE part number(s): 428256

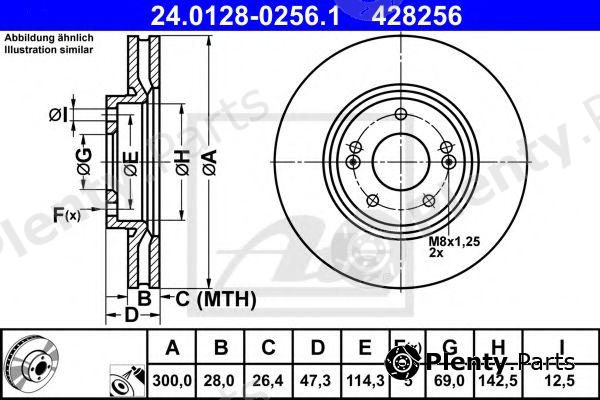

Сharacteristics:
  • Diameter [mm]: 300
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 26,4
  • Brake Disc Type: Vented
  • Machining: Alloyed / High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 114,3
  • Height [mm]: 47,3
  • Centering Diameter [mm]: 69
  • Inner diameter [mm]: 142,5
  • Bore Ø [mm]: 12,5
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0128-0256.1 (24012802561) Alternative ATE part number(s): 428256
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for HYUNDAI / KIA (MOBIS) vehicles

OE manufacturerOEM reference numbers
HYUNDAI / KIA (MOBIS)51712-2Y000, 51712-3K160

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0128-0256.1 (24012802561) Brake Disc offered by A.B.S., BLUE PRINT, BORG & BECK, BOSCH, BRECO, BREMBO, CAR, CIFAM, DELPHI, DENCKERMANN, FOMAR, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, MAPCO, METELLI, METZGER, MGA, MINTEX, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, ROTINGER, sbs, TEXTAR, TRUSTING, TRW manufacturers

ManufacturerReference numbers
A.B.S.17676
BLUE PRINTADG043136
BORG & BECKBBD4523
BOSCH0986479595
BRECOBS8840
BREMBO09.A532.10
CAR142.1383
CIFAM8001162C
DELPHI25230, BG4011
DENCKERMANNB130638
FOMARFO4070
fri.tech.BD1018
FTEBS7315, BS7315B
GIRLING6061085
HELLA8DD355114511
HELLA PAGID8DD355114511
HERTH+BUSS JAKOPARTSJ3300511, J3300508
MAPCO25249
METELLI231162C
METZGER6110155, 698810
MGAD1874
MINTEXMDC2043
NIPPARTSN3300533
NK313422, 203422
OPEN PARTSBDR235120
OPTIMALBS8564
PAGID54665
PATRONPBD1224, PBD7024
PILENGAV538
PROTECHNICPRD2711
ROTINGERRT20374, RT20374T5
sbs1815313422, 1815203422
TEXTAR92166503, 92166500
TRUSTINGDF1018
TRWDF6108S

Vehicle fitment / ATE 24.0128-0256.1 (24012802561) Brake Disc compatibility

This product fits the following models: HYUNDAI EMBERA V, HYUNDAI I40, HYUNDAI I40 CW, HYUNDAI IX35, HYUNDAI NF V, HYUNDAI SONATA V, HYUNDAI TUCSON, KIA AGE, KIA CARENS IV, KIA K5, KIA OPTIMA, KIA RONDO IV, etc. See all vehicles this product (ATE 24.0128-0256.1 (24012802561)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
HYUNDAIEMBERA V
NF
2.0 CRDi
2.0 GLSI
2.0 VVTi GLS
2.4
3.3
2005/01 - 2010/12D4EA 136 hp 100 kW 2 L Diesel
D4EA 140 hp 103 kW 2 L Diesel
D4EA 150 hp 110 kW 2 L Diesel
G4KA 144 hp 106 kW 2 L Petrol
G4KD 165 hp 121 kW 2 L Petrol
G4KC 162 hp 119 kW 2.4 L Petrol
G4KC 170 hp 125 kW 2.4 L Petrol
G4KE 173 hp 127 kW 2.4 L Petrol
G4KD 162 hp 119 kW 2 L Petrol
G6DB 233 hp 171 kW 3.3 L Petrol
G6DB 235 hp 173 kW 3.3 L Petrol
G6DB 250 hp 184 kW 3.3 L Petrol
Front wheel
Sedan / Saloon
HYUNDAII40
VF
1.6 GDI
1.7 CRDi
1.7 CRDI
2.0 GDi
2.0 GDI
2012/03 - D4FD 116 hp 85 kW 1.7 L Diesel
D4FD 136 hp 100 kW 1.7 L Diesel
D4FD 141 hp 104 kW 1.7 L Diesel
G4FD 135 hp 99 kW 1.6 L Petrol
G4NA 165 hp 121 kW 2 L Petrol
G4NC 165 hp 121 kW 2 L Petrol
G4NC 178 hp 131 kW 2 L Petrol
Front wheel
Sedan / Saloon
HYUNDAII40 CW
VF
1.6 GDI
1.7 CRDi
2.0 GDi
2.0 GDI
2011/07 - D4FD 116 hp 85 kW 1.7 L Diesel
D4FD 136 hp 100 kW 1.7 L Diesel
G4FD 135 hp 99 kW 1.6 L Petrol
G4NA 165 hp 121 kW 2 L Petrol
G4NC 165 hp 121 kW 2 L Petrol
G4NC 177 hp 130 kW 2 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
HYUNDAIIX35
LM
EL
ELH
1.6
1.7 CRDi
2.0
2.0 4WD
2.0 CRDi
2.0 CRDi 4WD
2.0 CVVT
2009/08 - D4FD 116 hp 85 kW 1.7 L Diesel
D4HA 136 hp 100 kW 2 L Diesel
D4HA 177 hp 130 kW 2 L Diesel
D4HA 184 hp 135 kW 2 L Diesel
D4HA 136 hp 100 kW 2 L Diesel
D4HA 184 hp 135 kW 2 L Diesel
G4FD 135 hp 99 kW 1.6 L Petrol
G4KD 150 hp 110 kW 2 L Petrol
G4KD 163 hp 120 kW 2 L Petrol
AWD / 4WD
Front wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
HYUNDAINF V
NF
2.0 CRDi
2.0 GLSI
2.0 VVTi GLS
2.4
3.3
2005/01 - 2010/12D4EA 136 hp 100 kW 2 L Diesel
D4EA 140 hp 103 kW 2 L Diesel
D4EA 150 hp 110 kW 2 L Diesel
G4KA 144 hp 106 kW 2 L Petrol
G4KD 165 hp 121 kW 2 L Petrol
G4KC 162 hp 119 kW 2.4 L Petrol
G4KC 170 hp 125 kW 2.4 L Petrol
G4KE 173 hp 127 kW 2.4 L Petrol
G4KD 162 hp 119 kW 2 L Petrol
G6DB 233 hp 171 kW 3.3 L Petrol
G6DB 235 hp 173 kW 3.3 L Petrol
G6DB 250 hp 184 kW 3.3 L Petrol
Front wheel
Sedan / Saloon
HYUNDAISONATA V
NF
2.0 CRDi
2.0 GLSI
2.0 VVTi GLS
2.4
3.3
2005/01 - 2010/12D4EA 136 hp 100 kW 2 L Diesel
D4EA 140 hp 103 kW 2 L Diesel
D4EA 150 hp 110 kW 2 L Diesel
G4KA 144 hp 106 kW 2 L Petrol
G4KD 165 hp 121 kW 2 L Petrol
G4KC 162 hp 119 kW 2.4 L Petrol
G4KC 170 hp 125 kW 2.4 L Petrol
G4KE 173 hp 127 kW 2.4 L Petrol
G4KD 162 hp 119 kW 2 L Petrol
G6DB 233 hp 171 kW 3.3 L Petrol
G6DB 235 hp 173 kW 3.3 L Petrol
G6DB 250 hp 184 kW 3.3 L Petrol
Front wheel
Sedan / Saloon
HYUNDAITUCSON
JM
LM
EL
ELH
1.6
1.7 CRDi
2.0
2.0 4WD
2.0 CRDi
2.0 CRDi 4WD
2.0 CVVT
2.7
2004/08 - D4EA 113 hp 83 kW 2 L Diesel
D4EA 120 hp 88 kW 2 L Diesel
D4EA 136 hp 100 kW 2 L Diesel
D4EA 150 hp 110 kW 2 L Diesel
D4EA-F 140 hp 103 kW 2 L Diesel
D4EA-V 140 hp 103 kW 2 L Diesel
D4FD 116 hp 85 kW 1.7 L Diesel
D4HA 136 hp 100 kW 2 L Diesel
D4HA 177 hp 130 kW 2 L Diesel
D4HA 184 hp 135 kW 2 L Diesel
D4HA 136 hp 100 kW 2 L Diesel
D4HA 184 hp 135 kW 2 L Diesel
G4FD 135 hp 99 kW 1.6 L Petrol
G4GC 141 hp 104 kW 2 L Petrol
G4GC 143 hp 105 kW 2 L Petrol
G4KD 150 hp 110 kW 2 L Petrol
G4KD 163 hp 120 kW 2 L Petrol
G6BA-G 175 hp 129 kW 2.7 L Petrol
AWD / 4WD
Front wheel
Front wheel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
KIAAGE
SL
1.6 GDI
1.7 CRDi
2.0 CRDi
2.0 CRDi AWD
2.0 CVVT
2.0 CVVT AWD
2.0 GDI
2.0 GDI AWD
2010/07 - D4FD-L 116 hp 85 kW 1.7 L Diesel
D4HA 136 hp 100 kW 2 L Diesel
D4HA 184 hp 135 kW 2 L Diesel
G4FD 135 hp 99 kW 1.6 L Petrol
G4KD 163 hp 120 kW 2 L Petrol
G4KD 166 hp 122 kW 2 L Petrol
G4NC 166 hp 122 kW 2 L Petrol
AWD / 4WD
Front wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
KIACARENS IV
1.6 GDi
1.7 CRDi
2.0 GDi
2013/03 - 141 hp 104 kW 1.7 L Diesel
D4FD-L 116 hp 85 kW 1.7 L Diesel
D4FD-L 136 hp 100 kW 1.7 L Diesel
G4FD 135 hp 99 kW 1.6 L Petrol
G4NC 166 hp 122 kW 2 L Petrol
G4NC 177 hp 130 kW 2 L Petrol
Front wheel
MPV / Van / Minivan
KIAK5
1.7 CRDi
2.0
2.0 CVVL
2.0 CVVT Hybrid
2.0 Hybrid
2.4
2010/09 - 190 hp 140 kW 2 L Hybrid
G4NE 150 hp 110 kW 2 L Hybrid
277 hp 204 kW 2 L Petrol
G4KD 170 hp 125 kW 2 L Petrol
D4FD-L 136 hp 100 kW 1.7 L Diesel
G4KD 165 hp 121 kW 2 L Petrol
G4KJ 179 hp 132 kW 2.4 L Petrol
G4KJ 203 hp 149 kW 2.4 L Petrol
G4NE 150 hp 110 kW 2 L Hybrid
Front wheel
Sedan / Saloon
KIAOPTIMA
1.7 CRDi
2.0
2.0 CVVL
2.0 CVVT Hybrid
2.0 Hybrid
2.4
2010/09 - 190 hp 140 kW 2 L Hybrid
G4NE 150 hp 110 kW 2 L Hybrid
277 hp 204 kW 2 L Petrol
G4KD 170 hp 125 kW 2 L Petrol
D4FD-L 136 hp 100 kW 1.7 L Diesel
G4KD 165 hp 121 kW 2 L Petrol
G4KJ 179 hp 132 kW 2.4 L Petrol
G4KJ 203 hp 149 kW 2.4 L Petrol
G4NE 150 hp 110 kW 2 L Hybrid
Front wheel
Sedan / Saloon
KIARONDO IV
RP
1.6 GDi
1.7 CRDi
2.0 GDi
2013/03 - 141 hp 104 kW 1.7 L Diesel
D4FD-L 116 hp 85 kW 1.7 L Diesel
D4FD-L 136 hp 100 kW 1.7 L Diesel
G4FD 135 hp 99 kW 1.6 L Petrol
G4NC 166 hp 122 kW 2 L Petrol
G4NC 177 hp 130 kW 2 L Petrol
Front wheel
MPV / Van / Minivan
