ATE 24.0130-0100.1 (24013001001) Brake Disc

ATE part 24.0130-0100.1 (24013001001) Brake Disc

ATE 24.0130-0100.1 (24013001001) Brake Disc

by ATE

Manufacturer Part Number: 24.0130-0100.1 (24013001001)
Alternative ATE part number(s): 430100

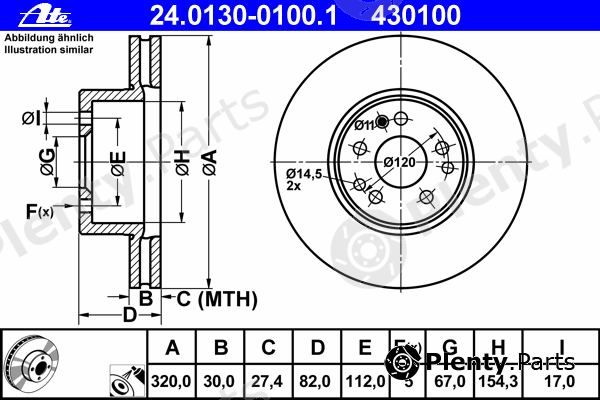

Сharacteristics:
  • Diameter [mm]: 320
  • Brake Disc Thickness [mm]: 30
  • Minimum thickness [mm]: 27,4
  • Brake Disc Type: Vented
  • Machining: Alloyed / High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 112
  • Height [mm]: 82
  • Centering Diameter [mm]: 67
  • Inner diameter [mm]: 154,3
  • Bore Ø [mm]: 15,2
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0130-0100.1 (24013001001) Alternative ATE part number(s): 430100
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for MERCEDES-BENZ vehicles

OE manufacturerOEM reference numbers
MERCEDES-BENZ1404210212, 1404210912, 1404211012

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0130-0100.1 (24013001001) Brake Disc offered by A.B.S., AP, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, DELPHI, E.T.F., FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, G.U.D, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAWE, LPR, MAGNETI MARELLI, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NK, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, SWAG, TEXTAR, TRISCAN, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.16109
AP24808, 24437
BENDIX562023B, 561573B
BORG & BECKBBD5870S
BOSCH0986478527
Brake ENGINEERINGDI955160S
BRECOBS8312, BS8104, BS8434
BREMBO09.5704.30, 09.5704.20, 09.5704.10, 09.8726.10
BREMSIDBB061V, DBA629V
CAR142.446, 142.449, 142.441
CIFAM800-413
DELPHIBG739, BG2739
E.T.F.190212, 190912
FEBI BILSTEIN08128
FENOXTB217186
FERODODDF629-1, DDF629, DDF1061, DDF1061-1
FOMARFO1646
fri.tech.BD0452
FTEBS4378
GIRLING6025955
GRAFDF29413
G.U.DGDB130100
HANS PRIES401284
HELLA8DD355122212, 8DD355102-691
HELLA PAGID8DD355102-691, 8DD355122212
ICER78BD02122, 78BD09122
JP GROUP1363102309
JURID562023J, 561573J
KAGER370342
KAWE635310, 659310
LPRM2421V
MAGNETI MARELLI360406054500, 360406006100, 351282520500
METELLI23-0413
METZGER6110644
MEYLE0155212021
MGAD1357, D1356
MINTEXMDC793
NECTOWN1066, WN769
NK313329, 203329
OPTIMALBS-5930
PAGID52123
PATRONPBD2595
PEX14.0323
PILENGAV186
PROTECHNICPRD2345
QUINTON HAZELLBSF4378, 6353.10, BDC4378
R BRAKE78RBD20212, 78RBD20912
REMSA659310, 6353.10
ROADHOUSE6353.10, 659310
ROTINGERRT2419T5, RT2419
ROULUNDS BRAKINGD1646
sbs1815313329, 1815203329
SWAG10908128
TEXTAR92056600, 98200056601, 92056605, 92056603
TRISCAN812023124
TRUCKTEC AUTOMOTIVE02.35.031
TRUSTINGDF452
TRWDF2595, DF2595S
VAICOV3080052
VALEO186464
VEMA98382, 98392
VILLAR6281188
WOKINGD635310, D659310
ZIMMERMANN400142120, 400.1421.00, 400142152, 400.1421.50

Vehicle fitment / ATE 24.0130-0100.1 (24013001001) Brake Disc compatibility

This product fits the following models: MERCEDES-BENZ CL-CLASS, MERCEDES-BENZ S-CLASS, etc. See all vehicles this product (ATE 24.0130-0100.1 (24013001001)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
MERCEDES-BENZCL-CLASS
C140
600 S/SEC
CL 500
S 500
SEC/CL 420
SEC/CL 500
SEC/CL 600

140.063
140.070
140.076
1992/09 - 1999/02302 hp 225 kW 5 L Petrol
M119.970 320 hp 235 kW 5 L Petrol
M119.971 279 hp 205 kW 4.2 L Petrol
M119.981 279 hp 205 kW 4.2 L Petrol
M120.980 394 hp 290 kW 6 L Petrol
M120.982 394 hp 290 kW 6 L Petrol
Rear wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
MERCEDES-BENZS-CLASS
C140
W140
300 SD
300 SE 2.8
300 SE
SEL/S320
400 SE
SEL/S420
500 SEL
500 SE
SEL
600 SE
SEL
600 S/SEC
CL 500
S 280
S 300 Turbo-D
S 350 Turbo-D
S 420
S 500
S 600
S 600 / 600 SEL
SEC/CL 420
SEC/CL 500
SEC/CL 600

140.028
140.032
140.033
140.042
140.042
140.043
140.050
140.051
140.056
140.057
140.063
140.070
140.076
140.134
140.135
1991/02 - 1999/02302 hp 225 kW 5 L Petrol
M104.944 193 hp 142 kW 2.8 L Petrol
M104.944 197 hp 145 kW 2.8 L Petrol
M104.990 231 hp 170 kW 3.2 L Petrol
M104.994 231 hp 170 kW 3.2 L Petrol
M119.970 320 hp 235 kW 5 L Petrol
M119.970 320 hp 235 kW 5 L Petrol
M119.980 320 hp 235 kW 5 L Petrol
M119.970 326 hp 240 kW 5 L Petrol
M119.971 279 hp 205 kW 4.2 L Petrol
M119.971 279 hp 205 kW 4.2 L Petrol
M119.981 279 hp 205 kW 4.2 L Petrol
M119.971 286 hp 210 kW 4.2 L Petrol
M120.980 394 hp 290 kW 6 L Petrol
M120.982 394 hp 290 kW 6 L Petrol
M120.980 408 hp 300 kW 6 L Petrol
M120.982 408 hp 300 kW 6 L Petrol
OM603.971 150 hp 110 kW 3.4 L Diesel
OM606.961 177 hp 130 kW 3 L Diesel
Rear wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
Sedan / Saloon
