ATE 24.0130-0104.1 (24013001041) Brake Disc

ATE part 24.0130-0104.1 (24013001041) Brake Disc

ATE 24.0130-0104.1 (24013001041) Brake Disc

by ATE

Manufacturer Part Number: 24.0130-0104.1 (24013001041)
Alternative ATE part number(s): 430104

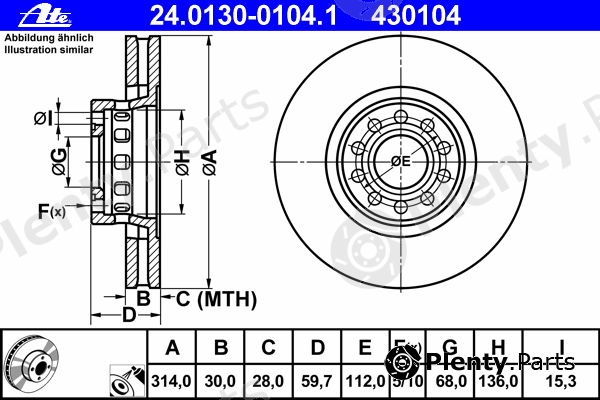

Сharacteristics:
  • Diameter [mm]: 314
  • Brake Disc Thickness [mm]: 30
  • Minimum thickness [mm]: 28
  • Brake Disc Type: Vented
  • Number of Holes: 5
  • No. of holes 2: 10
  • Machining: High-carbon
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 112
  • Height [mm]: 59,7
  • Centering Diameter [mm]: 68
  • Inner diameter [mm]: 136
  • Bore Ø [mm]: 15,3
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0130-0104.1 (24013001041) Alternative ATE part number(s): 430104
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturerOEM reference numbers
VAG441615301AA

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0130-0104.1 (24013001041) Brake Disc offered by A.B.S., ALANKO, AP, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, E.T.F., EUROBRAKE, FEBI BILSTEIN, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, HELLA, HELLA PAGID, ICER, JURID, KAGER, KAWE, LPR, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NK, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.16328
ALANKO305174, 303815
AP24751V
BENDIX562002B
BORG & BECKBBD5883S
BOSCH0986478617
Brake ENGINEERINGDI955541S
BRECOBV8340
BREMBO09.7728.11, 09.7728.10
BREMSIDBA954V
BSF11361V
CAR142.712
CIFAM800-707, 800707C
DELPHIBG3033
E.T.F.198015
EUROBRAKE5815204780
FEBI BILSTEIN18656
FERODODDF954C, DDF954, DDF954C-1
FOMARFO1586
fri.tech.BD0783
FTEBS4788, BS4788H
GIRLING6041255
GRAFDF29707
HELLA8DD355104-351
HELLA PAGID8DD355104-351
ICER78BD80152
JURID562002JC, 562002J
KAGER371153
KAWE659210
LPRA1511V
MAPCO15872
METELLI23-0707, 230707C
METZGER659210, 6110462
MEYLE1155211073
MGAD1375
MINTEXMDC1242
NECTOWN1116
NK204780, 314780
OPTIMALBS-5920, BS5920C
PAGID53970
PATRONPBD7728
PEX14.0052
PILENGAV867
PROTECHNICPRD2400
QUINTON HAZELLBSF4788, BDC4788
R BRAKE78RBD28015
REMSA659210
ROADHOUSE659210
ROTINGERRT20020T5, RT20020
ROULUNDS BRAKINGD1586
sbs1815204780, 1815314780
SWAG30918656
TEMPLIN0311010310
TEXTAR92073200, 98200073201
TRISCAN812029153
TRUSTINGDF783
TRWDF4125S
VAICOV1080086, V1080106
VEMA98180
VILLAR6281701
WOKINGD659210
ZIMMERMANN100.1231.20, 100123152, 100.1231.00, 100.1231.50

Vehicle fitment / ATE 24.0130-0104.1 (24013001041) Brake Disc compatibility

This product fits the following models: AUDI 100, AUDI A6, AUDI A8, etc. See all vehicles this product (ATE 24.0130-0104.1 (24013001041)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
AUDI100
4A
C4
S4 Turbo quattro
S4 V8 quattro
1991/08 - 1994/06AAN 230 hp 169 kW 2.2 L Petrol
ABH 280 hp 206 kW 4.2 L Petrol
AWD / 4WD
Estate / Turnier / Vario / Wagon
Sedan / Saloon
AUDIA6
4A
C4
S6 4.2 quattro
S6 Turbo quattro
1994/06 - 1997/12AAN 230 hp 169 kW 2.2 L Petrol
AEC 290 hp 213 kW 4.2 L Petrol
AWD / 4WD
Estate / Turnier / Vario / Wagon
Sedan / Saloon
AUDIA8
4D2
4D8
2.5 TDI
2.5 TDI quattro
2.8
2.8 quattro
3.7
3.7 quattro
4.2 quattro
1994/03 - 2002/09AAH 174 hp 128 kW 2.8 L Petrol
ACK 193 hp 142 kW 2.8 L Petrol
AEJ 163 hp 120 kW 2.8 L Petrol
ALG 193 hp 142 kW 2.8 L Petrol
AMX 193 hp 142 kW 2.8 L Petrol
APR 193 hp 142 kW 2.8 L Petrol
AQD 193 hp 142 kW 2.8 L Petrol
AAH 174 hp 128 kW 2.8 L Petrol
ACK 193 hp 142 kW 2.8 L Petrol
AEJ 163 hp 120 kW 2.8 L Petrol
AMX 193 hp 142 kW 2.8 L Petrol
APR 193 hp 142 kW 2.8 L Petrol
AQD 193 hp 142 kW 2.8 L Petrol
ABZ 299 hp 220 kW 4.2 L Petrol
ABZ 305 hp 224 kW 4.2 L Petrol
AEM 245 hp 180 kW 4.2 L Petrol
AGH 286 hp 210 kW 4.2 L Petrol
AKG 299 hp 220 kW 4.2 L Petrol
AEW 230 hp 169 kW 3.7 L Petrol
AEW 230 hp 169 kW 3.7 L Petrol
AKJ 230 hp 169 kW 3.7 L Petrol
AFB 150 hp 110 kW 2.5 L Diesel
AKN 150 hp 110 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Sedan / Saloon
