ATE 24.0130-0109.1 (24013001091) Brake Disc
ATE 24.0130-0109.1 (24013001091) Brake Disc

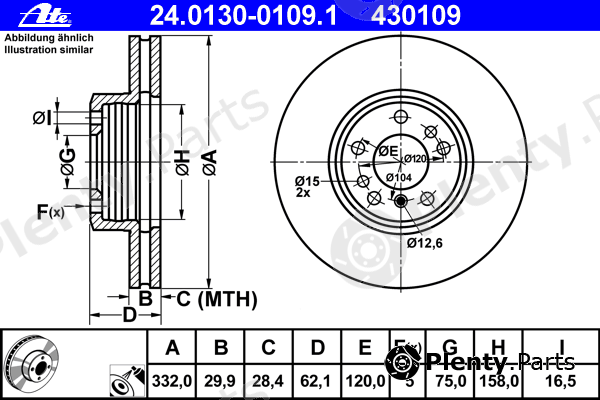

by ATEManufacturer Part Number: 24.0130-0109.1 (24013001091)
Alternative ATE part number(s): 430109
- Supplementary Article/Info 2: with screws
- Diameter [mm]: 332
- Brake Disc Thickness [mm]: 29,9
- Minimum thickness [mm]: 28,4
- Brake Disc Type: Vented
- Number of Holes: 5
- Machining: High-carbon
- Surface: Coated
- Height [mm]: 62,1
- Centering Diameter [mm]: 75
- Inner diameter [mm]: 158
- Bolt Hole Circle Ø [mm]: 120
- Bore Ø [mm]: 16,5
- MAPP code available:
Product Details
| Brand | ATE |
| ATE article (MPN) | 24.0130-0109.1 (24013001091) Alternative ATE part number(s): 430109 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for BMW vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| BMW | 34116750713, 34116756045, 34116765457, 34116766036, 34116794300, 34116859679 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 24.0130-0109.1 (24013001091) Brake Disc offered by A.B.S., ALANKO, AP, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, E.T.F., FARCOM, FEBI BILSTEIN, FENOX, FERODO, FI.BA, FOMAR, fri.tech., FTE, GIRLING, GRAF, G.U.D, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KORTEX, KRAFT, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, STARLINE, SWAG, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 17230 |
| ALANKO | 303306 |
| AP | 24896, 24896V |
| BARUM | BAR30109 |
| BENDIX | 562134B, 562134BC |
| BORG & BECK | BBD5729S |
| BOSCH | 0986478974, 0986478973 |
| Brake ENGINEERING | DI956145S |
| BRECO | BV8501, BS8501 |
| BREMBO | 09.8697.80, 09869781 |
| BREMSI | DBB256V |
| BSF | 11467V |
| CAR | 142.089 |
| CIFAM | 800784C, 800-784 |
| DELPHI | BG3628 |
| E.T.F. | 196045 |
| FARCOM | 231210, 230412 |
| FEBI BILSTEIN | 21177 |
| FENOX | TB217810 |
| FERODO | DDF1256C, DDF1256, DDF1256C-1, DDF12561 |
| FI.BA | FBD218 |
| FOMAR | FO1583 |
| fri.tech. | BD0959 |
| FTE | BS5250H, BS5250HB, BS5250, BS5250B |
| GIRLING | 6041875 |
| GRAF | DF29784 |
| G.U.D | GDB130109 |
| HANS PRIES | 501190 |
| HELLA | 8DD355121221, 8DD355107741, 8DD355107-751, 8DD355122012, 8DD355107752, 8DD355107721, 8DD355121231, 8DD355107731 |
| HELLA PAGID | 8DD355107-731, 8DD355107-751, 8DD355107752, 8DD355107-721, 8DD355122012, 8DD355121231, 8DD355107-741, 8DD355121221 |
| ICER | 78BD60452 |
| JP GROUP | 1463102609, 1463102600 |
| JURID | 562134JC, 562134J |
| KAGER | 371134, 371347 |
| KAMOKA | 103298 |
| KAWE | 660010 |
| KORTEX | KD0136 |
| KRAFT | 6042690 |
| LPR | B2521V |
| MAGNETI MARELLI | 353610646240, 360406016900 |
| MAPCO | 15656 |
| MAXGEAR | 191829 |
| METELLI | 23-0784, 230784C |
| METZGER | 24896V, 6110380 |
| MEYLE | 3155213025PD, 3155213025 |
| MGA | D1492 |
| MINTEX | MDC1131, MDC2336 |
| NECTO | WN1273 |
| NIBK | RN1154 |
| NK | 201547, 311547 |
| OPEN PARTS | BDR190320 |
| OPTIMAL | BS6220C, BS-6220 |
| PAGID | 50321PRO, 50322PRO, 50321, 50322 |
| PATRON | PBD4187 |
| PEX | 14.0812 |
| PILENGA | V813 |
| PROTECHNIC | PRD2626 |
| QUINTON HAZELL | BDC5250, 6600.10, BSF5250 |
| R BRAKE | 78RBD26045 |
| REMSA | 6600.10 |
| ROADHOUSE | 6600.10 |
| ROTINGER | RT2956, RT2956HP, RT2956HPT5, RT2956T5 |
| ROULUNDS BRAKING | D1583 |
| sbs | 1815201547, 1815311547 |
| STARLINE | PB2956, PB2956C |
| SWAG | 20921177 |
| TEMPLIN | 0311012030, 0311012035 |
| TEXTAR | 92107200, 98200107201, 98200107201PRO, 98200107301, 92107205, 98200107301PRO, 92107203, 92107305, 92107300, 92107303 |
| TRUSTING | DF959 |
| TRW | DF4187S, DF4187, DF4187BPS |
| VAICO | V2080048 |
| VALEO | 297808, 186808 |
| VEMA | 98126 |
| VILLAR | 6281392 |
| WAGNER LOCKHEED | WGR12561 |
| WOKING | D660010 |
| ZIMMERMANN | 150129720, 150.1298.52, 150.1298.00, 150.1298.50, 150.1298.20, 150129752 |
Vehicle fitment / ATE 24.0130-0109.1 (24013001091) Brake Disc compatibility
This product fits the following models: BMW X3, BMW X5, etc. See all vehicles this product (ATE 24.0130-0109.1 (24013001091)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| BMW | X3 E83 | 3.0 sd xDrive 35 d | 2006/09 - 2011/08 | M57D30(306D5) 286 hp 210 kW 3 L Diesel | AWD / 4WD | Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV |
| BMW | X5 E53 | 3.0 d 3.0 i 4.4 i | 2000/05 - 2006/12 | M54B30(306S3) 222 hp 163 kW 3 L Petrol M54B30(306S3) 231 hp 170 kW 3 L Petrol M57D30(306D1) 184 hp 135 kW 3 L Diesel M57D30(306D2) 211 hp 155 kW 3 L Diesel M57D30(306D2) 218 hp 160 kW 3 L Diesel M62B44(448S2) 286 hp 210 kW 4.4 L Petrol N62B44 320 hp 235 kW 4.4 L Petrol N62B44A 320 hp 235 kW 4.4 L Petrol | AWD / 4WD | Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV |
