ATE 24.0130-0173.1 (24013001731) Brake Disc

ATE part 24.0130-0173.1 (24013001731) Brake Disc

ATE 24.0130-0173.1 (24013001731) Brake Disc

by ATE

Manufacturer Part Number: 24.0130-0173.1 (24013001731)
Alternative ATE part number(s): 430173

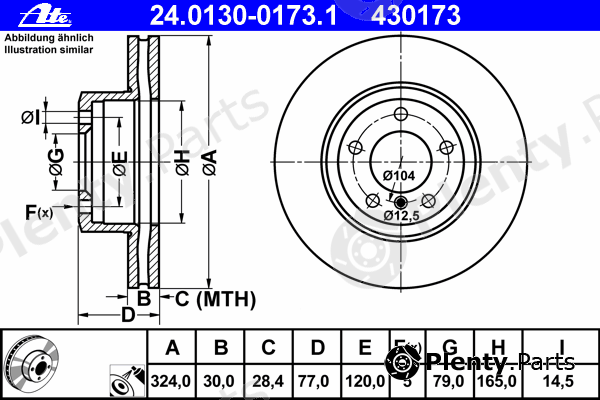

Сharacteristics:
  • Supplementary Article/Info 2: with screws
  • Diameter [mm]: 324
  • Brake Disc Thickness [mm]: 30
  • Minimum thickness [mm]: 28,4
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 120
  • Height [mm]: 77
  • Centering Diameter [mm]: 79
  • Inner diameter [mm]: 165
  • Bore Ø [mm]: 14,5
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0130-0173.1 (24013001731) Alternative ATE part number(s): 430173
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for BMW vehicles

OE manufacturerOEM reference numbers
BMW34116753221, 34116767269

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0130-0173.1 (24013001731) Brake Disc offered by A.B.S., ALANKO, AP, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, E.T.F., FARCOM, FEBI BILSTEIN, FERODO, FI.BA, FOMAR, fri.tech., FTE, GIRLING, G.U.D, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KAWE, KORTEX, KRAFT, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VAICO, VALEO, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17532
ALANKO303308
AP24885V
BARUMBAR30173
BENDIX562397BC, 562332B, 562397B
BORG & BECKBBD5766S
BOSCH0986479115, 0986479D39
Brake ENGINEERINGDI956261
BRECOBS8487, BV8487
BREMBO09.9172.14, 09917211, 09.9172.10
BREMSIDBB242V
BSF11442V
CAR142.1065
CIFAM800805C
DELPHIBG9871, BG9871C
DENCKERMANNB130324
Dr!ve+DP1010110442
E.T.F.193221
FARCOM230611, 231281
FEBI BILSTEIN24343
FERODODDF1242, DDF1242C-1, DDF1242C
FI.BAFBD224
FOMARFO4054
fri.tech.BD1076
FTEBS5458, BS5458B, BS5458HB
GIRLING6043611
G.U.DGDB130173
HANS PRIES500943
HELLA8DD355109922, 8DD355109-921, 8DD355109-911
HELLA PAGID8DD355109-921, 8DD355109922, 8DD355109-911
ICER78BD32212
JP GROUP1463101209
JURATEKBMW131
JURID562332J, 562397JC, 562397J
KAGER371195, 371343
KAMOKA1031026
KAWE685310
KORTEXKD0132
KRAFT6042760
LPRB2037V
MAGNETI MARELLI351065920500, 360406003100
MAPCO25781, 47781
MAXGEAR191069
METELLI230805C
METZGER6110208, 24885V
MEYLE3155213060, 3155213060/PD
MGAD1483
MINTEXMDC1659
NECTOWN1259
NIBKRN1381
NK201563, 311563
OPEN PARTSBDR221520
OPTIMALBS7578C, BS-7578
PAGID54226PRO, 54226
PATRONPBD4361
PEX14.0799
PILENGAV818
PROTECHNICPRD2679
QUINTON HAZELLBSF5458, BDC5458
R BRAKE78RBD23221
REMSA685310
ROADHOUSE6853.10
ROTINGERRT20344HP, RT20344, RT20344T5, RT20344HPT5
SASIC6106047
sbs1815311563, 1815201563
STARLINEPB20344C, PB20344
STELLOX60201563VSX
SWAG20924343
TEMPLIN0311012200, 0311012205
TEXTAR92122605, 98200122601, 92122600, 92122603, 98200122601PRO
TRUCKTEC AUTOMOTIVE0834070
TRUSTINGDF1076
TRWDF4361
VAICOV2080051
VALEO197193
VILLAR6281813
WOKINGD685310
ZIMMERMANN150.3403.20, 150.3403.00, 150.3403.50, 150340352

Vehicle fitment / ATE 24.0130-0173.1 (24013001731) Brake Disc compatibility

This product fits the following models: BMW 5, BMW 6, etc. See all vehicles this product (ATE 24.0130-0173.1 (24013001731)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
BMW5
E60
E61
520 d
520 i
523 i
525 d
525 d xDrive
525 i
525 i xDrive
525 xd
525 xi
530 d
530 d xDrive
530 i
530 i xDrive
530 xd
530 xi
530xi
2003/07 - 2010/12M47D20(204D4) 150 hp 110 kW 2 L Diesel
M47D20(204D4) 163 hp 120 kW 2 L Diesel
N47D20A 150 hp 110 kW 2 L Diesel
N47D20A 163 hp 120 kW 2 L Diesel
N47D20A 177 hp 130 kW 2 L Diesel
N47D20C 150 hp 110 kW 2 L Diesel
N47D20C 163 hp 120 kW 2 L Diesel
N47D20C 177 hp 130 kW 2 L Diesel
M47D20(204D4) 150 hp 110 kW 2 L Diesel
M47D20(204D4) 163 hp 120 kW 2 L Diesel
N47D20A 163 hp 120 kW 2 L Diesel
N47D20A 177 hp 130 kW 2 L Diesel
N47D20C 163 hp 120 kW 2 L Diesel
N47D20C 177 hp 130 kW 2 L Diesel
M54B22(226S1) 170 hp 125 kW 2.2 L Petrol
M54B25(256S5) 192 hp 141 kW 2.5 L Petrol
N52B25A 218 hp 160 kW 2.5 L Petrol
N53B30A 218 hp 160 kW 3 L Petrol
M54B30(306S3) 231 hp 170 kW 3 L Petrol
N52B30A 254 hp 187 kW 3 L Petrol
N52B30A 258 hp 190 kW 3 L Petrol
N52B30A 272 hp 200 kW 3 L Petrol
N52B30B 272 hp 200 kW 3 L Petrol
N52B30BF 272 hp 200 kW 3 L Petrol
N53B30A 272 hp 200 kW 3 L Petrol
M57D25(256D1) 163 hp 120 kW 2.5 L Diesel
M57D25(256D2) 177 hp 130 kW 2.5 L Diesel
M57D30(306D3) 197 hp 145 kW 3 L Diesel
M57D25(256D2) 177 hp 130 kW 2.5 L Diesel
M57D30(306D3) 197 hp 145 kW 3 L Diesel
M57N256D4 163 hp 120 kW 2.5 L Diesel
M57D30(306D2) 211 hp 155 kW 3 L Diesel
M57D30(306D2) 218 hp 160 kW 3 L Diesel
M57D30(306D3) 211 hp 155 kW 3 L Diesel
M57D30(306D3) 231 hp 170 kW 3 L Diesel
M57D30(306D3) 235 hp 173 kW 3 L Diesel
M57D30(306D2) 218 hp 160 kW 3 L Diesel
M57D30(306D3) 231 hp 170 kW 3 L Diesel
M57D30(306D3) 235 hp 173 kW 3 L Diesel
M57D30(306D3) 197 hp 145 kW 3 L Diesel
M57D30(306D3) 231 hp 170 kW 3 L Diesel
M57D30(306D3) 235 hp 173 kW 3 L Diesel
M57D30(306D3) 235 hp 173 kW 3 L Diesel
N43B20A 163 hp 120 kW 2 L Petrol
N43B20A 170 hp 125 kW 2 L Petrol
N52B25A 177 hp 130 kW 2.5 L Petrol
N52B25A 190 hp 140 kW 2.5 L Petrol
N52B25B 177 hp 130 kW 2.5 L Petrol
N52B25BE 177 hp 130 kW 2.5 L Petrol
N53B25A 190 hp 140 kW 2.5 L Petrol
N52B25A 177 hp 130 kW 2.5 L Petrol
N52B25A 190 hp 140 kW 2.5 L Petrol
N52B25BE 190 hp 140 kW 2.5 L Petrol
N53B25A 190 hp 140 kW 2.5 L Petrol
N52B25A 218 hp 160 kW 2.5 L Petrol
N53B30A 218 hp 160 kW 3 L Petrol
N52B30A 258 hp 190 kW 3 L Petrol
N52B30A 272 hp 200 kW 3 L Petrol
N52B30A 258 hp 190 kW 3 L Petrol
N52B30A 272 hp 200 kW 3 L Petrol
N53B30A 272 hp 200 kW 3 L Petrol
N53B30A 218 hp 160 kW 3 L Petrol
N53B30A 272 hp 200 kW 3 L Petrol
AWD / 4WD
Rear wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
BMW6
E63
E64
630 i
2004/09 - 2010/07N52B30A 258 hp 190 kW 3 L Petrol
Rear wheel
Convertible / cabrio
Coupe / Sports car / Grand tourer / Speedster / Roadster
