ATE 24.0132-0126.1 (24013201261) Brake Disc

ATE part 24.0132-0126.1 (24013201261) Brake Disc

ATE 24.0132-0126.1 (24013201261) Brake Disc

by ATE

Manufacturer Part Number: 24.0132-0126.1 (24013201261)
Alternative ATE part number(s): 432126

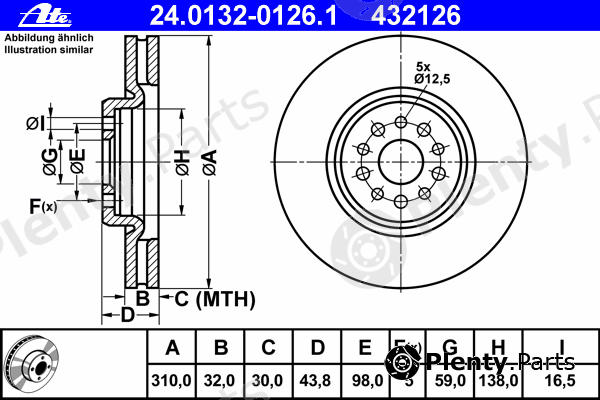

Сharacteristics:
  • Diameter [mm]: 310
  • Brake Disc Thickness [mm]: 32
  • Minimum thickness [mm]: 30
  • Brake Disc Type: Vented
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 98
  • Height [mm]: 43,8
  • Centering Diameter [mm]: 59
  • Inner diameter [mm]: 138
  • Bore Ø [mm]: 16,5
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0132-0126.1 (24013201261) Alternative ATE part number(s): 432126
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT4249F2, 424979, 4249A8, 4246Z8, 4246Z7
FIAT / LANCIA / ALFA9464640587, 1355376080

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0132-0126.1 (24013201261) Brake Disc offered by A.B.S., ALANKO, AP, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, E.T.F., FARCOM, FERODO, FOMAR, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, ICER, JURID, KAWE, LPR, MAGNETI MARELLI, METELLI, MEYLE, MGA, MINTEX, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, STARLINE, TEXTAR, TRUSTING, TRW, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17445
ALANKO303620
AP24823V, 24823
BENDIX562328B, 562394B, 562394BC
BORG & BECKBBD5924S
BOSCH0986479168
Brake ENGINEERINGDI956385
BRECOBS8448, BV8448
BREMBO09.7680.20, 09768021
BREMSIDBB180V
BSF11373V
CAR142.029
CIFAM800821C
DELPHIBG3898
E.T.F.194684
FARCOM231058, 230593
FERODODDF1180-1, DDF1180
FOMARFO4212
fri.tech.BD0404
FTEBS7557, BS7557B
GIRLING6049045
HELLA8DD355109-131
HELLA PAGID8DD355109-131
ICER78BD46842
JURID562394J, 562328J, 562394JC
KAWE698010
LPRF2008V
MAGNETI MARELLI360406041200
METELLI230821C
MEYLE40155211004
MGAD1461
MINTEXMDC1712
NATIONALNBD1300
NECTOWN1202
NK313730, 203730
OPEN PARTSBDA219120, BDR219120
OPTIMALBS6860
PAGID54181
PILENGAV055
PROTECHNICPRD2467
QUINTON HAZELLBDC5791
R BRAKE78RBD24684
REMSA698010
ROADHOUSE698010
ROTINGERRT20197T5, RT20197
SASIC6100027
sbs1815313730, 1815203730
STARLINEPB20197C
TEXTAR98200118101, 92118100
TRUSTINGDF404
TRWDF4904S
WOKINGD698010
ZIMMERMANN230.2377.00

Vehicle fitment / ATE 24.0132-0126.1 (24013201261) Brake Disc compatibility

This product fits the following models: CITROËN C8, FIAT ULYSSE, LANCIA PHEDRA, PEUGEOT 807, etc. See all vehicles this product (ATE 24.0132-0126.1 (24013201261)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNC8
EA
EB
2.0 HDi 165
2.2 HDi
3.0 V6
2002/07 - 4HP(DW12BTED4) 163 hp 120 kW 2.2 L Diesel
4HR(DW12BTED4) 163 hp 120 kW 2.2 L Diesel
4HT(DW12BTED4) 170 hp 125 kW 2.2 L Diesel
RHE(DW10CTED4) 163 hp 120 kW 2 L Diesel
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
XFX(ES9J4S) 204 hp 150 kW 3 L Petrol
Front wheel
MPV / Van / Minivan
FIATULYSSE
179AX
2.2 D Multijet
3.0
2002/08 - 2011/064HS 170 hp 125 kW 2.2 L Diesel
4HT(DW12BTED4) 170 hp 125 kW 2.2 L Diesel
XFW 204 hp 150 kW 3 L Petrol
Front wheel
MPV / Van / Minivan
LANCIAPHEDRA
179
2.2 D Multijet
2.2 JTD
3.0 V6
2002/09 - 2010/114HP 163 hp 120 kW 2.2 L Diesel
4HR 163 hp 120 kW 2.2 L Diesel
4HS 170 hp 125 kW 2.2 L Diesel
4HT 170 hp 125 kW 2.2 L Diesel
ES9J4S 204 hp 150 kW 3 L Petrol
Front wheel
MPV / Van / Minivan
PEUGEOT807
E
2.2 HDi
3.0 V6
2002/06 - 4HT(DW12BTED4) 163 hp 120 kW 2.2 L Diesel
4HT(DW12BTED4) 170 hp 125 kW 2.2 L Diesel
XFX(ES9J4S) 204 hp 150 kW 3 L Petrol
Front wheel
MPV / Van / Minivan
