ATE 24.0220-0012.1 (24022000121) Brake Drum

ATE part 24.0220-0012.1 (24022000121) Brake Drum

ATE 24.0220-0012.1 (24022000121) Brake Drum

by ATE

Manufacturer Part Number: 24.0220-0012.1 (24022000121)
Alternative ATE part number(s): 480017

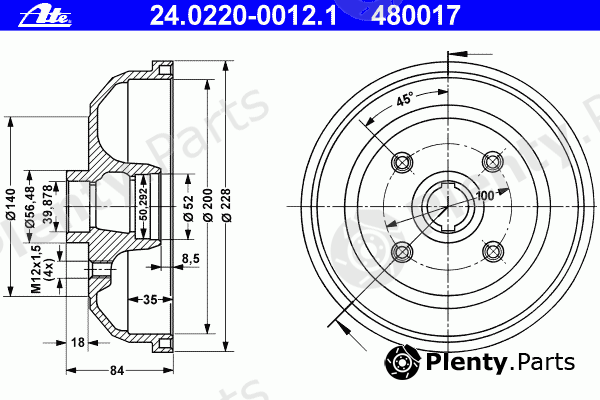

Сharacteristics:
  • Supplementary Article/Info 2: without wheel bearing
  • Drum Diameter: 200,0
  • Max.skimmed drum measure [mm]: 201
  • Inner Brake Drum Height [mm]: 35
  • Number of Holes: 4
  • Bolt Hole Circle Ø [mm]: 100
  • Thread Size: M12x1,5
  • Total Br. Drum Height [mm]: 84
  • Br. Drum outer diameter [mm]: 228
  • Support plate diameter [mm]: 50,3
  • Inner diameter 2 [mm]: 39,9
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0220-0012.1 (24022000121) Alternative ATE part number(s): 480017
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for OPEL vehicles

OE manufacturerOEM reference numbers
OPEL418117, 90007526

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0220-0012.1 (24022000121) Brake Drum offered by A.B.S., ALANKO, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, BREMSI, BSG, CIFAM, DELPHI, DENCKERMANN, FEBI BILSTEIN, FENOX, FERODO, FTE, HELLA, HELLA PAGID, JP GROUP, JURID, KAGER, KAWE, KRAFT, LPR, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, sbs, SWAG, TEXTAR, TRICLO, TRISCAN, TRW, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.5125S
ALANKO305857
BENDIX329206B, 329711B, 329606B
BORG & BECKBBR7044
BOSCH0986477040
Brake ENGINEERINGDR960710
BREMBO14.4978.10, 14.4978.50
BREMSIDR5135
BSGBSG65210005
CIFAM700-313K, 700-304K, 700-304, 700-313
DELPHIBF111
DENCKERMANNB140030
FEBI BILSTEIN02048
FENOXTO216001
FERODOFDR329711
FTEBT126
HELLA8DT355301-161
HELLA PAGID8DT355301-161
JP GROUP1263500409
JURID8282008002, 329606J, 329206J, 329711J
KAGER360089
KAWE7D0135
KRAFT6061520
LPR7D0135
MAPCO35751
METELLI18-0304K, 18-0304, 18-0313K, 18-0313
METZGERBT1069
MEYLE6155236001
MGAT7415, TR7415
MINTEXMBD006
NK253611
OPEN PARTSBAD902140
OPTIMALBT-0120
PAGID62401
PATRONPDR1115
PEX15.0169
QUINTON HAZELL7012.00, BDR126, BTF126
REMSA7012.00
ROADHOUSE7012.00
ROTINGERRT6288
sbs1825253611
SWAG40902048
TEXTAR94009900, 98100009901
TRICLO848161
TRISCAN812024205
TRWDB4006, DB4006B
WOKINGB701200
ZIMMERMANN430.1618.00

Vehicle fitment / ATE 24.0220-0012.1 (24022000121) Brake Drum compatibility

This product fits the following models: OPEL CORSA A, OPEL CORSA A TR, OPEL CORSA B, OPEL CORSA SWING _, OPEL TIGRA, OPEL VITA B, VAUXHALL CORSAI, VAUXHALL NOVA, VAUXHALL TIGRAI, etc. See all vehicles this product (ATE 24.0220-0012.1 (24022000121)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
OPELCORSA A

93
94
98
99
1.0
1.2
1.2 i
1.2 N
1.2 S
1.3
1.3 i
1.3 S
1.4 i
1.5 D
1.5 TD
1.6 GSI
1.6 GSI KAT
1982/09 - 1993/0310S 45 hp 33 kW 1 L Petrol
12NC 45 hp 33 kW 1.2 L Petrol
12S 60 hp 44 kW 1.2 L Petrol
12ST 54 hp 40 kW 1.2 L Petrol
E12GV 45 hp 33 kW 1.2 L Petrol
12NC 45 hp 33 kW 1.2 L Petrol
12S 60 hp 44 kW 1.2 L Petrol
E12GV 45 hp 33 kW 1.2 L Petrol
12NV 52 hp 38 kW 1.2 L Petrol
12ST 55 hp 40 kW 1.2 L Petrol
13NB 60 hp 44 kW 1.3 L Petrol
13NB 60 hp 44 kW 1.3 L Petrol
13SB 69 hp 51 kW 1.3 L Petrol
13SB 70 hp 51 kW 1.3 L Petrol
15D(4EC1) 50 hp 37 kW 1.5 L Diesel
15DT(T4EC1) 67 hp 49 kW 1.5 L Diesel
C12NZ 45 hp 33 kW 1.2 L Petrol
C13N 60 hp 44 kW 1.3 L Petrol
C14NZ 54 hp 40 kW 1.4 L Petrol
C14NZ 60 hp 44 kW 1.4 L Petrol
C16SE 101 hp 74 kW 1.6 L Petrol
C16SEI 98 hp 72 kW 1.6 L Petrol
E16SE 100 hp 74 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
LCV / Van / Cargo
OPELCORSA A TR
91
92
96
97
1.0
1.2 i
1.2 N
1.2 S
1.3
1.3 S
1.4 i
1.5 D
1.5 TD
1982/09 - 1993/0310S 45 hp 33 kW 1 L Petrol
12NC 45 hp 33 kW 1.2 L Petrol
E12GV 45 hp 33 kW 1.2 L Petrol
12S 58 hp 43 kW 1.2 L Petrol
12ST 55 hp 40 kW 1.2 L Petrol
13NB 60 hp 44 kW 1.3 L Petrol
C13N 60 hp 44 kW 1.3 L Petrol
13SB 70 hp 51 kW 1.3 L Petrol
15D(4EC1) 50 hp 37 kW 1.5 L Diesel
15DT(T4EC1) 67 hp 49 kW 1.5 L Diesel
C12NZ 45 hp 33 kW 1.2 L Petrol
C14NZ 60 hp 44 kW 1.4 L Petrol
Front wheel
Sedan / Saloon
OPELCORSA B
73
73
78
79
F35
1.0 i 12V
1.2 i
1.2 i 16V
1.4 i
1.4 i 16V
1.4 Si
1.5 D
1.5 TD
1.6 GSI 16V
1.6 i 16V
1.7 D
1993/03 - 12NZ 45 hp 33 kW 1.2 L Petrol
C12NZ 45 hp 33 kW 1.2 L Petrol
X12SZ 45 hp 33 kW 1.2 L Petrol
15D(4EC1) 50 hp 37 kW 1.5 L Diesel
15DT(T4EC1) 67 hp 49 kW 1.5 L Diesel
X15DT(T4EC1) 67 hp 49 kW 1.5 L Diesel
17D(4EE1) 60 hp 44 kW 1.7 L Diesel
X17D(4EE1) 60 hp 44 kW 1.7 L Diesel
C14NZ 54 hp 40 kW 1.4 L Petrol
C14NZ 60 hp 44 kW 1.4 L Petrol
X14SZ 54 hp 40 kW 1.4 L Petrol
X14SZ 60 hp 44 kW 1.4 L Petrol
C14NZ 60 hp 44 kW 1.4 L Petrol
X14SZ 60 hp 44 kW 1.4 L Petrol
C14SE 82 hp 60 kW 1.4 L Petrol
C14SEL 86 hp 63 kW 1.4 L Petrol
X14XE 90 hp 66 kW 1.4 L Petrol
X14XE 91 hp 67 kW 1.4 L Petrol
C16SEL 100 hp 74 kW 1.6 L Petrol
X16XE 106 hp 78 kW 1.6 L Petrol
C16XE 109 hp 80 kW 1.6 L Petrol
X10XE 54 hp 40 kW 1 L Petrol
X12XE 65 hp 48 kW 1.2 L Petrol
X14XE 90 hp 66 kW 1.4 L Petrol
X17D(4EE1) 60 hp 44 kW 1.7 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
LCV / Van / Cargo
OPELCORSA SWING _
F35
1.4 i 16V
1.7 D
1999/01 - X14XE 90 hp 66 kW 1.4 L Petrol
X17D(4EE1) 60 hp 44 kW 1.7 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
OPELTIGRA
95
1.4 16V
1.6 16V
1994/07 - 2000/12C16SEL 100 hp 74 kW 1.6 L Petrol
X16XE 106 hp 78 kW 1.6 L Petrol
X14XE 86 hp 63 kW 1.4 L Petrol
X14XE 90 hp 66 kW 1.4 L Petrol
Front wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
OPELVITA B
73
78
79
1.0 i 12V
1.2 i
1.2 i 16V
1.4 i
1.4 i 16V
1.4 Si
1.5 D
1.5 TD
1.6 GSI 16V
1.6 i 16V
1.7 D
1993/03 - 2000/0912NZ 45 hp 33 kW 1.2 L Petrol
C12NZ 45 hp 33 kW 1.2 L Petrol
X12SZ 45 hp 33 kW 1.2 L Petrol
15D(4EC1) 50 hp 37 kW 1.5 L Diesel
15DT(T4EC1) 67 hp 49 kW 1.5 L Diesel
X15DT(T4EC1) 67 hp 49 kW 1.5 L Diesel
17D(4EE1) 60 hp 44 kW 1.7 L Diesel
X17D(4EE1) 60 hp 44 kW 1.7 L Diesel
C14NZ 54 hp 40 kW 1.4 L Petrol
C14NZ 60 hp 44 kW 1.4 L Petrol
X14SZ 54 hp 40 kW 1.4 L Petrol
X14SZ 60 hp 44 kW 1.4 L Petrol
C14SE 82 hp 60 kW 1.4 L Petrol
C14SEL 86 hp 63 kW 1.4 L Petrol
X14XE 90 hp 66 kW 1.4 L Petrol
X14XE 91 hp 67 kW 1.4 L Petrol
C16SEL 100 hp 74 kW 1.6 L Petrol
X16XE 106 hp 78 kW 1.6 L Petrol
C16XE 109 hp 80 kW 1.6 L Petrol
X10XE 54 hp 40 kW 1 L Petrol
X12XE 65 hp 48 kW 1.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
VAUXHALLCORSAI
B
1.0 i 12V
1.2 i
1.2 i 16V
1.4 i
1.4 i 16V
1.4 i S
1.5 D
1.5 TD
1.6 GSI 16V
1.6 i 16V
1.7 D
1992/12 - 2000/0915D 50 hp 37 kW 1.5 L Diesel
15DT(T4EC1) 67 hp 49 kW 1.5 L Diesel
X15DT(T4EC1) 67 hp 49 kW 1.5 L Diesel
17D(4EE1) 60 hp 44 kW 1.7 L Diesel
X17D(4EE1) 60 hp 44 kW 1.7 L Diesel
C12NZ 45 hp 33 kW 1.2 L Petrol
X12SZ 45 hp 33 kW 1.2 L Petrol
C14NZ 60 hp 44 kW 1.4 L Petrol
C14NZ 60 hp 44 kW 1.4 L Petrol
X14SZ 60 hp 44 kW 1.4 L Petrol
C14SE 82 hp 60 kW 1.4 L Petrol
C14SEL 86 hp 63 kW 1.4 L Petrol
X14XE 90 hp 66 kW 1.4 L Petrol
C16SEL 100 hp 74 kW 1.6 L Petrol
C16XE 106 hp 78 kW 1.6 L Petrol
X16XE 106 hp 78 kW 1.6 L Petrol
C16XE 109 hp 80 kW 1.6 L Petrol
X10XE 54 hp 40 kW 1 L Petrol
X12XE 65 hp 48 kW 1.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
LCV / Van / Cargo
VAUXHALLNOVA
1.0
1.2
1.2 i
1.2 i KAT
1.2 N
1.2 S
1.3 i
1.3 i KAT
1.3 S
1.4 i
1.4 i S
1.4 S
1.5 D
1.5 TD
1.6 GSI
1.6 GSI KAT
1982/09 - 1994/1010S 45 hp 33 kW 1 L Petrol
12NC 45 hp 33 kW 1.2 L Petrol
E12GV 45 hp 33 kW 1.2 L Petrol
12NV 52 hp 38 kW 1.2 L Petrol
12S 58 hp 43 kW 1.2 L Petrol
12ST 55 hp 40 kW 1.2 L Petrol
12ST 58 hp 43 kW 1.2 L Petrol
12ST 55 hp 40 kW 1.2 L Petrol
13NB 60 hp 44 kW 1.3 L Petrol
13SB 70 hp 51 kW 1.3 L Petrol
14NV 75 hp 55 kW 1.4 L Petrol
15D 50 hp 37 kW 1.5 L Diesel
15DT(T4EC1) 67 hp 49 kW 1.5 L Diesel
C12NZ 45 hp 33 kW 1.2 L Petrol
C13N 60 hp 44 kW 1.3 L Petrol
C14NZ 60 hp 44 kW 1.4 L Petrol
C14SE 82 hp 60 kW 1.4 L Petrol
C16SE 101 hp 74 kW 1.6 L Petrol
C16SEI 98 hp 72 kW 1.6 L Petrol
E16SE 100 hp 74 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
LCV / Van / Cargo
Sedan / Saloon
VAUXHALLTIGRAI
F07
1.4 16V
1.6 16V
1994/07 - 2000/12X14XE 90 hp 66 kW 1.4 L Petrol
X16XE 106 hp 78 kW 1.6 L Petrol
Front wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
