ATE 24.0220-0037.1 (24022000371) Brake Drum

ATE part 24.0220-0037.1 (24022000371) Brake Drum

ATE 24.0220-0037.1 (24022000371) Brake Drum

Manufacturer Part Number: 24.0220-0037.1 (24022000371)
Alternative ATE part number(s): 480161

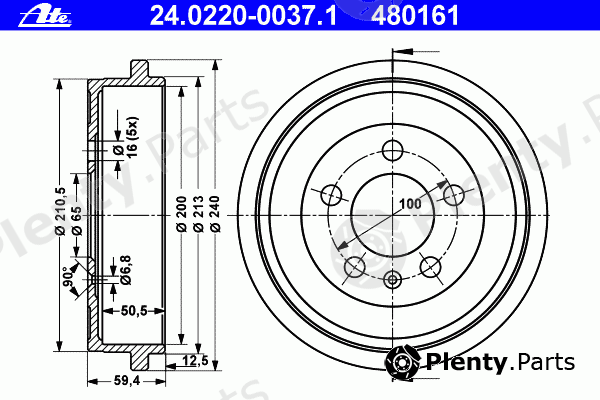

Сharacteristics:

Drum Diameter: 200,0
Max.skimmed drum measure [mm]: 201,5
Inner Brake Drum Height [mm]: 50,5
Number of Holes: 5
Bolt Hole Circle Ø [mm]: 100
Bore Ø [mm]: 15,8
Total Br. Drum Height [mm]: 59,1
Br. Drum outer diameter [mm]: 240
Support plate diameter [mm]: 65
MAPP code available:

Product Details

Brand	ATE
ATE article (MPN)	24.0220-0037.1 (24022000371) Alternative ATE part number(s): 480161
Vehicle subsystem	Brake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturer	OEM reference numbers
VAG	6Q0609617

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0220-0037.1 (24022000371) Brake Drum offered by A.B.S., ALANKO, AUTOMEGA, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BREMSI, CIFAM, DELPHI, DENCKERMANN, FEBI BILSTEIN, FENOX, FERODO, FTE, G.U.D, HANS PRIES, HELLA, HELLA PAGID, JP GROUP, JURID, KAGER, KAWE, KRAFT, LPR, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, OPEN PARTS, OPTIMAL, PAGID, PATRON, PROFIT, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, STELLOX, SWAG, TEXTAR, TRW, WOKING, ZIMMERMANN manufacturers

Manufacturer	Reference numbers
A.B.S.	2765S
ALANKO	306054
AUTOMEGA	3060906176Q0
BENDIX	329253B
BORG & BECK	BBR7114
BOSCH	0986477133
Brake ENGINEERING	DR962404
BREMSI	DR5594
CIFAM	700-358
DELPHI	BF463
DENCKERMANN	B140034
FEBI BILSTEIN	24034
FENOX	TO216199
FERODO	FDR329253
FTE	BT594
G.U.D	GDB200037
HANS PRIES	110039
HELLA	8DT355300-371
HELLA PAGID	8DT355300-371
JP GROUP	1163501409, 1163501400
JURID	329253J
KAGER	360363
KAWE	7D0594
KRAFT	6060160
LPR	7D0594
MAPCO	35709
METELLI	18-0358
METZGER	BT1050
MEYLE	1155231035
MGA	T7584
MINTEX	MBD247
OPEN PARTS	BAD905410
OPTIMAL	BT-1300
PAGID	61238
PATRON	PDR1587
PROFIT	50200077
QUINTON HAZELL	BDR591, BDR632
REMSA	714900
ROADHOUSE	714900
ROTINGER	RT6413
STELLOX	60259910SX
SWAG	30924034
TEXTAR	94023800, 98100023801
TRW	DB4299
WOKING	B714900
ZIMMERMANN	100.1649.20, 100.1649.00

Vehicle fitment / ATE 24.0220-0037.1 (24022000371) Brake Drum compatibility

This product fits the following models: AUDI A2, SEAT CORDOBA, SEAT IBIZA IV, SEAT IBIZAIV, SEAT IBIZA V, SEAT IBIZA V COUPE, SEAT IBIZA V ST, SKODA FABIA, SKODA FABIA PRAKTIK, VW DERBY, VW FOX, VW POLO, VW VENTO, etc. See all vehicles this product (ATE 24.0220-0037.1 (24022000371)) fits below to verify fitment for your vehicle.

Make	Model	Variant	Period	Engine	Drive	Body Style
AUDI	A2 8Z0	1.4 1.4 TDI	2000/02 - 2005/08	AMF 75 hp 55 kW 1.4 L Diesel BHC 75 hp 55 kW 1.4 L Diesel AUA 75 hp 55 kW 1.4 L Petrol BBY 75 hp 55 kW 1.4 L Petrol	Front wheel	Hatchback / Sportback / Sport hatch
SEAT	CORDOBA 6L2	1.2 1.2 12V 1.4 16V 1.4 TDI 1.6 1.6 16V 1.9 SDI 1.9 TDI 2.0	2002/09 - 2009/11	AMF 75 hp 55 kW 1.4 L Diesel BMS 80 hp 59 kW 1.4 L Diesel BNM 70 hp 51 kW 1.4 L Diesel BNV 80 hp 59 kW 1.4 L Diesel ASY 64 hp 47 kW 1.9 L Diesel ASZ 131 hp 96 kW 1.9 L Diesel ATD 100 hp 74 kW 1.9 L Diesel AXR 100 hp 74 kW 1.9 L Diesel BLT 131 hp 96 kW 1.9 L Diesel BMT 100 hp 74 kW 1.9 L Diesel AUB 100 hp 74 kW 1.4 L Petrol BBY 75 hp 55 kW 1.4 L Petrol BBZ 100 hp 74 kW 1.4 L Petrol BKY 75 hp 55 kW 1.4 L Petrol BXW 86 hp 63 kW 1.4 L Petrol AZL 115 hp 85 kW 2 L Petrol BBX 115 hp 85 kW 2 L Petrol AZQ 64 hp 47 kW 1.2 L Petrol BME 64 hp 47 kW 1.2 L Petrol BAH 101 hp 74 kW 1.6 L Petrol BTS 105 hp 77 kW 1.6 L Petrol BXV 70 hp 51 kW 1.2 L Petrol	Front wheel	Sedan / Saloon
SEAT	IBIZA IV 6L1	1.2 1.2 12V 1.4 16V 1.4 TDI 1.6 1.6 16V 1.9 SDI 1.9 TDI 1.9 TDI Cupra R 2.0	2002/02 - 2009/11	AMF 75 hp 55 kW 1.4 L Diesel BMS 80 hp 59 kW 1.4 L Diesel BNM 70 hp 51 kW 1.4 L Diesel BNV 80 hp 59 kW 1.4 L Diesel ASY 64 hp 47 kW 1.9 L Diesel ASZ 131 hp 96 kW 1.9 L Diesel ATD 100 hp 74 kW 1.9 L Diesel AXR 100 hp 74 kW 1.9 L Diesel BLT 131 hp 96 kW 1.9 L Diesel BMT 100 hp 74 kW 1.9 L Diesel AUB 100 hp 74 kW 1.4 L Petrol BBY 75 hp 55 kW 1.4 L Petrol BBZ 100 hp 74 kW 1.4 L Petrol BKY 75 hp 55 kW 1.4 L Petrol BXW 86 hp 63 kW 1.4 L Petrol AZL 116 hp 85 kW 2 L Petrol BBX 116 hp 85 kW 2 L Petrol AZQ 64 hp 47 kW 1.2 L Petrol BBM 60 hp 44 kW 1.2 L Petrol BME 64 hp 47 kW 1.2 L Petrol BAH 101 hp 74 kW 1.6 L Petrol BPX 160 hp 118 kW 1.9 L Diesel BUK 160 hp 118 kW 1.9 L Diesel BTS 105 hp 77 kW 1.6 L Petrol BXV 70 hp 51 kW 1.2 L Petrol	Front wheel	Hatchback / Sportback / Sport hatch
SEAT	IBIZAIV 6L1	1.2 1.2 12V 1.4 16V 1.4 TDI 1.6 1.6 16V 1.9 SDI 1.9 TDI 1.9 TDI Cupra R 2.0	2002/02 - 2009/11	AMF 75 hp 55 kW 1.4 L Diesel BMS 80 hp 59 kW 1.4 L Diesel BNM 70 hp 51 kW 1.4 L Diesel BNV 80 hp 59 kW 1.4 L Diesel ASY 64 hp 47 kW 1.9 L Diesel ASZ 131 hp 96 kW 1.9 L Diesel ATD 100 hp 74 kW 1.9 L Diesel AXR 100 hp 74 kW 1.9 L Diesel BLT 131 hp 96 kW 1.9 L Diesel BMT 100 hp 74 kW 1.9 L Diesel AUB 100 hp 74 kW 1.4 L Petrol BBY 75 hp 55 kW 1.4 L Petrol BBZ 100 hp 74 kW 1.4 L Petrol BKY 75 hp 55 kW 1.4 L Petrol BXW 86 hp 63 kW 1.4 L Petrol AZL 116 hp 85 kW 2 L Petrol BBX 116 hp 85 kW 2 L Petrol AZQ 64 hp 47 kW 1.2 L Petrol BBM 60 hp 44 kW 1.2 L Petrol BME 64 hp 47 kW 1.2 L Petrol BAH 101 hp 74 kW 1.6 L Petrol BPX 160 hp 118 kW 1.9 L Diesel BUK 160 hp 118 kW 1.9 L Diesel BTS 105 hp 77 kW 1.6 L Petrol BXV 70 hp 51 kW 1.2 L Petrol	Front wheel	Hatchback / Sportback / Sport hatch
SEAT	IBIZA V 6J5 6P1	1.0 1.0 TSI 1.2 1.2 TDI 1.2 TSI 1.4 1.4 TDI 1.6 1.6 LPG 1.9 TDI	2008/03 -	BLS 105 hp 77 kW 1.9 L Diesel BXJ 90 hp 66 kW 1.9 L Diesel BMS 80 hp 59 kW 1.4 L Diesel CUSA 75 hp 55 kW 1.4 L Diesel CUSB 90 hp 66 kW 1.4 L Diesel CUTA 105 hp 77 kW 1.4 L Diesel BTS 105 hp 77 kW 1.6 L Petrol BXW 85 hp 63 kW 1.4 L Petrol CGGB 85 hp 63 kW 1.4 L Petrol BZG 70 hp 51 kW 1.2 L Petrol CGPA 70 hp 51 kW 1.2 L Petrol CGPB 60 hp 44 kW 1.2 L Petrol CJLB 70 hp 51 kW 1.2 L Petrol CBZA 86 hp 63 kW 1.2 L Petrol CBZB 105 hp 77 kW 1.2 L Petrol CJZC 90 hp 66 kW 1.2 L Petrol CJZD 110 hp 81 kW 1.2 L Petrol CFWA 75 hp 55 kW 1.2 L Diesel CHYB 75 hp 55 kW 1 L Petrol CHZB 95 hp 70 kW 1 L Petrol CHZC 110 hp 81 kW 1 L Petrol CNKA 81 hp 60 kW 1.6 L Petrol	Front wheel	Hatchback / Sportback / Sport hatch
SEAT	IBIZA V COUPE 6J1 6P5	1.0 1.0 TSI 1.2 1.2 TDI 1.2 TSI 1.4 1.4 TDI 1.6 1.6 LPG 1.9 TDI	2008/07 -	BLS 105 hp 77 kW 1.9 L Diesel BXJ 90 hp 66 kW 1.9 L Diesel BMS 80 hp 59 kW 1.4 L Diesel CUSA 75 hp 55 kW 1.4 L Diesel CUSB 90 hp 66 kW 1.4 L Diesel CUTA 105 hp 77 kW 1.4 L Diesel BTS 105 hp 77 kW 1.6 L Petrol BXW 85 hp 63 kW 1.4 L Petrol CGGB 85 hp 63 kW 1.4 L Petrol BZG 70 hp 51 kW 1.2 L Petrol CGPA 70 hp 51 kW 1.2 L Petrol CGPB 60 hp 44 kW 1.2 L Petrol CJLB 70 hp 51 kW 1.2 L Petrol CBZA 86 hp 63 kW 1.2 L Petrol CBZB 105 hp 77 kW 1.2 L Petrol CJZC 90 hp 66 kW 1.2 L Petrol CJZD 110 hp 81 kW 1.2 L Petrol CFWA 75 hp 55 kW 1.2 L Diesel CHYB 75 hp 55 kW 1 L Petrol CHZB 95 hp 70 kW 1 L Petrol CHZC 110 hp 81 kW 1 L Petrol CNKA 81 hp 60 kW 1.6 L Petrol	Front wheel	Coupe / Sports car / Grand tourer / Speedster / Roadster
SEAT	IBIZA V ST 6J8 6P8	1.0 1.0 TSI 1.2 1.2 TDI 1.2 TSI 1.4 1.4 TDI	2010/03 -	BZG 70 hp 51 kW 1.2 L Petrol CGPA 70 hp 51 kW 1.2 L Petrol CGPB 60 hp 44 kW 1.2 L Petrol CJLB 70 hp 51 kW 1.2 L Petrol CBZA 86 hp 63 kW 1.2 L Petrol CBZB 105 hp 77 kW 1.2 L Petrol CJZC 90 hp 66 kW 1.2 L Petrol CJZD 110 hp 81 kW 1.2 L Petrol CFWA 75 hp 55 kW 1.2 L Diesel CGGB 85 hp 63 kW 1.4 L Petrol CHYB 75 hp 55 kW 1 L Petrol CHZB 95 hp 70 kW 1 L Petrol CHZC 110 hp 81 kW 1 L Petrol CUSA 75 hp 55 kW 1.4 L Diesel CUSB 90 hp 66 kW 1.4 L Diesel CUTA 105 hp 77 kW 1.4 L Diesel	Front wheel	Estate / Turnier / Vario / Wagon
SKODA	FABIA 6Y2 6Y3 6Y5 NJ3 NJ5	1.0 1.2 1.2 12V 1.2 TDI 1.2 TSI 1.4 1.4 16V 1.4 TDI 1.6 1.6 TDI 1.9 SDI 1.9 TDI	1999/08 -	AME 68 hp 50 kW 1.4 L Petrol AQW 68 hp 50 kW 1.4 L Petrol ATZ 68 hp 50 kW 1.4 L Petrol AZE 60 hp 44 kW 1.4 L Petrol AZF 60 hp 44 kW 1.4 L Petrol AMF 75 hp 55 kW 1.4 L Diesel BNM 70 hp 51 kW 1.4 L Diesel BNV 80 hp 59 kW 1.4 L Diesel AQV 50 hp 37 kW 1 L Petrol ARV 50 hp 37 kW 1 L Petrol ASY 64 hp 47 kW 1.9 L Diesel AUA 75 hp 55 kW 1.4 L Petrol AUB 100 hp 74 kW 1.4 L Petrol BBY 75 hp 55 kW 1.4 L Petrol BBZ 100 hp 74 kW 1.4 L Petrol BKY 75 hp 55 kW 1.4 L Petrol AUA 75 hp 55 kW 1.4 L Petrol AUB 100 hp 74 kW 1.4 L Petrol BBY 75 hp 55 kW 1.4 L Petrol BBZ 100 hp 74 kW 1.4 L Petrol BKY 75 hp 55 kW 1.4 L Petrol BUD 80 hp 59 kW 1.4 L Petrol AWY 54 hp 40 kW 1.2 L Petrol AZQ 64 hp 47 kW 1.2 L Petrol BMD 54 hp 40 kW 1.2 L Petrol BME 64 hp 47 kW 1.2 L Petrol BBM 60 hp 44 kW 1.2 L Petrol BZG 70 hp 51 kW 1.2 L Petrol CEVA 70 hp 51 kW 1.2 L Petrol CGPA 70 hp 51 kW 1.2 L Petrol CHFA 60 hp 44 kW 1.2 L Petrol CHTA 70 hp 51 kW 1.2 L Petrol BLS 105 hp 77 kW 1.9 L Diesel BSW 105 hp 77 kW 1.9 L Diesel BMS 80 hp 59 kW 1.4 L Diesel BNM 70 hp 51 kW 1.4 L Diesel BNV 80 hp 59 kW 1.4 L Diesel BTS 105 hp 77 kW 1.6 L Petrol CFNA 105 hp 77 kW 1.6 L Petrol BXW 86 hp 63 kW 1.4 L Petrol CGGB 86 hp 63 kW 1.4 L Petrol CAYA 75 hp 55 kW 1.6 L Diesel CAYB 90 hp 66 kW 1.6 L Diesel CAYC 105 hp 77 kW 1.6 L Diesel CBZA 86 hp 63 kW 1.2 L Petrol CBZB 105 hp 77 kW 1.2 L Petrol CFWA 75 hp 55 kW 1.2 L Diesel CGPB 60 hp 44 kW 1.2 L Petrol CHYA 60 hp 44 kW 1 L Petrol CHYB 75 hp 55 kW 1 L Petrol CJZC 90 hp 66 kW 1.2 L Petrol CJZD 110 hp 81 kW 1.2 L Petrol CUSA 75 hp 55 kW 1.4 L Diesel CUSB 90 hp 66 kW 1.4 L Diesel CUTA 105 hp 77 kW 1.4 L Diesel CWVA 110 hp 81 kW 1.6 L Petrol	Front wheel	Estate / Turnier / Vario / Wagon Hatchback / Sportback / Sport hatch Sedan / Saloon
SKODA	FABIA PRAKTIK	1.2 1.4 1.4 TDI 1.9 SDI	2001/07 - 2007/12	AME 68 hp 50 kW 1.4 L Petrol AQW 68 hp 50 kW 1.4 L Petrol ATZ 68 hp 50 kW 1.4 L Petrol ASY 64 hp 47 kW 1.9 L Diesel AWY 54 hp 40 kW 1.2 L Petrol AZQ 64 hp 47 kW 1.2 L Petrol BMD 54 hp 40 kW 1.2 L Petrol BME 64 hp 47 kW 1.2 L Petrol BNM 70 hp 51 kW 1.4 L Diesel	Front wheel	LCV / Van / Cargo
VW	DERBY 9A4	1.4 1.4 TDI 1.9 SDI	2002/09 -	ASY 64 hp 47 kW 1.9 L Diesel BAY 75 hp 55 kW 1.4 L Diesel BBY 75 hp 55 kW 1.4 L Petrol BKY 75 hp 55 kW 1.4 L Petrol	Front wheel	Sedan / Saloon
VW	FOX 5Z1 5Z3	1.2 1.4 1.4 TDI 1.6 1.6 Total Flex	2003/10 -	BAH 101 hp 74 kW 1.6 L Petrol BJA 101 hp 74 kW 1.6 L Petrol BLH 101 hp 74 kW 1.6 L Petrol BPA 101 hp 74 kW 1.6 L Petrol CCRA 101 hp 74 kW 1.6 L Petrol CFZA 101 hp 74 kW 1.6 L Petrol BJA 101 hp 74 kW 1.6 L Petrol BPA 101 hp 74 kW 1.6 L Petrol CCRA 101 hp 74 kW 1.6 L Petrol BKR 75 hp 55 kW 1.4 L Petrol BMD 55 hp 40 kW 1.2 L Petrol CHFA 60 hp 44 kW 1.2 L Petrol CHFB 55 hp 40 kW 1.2 L Petrol BNM 70 hp 51 kW 1.4 L Diesel	Front wheel	Hatchback / Sportback / Sport hatch
VW	POLO 6R 6C 9A4 9N	1.0 1.0 TSI 1.2 1.2 12V 1.2 TDI 1.2 TSI 1.2 TSI 16V 1.4 1.4 16V 1.4 BiFuel 1.4 FSI 1.4 TDI 1.4 TSI 1.6 1.6 BiFuel 1.6 TDI 1.9 SDI	2001/10 -	AMF 75 hp 55 kW 1.4 L Diesel BAY 75 hp 55 kW 1.4 L Diesel BMS 80 hp 59 kW 1.4 L Diesel BNM 70 hp 51 kW 1.4 L Diesel BNV 80 hp 59 kW 1.4 L Diesel BWB 70 hp 51 kW 1.4 L Diesel ASY 64 hp 47 kW 1.9 L Diesel AUA 75 hp 55 kW 1.4 L Petrol BBY 75 hp 55 kW 1.4 L Petrol BKY 75 hp 55 kW 1.4 L Petrol BUD 80 hp 59 kW 1.4 L Petrol AWY 54 hp 40 kW 1.2 L Petrol BBM 60 hp 44 kW 1.2 L Petrol BMD 54 hp 40 kW 1.2 L Petrol AXU 86 hp 63 kW 1.4 L Petrol AZQ 64 hp 47 kW 1.2 L Petrol BME 64 hp 47 kW 1.2 L Petrol BZG 69 hp 51 kW 1.2 L Petrol BAY 75 hp 55 kW 1.4 L Diesel BBY 75 hp 55 kW 1.4 L Petrol BKY 75 hp 55 kW 1.4 L Petrol CAYA 75 hp 55 kW 1.6 L Diesel CAYB 90 hp 66 kW 1.6 L Diesel CAYC 105 hp 77 kW 1.6 L Diesel CLNA 105 hp 77 kW 1.6 L Diesel CBZB 105 hp 77 kW 1.2 L Petrol CBZC 90 hp 66 kW 1.2 L Petrol CJZD 110 hp 81 kW 1.2 L Petrol CDDA 85 hp 63 kW 1.4 L Petrol CGGB 85 hp 63 kW 1.4 L Petrol CLPA 85 hp 63 kW 1.4 L Petrol CFNA 105 hp 77 kW 1.6 L Petrol CFNB 86 hp 63 kW 1.6 L Petrol CLSA 105 hp 77 kW 1.6 L Petrol CFNA 105 hp 77 kW 1.6 L Petrol CFNB 86 hp 63 kW 1.6 L Petrol CLSA 105 hp 77 kW 1.6 L Petrol CWVA 110 hp 81 kW 1.6 L Petrol CWVB 90 hp 66 kW 1.6 L Petrol CFWA 75 hp 55 kW 1.2 L Diesel CGPA 70 hp 51 kW 1.2 L Petrol CGPB 60 hp 44 kW 1.2 L Petrol CHYA 60 hp 44 kW 1 L Petrol CHYB 75 hp 55 kW 1 L Petrol CHZB 95 hp 70 kW 1 L Petrol CHZC 110 hp 81 kW 1 L Petrol CJZC 90 hp 66 kW 1.2 L Petrol CMAA 82 hp 60 kW 1.4 L Petrol CNKA 82 hp 60 kW 1.6 L Petrol CPTA 140 hp 103 kW 1.4 L Petrol CZEA 150 hp 110 kW 1.4 L Petrol CUSA 75 hp 55 kW 1.4 L Diesel CUSB 90 hp 66 kW 1.4 L Diesel CUTA 105 hp 77 kW 1.4 L Diesel CYZA 105 hp 77 kW 1.4 L Diesel CYZB 75 hp 55 kW 1.4 L Diesel	Front wheel	Hatchback / Sportback / Sport hatch Sedan / Saloon
VW	VENTO 60	1.6	2010/05 -	CFNA 105 hp 77 kW 1.6 L Petrol CFNB 86 hp 63 kW 1.6 L Petrol CLSA 105 hp 77 kW 1.6 L Petrol	Front wheel	Sedan / Saloon
