ATE 24.0220-3020.2 (24022030202) Brake Drum

ATE part 24.0220-3020.2 (24022030202) Brake Drum

ATE 24.0220-3020.2 (24022030202) Brake Drum

by ATE

Manufacturer Part Number: 24.0220-3020.2 (24022030202)
Alternative ATE part number(s): 480131

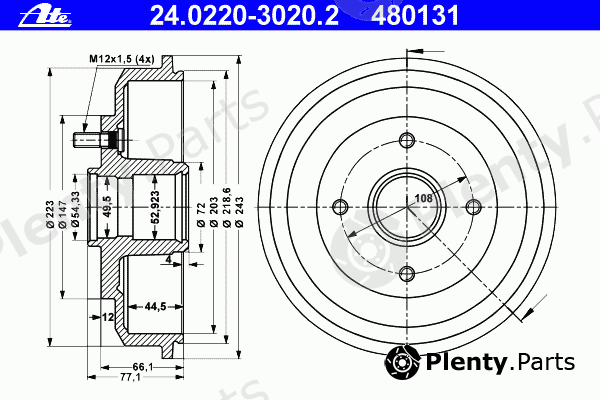

Сharacteristics:
  • Supplementary Article/Info 2: without wheel bearing
  • Supplementary Article/Info 2: without ABS sensor ring
  • Drum Diameter: 203,0
  • Max.skimmed drum measure [mm]: 204,3
  • Inner Brake Drum Height [mm]: 44,5
  • Number of Holes: 4
  • Bolt Hole Circle Ø [mm]: 108
  • Supplementary Article/Info 2: with wheel studs
  • Thread Size: M12x1,5
  • Total Br. Drum Height [mm]: 81
  • Br. Drum outer diameter [mm]: 243
  • Support plate diameter [mm]: 52,3
  • Inner diameter 2 [mm]: 49,5
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0220-3020.2 (24022030202) Alternative ATE part number(s): 480131
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for FORD vehicles

OE manufacturerOEM reference numbers
FORD3049844, 4145506, 4186874

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0220-3020.2 (24022030202) Brake Drum offered by A.B.S., BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, BREMSI, CIFAM, DELPHI, DENCKERMANN, FEBI BILSTEIN, FENOX, FERODO, HANS PRIES, HELLA, HELLA PAGID, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KRAFT, LPR, MAXGEAR, METELLI, MGA, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, sbs, STELLOX, SWAG, TEXTAR, TRICLO, TRW, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.2715S
BENDIX329714B
BORG & BECKBBR7141
BOSCH0986477102
Brake ENGINEERINGDR962312
BREMBO14A71010, 14.9395.10
BREMSIDR5591, DR5654
CIFAM700-319K, 700-319
DELPHIBF402
DENCKERMANNB140009
FEBI BILSTEIN15993
FENOXTO216007
FERODOFDR329714
HANS PRIES302345
HELLA8DT355300-261
HELLA PAGID8DT355300-261
JP GROUP1563501309, 1563501300
JURID329714J
KAGER360006
KAMOKA104023
KAWE7D0591
KRAFT6062110
LPR7D0591
MAXGEAR191342
METELLI18-0319K, 18-0319
MGAT7553, TR7553
MINTEXMBD064
NK252534
OPEN PARTSBAD905230
OPTIMALBT1480
PAGID61225
PATRONPDR1584
PEX15.0192
QUINTON HAZELLBDR542
REMSA714700
ROADHOUSE714700
ROTINGERRT6311
sbs1825252534
STELLOX60252534SX
SWAG50915993
TEXTAR94022500, 98100022501
TRICLO848073
TRWDB4338, DB4275, DB4275B, DB4338B
WOKINGB714700
ZIMMERMANN250.1765.00

Vehicle fitment / ATE 24.0220-3020.2 (24022030202) Brake Drum compatibility

This product fits the following models: FORD FOCUS, FORD FOCUS CLIPPER, SSANGYONG ACTYON S I, etc. See all vehicles this product (ATE 24.0220-3020.2 (24022030202)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
FORDFOCUS
DAW
DBW
DFW
DNW
1.4 16V
1.6 16V
1.8 16V
1.8 BiFuel
1.8 DI / TDDi
1.8 Turbo DI / TDDi
1998/10 - 2005/03111 hp 82 kW 1.8 L Petrol
BHDA 75 hp 55 kW 1.8 L Diesel
BHDB 75 hp 55 kW 1.8 L Diesel
BHDA 75 hp 55 kW 1.8 L Diesel
BHDB 75 hp 55 kW 1.8 L Diesel
C9DA 90 hp 66 kW 1.8 L Diesel
C9DB 90 hp 66 kW 1.8 L Diesel
C9DC 90 hp 66 kW 1.8 L Diesel
C9DA 90 hp 66 kW 1.8 L Diesel
C9DB 90 hp 66 kW 1.8 L Diesel
C9DC 90 hp 66 kW 1.8 L Diesel
EYDB 115 hp 85 kW 1.8 L Petrol
EYDC 115 hp 85 kW 1.8 L Petrol
EYDD 115 hp 85 kW 1.8 L Petrol
EYDE 115 hp 85 kW 1.8 L Petrol
EYDF 115 hp 85 kW 1.8 L Petrol
EYDG 115 hp 85 kW 1.8 L Petrol
EYDI 115 hp 85 kW 1.8 L Petrol
EYDJ 115 hp 85 kW 1.8 L Petrol
EYDL 115 hp 85 kW 1.8 L Petrol
FXDA 75 hp 55 kW 1.4 L Petrol
FXDB 75 hp 55 kW 1.4 L Petrol
FXDC 75 hp 55 kW 1.4 L Petrol
FXDD 75 hp 55 kW 1.4 L Petrol
FYDA 100 hp 74 kW 1.6 L Petrol
FYDB 100 hp 74 kW 1.6 L Petrol
FYDC 100 hp 74 kW 1.6 L Petrol
FYDD 100 hp 74 kW 1.6 L Petrol
FYDH 100 hp 74 kW 1.6 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
Sedan / Saloon
FORDFOCUS CLIPPER
DNW
1.4 16V
1.6 16V
1.8 16V
1.8 BiFuel
1.8 DI / TDDi
1.8 Turbo DI / TDDi
1999/02 - 2005/01111 hp 82 kW 1.8 L Petrol
BHDA 75 hp 55 kW 1.8 L Diesel
BHDB 75 hp 55 kW 1.8 L Diesel
C9DA 90 hp 66 kW 1.8 L Diesel
C9DB 90 hp 66 kW 1.8 L Diesel
C9DC 90 hp 66 kW 1.8 L Diesel
EYDB 115 hp 85 kW 1.8 L Petrol
EYDC 115 hp 85 kW 1.8 L Petrol
EYDD 115 hp 85 kW 1.8 L Petrol
EYDE 115 hp 85 kW 1.8 L Petrol
EYDF 115 hp 85 kW 1.8 L Petrol
EYDG 115 hp 85 kW 1.8 L Petrol
EYDI 115 hp 85 kW 1.8 L Petrol
EYDJ 115 hp 85 kW 1.8 L Petrol
EYDL 115 hp 85 kW 1.8 L Petrol
FXDA 75 hp 55 kW 1.4 L Petrol
FXDB 75 hp 55 kW 1.4 L Petrol
FXDC 75 hp 55 kW 1.4 L Petrol
FXDD 75 hp 55 kW 1.4 L Petrol
FYDA 100 hp 74 kW 1.6 L Petrol
FYDB 100 hp 74 kW 1.6 L Petrol
FYDC 100 hp 74 kW 1.6 L Petrol
FYDD 100 hp 74 kW 1.6 L Petrol
FYDH 100 hp 74 kW 1.6 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
SSANGYONGACTYON S I
QJ
2.0 Xdi
2.0 Xdi 4WD
2007/04 - D20DT 141 hp 104 kW 2 L Diesel
AWD / 4WD
Rear wheel
Pickup truck / Pickup
