ATE 24.0223-0011.1 (24022300111) Brake Drum

ATE part 24.0223-0011.1 (24022300111) Brake Drum

ATE 24.0223-0011.1 (24022300111) Brake Drum

Manufacturer Part Number: 24.0223-0011.1 (24022300111)
Alternative ATE part number(s): 480041

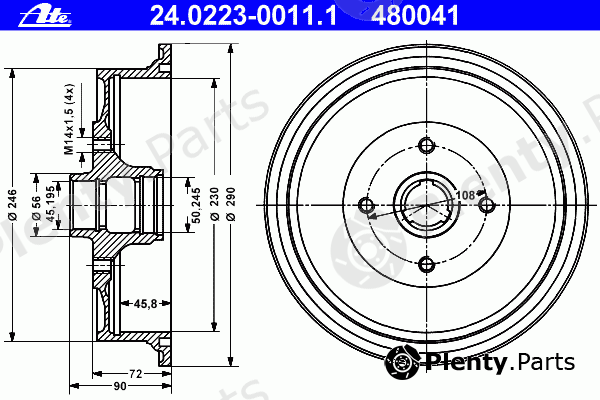

Сharacteristics:

Supplementary Article/Info 2: without wheel bearing
Drum Diameter: 230,0
Max.skimmed drum measure [mm]: 231
Inner Brake Drum Height [mm]: 46
Number of Holes: 4
Bolt Hole Circle Ø [mm]: 108
Thread Size: M14x1,5
Total Br. Drum Height [mm]: 90
Br. Drum outer diameter [mm]: 230
Support plate diameter [mm]: 50,3
Inner diameter 2 [mm]: 45,2
MAPP code available:

Product Details

Brand	ATE
ATE article (MPN)	24.0223-0011.1 (24022300111) Alternative ATE part number(s): 480041
Vehicle subsystem	Brake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturer	OEM reference numbers
VAG	443501615B

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0223-0011.1 (24022300111) Brake Drum offered by A.B.S., ALANKO, BENDIX, BOSCH, Brake ENGINEERING, BREMBO, CIFAM, DELPHI, FTE, HELLA, HELLA PAGID, JURID, KAWE, LPR, METELLI, MGA, MINTEX, NK, PAGID, PATRON, PEX, QUINTON HAZELL, REMSA, ROADHOUSE, sbs, TEXTAR, TRICLO, TRISCAN, TRW, WOKING, ZIMMERMANN manufacturers

Manufacturer	Reference numbers
A.B.S.	2420S
ALANKO	305982
BENDIX	329237B
BOSCH	0986477052
Brake ENGINEERING	DR962038
BREMBO	14.5599.10
CIFAM	700-198K, 700-198
DELPHI	BF319
FTE	BT201
HELLA	8DT355301-521, 8DT355301601
HELLA PAGID	8DT355301601, 8DT355301-521
JURID	329237J
KAWE	7D0240
LPR	7D0240
METELLI	18-0198, 18-0198K
MGA	T7460, TR7460
MINTEX	MBD069
NK	254721
PAGID	62928, 63902
PATRON	PDR1202
PEX	15.0093
QUINTON HAZELL	BDR201, 7061.00, BTF201
REMSA	7061.00
ROADHOUSE	7061.00
sbs	1825254721
TEXTAR	94021400, 94009200, 98100009201, 98100021401
TRICLO	843595
TRISCAN	812029212
TRW	DB4085, DB4085B
WOKING	B706100
ZIMMERMANN	100.1648.00

Vehicle fitment / ATE 24.0223-0011.1 (24022300111) Brake Drum compatibility

This product fits the following models: AUDI 100, AUDI 500, AUDI 5000, etc. See all vehicles this product (ATE 24.0223-0011.1 (24022300111)) fits below to verify fitment for your vehicle.

Make	Model	Variant	Period	Engine	Drive	Body Style
AUDI	100 44 44Q C3	1.8 1.8 KAT 2.0 D 2.0 D Turbo 2.0 E KAT 2.0 KAT 2.0 TD 2.4 D	1982/08 - 1991/07	3D 82 hp 60 kW 2.4 L Diesel 4B 90 hp 66 kW 1.8 L Petrol PH 90 hp 66 kW 1.8 L Petrol CN 70 hp 51 kW 2 L Diesel DS 90 hp 66 kW 1.8 L Petrol JW 90 hp 66 kW 1.8 L Petrol NP 90 hp 66 kW 1.8 L Petrol SH 88 hp 65 kW 1.8 L Petrol NC 100 hp 74 kW 2 L Diesel RT 115 hp 85 kW 2 L Petrol	Front wheel	Estate / Turnier / Vario / Wagon Sedan / Saloon
AUDI	500 44 44Q C3	1.8 1.8 KAT 2.0 D 2.0 D Turbo 2.0 KAT 2.4 D	1982/08 - 1991/07	3D 82 hp 60 kW 2.4 L Diesel 4B 90 hp 66 kW 1.8 L Petrol PH 90 hp 66 kW 1.8 L Petrol CN 70 hp 51 kW 2 L Diesel DS 90 hp 66 kW 1.8 L Petrol JW 90 hp 66 kW 1.8 L Petrol NP 90 hp 66 kW 1.8 L Petrol SH 88 hp 65 kW 1.8 L Petrol NC 100 hp 74 kW 2 L Diesel RT 115 hp 85 kW 2 L Petrol	Front wheel	Sedan / Saloon
AUDI	5000 44 44Q C3	1.8 1.8 KAT 2.0 D 2.0 D Turbo 2.0 E KAT 2.0 KAT 2.0 TD 2.4 D	1982/08 - 1991/07	3D 82 hp 60 kW 2.4 L Diesel 4B 90 hp 66 kW 1.8 L Petrol PH 90 hp 66 kW 1.8 L Petrol CN 70 hp 51 kW 2 L Diesel DS 90 hp 66 kW 1.8 L Petrol JW 90 hp 66 kW 1.8 L Petrol NP 90 hp 66 kW 1.8 L Petrol SH 88 hp 65 kW 1.8 L Petrol NC 100 hp 74 kW 2 L Diesel RT 115 hp 85 kW 2 L Petrol	Front wheel	Estate / Turnier / Vario / Wagon Sedan / Saloon
