ATE 24.0225-4016.1 (24022540161) Brake Drum

ATE part 24.0225-4016.1 (24022540161) Brake Drum

ATE 24.0225-4016.1 (24022540161) Brake Drum

by ATE

Manufacturer Part Number: 24.0225-4016.1 (24022540161)
Alternative ATE part number(s): 480171

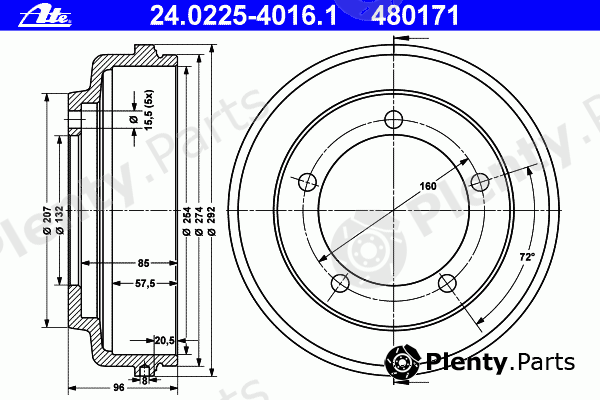

Сharacteristics:
  • Drum Diameter: 254,0
  • Max.skimmed drum measure [mm]: 256
  • Inner Brake Drum Height [mm]: 60,1
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 160
  • Bore Ø [mm]: 15,5
  • Total Br. Drum Height [mm]: 97,5
  • Br. Drum outer diameter [mm]: 292
  • Support plate diameter [mm]: 132
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0225-4016.1 (24022540161) Alternative ATE part number(s): 480171
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for FORD vehicles

OE manufacturerOEM reference numbers
FORD4146930, 4540218

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0225-4016.1 (24022540161) Brake Drum offered by A.B.S., ALANKO, AUTOMEGA, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BREMSI, BSG, CIFAM, DELPHI, DENCKERMANN, FENOX, FERODO, FTE, HANS PRIES, HELLA, HELLA PAGID, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KRAFT, LPR, METELLI, MGA, MINTEX, NK, OPEN PARTS, PAGID, PATRON, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, sbs, STELLOX, TEXTAR, TRISCAN, TRW, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.7180-S
ALANKO305822
AUTOMEGA30405400218
BENDIX329258B
BORG & BECKBBR7185
BOSCH0986477204
Brake ENGINEERINGDR962407
BREMSIDR5647
BSGBSG30-225-005
CIFAM700-368
DELPHIBF479
DENCKERMANNB140004
FENOXTO216198
FERODOFDR329258
FTEBT620
HANS PRIES303977
HELLA8DT355300-461
HELLA PAGID8DT355300-461
JP GROUP1563501209, 1563501200
JURID329258J
KAGER360392
KAMOKA104002
KAWE7D0647
KRAFT6062160
LPR7D0647
METELLI18-0368
MGAT7575
MINTEXMBD058
NK262510
OPEN PARTSBAD907510
PAGID61247
PATRONPDR1640
PROTECHNICPRT042
QUINTON HAZELLBDR620
REMSA710000
ROADHOUSE710000
ROTINGERRT6567
sbs1825262510
STELLOX60259920SX
TEXTAR98100024701, 94024700
TRISCAN812016227
TRWDB4314
WOKINGB710000
ZIMMERMANN250.1773.00

Vehicle fitment / ATE 24.0225-4016.1 (24022540161) Brake Drum compatibility

This product fits the following models: FORD TRANSIT, FORD TRANSIT NEO, etc. See all vehicles this product (ATE 24.0225-4016.1 (24022540161)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
FORDTRANSIT

FA
FD
FB
FS
FZ
FC
FM
FN
2.0 DI
2.0 TDCi
2.2 TDCi
2.3
2.4 TDCi
2.4 TDdi
2.4 TDE

FAE
FAF
FAG
FE
FF
FE
FF
FG
FF
FE
FG
2000/08 - 2014/08ABFA 100 hp 74 kW 2 L Diesel
D3FA 75 hp 55 kW 2 L Diesel
F3FA 86 hp 63 kW 2 L Diesel
CYFA 125 hp 92 kW 2.2 L Diesel
CYFB 125 hp 92 kW 2.2 L Diesel
CYFC 125 hp 92 kW 2.2 L Diesel
CYFD 125 hp 92 kW 2.2 L Diesel
DRFA 100 hp 74 kW 2.2 L Diesel
DRFB 100 hp 74 kW 2.2 L Diesel
DRFC 100 hp 74 kW 2.2 L Diesel
DRFD 100 hp 74 kW 2.2 L Diesel
DRFE 100 hp 74 kW 2.2 L Diesel
P8FA 85 hp 63 kW 2.2 L Diesel
P8FB 85 hp 63 kW 2.2 L Diesel
PGFA 140 hp 103 kW 2.2 L Diesel
PGFB 140 hp 103 kW 2.2 L Diesel
QVFA 110 hp 81 kW 2.2 L Diesel
QWFA 130 hp 96 kW 2.2 L Diesel
SRFA 115 hp 85 kW 2.2 L Diesel
SRFB 115 hp 85 kW 2.2 L Diesel
SRFC 115 hp 85 kW 2.2 L Diesel
SRFD 115 hp 85 kW 2.2 L Diesel
SRFE 115 hp 85 kW 2.2 L Diesel
UHFA 140 hp 103 kW 2.2 L Diesel
UHFB 140 hp 103 kW 2.2 L Diesel
UHFC 140 hp 103 kW 2.2 L Diesel
D4FA 120 hp 88 kW 2.4 L Diesel
DOFA 125 hp 92 kW 2.4 L Diesel
FXFA 115 hp 85 kW 2.4 L Diesel
E5FA 145 hp 107 kW 2.3 L Petrol
E5FC 143 hp 105 kW 2.3 L Petrol
FIFA 125 hp 92 kW 2 L Diesel
H9FA 137 hp 101 kW 2.4 L Diesel
Front wheel
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
FORDTRANSIT NEO
2.2 TDCi
2006/07 - 2014/08PGFA 140 hp 103 kW 2.2 L Diesel
PGFB 140 hp 103 kW 2.2 L Diesel
QVFA 110 hp 81 kW 2.2 L Diesel
QWFA 131 hp 96 kW 2.2 L Diesel
SRFA 115 hp 85 kW 2.2 L Diesel
SRFB 115 hp 85 kW 2.2 L Diesel
SRFC 115 hp 85 kW 2.2 L Diesel
SRFD 115 hp 85 kW 2.2 L Diesel
SRFE 115 hp 85 kW 2.2 L Diesel
UHFA 140 hp 103 kW 2.2 L Diesel
UHFB 140 hp 103 kW 2.2 L Diesel
Front wheel
Passenger Van / Wagon / Minibus
