ATE 24.0226-8001.1 (24022680011) Brake Drum
ATE 24.0226-8001.1 (24022680011) Brake Drum
by ATEManufacturer Part Number: 24.0226-8001.1 (24022680011)
Alternative ATE part number(s): 480051

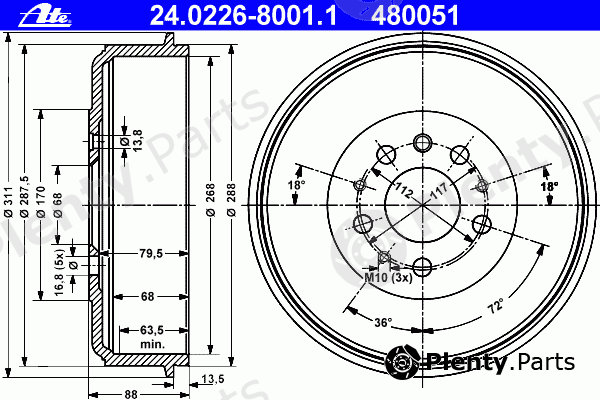

- Drum Diameter: 268,0
- Max.skimmed drum measure [mm]: 269,5
- Inner Brake Drum Height [mm]: 63,5
- Number of Holes: 5
- Bolt Hole Circle Ø [mm]: 112
- Support plate diameter [mm]: 68,4
- Bore Ø [mm]: 16,8
- Total Br. Drum Height [mm]: 88
- Br. Drum outer diameter [mm]: 288
- MAPP code available:
Product Details
| Brand | ATE |
| ATE article (MPN) | 24.0226-8001.1 (24022680011) Alternative ATE part number(s): 480051 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for VAG vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| VAG | 701609617 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 24.0226-8001.1 (24022680011) Brake Drum offered by A.B.S., ALANKO, BENDIX, BOSCH, Brake ENGINEERING, BREMBO, CIFAM, DELPHI, DENCKERMANN, FEBI BILSTEIN, FENOX, FERODO, FTE, HANS PRIES, HELLA, HELLA PAGID, JURID, KAGER, KAMOKA, KAWE, LPR, MAPCO, MAXGEAR, METELLI, METZGER, MGA, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PROFIT, PROTECHNIC, QUINTON HAZELL, RAYBESTOS, REMSA, ROADHOUSE, ROTINGER, sbs, STELLOX, SWAG, TEXTAR, TRICLO, TRISCAN, TRW, VAICO, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 2403S |
| ALANKO | 306057 |
| BENDIX | 329137B |
| BOSCH | 0986477046 |
| Brake ENGINEERING | DR962001 |
| BREMBO | 14.5928.10 |
| CIFAM | 700-203 |
| DELPHI | BF345 |
| DENCKERMANN | B140005 |
| FEBI BILSTEIN | 14058 |
| FENOX | TO216167 |
| FERODO | FDR329137 |
| FTE | BT246 |
| HANS PRIES | 104083 |
| HELLA | 8DT355301-721 |
| HELLA PAGID | 8DT355301-721 |
| JURID | 329137J, 8282008068 |
| KAGER | 360110 |
| KAMOKA | 104009 |
| KAWE | 7D0245 |
| LPR | 7D0245 |
| MAPCO | 35716 |
| MAXGEAR | 191341 |
| METELLI | 18-0203 |
| METZGER | BT735 |
| MGA | T7520 |
| MINTEX | MBD120 |
| NK | 264709 |
| OPEN PARTS | BAD901310 |
| OPTIMAL | BT1070 |
| PAGID | 63914 |
| PATRON | PDR1210 |
| PEX | 15.0097 |
| PROFIT | 50200100 |
| PROTECHNIC | PRT030 |
| QUINTON HAZELL | BDR246, BTF246 |
| RAYBESTOS | 9553 |
| REMSA | 711200 |
| ROADHOUSE | 711200 |
| ROTINGER | RT6296 |
| sbs | 1825264709 |
| STELLOX | 60264709SX |
| SWAG | 30914058 |
| TEXTAR | 94012400, 98100012401 |
| TRICLO | 842048 |
| TRISCAN | 812029202 |
| TRW | DB4189 |
| VAICO | V1060002 |
| WOKING | B711200 |
| ZIMMERMANN | 600.1961.00 |
Vehicle fitment / ATE 24.0226-8001.1 (24022680011) Brake Drum compatibility
This product fits the following models: VW EURO CARAVELLE IV, VW EURO IV, VW TRANER CARAVELLEIV, VW TRANER CARAVELLE IV, VW TRANER IV, VW TRANERIV, VW TRANER MULTI IV, VW TRANER T4, etc. See all vehicles this product (ATE 24.0226-8001.1 (24022680011)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| VW | EURO CARAVELLE IV 70XB 70XC 7DB 7DW 7DK | 1.8 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro | 1990/09 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel 1X 61 hp 45 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel PD 67 hp 49 kW 1.8 L Petrol | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | EURO IV 70XA | 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.4 TDI 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro | 1990/07 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel 1X 61 hp 45 kW 1.9 L Diesel 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel | AWD / 4WD Front wheel | LCV / Van / Cargo |
| VW | TRANER CARAVELLEIV 70XB 70XC 7DB 7DW | 1.8 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro | 1990/09 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel 1X 61 hp 45 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel PD 67 hp 49 kW 1.8 L Petrol | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | TRANER CARAVELLE IV 70XB 70XC 7DB 7DW 7D | 1.8 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro | 1990/09 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel 1X 61 hp 45 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel PD 67 hp 49 kW 1.8 L Petrol | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | TRANER IV 70XA 70XB 70XC 7DB 7DW 7DK 70XD | 1.8 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.4 TDI 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro | 1990/07 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel 1X 61 hp 45 kW 1.9 L Diesel 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel PD 67 hp 49 kW 1.8 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
| VW | TRANERIV 70XA 70XD | 1.8 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.4 TDI 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro | 1990/07 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel 1X 61 hp 45 kW 1.9 L Diesel 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel PD 67 hp 49 kW 1.8 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo With flatbed/undercarriage |
| VW | TRANER MULTI IV 70XB 70XC 7DB 7DW 7DK | 1.8 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro | 1990/09 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel 1X 61 hp 45 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel PD 67 hp 49 kW 1.8 L Petrol | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | TRANER T4 70XA 70XB 70XC 7DB 7DW 7DK 70XD | 1.8 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.4 TDI 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro | 1990/07 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel 1X 61 hp 45 kW 1.9 L Diesel 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel PD 67 hp 49 kW 1.8 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
