ATE 24.0228-0004.1 (24022800041) Brake Drum
ATE 24.0228-0004.1 (24022800041) Brake Drum
by ATEManufacturer Part Number: 24.0228-0004.1 (24022800041)
Alternative ATE part number(s): 480173

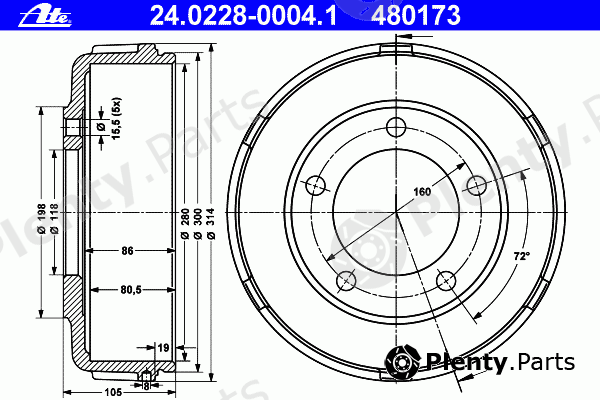

- Drum Diameter: 280,0
- Max.skimmed drum measure [mm]: 282
- Inner Brake Drum Height [mm]: 80,3
- Number of Holes: 5
- Bolt Hole Circle Ø [mm]: 160
- Bore Ø [mm]: 15,5
- Total Br. Drum Height [mm]: 105
- Br. Drum outer diameter [mm]: 314
- Support plate diameter [mm]: 118
- MAPP code available:
Product Details
| Brand | ATE |
| ATE article (MPN) | 24.0228-0004.1 (24022800041) Alternative ATE part number(s): 480173 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for FORD vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| FORD | 4078769, 4446218 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 24.0228-0004.1 (24022800041) Brake Drum offered by A.B.S., ALANKO, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, BREMSI, BSG, CASALS, CIFAM, DELPHI, DENCKERMANN, FTE, HANS PRIES, HELLA, HELLA PAGID, KAGER, KAWE, KRAFT, LPR, METELLI, MGA, MINTEX, NK, OPEN PARTS, PAGID, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, sbs, STELLOX, TEXTAR, TRW, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 2734S |
| ALANKO | 305850 |
| BENDIX | 329741B |
| BORG & BECK | BBR7186 |
| BOSCH | 0986477203 |
| Brake ENGINEERING | DR962364 |
| BREMBO | 14.A692.10 |
| BREMSI | DR5646 |
| BSG | BSG30-225-003 |
| CASALS | 55254 |
| CIFAM | 700-367 |
| DELPHI | BF478 |
| DENCKERMANN | B140001 |
| FTE | BT628 |
| HANS PRIES | 303979 |
| HELLA | 8DT355300451 |
| HELLA PAGID | 8DT355300-451 |
| KAGER | 360393 |
| KAWE | 7D0646 |
| KRAFT | 6062150 |
| LPR | 7D0646 |
| METELLI | 18-0367 |
| MGA | T7576 |
| MINTEX | MBD057 |
| NK | 262511 |
| OPEN PARTS | BAD907410 |
| PAGID | 61246 |
| PILENGA | V253 |
| PROTECHNIC | PRT037 |
| QUINTON HAZELL | BDR628 |
| REMSA | 709900 |
| ROADHOUSE | 709900 |
| ROTINGER | RT6408 |
| sbs | 1825262511 |
| STELLOX | 60262511SX |
| TEXTAR | 94024600, 98100024601 |
| TRW | DB4316 |
| WOKING | B709900 |
| ZIMMERMANN | 250.1771.00 |
Vehicle fitment / ATE 24.0228-0004.1 (24022800041) Brake Drum compatibility
This product fits the following models: FORD TRANSIT, etc. See all vehicles this product (ATE 24.0228-0004.1 (24022800041)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| FORD | TRANSIT FA FD FB FS FZ FC FM FN | 2.3 16V 2.3 16V [RWD] 2.4 DI 2.4 DI [RWD] 2.4 TDCi 2.4 TDE FAA FAB FAC FAA FAB FAC FAD FA FB FC FD FB FC FB FC FA FC FB FA | 2000/01 - 2006/05 | D2FA 90 hp 66 kW 2.4 L Diesel D2FB 90 hp 66 kW 2.4 L Diesel D2FE 90 hp 66 kW 2.4 L Diesel D2FA 90 hp 66 kW 2.4 L Diesel D2FB 90 hp 66 kW 2.4 L Diesel D2FE 90 hp 66 kW 2.4 L Diesel D4FA 120 hp 88 kW 2.4 L Diesel F4FA 75 hp 55 kW 2.4 L Diesel D4FA 120 hp 88 kW 2.4 L Diesel D4FA 120 hp 88 kW 2.4 L Diesel F4FA 75 hp 55 kW 2.4 L Diesel DOFA 125 hp 92 kW 2.4 L Diesel DOFA 125 hp 92 kW 2.4 L Diesel FXFA 115 hp 85 kW 2.4 L Diesel E5FA 146 hp 107 kW 2.3 L Petrol E5FC 146 hp 107 kW 2.3 L Petrol F4FA 75 hp 55 kW 2.4 L Diesel FXFA 115 hp 85 kW 2.4 L Diesel H9FA 137 hp 101 kW 2.4 L Diesel | Rear wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
