ATE 24.0322-0238.1 (24032202381) Brake Disc

ATE 24.0322-0238.1 (24032202381) Brake Disc

Manufacturer Part Number: 24.0322-0238.1 (24032202381)
Alternative ATE part number(s): 522238

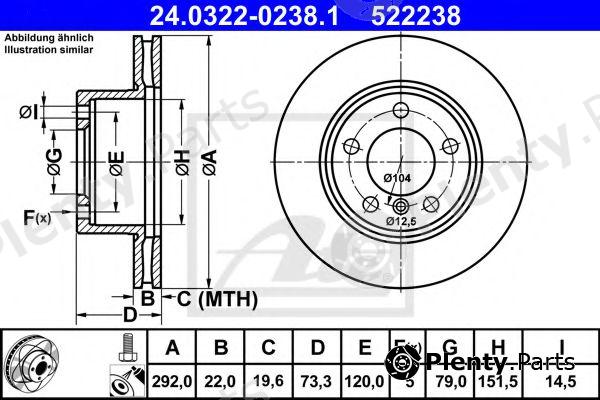

• Diameter [mm]: 292
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 19,6
• Brake Disc Type: Vented
• Machining: High-carbon
• Surface: Coated
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 120
• Height [mm]: 73,3
• Centering Diameter [mm]: 79
• Inner diameter [mm]: 151,5
• Bore Ø [mm]: 14,5
• Supplementary Article/Info 2: with screws
• MAPP code available:
• Sure Thing, ATE! The PowerDisc shows what it can do. Looks better - wears less The brake disc with a profile pays off: The cleaning effect of the continuous groove ensures more even wear of the brake disc and a marked reduction in the scoring that can occur on both brake disc and brake pads. Score-free wear even in heavy-duty use extends the life of the brake discs - and also offers better looks, particularly for wheel rims of today's modern and open style. The multipurpose groove permits visual detection of wear at a glance, without awkward, time-consuming and expensive removal or special measuring tools. If the entire groove has been worn away, the brake disc has reached its thickness limit and must be replaced. The high temperatures generated during braking result in gases between the brake disc and brake pad. These gases c onsiderably impair the braking effect (fading). The PowerDisc channels off the gases via the multifunctional groove and in so doing ensures dependable braking. This brake disc has been thought out down to the last detail : Conventional brake discs have to be cleaned before assembly in an often very expensive and time consuming process using environmentally harmful agents. Poor cleaning often causes permanent impairment of the friction between the brake pads and the brake disc. The new corrosion protection on the ATE PowerDisc, however, no longer has to be removed before assembly and so remains on the brake disc. Protected and sealed in this way, the ATE PowerDisc is less prone to rust, shortens the installation time, and helps protect the enviro nment. Many benefits - thanks to corrosion protection The ATE PowerDisc is certified for general use in Germany (ABE) - i.e. no entry in the vehicle documents is needed. That saves you time and money. Braking like the professionals The complete range Greater safety and longer life make the ATE PowerDisc a disc that could well be a big success, which you can have installed by your garage right away. And if you have any other questions to d
• For vehicles without ABS, a PowerDisc can be used on the rea r axle only if there is one on the front axle. The General Operating Permit (ABE) for the PowerDisc applies to operation on German roads in accordance with the German Road Traffic Registration Ordinance (StVZO). Other countries may require additional type approvals for use on roads.
