ATE 24.0330-0173.1 (24033001731) Brake Disc

ATE 24.0330-0173.1 (24033001731) Brake Disc

by ATE

Manufacturer Part Number: 24.0330-0173.1 (24033001731)
Alternative ATE part number(s): 530173

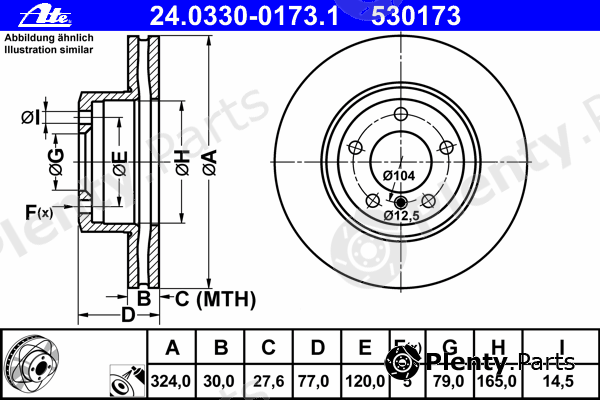

Сharacteristics:
  • Supplementary Article/Info 2: with screws
  • Diameter [mm]: 324
  • Brake Disc Thickness [mm]: 30
  • Minimum thickness [mm]: 27,6
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 120
  • Height [mm]: 77
  • Centering Diameter [mm]: 79
  • Inner diameter [mm]: 165
  • Bore Ø [mm]: 14,5
  • MAPP code available:
  • Sure Thing, ATE! The PowerDisc shows what it can do. Looks better - wears less The brake disc with a profile pays off: The cleaning effect of the continuous groove ensures more even wear of the brake disc and a marked reduction in the scoring that can occur on both brake disc and brake pads. Score-free wear even in heavy-duty use extends the life of the brake discs - and also offers better looks, particularly for wheel rims of today's modern and open style. The multipurpose groove permits visual detection of wear at a glance, without awkward, time-consuming and expensive removal or special measuring tools. If the entire groove has been worn away, the brake disc has reached its thickness limit and must be replaced. The high temperatures generated during braking result in gases between the brake disc and brake pad. These gases c onsiderably impair the braking effect (fading). The PowerDisc channels off the gases via the multifunctional groove and in so doing ensures dependable braking. This brake disc has been thought out down to the last detail : Conventional brake discs have to be cleaned before assembly in an often very expensive and time consuming process using environmentally harmful agents. Poor cleaning often causes permanent impairment of the friction between the brake pads and the brake disc. The new corrosion protection on the ATE PowerDisc, however, no longer has to be removed before assembly and so remains on the brake disc. Protected and sealed in this way, the ATE PowerDisc is less prone to rust, shortens the installation time, and helps protect the enviro nment. Many benefits - thanks to corrosion protection The ATE PowerDisc is certified for general use in Germany (ABE) - i.e. no entry in the vehicle documents is needed. That saves you time and money. Braking like the professionals The complete range Greater safety and longer life make the ATE PowerDisc a disc that could well be a big success, which you can have installed by your garage right away. And if you have any other questions to d
  • For vehicles without ABS, a PowerDisc can be used on the rea r axle only if there is one on the front axle. The General Operating Permit (ABE) for the PowerDisc applies to operation on German roads in accordance with the German Road Traffic Registration Ordinance (StVZO). Other countries may require additional type approvals for use on roads.

Product Details

BrandATE
ATE article (MPN)24.0330-0173.1 (24033001731) Alternative ATE part number(s): 530173
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for BMW vehicles

OE manufacturerOEM reference numbers
BMW34116767269, 34116753221

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0330-0173.1 (24033001731) Brake Disc offered by A.B.S., AP, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, CAR, DELPHI, FEBI BILSTEIN, FERODO, FI.BA, FOMAR, fri.tech., FTE, GIRLING, HANS PRIES, HELLA, HELLA PAGID, JP GROUP, JURID, KAGER, KAWE, KRAFT, MAGNETI MARELLI, METZGER, MEYLE, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, STARLINE, STELLOX, SWAG, TEXTAR, TRUSTING, TRW, VAICO, VALEO, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17532
AP24885V
BENDIX562397B, 562332B
BORG & BECKBBD5766S
BOSCH0986479115
Brake ENGINEERINGDI956261
BRECOBV8487, BS8487
BREMBO09.9172.10, 09.9172.14, 09.9172.11
CAR142.1065
DELPHIBG9871
FEBI BILSTEIN24343
FERODODDF1242, DDF1242C, DDF1242C-1
FI.BAFBD224
FOMARFO4054
fri.tech.BD1076
FTEBS5458
GIRLING6043611
HANS PRIES500943
HELLA8DD355109-911, 8DD355109922, 8DD355109-921
HELLA PAGID8DD355109-921, 8DD355109922, 8DD355109-911
JP GROUP1463101209
JURID562332J
KAGER371195, 371343
KAWE685310
KRAFT6042760
MAGNETI MARELLI351065920500, 360406003100
METZGER6110208, 24885V
MEYLE3155213060/PD, 3155213060
MINTEXMDC1659
NK201563
OPEN PARTSBDR221520
OPTIMALBS7578, BS7578C
PAGID54226PRO, 54226
PATRONPBD4361
PEX14.0799
PROTECHNICPRD2679
QUINTON HAZELLBSF5458, BDC5458
REMSA685310
ROADHOUSE685310
ROTINGERRT20344T5, RT20344HPT5, RT20344, RT20344HP
STARLINEPB20344C
STELLOX60201563VSX
SWAG20924343
TEXTAR92122600, 92122603, 98200122601PRO, 92122605, 98200122601
TRUSTINGDF1076
TRWDF4361
VAICOV2080051
VALEO197193
VILLAR6281813
WOKINGD685310
ZIMMERMANN150.3403.20, 150.3403.50, 150340352, 150.3403.00

Vehicle fitment / ATE 24.0330-0173.1 (24033001731) Brake Disc compatibility

This product fits the following models: BMW 5, BMW 6, etc. See all vehicles this product (ATE 24.0330-0173.1 (24033001731)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
BMW5
E60
E61
520 d
520 i
523 i
525 d
525 d xDrive
525 i
525 i xDrive
525 xd
525 xi
530 d
530 d xDrive
530 i
530 i xDrive
530 xd
530 xi
530xi
2003/07 - 2010/12M47D20(204D4) 150 hp 110 kW 2 L Diesel
M47D20(204D4) 163 hp 120 kW 2 L Diesel
N47D20A 150 hp 110 kW 2 L Diesel
N47D20A 163 hp 120 kW 2 L Diesel
N47D20A 177 hp 130 kW 2 L Diesel
N47D20C 150 hp 110 kW 2 L Diesel
N47D20C 163 hp 120 kW 2 L Diesel
N47D20C 177 hp 130 kW 2 L Diesel
M47D20(204D4) 150 hp 110 kW 2 L Diesel
M47D20(204D4) 163 hp 120 kW 2 L Diesel
N47D20A 163 hp 120 kW 2 L Diesel
N47D20A 177 hp 130 kW 2 L Diesel
N47D20C 163 hp 120 kW 2 L Diesel
N47D20C 177 hp 130 kW 2 L Diesel
M54B22(226S1) 170 hp 125 kW 2.2 L Petrol
M54B25(256S5) 192 hp 141 kW 2.5 L Petrol
N52B25A 218 hp 160 kW 2.5 L Petrol
N53B30A 218 hp 160 kW 3 L Petrol
M54B30(306S3) 231 hp 170 kW 3 L Petrol
N52B30A 254 hp 187 kW 3 L Petrol
N52B30A 258 hp 190 kW 3 L Petrol
N52B30A 272 hp 200 kW 3 L Petrol
N52B30B 272 hp 200 kW 3 L Petrol
N52B30BF 272 hp 200 kW 3 L Petrol
N53B30A 272 hp 200 kW 3 L Petrol
M57D25(256D1) 163 hp 120 kW 2.5 L Diesel
M57D25(256D2) 177 hp 130 kW 2.5 L Diesel
M57D30(306D3) 197 hp 145 kW 3 L Diesel
M57D25(256D2) 177 hp 130 kW 2.5 L Diesel
M57D30(306D3) 197 hp 145 kW 3 L Diesel
M57N256D4 163 hp 120 kW 2.5 L Diesel
M57D30(306D2) 211 hp 155 kW 3 L Diesel
M57D30(306D2) 218 hp 160 kW 3 L Diesel
M57D30(306D3) 211 hp 155 kW 3 L Diesel
M57D30(306D3) 231 hp 170 kW 3 L Diesel
M57D30(306D3) 235 hp 173 kW 3 L Diesel
M57D30(306D2) 218 hp 160 kW 3 L Diesel
M57D30(306D3) 231 hp 170 kW 3 L Diesel
M57D30(306D3) 235 hp 173 kW 3 L Diesel
M57D30(306D3) 197 hp 145 kW 3 L Diesel
M57D30(306D3) 231 hp 170 kW 3 L Diesel
M57D30(306D3) 235 hp 173 kW 3 L Diesel
M57D30(306D3) 235 hp 173 kW 3 L Diesel
N43B20A 163 hp 120 kW 2 L Petrol
N43B20A 170 hp 125 kW 2 L Petrol
N52B25A 177 hp 130 kW 2.5 L Petrol
N52B25A 190 hp 140 kW 2.5 L Petrol
N52B25B 177 hp 130 kW 2.5 L Petrol
N52B25BE 177 hp 130 kW 2.5 L Petrol
N53B25A 190 hp 140 kW 2.5 L Petrol
N52B25A 177 hp 130 kW 2.5 L Petrol
N52B25A 190 hp 140 kW 2.5 L Petrol
N52B25BE 190 hp 140 kW 2.5 L Petrol
N53B25A 190 hp 140 kW 2.5 L Petrol
N52B25A 218 hp 160 kW 2.5 L Petrol
N53B30A 218 hp 160 kW 3 L Petrol
N52B30A 258 hp 190 kW 3 L Petrol
N52B30A 272 hp 200 kW 3 L Petrol
N52B30A 258 hp 190 kW 3 L Petrol
N52B30A 272 hp 200 kW 3 L Petrol
N53B30A 272 hp 200 kW 3 L Petrol
N53B30A 218 hp 160 kW 3 L Petrol
N53B30A 272 hp 200 kW 3 L Petrol
AWD / 4WD
Rear wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
BMW6
E63
E64
630 i
2004/09 - 2010/07N52B30A 258 hp 190 kW 3 L Petrol
Rear wheel
Convertible / cabrio
Coupe / Sports car / Grand tourer / Speedster / Roadster
