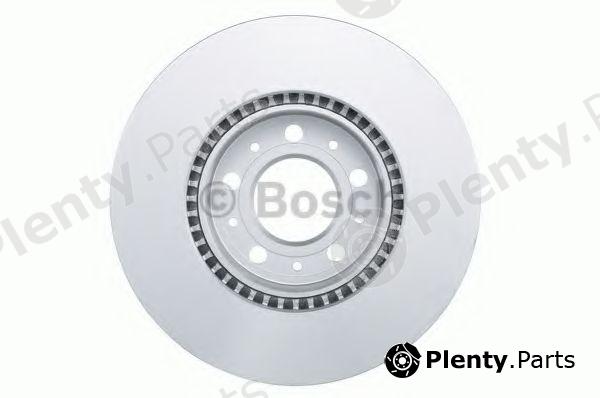

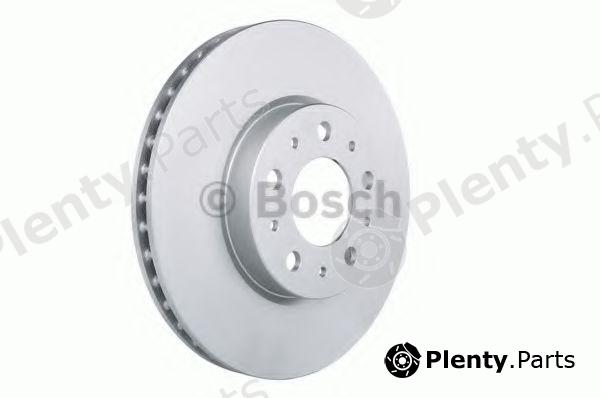

BOSCH 0986478603 Brake Disc
BOSCH 0986478603 Brake Disc
by BOSCHManufacturer Part Number: 0986478603
Alternative BOSCH part number(s): BD522

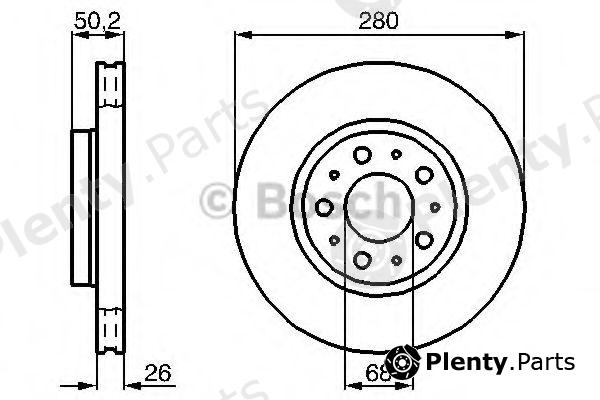

- Diameter [mm]: 280
- Brake Disc Thickness [mm]: 26,1
- Minimum thickness [mm]: 23
- Brake Disc Type: Internally Vented
- Wheel Hub Diameter [mm]: 68
- Number of Holes: 5
- Surface: Painted
Product Details
| Brand | BOSCH |
| BOSCH article (MPN) | 0986478603 Alternative BOSCH part number(s): BD522 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for VOLVO vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| VOLVO | 271788, 272312 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for BOSCH 0986478603 Brake Disc offered by A.B.S., AP, APEC braking, ATE, BARUM, BENDIX, BORG & BECK, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CIFAM, DELPHI, DENCKERMANN, E.T.F., EUROBRAKE, FARCOM, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KRAFT, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NATIONAL, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, sbs, STARLINE, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 16236 |
| AP | X24453, 24453V |
| APEC braking | DSK530 |
| ATE | 24112601021, 24012601021 |
| BARUM | BAR26102 |
| BENDIX | 561866BC, 561866B |
| BORG & BECK | BBD5051 |
| Brake ENGINEERING | DI955514 |
| BRECO | BV8144, BS8144 |
| BREMBO | 09556876, 09556821, 09556820, 09.5568.24 |
| BREMSI | DBA605V |
| BSF | 11345V |
| CIFAM | 800375 |
| DELPHI | BG2841, BG841 |
| DENCKERMANN | B130067 |
| E.T.F. | 191788 |
| EUROBRAKE | 5815204832 |
| FARCOM | 231167 |
| FERODO | DDF605C-1, DDF605-1, DDF605, DRF605, DDF605C |
| FOMAR | FO2305 |
| fri.tech. | BD0395 |
| FTE | BS3912B, BS3912 |
| GIRLING | 6026711, 6026713 |
| GRAF | DF29375 |
| HELLA | 8DD355103682, 8DD355103681, 8DD355103671 |
| HELLA PAGID | 8DD355103671, 8DD355103682, 8DD355103681 |
| ICER | 78BD17882 |
| JP GROUP | 4963100409 |
| JURID | 561866JC, 561866J |
| KAGER | 370041 |
| KAMOKA | 1031210 |
| KAWE | 641010 |
| KRAFT | 6046380 |
| LPR | V1283V |
| LUCAS ELECTRICAL | 6026713, DF2671 |
| MAGNETI MARELLI | 360406051401, 360406051400, 353616024250 |
| MAPCO | 15964 |
| MAXGEAR | 190761, 190761MAX |
| METELLI | 800-375, 23-0375 |
| METZGER | 6110253, 24453V |
| MEYLE | 5155215012, 5155215012/PD |
| MGA | D1175 |
| MINTEX | MDC825 |
| NATIONAL | NBD590 |
| NECTO | WN702 |
| NIBK | RN1055 |
| NK | 204832, 314832 |
| OPEN PARTS | BDRS161425, BDA161420 |
| OPTIMAL | BS-8058, BS4100C, BS8058C, BS-4100 |
| PAGID | 54018, 54018PRO |
| PATRON | PBD2671 |
| PEX | 14.0663 |
| PILENGA | V164 |
| PROTECHNIC | PRD2161 |
| QUINTON HAZELL | BSF3912, BDC3912 |
| R BRAKE | 78RBD21788 |
| REMSA | 6410.10 |
| ROADHOUSE | 641010 |
| ROTINGER | RT2234, RT2234T5 |
| sbs | 1815314832, 1815204832, 1815344832, 204832 |
| STARLINE | PB2234C |
| TEMPLIN | 0311029620, 0311029625 |
| TEXTAR | 98200066701PRO, 92066705, 982000667, 98200066701, 92066703, 92066700 |
| TRISCAN | 812027119 |
| TRUSTING | DF395 |
| TRW | DF2671 |
| VALEO | 186526 |
| VEMA | 98599 |
| VILLAR | 6281614 |
| WOKING | D641010 |
| ZIMMERMANN | 610.1195.52, 610.1195.20, 610.1195.50, 610.1195.70 |
Vehicle fitment / BOSCH 0986478603 Brake Disc compatibility
This product fits the following models: VOLVO 850, VOLVO 960, VOLVO 960 II, VOLVO 960II, VOLVO C70 I, VOLVO S70, VOLVO S90, VOLVO V70 , VOLVO V70 I, VOLVO V70 XC, VOLVO V90, VOLVO XC70 CROSS COUNTRY, etc. See all vehicles this product (BOSCH 0986478603) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| VOLVO | 850 LS LW | 2.0 2.0 Turbo 2.3 T5 2.3 T5 R 2.3 T5-R 2.3 Turbo R 2.4 GLE 2.5 2.5 AWD 2.5 TDI | 1991/06 - 1997/10 | B5202S 126 hp 93 kW 2 L Petrol B5204F 143 hp 105 kW 2 L Petrol B5204FT 210 hp 155 kW 2 L Petrol B5204T 210 hp 155 kW 2 L Petrol B5204T2 179 hp 132 kW 2 L Petrol B5204FT 210 hp 155 kW 2 L Petrol B5204T 210 hp 155 kW 2 L Petrol B5204T2 180 hp 132 kW 2 L Petrol B5234FT 226 hp 166 kW 2.3 L Petrol B5234T2 239 hp 176 kW 2.3 L Petrol B5234T4 250 hp 184 kW 2.3 L Petrol B5234T5 241 hp 177 kW 2.3 L Petrol B5234T5 243 hp 179 kW 2.3 L Petrol B5252 140 hp 103 kW 2.5 L Petrol B5252FS 144 hp 106 kW 2.5 L Petrol B5254S 170 hp 125 kW 2.5 L Petrol B5254T 193 hp 142 kW 2.4 L Petrol B5254T 193 hp 142 kW 2.5 L Petrol D5252T 140 hp 103 kW 2.5 L Diesel | AWD / 4WD Front wheel | Estate / Turnier / Vario / Wagon Sedan / Saloon |
| VOLVO | 960 964 965 | 2.0 2.4 TD Interc. 2.9 | 1990/08 - 1994/07 | B204FT 190 hp 140 kW 2 L Petrol B6304F 204 hp 150 kW 2.9 L Petrol B6304FS 204 hp 150 kW 2.9 L Petrol B6304G 204 hp 150 kW 2.9 L Petrol B6304F 204 hp 150 kW 2.9 L Petrol B6304S 204 hp 150 kW 2.9 L Petrol D24TIC 115 hp 85 kW 2.4 L Diesel | Rear wheel | Estate / Turnier / Vario / Wagon Sedan / Saloon |
| VOLVO | 960 II 964 965 | 2.5 2.9 | 1994/07 - 1996/12 | B6254S 170 hp 125 kW 2.5 L Petrol B6304S 204 hp 150 kW 2.9 L Petrol | Rear wheel | Estate / Turnier / Vario / Wagon Sedan / Saloon |
| VOLVO | 960II 964 965 | 2.5 2.9 | 1994/07 - 1996/12 | B6254S 170 hp 125 kW 2.5 L Petrol B6304S 204 hp 150 kW 2.9 L Petrol | Rear wheel | Estate / Turnier / Vario / Wagon Sedan / Saloon |
| VOLVO | C70 I | 2.0 2.0 T 2.3 T-5 2.3 T5 2.4 T 2.5 2.5 T | 1997/03 - 2005/10 | B5204T2 180 hp 132 kW 2 L Petrol B5204T3 226 hp 166 kW 2 L Petrol B5204T4 163 hp 120 kW 2 L Petrol B5234T3 239 hp 176 kW 2.3 L Petrol B5234T9 245 hp 180 kW 2.3 L Petrol B5234T3 240 hp 176 kW 2.3 L Petrol B5244S 170 hp 125 kW 2.5 L Petrol B5254S 165 hp 121 kW 2.5 L Petrol B5254S 170 hp 125 kW 2.5 L Petrol B5244T 193 hp 142 kW 2.5 L Petrol B5254T 193 hp 142 kW 2.5 L Petrol B5244T7 200 hp 147 kW 2.4 L Petrol B5254S 170 hp 125 kW 2.5 L Petrol | Front wheel | Convertible / cabrio Coupe / Sports car / Grand tourer / Speedster / Roadster |
| VOLVO | S70 LS | 2.0 2.0 Turbo 2.3 2.3 T-5 2.3 T5 AWD 2.3 Turbo 2.4 2.4 AWD 2.4 T5 AWD 2.4 Turbo 2.5 2.5 Bifuel 2.5 TDI | 1996/11 - 2000/11 | B5202FS 126 hp 93 kW 2 L Petrol B5202S 126 hp 93 kW 2 L Petrol B5204F 143 hp 105 kW 2 L Petrol B5204T2 180 hp 132 kW 2 L Petrol B5204T4 163 hp 120 kW 2 L Petrol B5204T 210 hp 155 kW 2 L Petrol B5204T3 226 hp 166 kW 2 L Petrol B5234FT+ 250 hp 184 kW 2.3 L Petrol B5234T3 239 hp 176 kW 2.3 L Petrol B5234T3 241 hp 177 kW 2.3 L Petrol B5234T4 250 hp 184 kW 2.3 L Petrol B5234T3 241 hp 177 kW 2.3 L Petrol B5234T7 265 hp 195 kW 2.3 L Petrol B5244S 170 hp 125 kW 2.4 L Petrol B5244S 170 hp 125 kW 2.4 L Petrol B5244S2 140 hp 103 kW 2.4 L Petrol B5244SG 140 hp 103 kW 2.4 L Petrol B5254S 170 hp 125 kW 2.4 L Petrol B5244SG 140 hp 103 kW 2.5 L Petrol GB5252S 144 hp 106 kW 2.5 L Petrol B5244T 193 hp 142 kW 2.4 L Petrol B5254T 193 hp 142 kW 2.4 L Petrol B5252FS 144 hp 106 kW 2.5 L Petrol B5254S 165 hp 121 kW 2.5 L Petrol B5254T 193 hp 142 kW 2.4 L Petrol D5252T 140 hp 103 kW 2.5 L Diesel | AWD / 4WD Front wheel | Sedan / Saloon |
| VOLVO | S90 | 2.5 2.9 | 1996/11 - 1998/05 | B6244FS 179 hp 132 kW 2.5 L Petrol B6304G 204 hp 150 kW 2.9 L Petrol B6304S2 180 hp 132 kW 2.9 L Petrol | Rear wheel | Sedan / Saloon |
| VOLVO | V70 LV | 2.0 2.0 Turbo 2.0 Turbo AWD 2.3 AWD 2.3 T-5 2.3 T-5 AWD 2.4 2.4 Bifuel 2.4 Turbo 2.4 Turbo AWD 2.5 2.5 AWD 2.5 Bifuel 2.5 TDI 2.5 Turbo AWD | 1997/01 - 2000/05 | B5202S 126 hp 93 kW 2 L Petrol B5204F 143 hp 105 kW 2 L Petrol B5204T2 180 hp 132 kW 2 L Petrol B5204T4 163 hp 120 kW 2 L Petrol B5204T 211 hp 155 kW 2 L Petrol B5204T3 226 hp 166 kW 2 L Petrol B5204T3 226 hp 166 kW 2 L Petrol B5234T3 239 hp 176 kW 2.3 L Petrol B5234T3 241 hp 177 kW 2.3 L Petrol B5234T7 265 hp 195 kW 2.3 L Petrol B5234T8 265 hp 195 kW 2.3 L Petrol B5244S 170 hp 125 kW 2.4 L Petrol B5244S2 140 hp 103 kW 2.4 L Petrol B5244SG2 140 hp 103 kW 2.4 L Petrol B5254S 170 hp 125 kW 2.4 L Petrol B5244SG 140 hp 103 kW 2.4 L Petrol B5244T 193 hp 142 kW 2.4 L Petrol B5254T 193 hp 142 kW 2.4 L Petrol B5244T 193 hp 142 kW 2.5 L Petrol B5254T 193 hp 142 kW 2.5 L Petrol B5244T2 265 hp 195 kW 2.4 L Petrol B5244T2 265 hp 195 kW 2.5 L Petrol B5252FS 144 hp 106 kW 2.5 L Petrol B5254S 165 hp 121 kW 2.5 L Petrol D5252T 140 hp 103 kW 2.5 L Diesel GB5252S 144 hp 106 kW 2.5 L Petrol | AWD / 4WD Front wheel | Estate / Turnier / Vario / Wagon |
| VOLVO | V70 I LV | 2.0 2.0 Turbo 2.0 Turbo AWD 2.3 AWD 2.3 T-5 2.3 T-5 AWD 2.4 2.4 Bifuel 2.4 Turbo 2.4 Turbo AWD 2.5 2.5 AWD 2.5 Bifuel 2.5 TDI 2.5 Turbo AWD | 1997/01 - 2000/05 | B5202S 126 hp 93 kW 2 L Petrol B5204F 143 hp 105 kW 2 L Petrol B5204T2 180 hp 132 kW 2 L Petrol B5204T4 163 hp 120 kW 2 L Petrol B5204T 211 hp 155 kW 2 L Petrol B5204T3 226 hp 166 kW 2 L Petrol B5204T3 226 hp 166 kW 2 L Petrol B5234T3 239 hp 176 kW 2.3 L Petrol B5234T3 241 hp 177 kW 2.3 L Petrol B5234T7 265 hp 195 kW 2.3 L Petrol B5234T8 265 hp 195 kW 2.3 L Petrol B5244S 170 hp 125 kW 2.4 L Petrol B5244S2 140 hp 103 kW 2.4 L Petrol B5244SG2 140 hp 103 kW 2.4 L Petrol B5254S 170 hp 125 kW 2.4 L Petrol B5244SG 140 hp 103 kW 2.4 L Petrol B5244T 193 hp 142 kW 2.4 L Petrol B5254T 193 hp 142 kW 2.4 L Petrol B5244T 193 hp 142 kW 2.5 L Petrol B5254T 193 hp 142 kW 2.5 L Petrol B5244T2 265 hp 195 kW 2.4 L Petrol B5244T2 265 hp 195 kW 2.5 L Petrol B5252FS 144 hp 106 kW 2.5 L Petrol B5254S 165 hp 121 kW 2.5 L Petrol D5252T 140 hp 103 kW 2.5 L Diesel GB5252S 144 hp 106 kW 2.5 L Petrol | AWD / 4WD Front wheel | Estate / Turnier / Vario / Wagon |
| VOLVO | V70 XC | 2.4 T XC AWD | 1997/11 - 2002/09 | B5254T 193 hp 142 kW 2.4 L Petrol | AWD / 4WD | Estate / Turnier / Vario / Wagon |
| VOLVO | V90 | 2.9 | 1997/01 - 1998/12 | B6304G 204 hp 150 kW 2.9 L Petrol B6304S2 180 hp 132 kW 2.9 L Petrol | Rear wheel | Estate / Turnier / Vario / Wagon |
| VOLVO | XC70 CROSS COUNTRY | 2.4 T XC AWD | 1997/11 - 2002/09 | B5254T 193 hp 142 kW 2.4 L Petrol | AWD / 4WD | Estate / Turnier / Vario / Wagon |
