BREMBO 09.4939.75 (09493975) Brake Disc
BREMBO 09.4939.75 (09493975) Brake Disc
by BREMBOManufacturer Part Number: 09.4939.75 (09493975)
- for article number: 09.4939.75

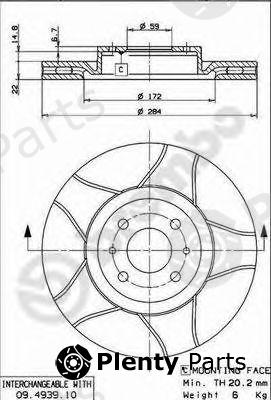

- Brake Disc Type: Internally Vented
- Diameter [mm]: 284
- Brake Disc Thickness [mm]: 22
- Minimum thickness [mm]: 20,2
- Height [mm]: 43,5
- Centering Diameter [mm]: 59
- Number of Holes: 4
- Tightening Torque [Nm]: 98
- Surface: Coated
- Supplementary Article/Info 2: with screws
- For maximum performance in wet conditions, Brembo Max is the affordable grooved and painted disc for the enthusiast.
- Pillar venting technology. The innovative Brembo patented pillar venting technology boosts overall disc cooling and increases up to more than 40% resistance to thermal cracking
- Für Deutschland und Österreich: Kontrollieren Sie bitte auf www.bremboparts.com, ob die für Ihr Fahrzeug erforderliche ABE vorhanden ist.
Product Details
| Brand | BREMBO |
| BREMBO article (MPN) | 09.4939.75 (09493975) |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| CITROEN / PEUGEOT | 424975, 424976 |
| FIAT / LANCIA / ALFA | 46455892, 60806135, 60810404, 60813038, 46403088, 46403959, 46448168, 46758714, 60812422, 82450657, 71769483, 82433918, 82440356, 82451746, 5741446, 51920094, 46445004 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for BREMBO 09.4939.75 (09493975) Brake Disc offered by A.B.S., AP, ATE, BARUM, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, CIFAM, DELPHI, DITAS, Dr!ve+, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., GALFER, GIRLING, HELLA, HELLA PAGID, JP GROUP, JURID, KAGER, KAWE, KRAFT, MAGNETI MARELLI, MALÒ, MAPCO, METELLI, MEYLE, MINTEX, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, REMSA, ROADHOUSE, ROTINGER, sbs, STARLINE, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VILLAR, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 16061 |
| AP | 24242E, X24242 |
| ATE | 24012201471 |
| BARUM | BAR22147 |
| BENDIX | 561387B, 561387BC |
| BLUE PRINT | ADL144319 |
| BORG & BECK | BBD4056 |
| BOSCH | 0986479B49, 0986479S01, 0986479R17, 0986478810 |
| Brake ENGINEERING | DI955101 |
| BRECO | BS7974 |
| BREMBO | 09.4939.14, DP23021, 0949391X, 09493911 |
| CIFAM | 800369C |
| DELPHI | BG2407 |
| DITAS | DFD1020 |
| Dr!ve+ | DP1010110844 |
| FEBI BILSTEIN | 18546 |
| FENOX | TB217012 |
| FERODO | DDF220, DRF220 |
| FOMAR | FO2219 |
| fri.tech. | BD0671 |
| GALFER | B1G22201471 |
| GIRLING | 6025661 |
| HELLA | 8DD355102381, 8DD355102391 |
| HELLA PAGID | 8DD355102381, 8DD355102391 |
| JP GROUP | 3363100509 |
| JURID | 561387J |
| KAGER | 370489 |
| KAWE | 631611 |
| KRAFT | 6043150 |
| MAGNETI MARELLI | 431602040190, 361302040260, 360406000400, 351002020600 |
| MALÒ | 1110205 |
| MAPCO | 15035 |
| METELLI | 230369, 230369C |
| MEYLE | 2155212007 |
| MINTEX | MDC616 |
| OPEN PARTS | BDR101620, BDA101620 |
| OPTIMAL | BS3161 |
| PAGID | 51808 |
| PATRON | PBD2566 |
| PILENGA | V012 |
| REMSA | 631611 |
| ROADHOUSE | 631611 |
| ROTINGER | RT2938, RT2938T5 |
| sbs | 1815209926, 1815202336, 1815209924, 16061, 1815202327, 1815209925, 1815209923, 1815202337, 1815209922, 1815209927 |
| STARLINE | PB2938C |
| SWAG | 70918546 |
| TEMPLIN | 0311011090, 0311011095 |
| TEXTAR | 92053500, 89016300, 92053503 |
| TRISCAN | 812010131C, 812010131 |
| TRUSTING | DF671 |
| TRW | DF2566 |
| VAICO | V2480015, V2480005 |
| VALEO | 186266 |
| VILLAR | 6280124 |
| WOKING | D631611 |
| ZIMMERMANN | 110220920, 110220952 |
Vehicle fitment / BREMBO 09.4939.75 (09493975) Brake Disc compatibility
This product fits the following models: ABARTH 500, ABARTH 500C, CITROËN NEMO, FIAT BRAVO, FIAT BRAVO II, FIAT DOBLO, FIAT DOBLO CARGO, FIAT FIORINO, FIAT IDEA, FIAT LINEA, FIAT QUBO, FIAT RITMO III, FIAT STILO, FIAT STILO MULTI, LANCIA DELTA III, LANCIA LYBRA, LANCIA LYBRA SW, LANCIA MUSA, PEUGEOT BIPPER, PEUGEOT BIPPER TEPEE, etc. See all vehicles this product (BREMBO 09.4939.75 (09493975)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| ABARTH | 500 312 | 1.4 | 2008/08 - | 312A1.000 135 hp 99 kW 1.4 L Petrol 312A3.000 140 hp 103 kW 1.4 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| ABARTH | 500C 312 | 1.4 | 2009/09 - | 312A1.000 135 hp 99 kW 1.4 L Petrol 312A3.000 140 hp 103 kW 1.4 L Petrol | Front wheel | Convertible / cabrio |
| CITROËN | NEMO AA | 1.4 HDi | 2008/02 - | 8HS(DV4TED) 68 hp 50 kW 1.4 L Diesel | Front wheel | Estate / Turnier / Vario / Wagon LCV / Van / Cargo |
| FIAT | BRAVO 198 | 1.6 D Multijet | 2008/03 - | 198A3.000 105 hp 77 kW 1.6 L Diesel | Front wheel | LCV / Van / Cargo |
| FIAT | BRAVO II 198 | 1.4 T-Jet 1.6 D Multijet 1.9 D Multijet | 2006/11 - | 192A1.000 116 hp 85 kW 1.9 L Diesel 192A8.000 120 hp 88 kW 1.9 L Diesel 192B4.000 116 hp 85 kW 1.9 L Diesel 192B5.000 90 hp 66 kW 1.9 L Diesel 198A2.000 120 hp 88 kW 1.6 L Diesel 198A3.000 105 hp 77 kW 1.6 L Diesel 198A6.000 90 hp 66 kW 1.6 L Diesel 844A3.000 105 hp 77 kW 1.6 L Diesel 955A4.000 115 hp 85 kW 1.6 L Diesel 198A4.000 120 hp 88 kW 1.4 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| FIAT | DOBLO 223 119 | 1.3 D Multijet 1.3 JTD 1.4 1.6 16V 1.6 Natural Power 1.9 D Multijet 1.9 JTD 223AXD1A 223AXE1A | 2001/10 - | 182B6.000 103 hp 76 kW 1.6 L Petrol 182B9.000 100 hp 74 kW 1.9 L Diesel 223B2.000 100 hp 74 kW 1.9 L Diesel 186A9.000 120 hp 88 kW 1.9 L Diesel 199A2.000 75 hp 55 kW 1.3 L Diesel 223A7.000 105 hp 77 kW 1.9 L Diesel 223B1.000 105 hp 77 kW 1.9 L Diesel 223A9.000 84 hp 62 kW 1.3 L Diesel 350A1.000 77 hp 57 kW 1.4 L Petrol | Front wheel | MPV / Van / Minivan |
| FIAT | DOBLO CARGO 223 | 1.3 D Multijet 1.3 JTD 16V 1.3 JTD 16V Multijet 1.4 1.9 JTD 1.9 JTD Multijet 223ZXE1A | 2001/10 - | 182B9.000 100 hp 74 kW 1.9 L Diesel 186A9.000 120 hp 88 kW 1.9 L Diesel 188A8.000 70 hp 51 kW 1.3 L Diesel 188A9.000 70 hp 51 kW 1.3 L Diesel 199A2.000 75 hp 55 kW 1.3 L Diesel 223A7.000 105 hp 77 kW 1.9 L Diesel 223B1.000 105 hp 77 kW 1.9 L Diesel 223A9.000 84 hp 62 kW 1.3 L Diesel 350A1.000 77 hp 57 kW 1.4 L Petrol | Front wheel | LCV / Van / Cargo / Small truck |
| FIAT | FIORINO 225 | 1.3 D Multijet | 2009/07 - | 199B1.000 95 hp 70 kW 1.3 L Diesel 330A1.000 95 hp 70 kW 1.3 L Diesel | Front wheel | LCV / Van / Cargo / Small truck |
| FIAT | IDEA 350 | 1.3 D Multijet 1.6 D Multijet 1.8 1.9 JTD | 2004/01 - | 188B2.000 101 hp 74 kW 1.9 L Diesel 199A3.000 90 hp 66 kW 1.3 L Diesel 199B1.000 95 hp 70 kW 1.3 L Diesel 350A2.000 120 hp 88 kW 1.6 L Diesel 93313090-7U 110 hp 81 kW 1.8 L Petrol | Front wheel | MPV / Van / Minivan |
| FIAT | LINEA 323 | 1.4 T-Jet 1.6 1.6 D Multijet 1.9 16V | 2007/09 - | 109 hp 80 kW 1.6 L Petrol 128 hp 94 kW 1.9 L Petrol 198A3.000 105 hp 77 kW 1.6 L Diesel 198A4.000 120 hp 88 kW 1.4 L Petrol | Front wheel | Sedan / Saloon |
| FIAT | QUBO 225 | 1.3 D Multijet | 2010/07 - | 199B1.000 95 hp 70 kW 1.3 L Diesel | Front wheel | MPV / Van / Minivan |
| FIAT | RITMO III 198 | 1.4 T-Jet 1.6 D Multijet 1.9 D Multijet | 2006/11 - | 192A1.000 116 hp 85 kW 1.9 L Diesel 192A8.000 120 hp 88 kW 1.9 L Diesel 192B4.000 116 hp 85 kW 1.9 L Diesel 192B5.000 90 hp 66 kW 1.9 L Diesel 198A2.000 120 hp 88 kW 1.6 L Diesel 198A3.000 105 hp 77 kW 1.6 L Diesel 198A6.000 90 hp 66 kW 1.6 L Diesel 844A3.000 105 hp 77 kW 1.6 L Diesel 955A4.000 115 hp 85 kW 1.6 L Diesel 198A4.000 120 hp 88 kW 1.4 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| FIAT | STILO 192 | 1.8 16V 1.9 D Multijet 1.9 JTD 192AXS1B 192BXS1B 192XC1A 192XE1A 192XF1A | 2001/10 - 2006/11 | 192A1.000 115 hp 85 kW 1.9 L Diesel 937A7.000 115 hp 85 kW 1.9 L Diesel 192A3.000 80 hp 59 kW 1.9 L Diesel 192A4.000 133 hp 98 kW 1.8 L Petrol 192A8.000 120 hp 88 kW 1.9 L Diesel 192A9.000 100 hp 74 kW 1.9 L Diesel 192B5.000 90 hp 66 kW 1.9 L Diesel | Front wheel | Hatchback / Sportback / Sport hatch |
| FIAT | STILO MULTI 192 | 1.4 16V 1.6 16V 1.8 16V 1.9 D 1.9 D Multijet 1.9 JTD | 2003/01 - 2008/08 | 182B6.000 103 hp 76 kW 1.6 L Petrol 192B3.000 105 hp 77 kW 1.6 L Petrol 192A1.000 115 hp 85 kW 1.9 L Diesel 192A3.000 80 hp 59 kW 1.9 L Diesel 937A7.000 115 hp 85 kW 1.9 L Diesel 192A4.000 133 hp 98 kW 1.8 L Petrol 192A8.000 120 hp 88 kW 1.9 L Diesel 192A9.000 100 hp 74 kW 1.9 L Diesel 192B5.000 90 hp 66 kW 1.9 L Diesel 843A1.000 95 hp 70 kW 1.4 L Petrol | Front wheel | Estate / Turnier / Vario / Wagon |
| LANCIA | DELTA III 844 | 1.4 1.6 D Multijet | 2008/08 - 2014/08 | 198A2.000 120 hp 88 kW 1.6 L Diesel 955A4.000 116 hp 85 kW 1.6 L Diesel 198A4.000 120 hp 88 kW 1.4 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| LANCIA | LYBRA 839AX | 1.6 1.6 16V 1.8 16V 1.9 JTD 2.0 20V 2.4 JTD 839AXA1A 839AXB1A 839AXG1A 839AXC11 839AXC1A 839AXD1A 839AXE1A 839AXH1A 839AXI1A 839AXL1A | 1999/07 - 2005/10 | 182A4.000 103 hp 76 kW 1.6 L Petrol 182B6.000 103 hp 76 kW 1.6 L Petrol 182B7.000 154 hp 113 kW 2 L Petrol 185A8.000 150 hp 110 kW 2 L Petrol 839A4.000 131 hp 96 kW 1.8 L Petrol 839A7.000 131 hp 96 kW 1.8 L Petrol 839A9.000 131 hp 96 kW 1.8 L Petrol 839A5.000 135 hp 99 kW 2.4 L Diesel AR32501 135 hp 99 kW 2.4 L Diesel 839A6.000 140 hp 103 kW 2.4 L Diesel 841C.000 150 hp 110 kW 2.4 L Diesel 937A2.000 116 hp 85 kW 1.9 L Diesel AR32302 105 hp 77 kW 1.9 L Diesel AR37101 110 hp 81 kW 1.9 L Diesel | Front wheel | Sedan / Saloon |
| LANCIA | LYBRA SW 839BX | 1.6 1.6 16V 1.8 16V 1.9 JTD 2.0 20V 2.4 JTD 839BXA1A 839BXB1A 839BXG1A 839BXC11 839BXC1A 839BXD1A 839BXE1A 839BXH1A 839BXI1A 839BXL1A | 1999/07 - 2005/10 | 182A4.000 103 hp 76 kW 1.6 L Petrol 182B6.000 103 hp 76 kW 1.6 L Petrol 182B7.000 154 hp 113 kW 2 L Petrol 185A8.000 150 hp 110 kW 2 L Petrol 839A4.000 131 hp 96 kW 1.8 L Petrol 839A7.000 131 hp 96 kW 1.8 L Petrol 839A5.000 135 hp 99 kW 2.4 L Diesel AR32501 135 hp 99 kW 2.4 L Diesel 839A6.000 140 hp 103 kW 2.4 L Diesel 841C.000 150 hp 110 kW 2.4 L Diesel 937A2.000 116 hp 85 kW 1.9 L Diesel AR32302 105 hp 77 kW 1.9 L Diesel AR37101 110 hp 81 kW 1.9 L Diesel | Front wheel | Estate / Turnier / Vario / Wagon |
| LANCIA | MUSA 350 | 1.3 D Multijet 1.6 D Multijet 1.9 D Multijet | 2004/10 - 2012/09 | 188B2.000 101 hp 74 kW 1.9 L Diesel 199A3.000 90 hp 66 kW 1.3 L Diesel 199B1.000 95 hp 70 kW 1.3 L Diesel 350A2.000 116 hp 85 kW 1.6 L Diesel 350A2.000 120 hp 88 kW 1.6 L Diesel 350A3.000 116 hp 85 kW 1.6 L Diesel | Front wheel | MPV / Van / Minivan |
| PEUGEOT | BIPPER AA | 1.4 HDi | 2008/02 - | 8HS(DV4TED) 68 hp 50 kW 1.4 L Diesel | Front wheel | LCV / Van / Cargo |
| PEUGEOT | BIPPER TEPEE | 1.4 HDi | 2008/04 - | 8HS(DV4TED) 68 hp 50 kW 1.4 L Diesel | Front wheel | Estate / Turnier / Vario / Wagon |
