BREMBO 09.5568.76 (09556876) Brake Disc
BREMBO 09.5568.76 (09556876) Brake Disc
by BREMBOManufacturer Part Number: 09.5568.76 (09556876)
- for article number: 09.5568.76

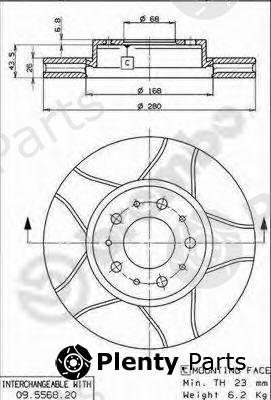

- Brake Disc Type: Internally Vented
- Diameter [mm]: 280
- Brake Disc Thickness [mm]: 26
- Minimum thickness [mm]: 23
- Height [mm]: 50,3
- Centering Diameter [mm]: 68
- Number of Holes: 5
- Tightening Torque [Nm]: 110
- Surface: Coated
- Supplementary Article/Info 2: with screws
- For maximum performance in wet conditions, Brembo Max is the affordable grooved and painted disc for the enthusiast.
- Für Deutschland und Österreich: Kontrollieren Sie bitte auf www.bremboparts.com, ob die für Ihr Fahrzeug erforderliche ABE vorhanden ist.
Product Details
| Brand | BREMBO |
| BREMBO article (MPN) | 09.5568.76 (09556876) |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for VOLVO vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| VOLVO | 271788, 2717880, 271788-2, 9140759, 9140759-3, 31262092 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for BREMBO 09.5568.76 (09556876) Brake Disc offered by A.B.S., AP, ATE, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, DELPHI, FEBI BILSTEIN, FERODO, FOMAR, fri.tech., GIRLING, HELLA, HELLA PAGID, JP GROUP, JURID, KAGER, KAWE, KRAFT, LUCAS ELECTRICAL, MAGNETI MARELLI, MAPCO, METELLI, MINTEX, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, sbs, STARLINE, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VALEO, VILLAR, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 16236 |
| AP | 24453E, X24453 |
| ATE | 24.0126-0102.1, 24112601021 |
| BARUM | BAR26102 |
| BENDIX | 561866B, 561866BC |
| BORG & BECK | BBD5051 |
| BOSCH | 0986478603 |
| Brake ENGINEERING | DI955514 |
| BRECO | BV8144, BS8144 |
| BREMBO | 09.5568.24, 09.5568.21 |
| DELPHI | BG2841 |
| FEBI BILSTEIN | 11454 |
| FERODO | DDF605, DRF605 |
| FOMAR | FO2305 |
| fri.tech. | BD0395 |
| GIRLING | 6026711 |
| HELLA | 8DD355103-671, 8DD355103681, 8DD355103682 |
| HELLA PAGID | 8DD355103671, 8DD355103-681, 8DD355103682 |
| JP GROUP | 4963100409 |
| JURID | 561866J |
| KAGER | 370041 |
| KAWE | 641010 |
| KRAFT | 6046380 |
| LUCAS ELECTRICAL | DF2671 |
| MAGNETI MARELLI | 353616024250, 360406051400, 360406051401 |
| MAPCO | 15964 |
| METELLI | 230375 |
| MINTEX | MDC825 |
| OPEN PARTS | BDA161420, BDRS161425 |
| OPTIMAL | BS8058, BS8058C, BS4100C, BS-4100 |
| PAGID | 54018 |
| PATRON | PBD2671 |
| PILENGA | V164 |
| QUINTON HAZELL | BDC3912 |
| REMSA | 641010 |
| ROADHOUSE | 6410.10 |
| ROTINGER | RT2234, RT2234T5 |
| sbs | 16236, 1815203647, 1815204829, 1815203637 |
| STARLINE | PB2234C |
| SWAG | 55911454 |
| TEMPLIN | 0311029625, 0311029620 |
| TEXTAR | 92066705, 92066703, 92066700, 98200066701 |
| TRISCAN | 812027119 |
| TRUSTING | DF395 |
| TRW | DF2671 |
| VALEO | 186526 |
| VILLAR | 6281614 |
| WOKING | D641010 |
| ZIMMERMANN | 610119500, 610119520, 610119552, 610119570 |
Vehicle fitment / BREMBO 09.5568.76 (09556876) Brake Disc compatibility
This product fits the following models: VOLVO 850, VOLVO 960 II, VOLVO 960II, VOLVO C70 I, VOLVO S70, VOLVO S90, VOLVO V70 , VOLVO V70 I, VOLVO V90, etc. See all vehicles this product (BREMBO 09.5568.76 (09556876)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| VOLVO | 850 LS LW | 2.0 2.0 Turbo 2.3 2.3 T5 2.3 T5 R 2.3 T5-R 2.3 Turbo R 2.4 GLE 2.5 2.5 AWD 2.5 TDI | 1991/06 - 1997/10 | B5202S 126 hp 93 kW 2 L Petrol B5204F 143 hp 105 kW 2 L Petrol B5204FT 210 hp 155 kW 2 L Petrol B5204T 210 hp 155 kW 2 L Petrol B5204T2 179 hp 132 kW 2 L Petrol B5204FT 210 hp 155 kW 2 L Petrol B5204T 210 hp 155 kW 2 L Petrol B5204T2 180 hp 132 kW 2 L Petrol B5234FS 144 hp 106 kW 2.3 L Petrol B5234FT 226 hp 166 kW 2.3 L Petrol B5234T2 239 hp 176 kW 2.3 L Petrol B5234T4 250 hp 184 kW 2.3 L Petrol B5234T5 241 hp 177 kW 2.3 L Petrol B5252 140 hp 103 kW 2.5 L Petrol B5252FS 144 hp 106 kW 2.5 L Petrol B5254S 170 hp 125 kW 2.5 L Petrol B5254T 193 hp 142 kW 2.4 L Petrol B5254T 193 hp 142 kW 2.5 L Petrol D5252T 140 hp 103 kW 2.5 L Diesel | AWD / 4WD Front wheel | Estate / Turnier / Vario / Wagon Sedan / Saloon |
| VOLVO | 960 II 964 965 | 2.5 2.9 | 1994/07 - 1996/12 | B6254S 170 hp 125 kW 2.5 L Petrol B6304S 204 hp 150 kW 2.9 L Petrol | Rear wheel | Estate / Turnier / Vario / Wagon Sedan / Saloon |
| VOLVO | 960II 964 965 | 2.5 2.9 | 1994/07 - 1996/12 | B6254S 170 hp 125 kW 2.5 L Petrol B6304S 204 hp 150 kW 2.9 L Petrol | Rear wheel | Estate / Turnier / Vario / Wagon Sedan / Saloon |
| VOLVO | C70 I | 2.0 2.0 T 2.3 T-5 2.3 T5 2.4 T 2.5 2.5 T | 1997/03 - 2005/10 | B5204T2 180 hp 132 kW 2 L Petrol B5204T3 226 hp 166 kW 2 L Petrol B5204T4 163 hp 120 kW 2 L Petrol B5234T3 239 hp 176 kW 2.3 L Petrol B5234T9 245 hp 180 kW 2.3 L Petrol B5234T3 240 hp 176 kW 2.3 L Petrol B5244S 170 hp 125 kW 2.5 L Petrol B5254S 165 hp 121 kW 2.5 L Petrol B5254S 170 hp 125 kW 2.5 L Petrol B5244T 193 hp 142 kW 2.5 L Petrol B5254T 193 hp 142 kW 2.5 L Petrol B5244T7 200 hp 147 kW 2.4 L Petrol B5254S 170 hp 125 kW 2.5 L Petrol | Front wheel | Convertible / cabrio Coupe / Sports car / Grand tourer / Speedster / Roadster |
| VOLVO | S70 LS | 2.0 2.0 Turbo 2.3 2.3 T-5 2.3 T5 AWD 2.3 Turbo 2.4 2.4 AWD 2.4 Blu-Fuel 2.4 T5 AWD 2.4 Turbo 2.5 2.5 Bifuel 2.5 TDI 2.5 TDi AWD | 1996/11 - 2000/11 | B5202FS 126 hp 93 kW 2 L Petrol B5202S 126 hp 93 kW 2 L Petrol B5204F 143 hp 105 kW 2 L Petrol B5204T2 180 hp 132 kW 2 L Petrol B5204T4 163 hp 120 kW 2 L Petrol B5204T 210 hp 155 kW 2 L Petrol B5204T3 226 hp 166 kW 2 L Petrol B5234FT+ 250 hp 184 kW 2.3 L Petrol B5234T3 239 hp 176 kW 2.3 L Petrol B5234T3 241 hp 177 kW 2.3 L Petrol B5234T4 250 hp 184 kW 2.3 L Petrol B5234T3 241 hp 177 kW 2.3 L Petrol B5234T7 265 hp 195 kW 2.3 L Petrol B5244S 170 hp 125 kW 2.4 L Petrol B5244S2 140 hp 103 kW 2.4 L Petrol B5244SG 140 hp 103 kW 2.4 L Petrol B5254S 170 hp 125 kW 2.4 L Petrol B5244S 170 hp 125 kW 2.4 L Petrol B5244S2 140 hp 103 kW 2.4 L Petrol B5252FS 144 hp 106 kW 2.4 L Petrol B5254S 165 hp 121 kW 2.4 L Petrol B5244S2 140 hp 103 kW 2.4 L Petrol B5244SG 140 hp 103 kW 2.4 L Petrol B5244SG 140 hp 103 kW 2.5 L Petrol GB5252S 144 hp 106 kW 2.5 L Petrol B5244T 193 hp 142 kW 2.4 L Petrol B5254T 193 hp 142 kW 2.4 L Petrol B5252FS 144 hp 106 kW 2.5 L Petrol B5254S 165 hp 121 kW 2.5 L Petrol B5254T 193 hp 142 kW 2.4 L Petrol D5252T 140 hp 103 kW 2.5 L Diesel | AWD / 4WD Front wheel | Sedan / Saloon |
| VOLVO | S90 | 2.5 2.9 | 1996/11 - 1998/10 | B6244FS 179 hp 132 kW 2.5 L Petrol B6254FS 170 hp 125 kW 2.5 L Petrol B6304G 204 hp 150 kW 2.9 L Petrol B6304S2 180 hp 132 kW 2.9 L Petrol | Rear wheel | Sedan / Saloon |
| VOLVO | V70 LV | 2.0 2.0 Turbo 2.0 Turbo AWD 2.3 2.3 AWD 2.3 T-5 2.3 T-5 AWD 2.3 T AWD 2.3 Turbo 2.4 2.4 AWD 2.4 Bifuel 2.4 Turbo 2.4 Turbo AWD 2.5 2.5 AWD 2.5 Bifuel 2.5 TDI 2.5 TDi AWD 2.5 Turbo AWD | 1996/11 - 2000/11 | B5202S 126 hp 93 kW 2 L Petrol B5204F 143 hp 105 kW 2 L Petrol B5204T2 180 hp 132 kW 2 L Petrol B5204T4 163 hp 120 kW 2 L Petrol B5204T 211 hp 155 kW 2 L Petrol B5204T3 226 hp 166 kW 2 L Petrol B5204T3 226 hp 166 kW 2 L Petrol B5234FT+ 250 hp 184 kW 2.3 L Petrol B5234FT+ 250 hp 184 kW 2.3 L Petrol B5234T4 250 hp 184 kW 2.3 L Petrol B5234T3 239 hp 176 kW 2.3 L Petrol B5234T3 241 hp 177 kW 2.3 L Petrol B5234T3 241 hp 177 kW 2.3 L Petrol B5234T7 265 hp 195 kW 2.3 L Petrol B5234T8 265 hp 195 kW 2.3 L Petrol B5244S 170 hp 125 kW 2.4 L Petrol B5244S2 140 hp 103 kW 2.4 L Petrol B5244SG2 140 hp 103 kW 2.4 L Petrol B5254S 170 hp 125 kW 2.4 L Petrol B5244SG 140 hp 103 kW 2.4 L Petrol B5244T 193 hp 142 kW 2.4 L Petrol B5254T 193 hp 142 kW 2.4 L Petrol B5244T 193 hp 142 kW 2.5 L Petrol B5254T 193 hp 142 kW 2.5 L Petrol B5244T2 265 hp 195 kW 2.4 L Petrol B5244T2 265 hp 195 kW 2.5 L Petrol B5252FS 144 hp 106 kW 2.5 L Petrol B5254S 165 hp 121 kW 2.5 L Petrol B5254S 165 hp 121 kW 2.4 L Petrol D5252T 140 hp 103 kW 2.5 L Diesel GB5252S 144 hp 106 kW 2.5 L Petrol | AWD / 4WD Front wheel | Estate / Turnier / Vario / Wagon |
| VOLVO | V70 I LV | 2.0 2.0 Turbo 2.0 Turbo AWD 2.3 2.3 AWD 2.3 T-5 2.3 T-5 AWD 2.3 T AWD 2.3 Turbo 2.4 2.4 AWD 2.4 Bifuel 2.4 Turbo 2.4 Turbo AWD 2.5 2.5 AWD 2.5 Bifuel 2.5 TDI 2.5 TDi AWD 2.5 Turbo AWD | 1996/11 - 2000/11 | B5202S 126 hp 93 kW 2 L Petrol B5204F 143 hp 105 kW 2 L Petrol B5204T2 180 hp 132 kW 2 L Petrol B5204T4 163 hp 120 kW 2 L Petrol B5204T 211 hp 155 kW 2 L Petrol B5204T3 226 hp 166 kW 2 L Petrol B5204T3 226 hp 166 kW 2 L Petrol B5234FT+ 250 hp 184 kW 2.3 L Petrol B5234FT+ 250 hp 184 kW 2.3 L Petrol B5234T4 250 hp 184 kW 2.3 L Petrol B5234T3 239 hp 176 kW 2.3 L Petrol B5234T3 241 hp 177 kW 2.3 L Petrol B5234T3 241 hp 177 kW 2.3 L Petrol B5234T7 265 hp 195 kW 2.3 L Petrol B5234T8 265 hp 195 kW 2.3 L Petrol B5244S 170 hp 125 kW 2.4 L Petrol B5244S2 140 hp 103 kW 2.4 L Petrol B5244SG2 140 hp 103 kW 2.4 L Petrol B5254S 170 hp 125 kW 2.4 L Petrol B5244SG 140 hp 103 kW 2.4 L Petrol B5244T 193 hp 142 kW 2.4 L Petrol B5254T 193 hp 142 kW 2.4 L Petrol B5244T 193 hp 142 kW 2.5 L Petrol B5254T 193 hp 142 kW 2.5 L Petrol B5244T2 265 hp 195 kW 2.4 L Petrol B5244T2 265 hp 195 kW 2.5 L Petrol B5252FS 144 hp 106 kW 2.5 L Petrol B5254S 165 hp 121 kW 2.5 L Petrol B5254S 165 hp 121 kW 2.4 L Petrol D5252T 140 hp 103 kW 2.5 L Diesel GB5252S 144 hp 106 kW 2.5 L Petrol | AWD / 4WD Front wheel | Estate / Turnier / Vario / Wagon |
| VOLVO | V90 | 2.5 2.9 | 1996/11 - 1998/12 | B6244FS 179 hp 132 kW 2.5 L Petrol B6254FS 170 hp 125 kW 2.5 L Petrol B6304G 204 hp 150 kW 2.9 L Petrol B6304S2 180 hp 132 kW 2.9 L Petrol | Rear wheel | Estate / Turnier / Vario / Wagon |
