BREMBO 09.5570.75 (09557075) Brake Disc

BREMBO part 09.5570.75 (09557075) Brake Disc
BREMBO part 09.5570.75 (09557075) Brake Disc

BREMBO 09.5570.75 (09557075) Brake Disc

by BREMBO

Manufacturer Part Number: 09.5570.75 (09557075)

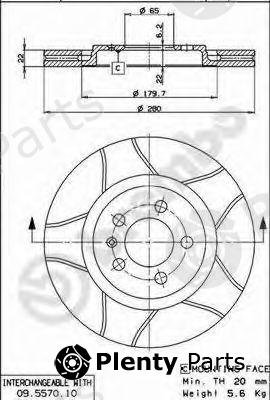

Сharacteristics:
  • for article number: 09.5570.75
  • Brake Disc Type: Internally Vented
  • Diameter [mm]: 280
  • Brake Disc Thickness [mm]: 22
  • Minimum thickness [mm]: 20
  • Height [mm]: 28,2
  • Centering Diameter [mm]: 65
  • Number of Holes: 5
  • Tightening Torque [Nm]: 120
  • Surface: Coated
  • Supplementary Article/Info 2: with screws
  • For maximum performance in wet conditions, Brembo Max is the affordable grooved and painted disc for the enthusiast.
  • Für Deutschland und Österreich: Kontrollieren Sie bitte auf www.bremboparts.com, ob die für Ihr Fahrzeug erforderliche ABE vorhanden ist.

Product Details

BrandBREMBO
BREMBO article (MPN)09.5570.75 (09557075)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturerOEM reference numbers
VAG1H0615301A, 1H0615301

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for BREMBO 09.5570.75 (09557075) Brake Disc offered by A.B.S., AP, ATE, AUTOMEGA, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, DELPHI, FEBI BILSTEIN, FERODO, FOMAR, fri.tech., GIRLING, HANS PRIES, HELLA, HELLA PAGID, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KRAFT, LUCAS ELECTRICAL, MAGNETI MARELLI, MAPCO, METELLI, MEYLE, MINTEX, NIBK, OPTIMAL, PAGID, PATRON, PILENGA, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, sbs, STARLINE, SWAG, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, VALEO, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.16080S
AP24358, X24358
ATE24.0322-0100.1, 24112201001, 24.0122-0100.1
AUTOMEGA3061503011H0A
BARUMBAR22100
BENDIX561619BC, 561619B
BORG & BECKBBD5040
BOSCH0986478542
Brake ENGINEERINGDI955168
BRECOBS8052
BREMBODP85034, 09.5570.10
DELPHIBG2713, BG713
FEBI BILSTEIN06548
FERODODRF332, DDF332
FOMARFO2097
fri.tech.BD0307
GIRLING6026191
HANS PRIES103071
HELLA8DD355102741, 8DD355122402
HELLA PAGID8DD355102741, 8DD355122402
JP GROUP1163100909, 1163100900
JURID561619J
KAGER371414, 370436
KAMOKA103223
KAWE6293.10
KRAFT6040115
LUCAS ELECTRICALDF2619
MAGNETI MARELLI431602040170, 353615820240, 360406048600
MAPCO15833
METELLI230242
MEYLE1155211007/PD
MINTEXMDC800
NIBKRN1044
OPTIMALBS2930
PAGID53937
PATRONPBD2619
PILENGAV154
QUINTON HAZELLBDC3911
REMSA629310
ROADHOUSE629310
ROTINGERRT2082T5, RT20102, RT2082, RT20102T5
sbs16080, 1815204735, 1815202528
STARLINEPB2082C
SWAG32906548
TEMPLIN0311030060
TEXTAR98200061401, 92057100, 98200057101
TRUSTINGDF307
TRWDF2619
VAICOV1080061
VALEO186313
VILLAR6280657
WOKINGD629310
ZIMMERMANN600160600, 600160620, 600.1606.52

Vehicle fitment / BREMBO 09.5570.75 (09557075) Brake Disc compatibility

This product fits the following models: SEAT TOLEDO  , SEAT TOLEDO I, VW CORRADO, VW GOLF III, VW GOLFIII, VW JETTA III, VW PASSAT, VW VENTO, etc. See all vehicles this product (BREMBO 09.5570.75 (09557075)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
SEATTOLEDO
1L
2.0 i 16V
1993/11 - 1999/03ABF 150 hp 110 kW 2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
SEATTOLEDO I
1L
2.0 i 16V
1993/11 - 1999/03ABF 150 hp 110 kW 2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
VWCORRADO
53I
2.9 VR6
1991/08 - 1995/12ABV 190 hp 140 kW 2.9 L Petrol
Front wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
VWGOLF III
1H1
1H5
2.0
2.0 GTI 16V
2.0 Syncro
2.8 VR6
1991/11 - 1999/042E 115 hp 85 kW 2 L Petrol
ABA 115 hp 85 kW 2 L Petrol
ADY 115 hp 85 kW 2 L Petrol
AGG 115 hp 85 kW 2 L Petrol
AKR 115 hp 85 kW 2 L Petrol
2E 115 hp 85 kW 2 L Petrol
ADY 115 hp 85 kW 2 L Petrol
AGG 115 hp 85 kW 2 L Petrol
AKR 115 hp 85 kW 2 L Petrol
AAA 174 hp 128 kW 2.8 L Petrol
ABF 150 hp 110 kW 2 L Petrol
AGG 115 hp 85 kW 2 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
VWGOLFIII
1H1
1H5
2.0
2.0 GTI 16V
2.0 Syncro
2.8 VR6
1991/11 - 1999/042E 115 hp 85 kW 2 L Petrol
ABA 115 hp 85 kW 2 L Petrol
ADY 115 hp 85 kW 2 L Petrol
AGG 115 hp 85 kW 2 L Petrol
AKR 115 hp 85 kW 2 L Petrol
2E 115 hp 85 kW 2 L Petrol
ADY 115 hp 85 kW 2 L Petrol
AGG 115 hp 85 kW 2 L Petrol
AKR 115 hp 85 kW 2 L Petrol
AAA 174 hp 128 kW 2.8 L Petrol
ABF 150 hp 110 kW 2 L Petrol
AGG 115 hp 85 kW 2 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
VWJETTA III
1H2
2.0
2.0 GL
2.8 VR6
1991/11 - 1998/092E 115 hp 85 kW 2 L Petrol
ADY 115 hp 85 kW 2 L Petrol
AGG 115 hp 85 kW 2 L Petrol
AKR 115 hp 85 kW 2 L Petrol
AAA 163 hp 120 kW 2.8 L Petrol
AAA 174 hp 128 kW 2.8 L Petrol
AAC 84 hp 62 kW 2 L Petrol
Front wheel
Sedan / Saloon
VWPASSAT
3A2
35I
3A5
35I
1.9 TDI
2.8 VR6
1991/06 - 1997/05AAA 174 hp 128 kW 2.8 L Petrol
AFN 110 hp 81 kW 1.9 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
VWVENTO
1H2
2.0
2.0 GL
2.8 VR6
1991/11 - 1998/092E 115 hp 85 kW 2 L Petrol
ADY 115 hp 85 kW 2 L Petrol
AGG 115 hp 85 kW 2 L Petrol
AKR 115 hp 85 kW 2 L Petrol
AAA 163 hp 120 kW 2.8 L Petrol
AAA 174 hp 128 kW 2.8 L Petrol
AAC 84 hp 62 kW 2 L Petrol
Front wheel
Sedan / Saloon
